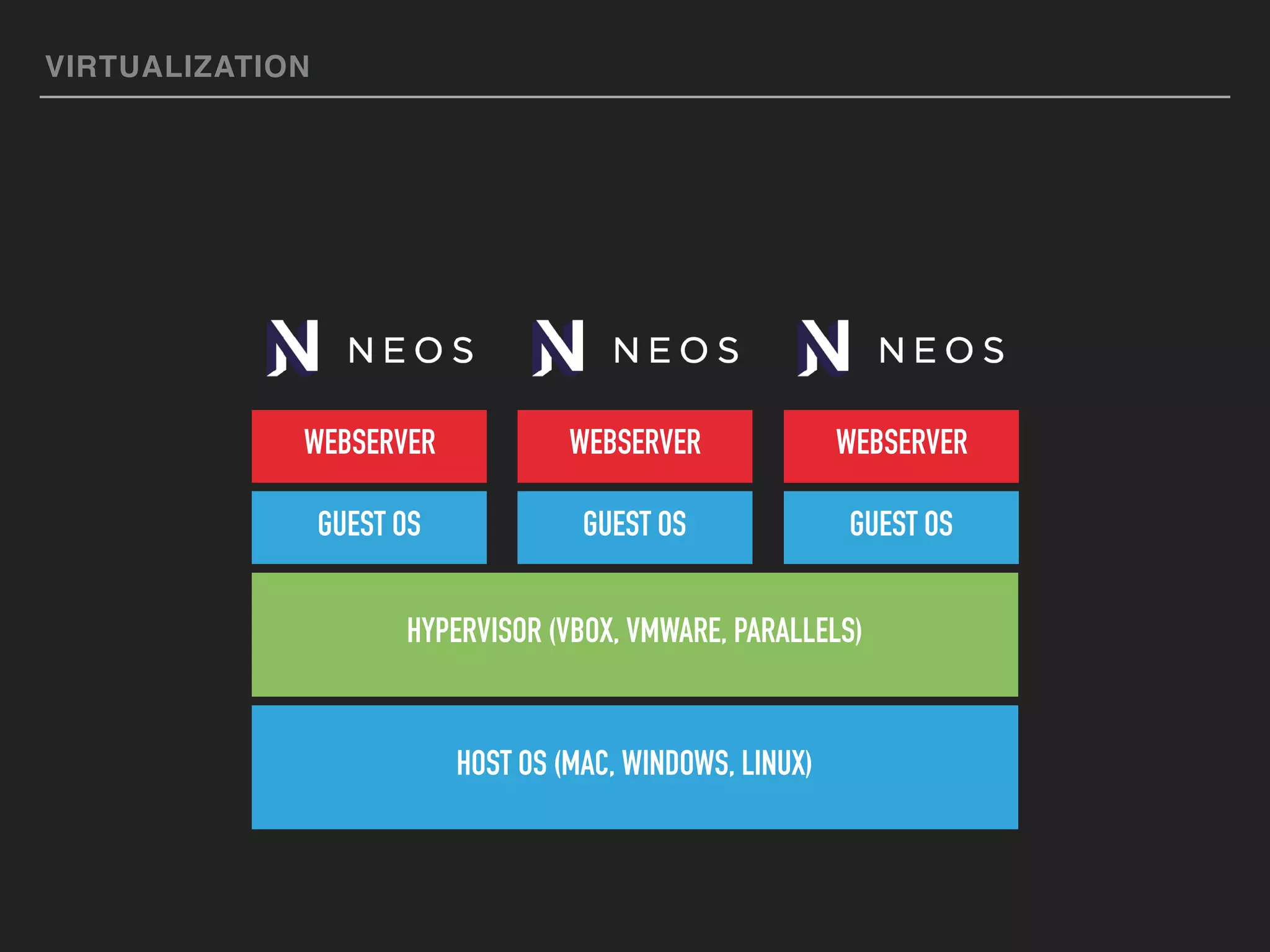

VIRTUALIZATION
HOST OS (MAC, WINDOWS, LINUX)
HYPERVISOR (VBOX, VMWARE, PARALLELS)
GUEST OS GUEST OS GUEST OS
WEBSERVER WEBSERVER WEBSERVER
DRAWBACKS
▸ Full guest OS (lots of software you don't need)
▸ Hardware simulation
▸ CPU (Scheduling, Protection ring)
▸ Memory (Virtual memory mapping)
▸ Disk
▸ Boot time
▸ Installation time
DOCKER
HOST OS (MAC, WINDOWS, LINUX)
CONTAINER ENGINE
WEBSERVER WEBSERVER WEBSERVER
DOCKER
HOST OS (MAC, WINDOWS, LINUX)
CONTAINER ENGINE
WEBSERVER
UBUNTU 16.04
NGINX
PHP7-FPM
DATABASE
CENTOS
MARIADB 10.2
ELASTICSEARCH
DEBIAN 9
JAVA JRE 8
MAILHOG
DEBIAN 9
JAVA JRE 7
DOCKER CONTAINER
▸ A running instance of an image
▸ Has its own disk
▸ Has its own network
▸ Can expose ports to the host
▸ Runs a single process
▸ Resources (CPU, Memory) directly from the host
▸ Is not persistent!
DOCKER IMAGE
▸ Is based on another docker image
▸ Contains a projection of the complete filesystem
▸ Can be versionized
▸ Share the same layers (binary) with their base images
▸ Easy exchangeable
DOCKER IMAGE LAYERS
FROM UBUNTU:16.04
RUN APT-GET UPDATE -YQQ && APT-GET INSTALL -YQQ APACHE2 PHP7-FPM
ccc7a11d65b1
49d517c5b50d
COPY ./DIST /VAR/WWW/HTML0f0d0241c8b6
c2c10f5d0244 IMAGE SOMEIMAGE
docker build -t someimage .
DOCKER COMPOSE
app:
image: hhoechtl/meetup:neos
links:
- mysql
ports:
- "80:80"
- "443:443"
- "10022:22"
volumes:
- /opt/Data/Persistence:/app/Data/Persistence
- logs:/app/Data/Logs
env_file:
- etc/environment.yml
- etc/environment.production.yml
mysql:
image: mariadb:10
volumes:
- db:/var/lib/mysql
env_file:
- etc/environment.yml
- etc/environment.production.yml
Servicename (also DNS internally)
Host port
Container internal port
Container internal filesystem
Host filesystem
Engine volume
KERNEL
WRITABLE CONTAINER APP
WEBDEVOPS/PHP-
NGINX:UBUNTU-16.04
WRITABLE CONTAINER DB
CENTOS - IMAGE
ADD MYSQL - IMAGEPort 3306
Port 80
/User/hhoechtl/workspace/customer-neos/Data/Persistence
/app/Data/Persistence
/app/Packages/Sites/Onedrop.Customer
/User/hhoechtl/workspace/customer-neos/Packages/Sites/Onedrop.Customer
CONFIGURE DOCKERIZED SOFTWARE
▸ Handled by environment variables
▸ Variables are declared during runtime
▸ Default variables maybe encoded in the image
▸ Overwrite configuration files via mounted files
NEOS
▸ ENV FLOW_CONTEXT to choose configuration
▸ ENV FLOW_PATH_TEMPORARY_BASE to change tempdir
▸ Dev context does scanning over all PHP files => I/O problem
NEOS
NEOS
▸ Based on Docker for OSX
▸ Docker-Sync/Unison (Rsync files into running container, needs additional
configuration in your project)
▸ Based on a VM (docker-machine or other)
▸ Dinghy (Wraps docker-machine and adds NFS, FSEvents, Proxy)
▸ Teracy-Dev (Unified solution with vagrant and gatling-rsync)
NEOS DEV I/O OSX
NEOS
▸ Avoid mounting all files into your PHP container
▸ Copy full project in your dev-container, only mount Site-
package
▸ Prepare a frontend building image and use that in your
environment
▸ Use mailhog to test emails
NEOS DOCKER TIPS
THINGS YOU SHOULD LOOK AT
▸ Dinghy HTTP-Proxy https://github.com/codekitchen/dinghy
▸ Project website https://webdevops.io/
▸ Get support on slack https://webdevops.io/slack/
▸ Teracy https://github.com/teracyhq/dev
▸ Docker Sync http://docker-sync.io/
