1. SUBMITTED BY: AMAR ASHISH
SUBMITTED TO: Dr. K.V. MOHANA COURSE: MBA(PSM)
RAO ROLL: R310211003
H.O.D TRANSPORTATION SAP ID: 500015422
UPES

2. • Improve inventory positions
• lower operating costs
• Respond quickly to customer demands
• Increase inventory turns, improve line-level
accuracy
• Simplify compliance with regulatory requirements

3. All equipment that relates to the movement, storage, control and
protection of materials, goods and products throughout the process
of manufacturing, distribution, consumption and disposal.
1.Palletization 2. Containerizations

5. Flat transport structure that supports goods in a
stable fashion while being lifted by a forklift, pallet
jack, front loader or other jacking device.

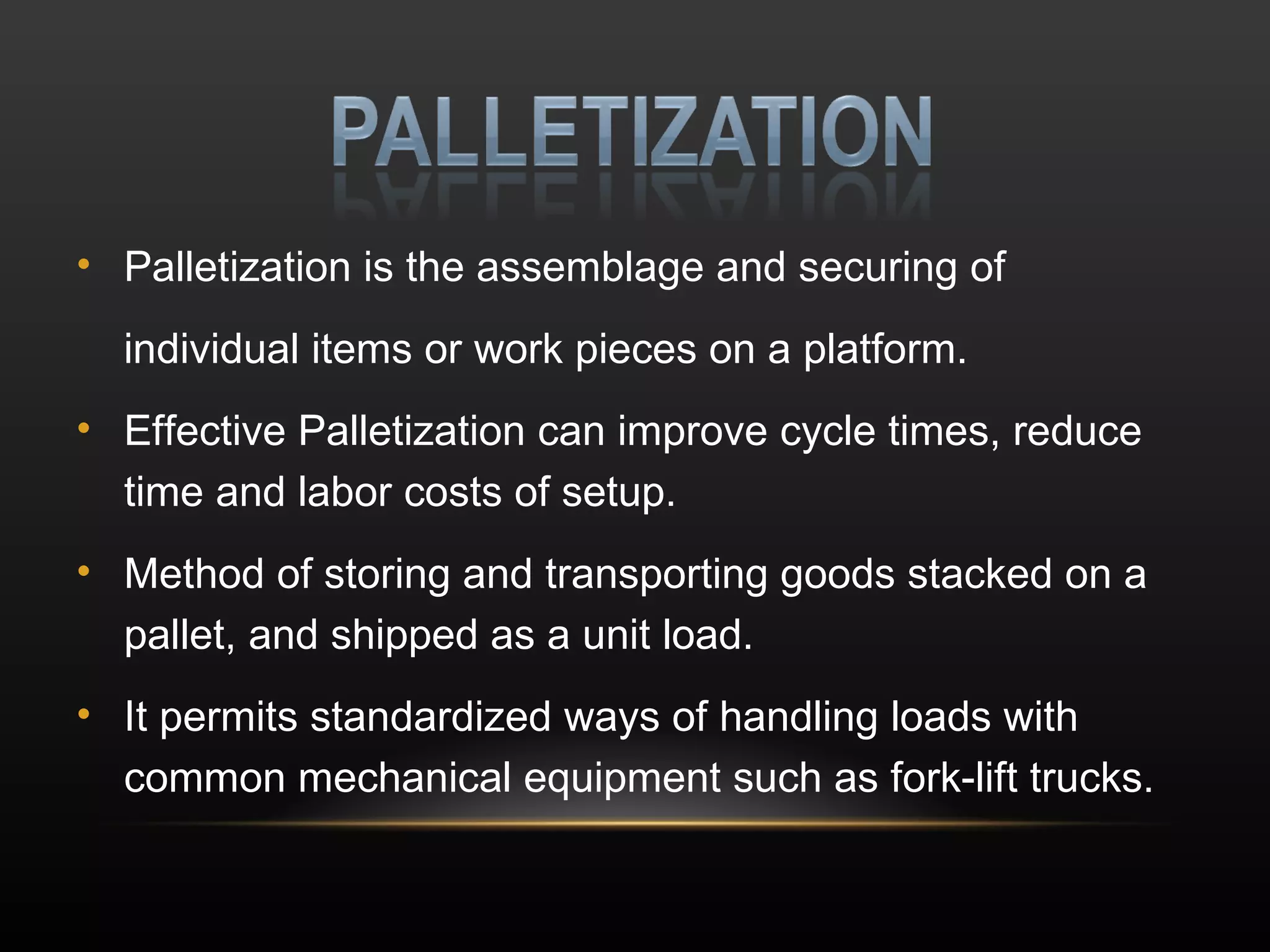

6. • Palletization is the assemblage and securing of
individual items or work pieces on a platform.
• Effective Palletization can improve cycle times, reduce
time and labor costs of setup.
• Method of storing and transporting goods stacked on a
pallet, and shipped as a unit load.
• It permits standardized ways of handling loads with
common mechanical equipment such as fork-lift trucks.

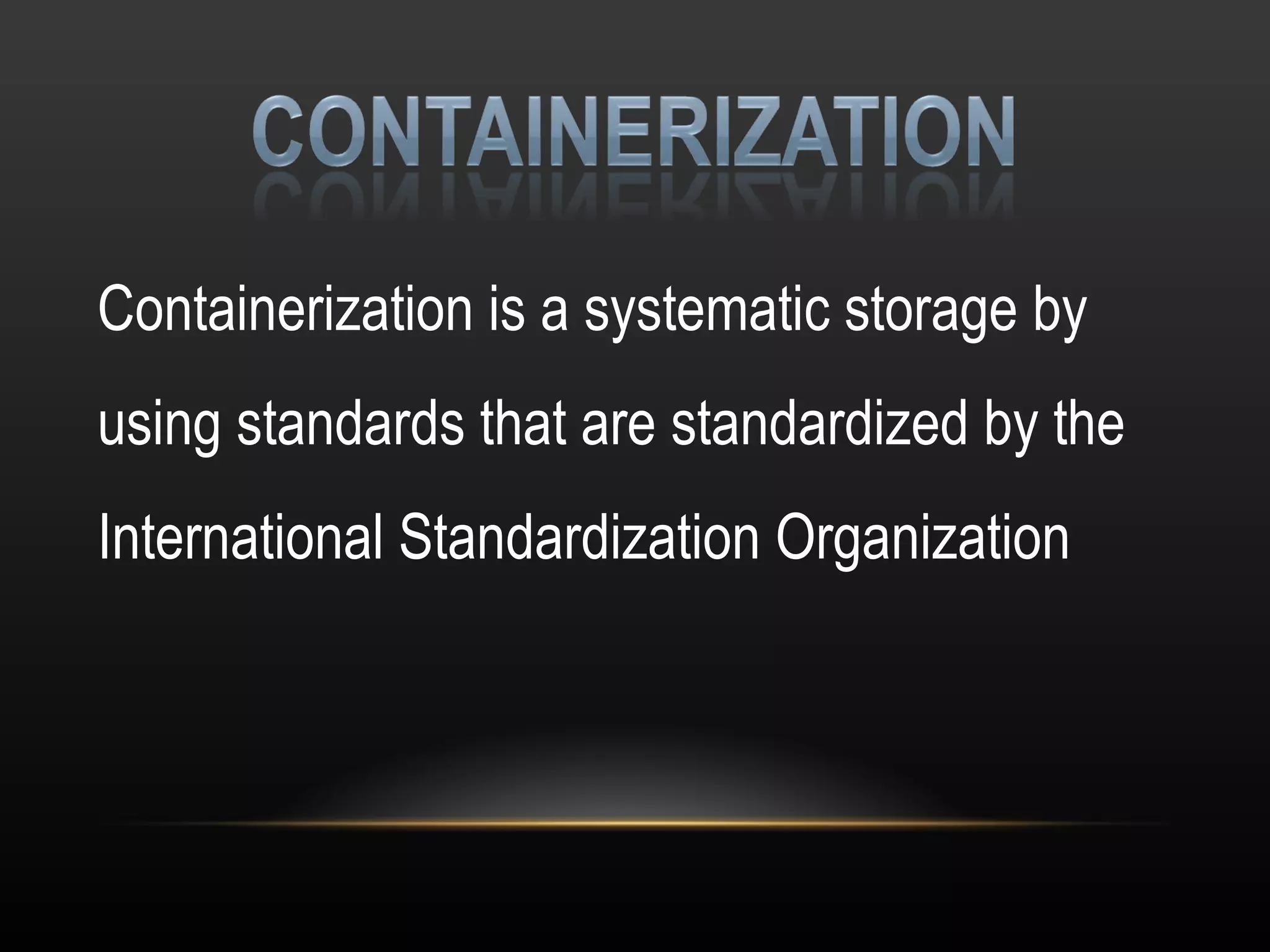

9. Containerization is a systematic storage by
using standards that are standardized by the
International Standardization Organization

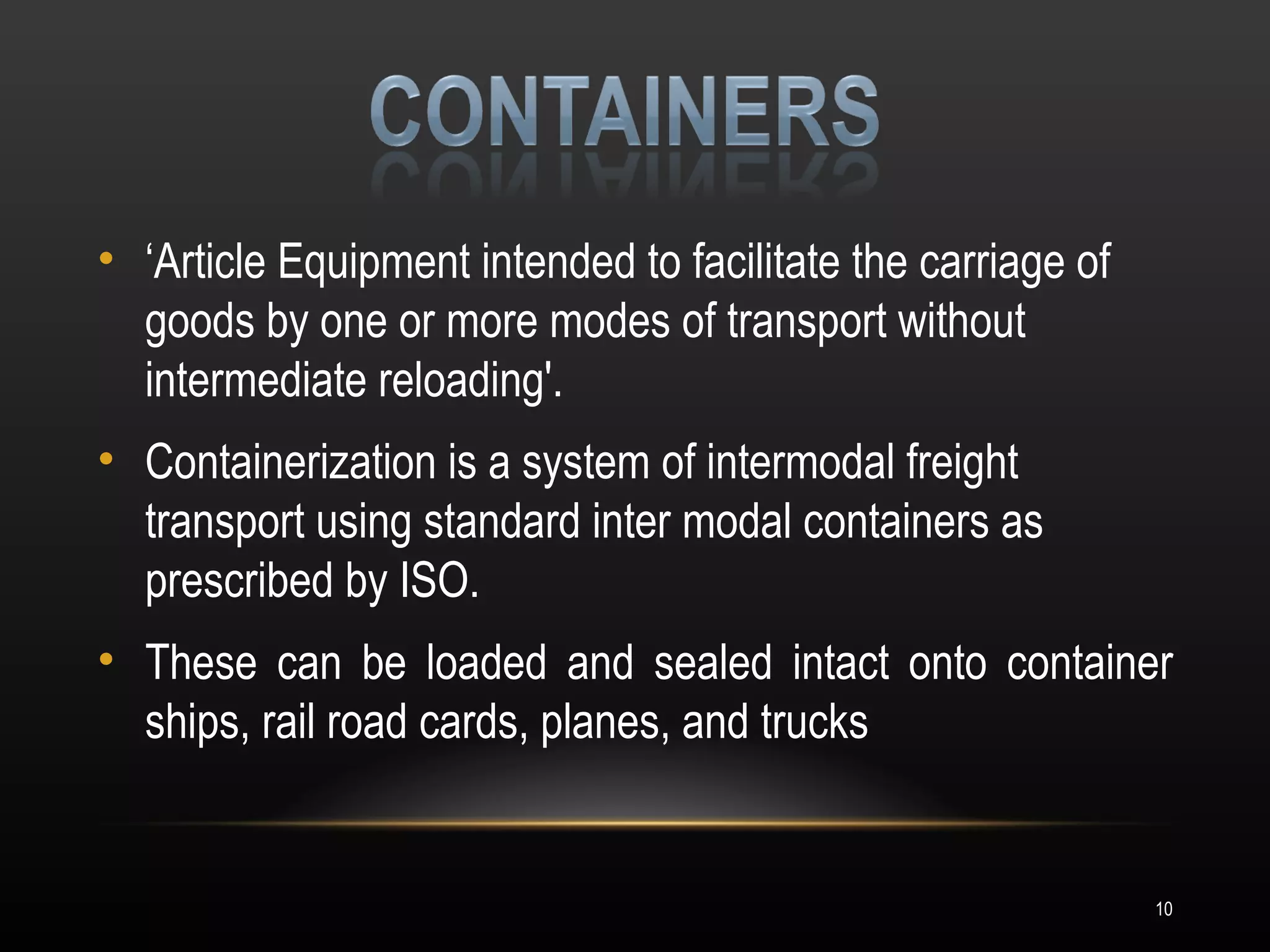

10. • ‘Article Equipment intended to facilitate the carriage of
goods by one or more modes of transport without
intermediate reloading'.
• Containerization is a system of intermodal freight
transport using standard inter modal containers as
prescribed by ISO.
• These can be loaded and sealed intact onto container
ships, rail road cards, planes, and trucks
10

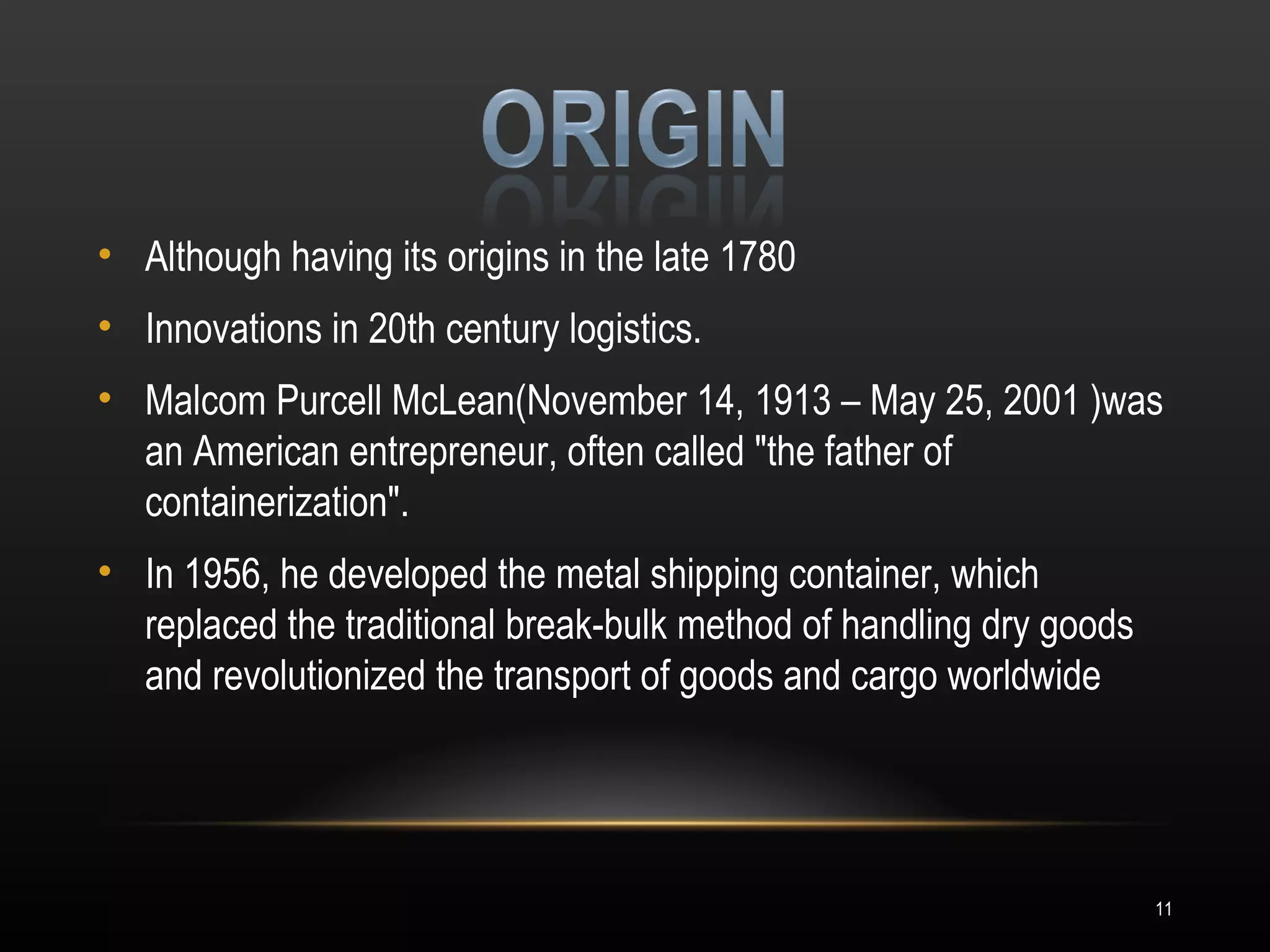

11. • Although having its origins in the late 1780
• Innovations in 20th century logistics.
• Malcom Purcell McLean(November 14, 1913 – May 25, 2001 )was
an American entrepreneur, often called "the father of
containerization".
• In 1956, he developed the metal shipping container, which
replaced the traditional break-bulk method of handling dry goods
and revolutionized the transport of goods and cargo worldwide
11

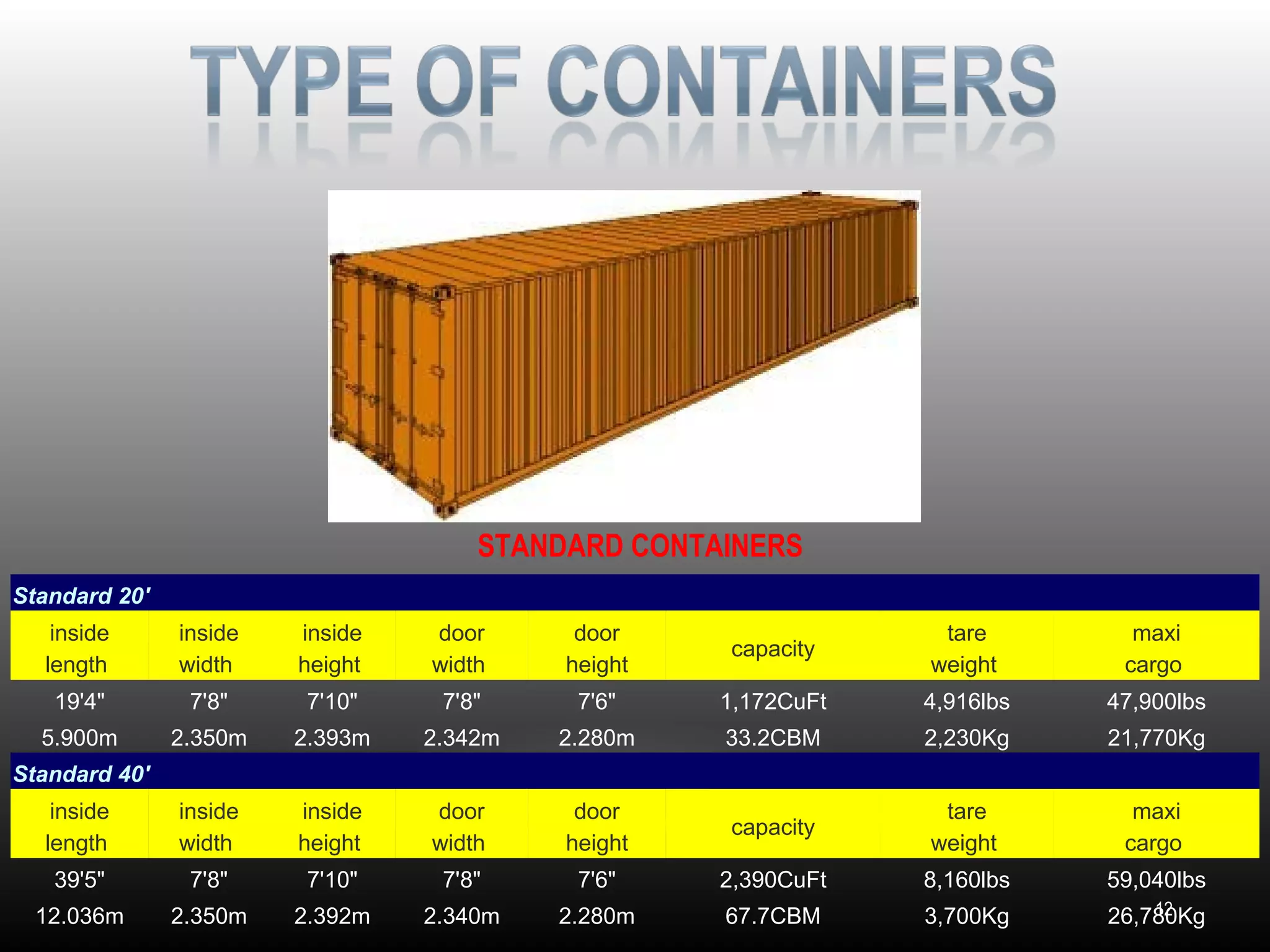

12. STANDARD CONTAINERS
Standard 20'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
19'4" 7'8" 7'10" 7'8" 7'6" 1,172CuFt 4,916lbs 47,900lbs
5.900m 2.350m 2.393m 2.342m 2.280m 33.2CBM 2,230Kg 21,770Kg
Standard 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
39'5" 7'8" 7'10" 7'8" 7'6" 2,390CuFt 8,160lbs 59,040lbs
12.036m 2.350m 2.392m 2.340m 2.280m 67.7CBM 3,700Kg 12
26,780Kg

13. OPEN TOP CONTAINERS
Opentop 20'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
19'4" 7'7" 7'8" 7'6" 7'2" 1,136CuFt 5,280lbs 47,620lbs
5.894m 2.311m 2.354m 2.286m 2.184m 32.23CBM 2,400Kg 21,600Kg
Opentop 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
39'5" 7'8" 7'8" 7'8" 7'5" 2,350CuFt 8,490lbs 58,710lbs
12.028m 2.350m 2.345m 2.341m 2.274m 65.5CBM 3,850Kg 13
26,630Kg

14. FLATRACK CONTAINERS:
Flatrack 20'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
18'5" 7'3" 7'4" - - - 5,578lbs 47,333lbs
5.620m 2.200m 2.233m - - - 2,530Kg 21,470Kg
Flatrack 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
39'7" 6'10" 6'5" - - - 12,081lbs 85,800lbs
12.080m 2.438m 2.103m - - - 5,480Kg 14
39,000Kg

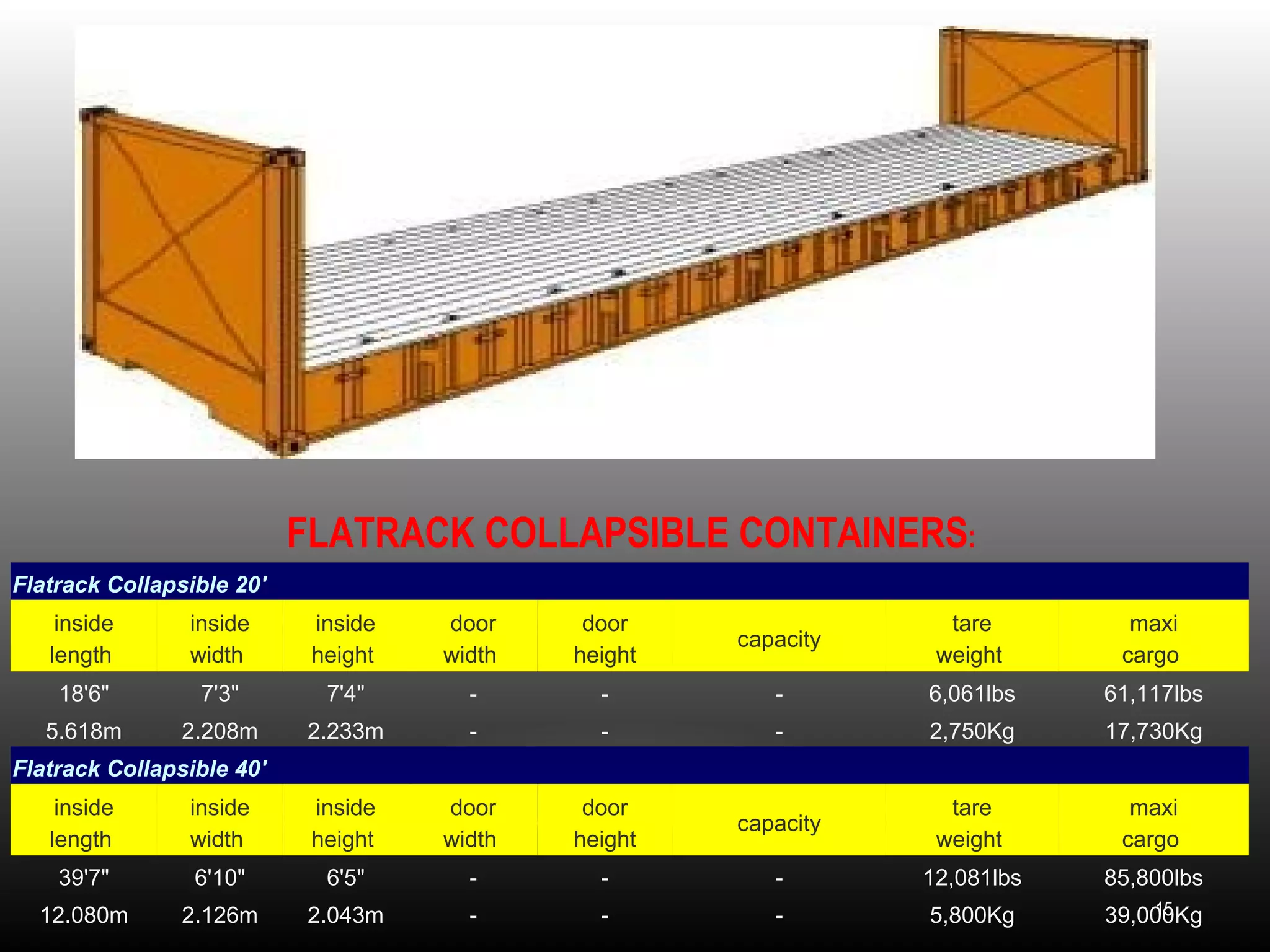

15. FLATRACK COLLAPSIBLE CONTAINERS:
Flatrack Collapsible 20'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
18'6" 7'3" 7'4" - - - 6,061lbs 61,117lbs
5.618m 2.208m 2.233m - - - 2,750Kg 17,730Kg
Flatrack Collapsible 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
39'7" 6'10" 6'5" - - - 12,081lbs 85,800lbs
12.080m 2.126m 2.043m - - - 5,800Kg 15
39,000Kg

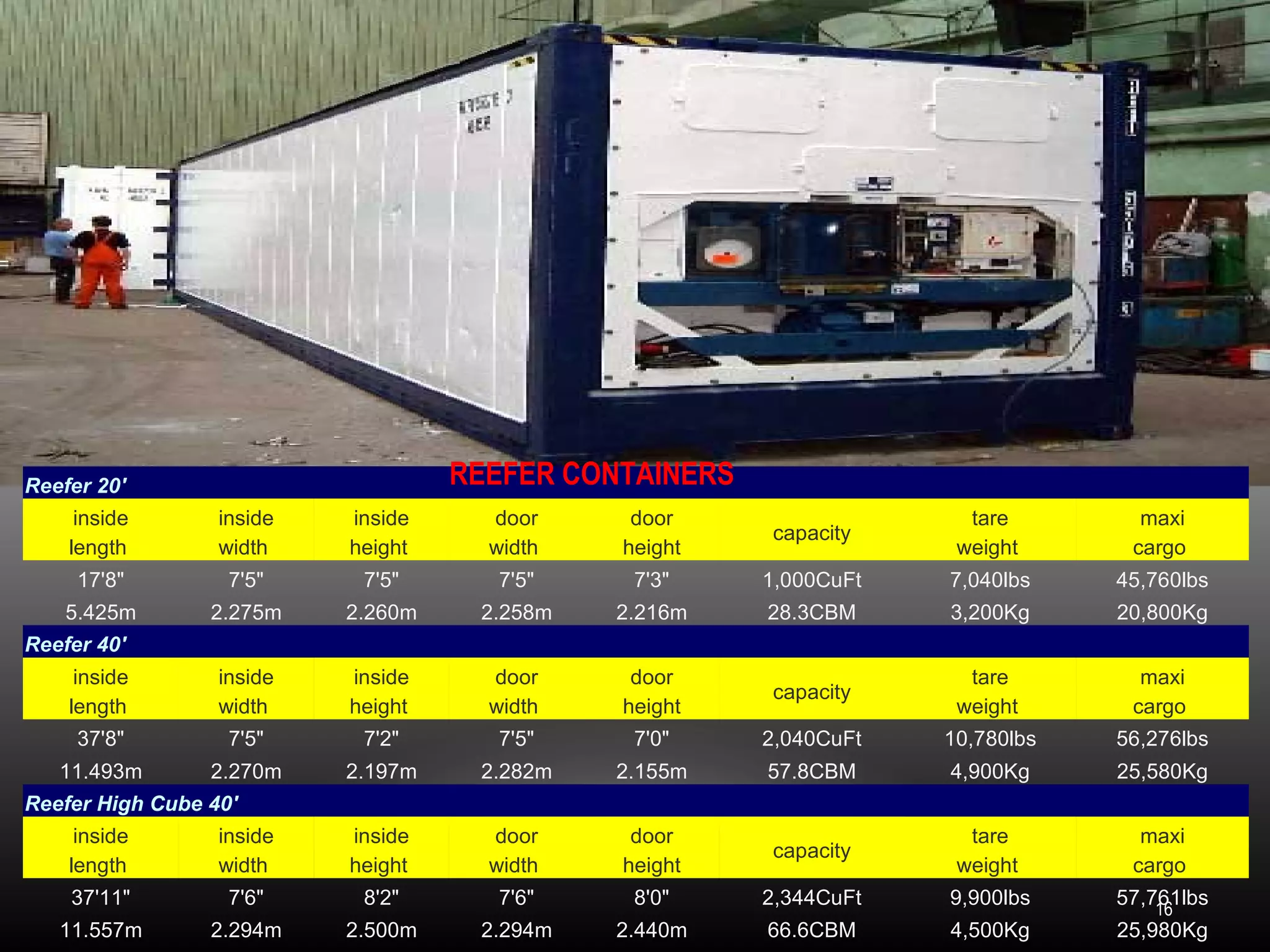

16. Reefer 20' REEFER CONTAINERS
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
17'8" 7'5" 7'5" 7'5" 7'3" 1,000CuFt 7,040lbs 45,760lbs
5.425m 2.275m 2.260m 2.258m 2.216m 28.3CBM 3,200Kg 20,800Kg
Reefer 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
37'8" 7'5" 7'2" 7'5" 7'0" 2,040CuFt 10,780lbs 56,276lbs
11.493m 2.270m 2.197m 2.282m 2.155m 57.8CBM 4,900Kg 25,580Kg
Reefer High Cube 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
37'11" 7'6" 8'2" 7'6" 8'0" 2,344CuFt 9,900lbs 57,761lbs
16
11.557m 2.294m 2.500m 2.294m 2.440m 66.6CBM 4,500Kg 25,980Kg

17. HIGHCUBE CONTAINERS
HIGH CUBE 45'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
39'5" 7'8" 8'10" 7'8" 8'5" 2,694CuFt 8,750lbs 58,450lbs
12.036m 2.350m 2.697m 2.338m 2.338m 76.3CBM 3,970Kg 26,510Kg
17

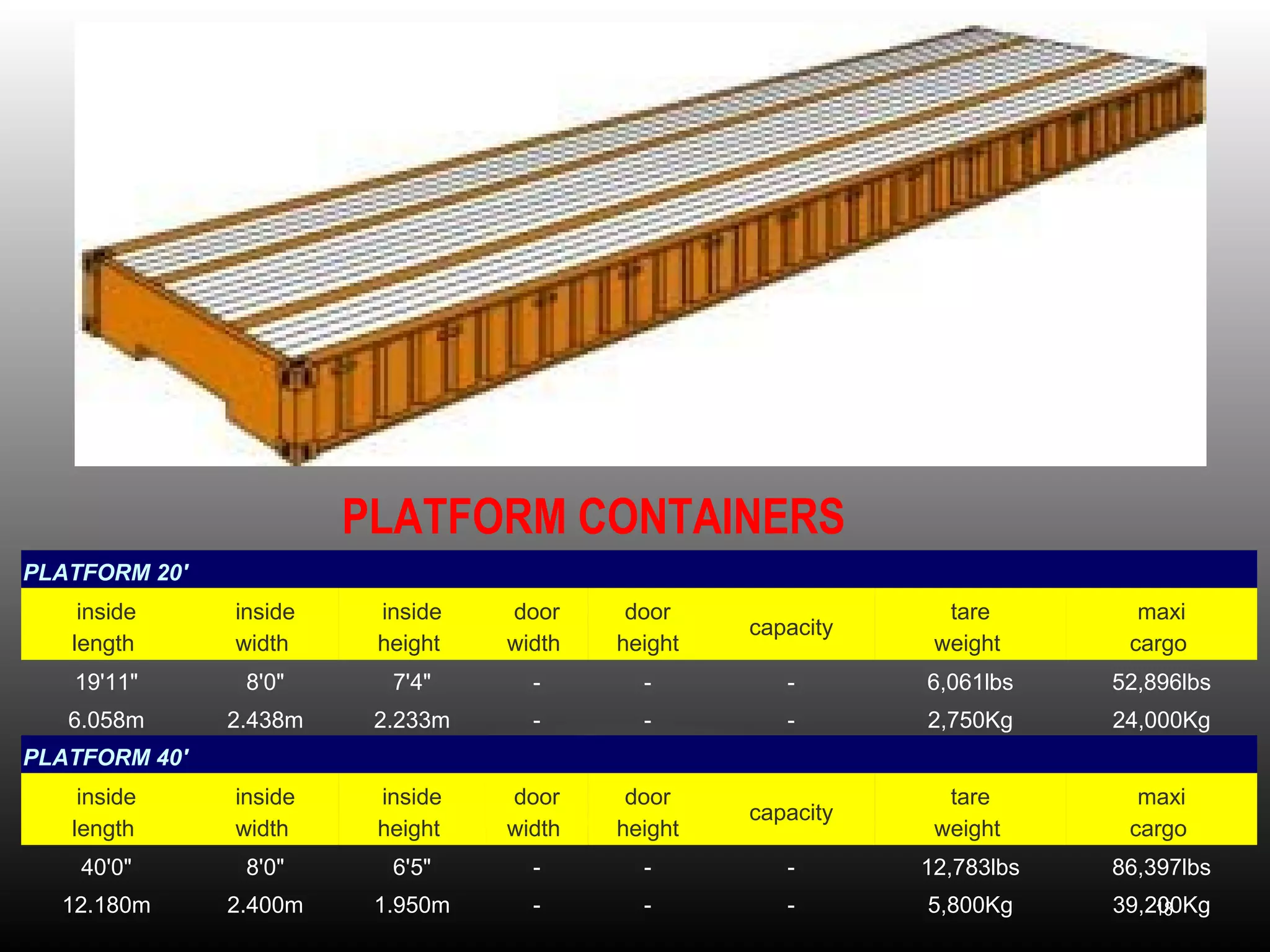

18. PLATFORM CONTAINERS
PLATFORM 20'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
19'11" 8'0" 7'4" - - - 6,061lbs 52,896lbs
6.058m 2.438m 2.233m - - - 2,750Kg 24,000Kg
PLATFORM 40'
inside inside inside door door tare maxi
capacity
length width height width height weight cargo
40'0" 8'0" 6'5" - - - 12,783lbs 86,397lbs
12.180m 2.400m 1.950m - - - 5,800Kg 39,200Kg
18

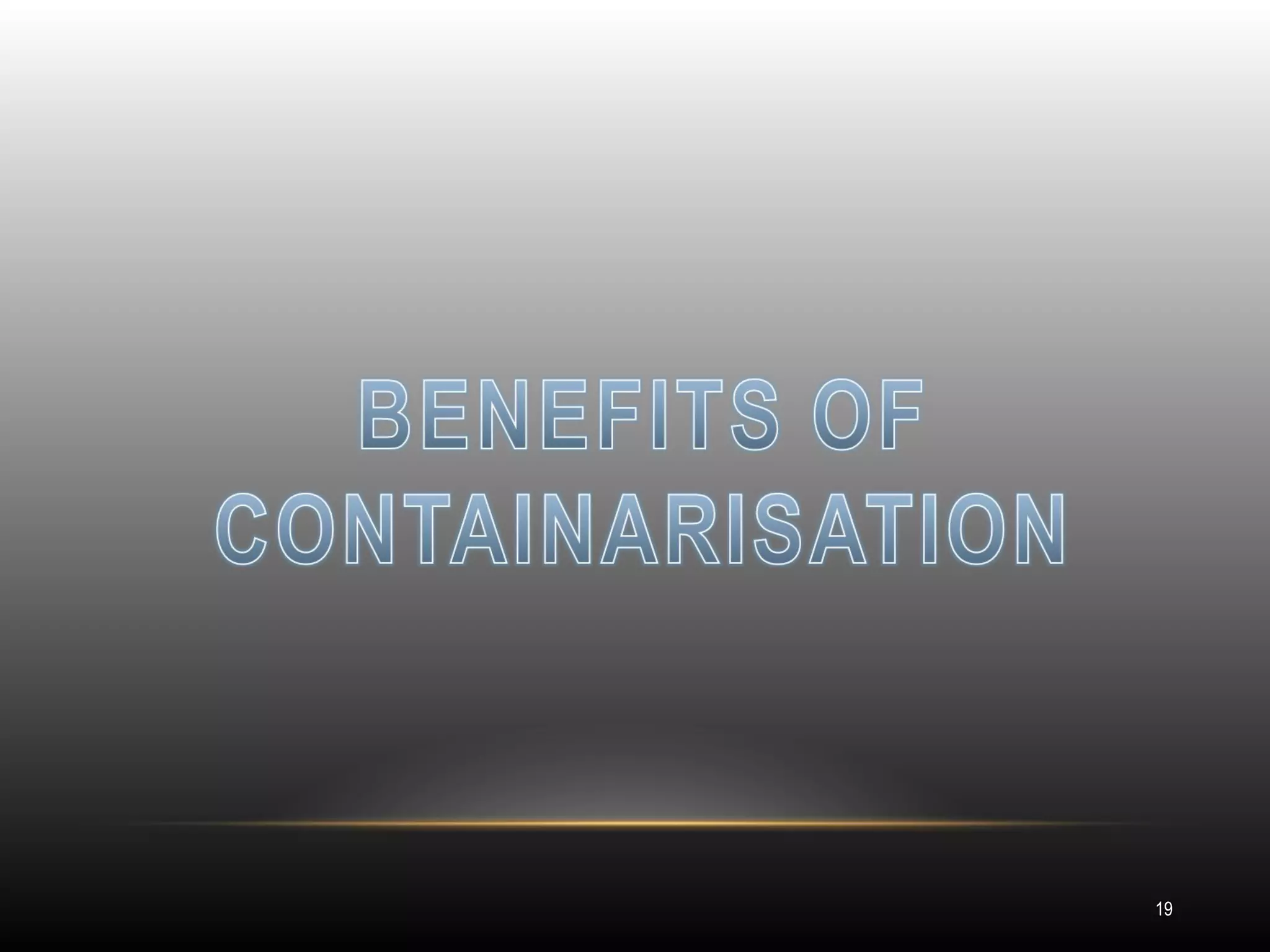

19. 19

20. ADVANTAGE
Standard transport Can be manipulated anywhere in the world (ISO
product standard).Specialized ships, trucks and wagons.
Raw materials (coal, wheat), manufactured goods, cars, frozen products.
Liquids (oil and chemical products) and � reefers� (50% of all
Flexibility refrigerated cargo).
Reuse of discarded containers.
of usage
Unique identification number and a size type code.
Transport management not in terms of loads, but in terms of
Management unit.
Costs Low transport costs; 20 times less than bulk transport.
Transshipment operations are minimal and rapid.
Port turnaround times reduced from 3 weeks to about 24 hours.
Containerships are faster than regular freighter ships.
Its own warehouse; Simpler and less expensive packaging.
Warehousing Stacking capacity on ships, trains (doublestacking) and on the ground.
Contents of the container is unknown to shippers.
Can only be opened at the origin, at customs and at the destination.
Security Reduced spoilage and losses (theft).
20

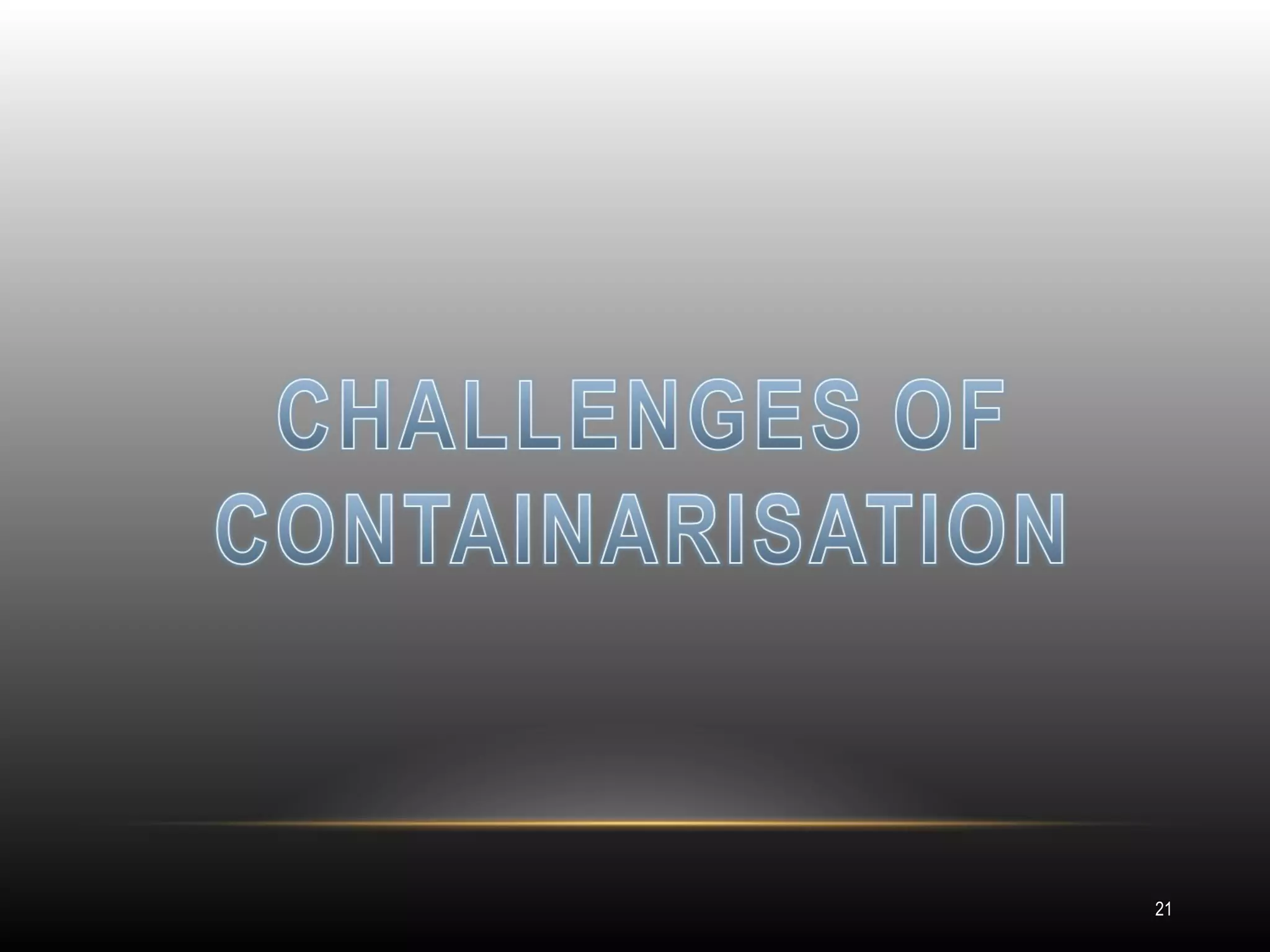

21. 21

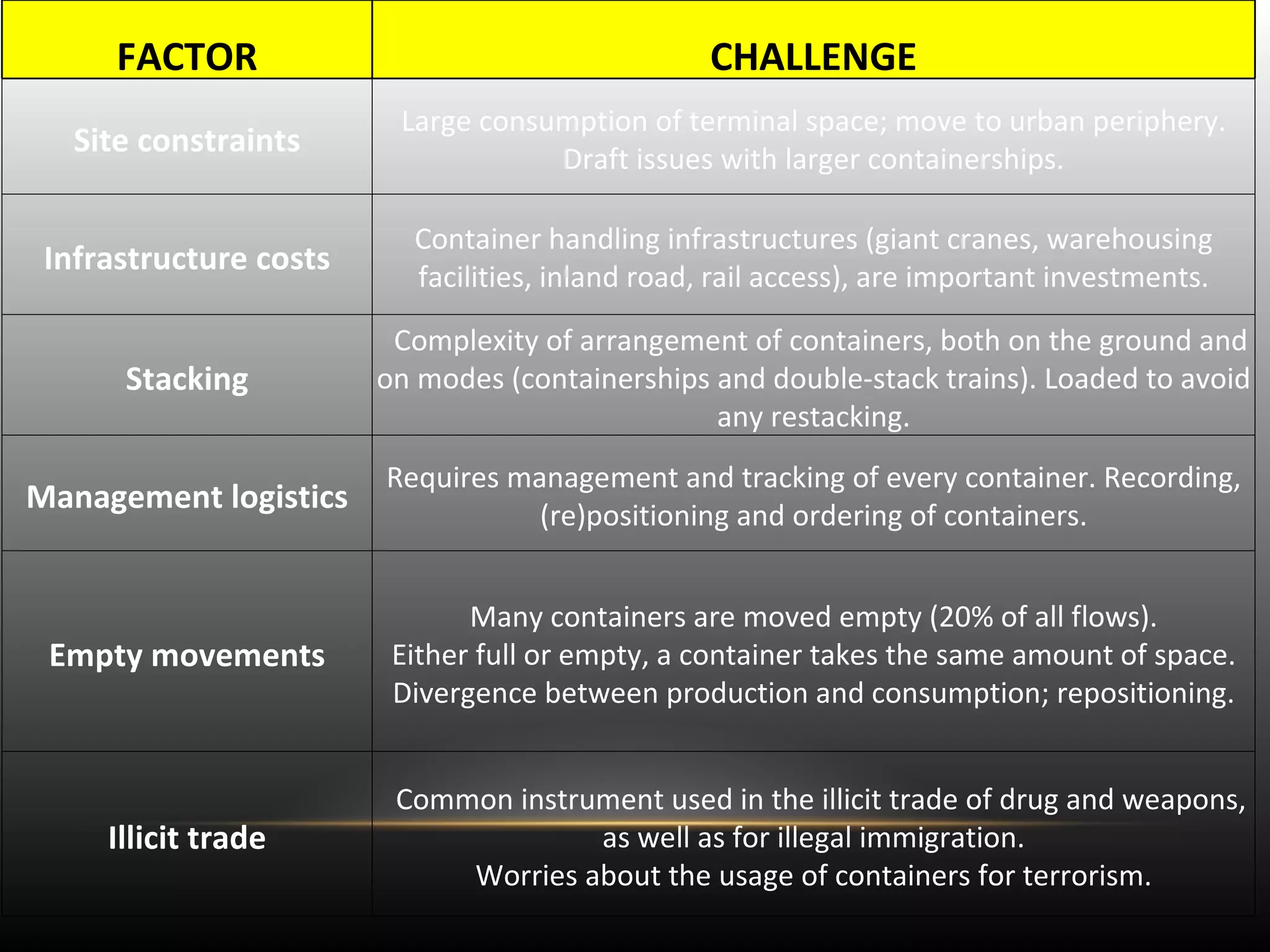

22. FACTOR CHALLENGE
Large consumption of terminal space; move to urban periphery.
Site constraints Draft issues with larger containerships.
Container handling infrastructures (giant cranes, warehousing
Infrastructure costs facilities, inland road, rail access), are important investments.
Complexity of arrangement of containers, both on the ground and
Stacking on modes (containerships and double-stack trains). Loaded to avoid
any restacking.
Requires management and tracking of every container. Recording,
Management logistics (re)positioning and ordering of containers.
Many containers are moved empty (20% of all flows).
Empty movements Either full or empty, a container takes the same amount of space.
Divergence between production and consumption; repositioning.
Common instrument used in the illicit trade of drug and weapons,
Illicit trade as well as for illegal immigration.
Worries about the usage of containers for terrorism.

23. 23

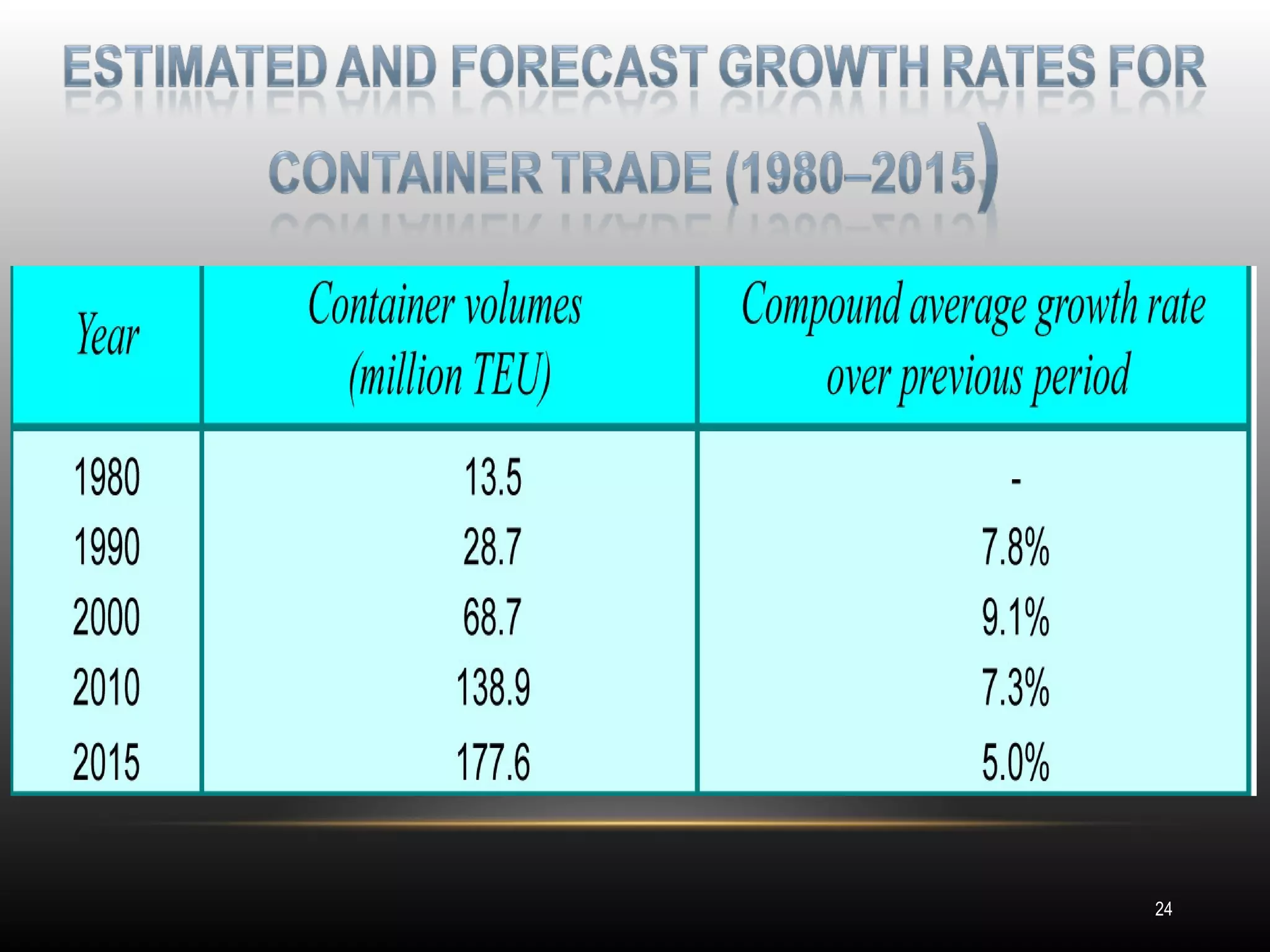

24. 24

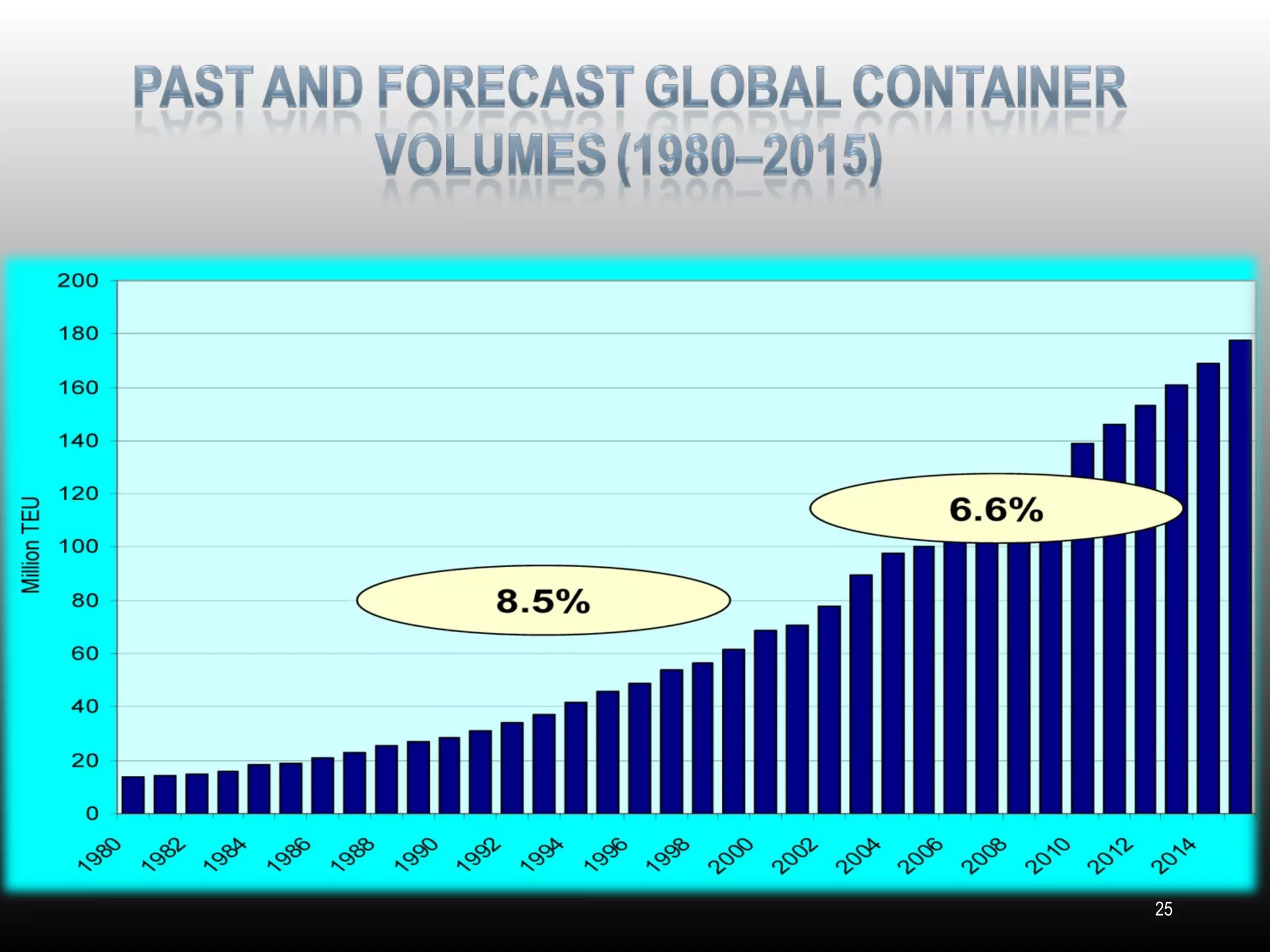

25. 25

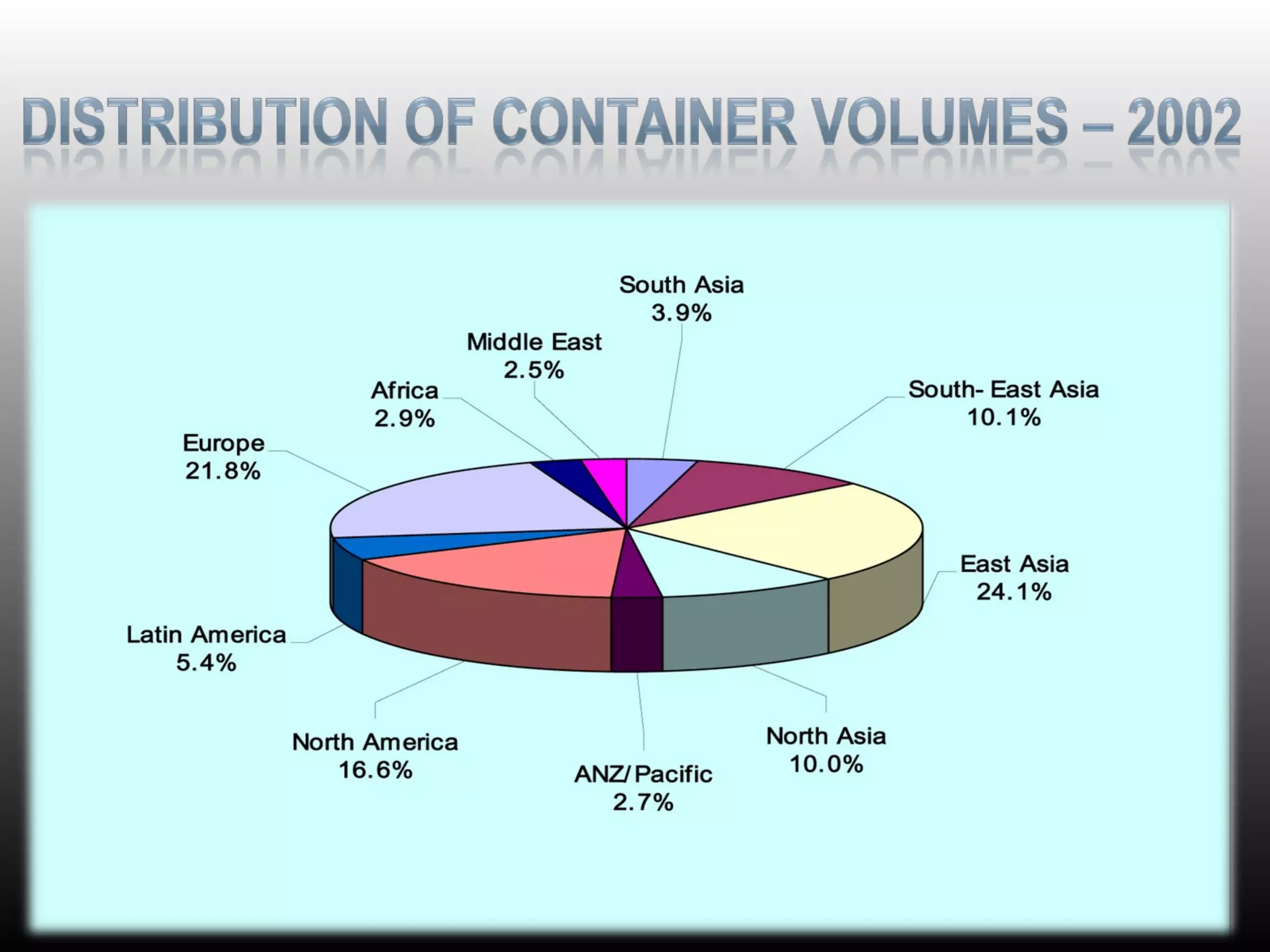

26. 26

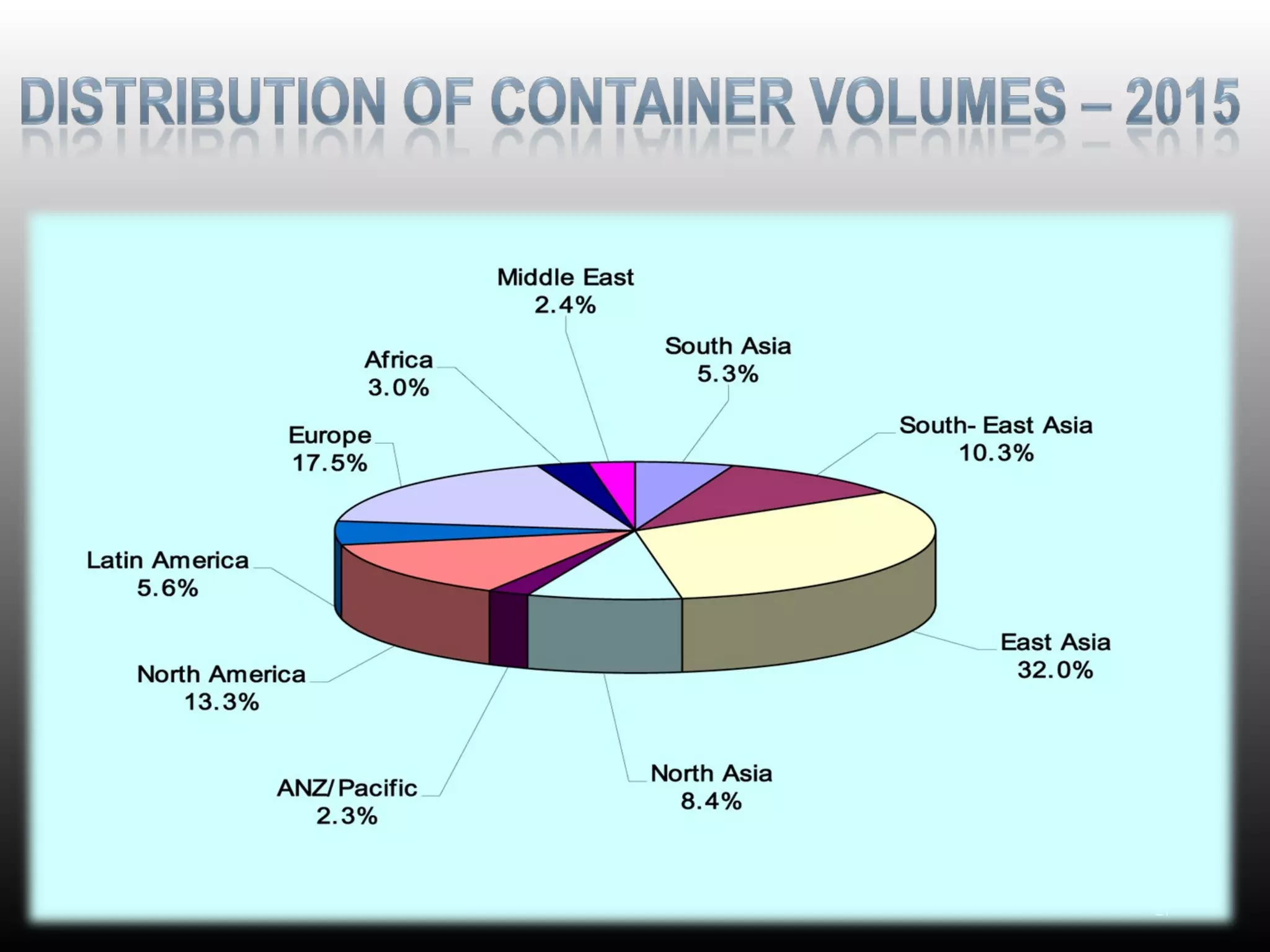

27. 27

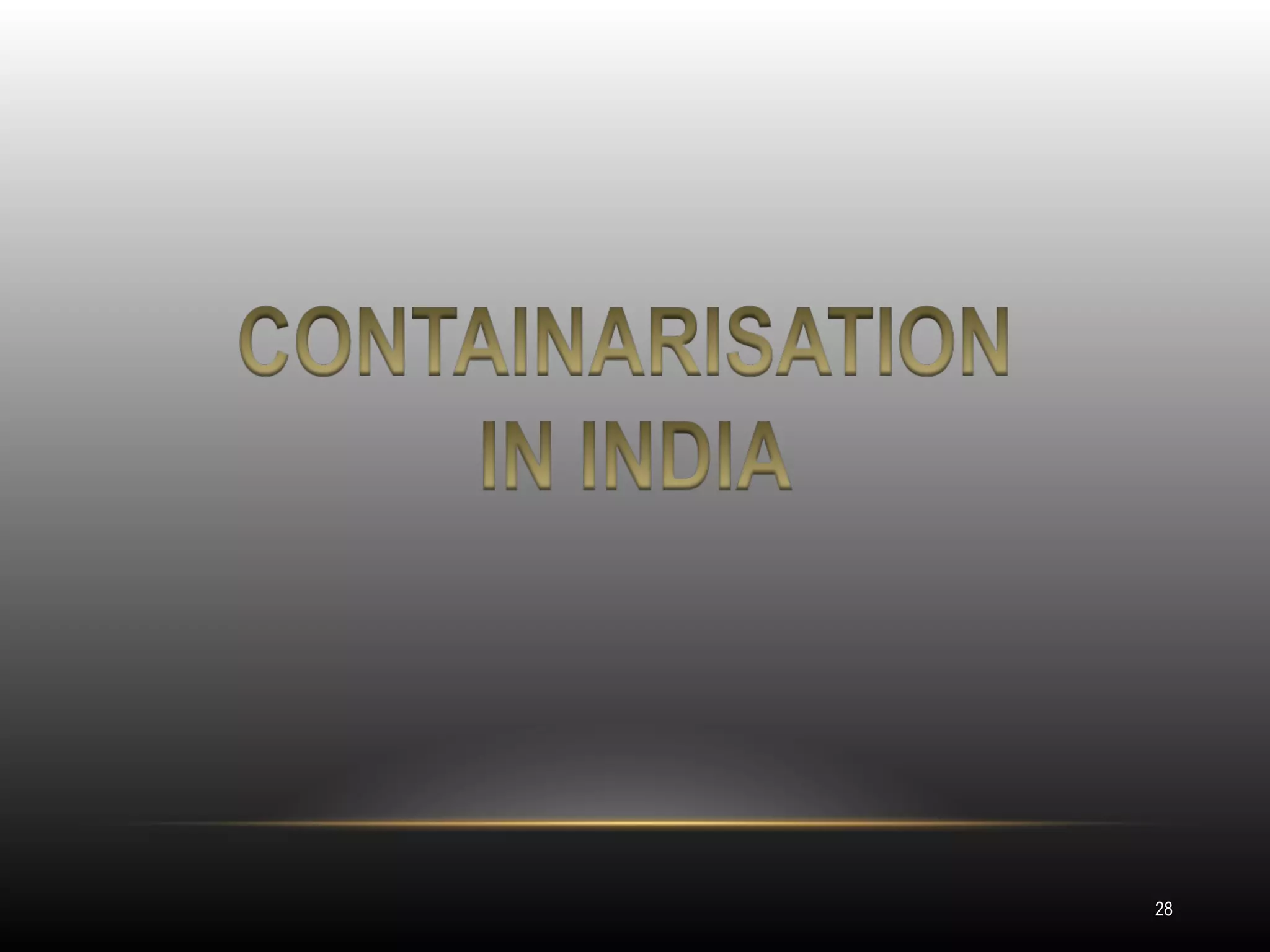

28. 28

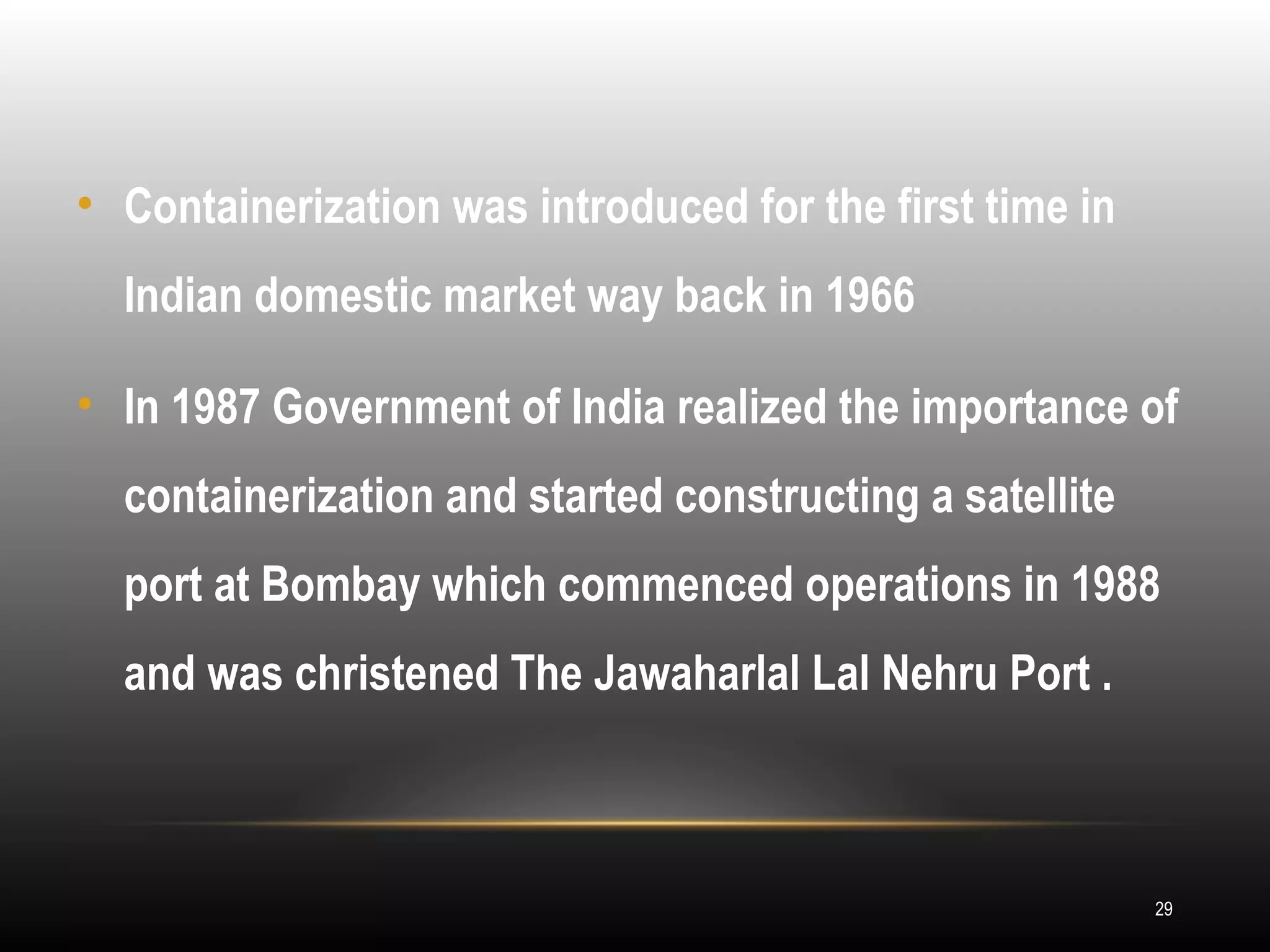

29. • Containerization was introduced for the first time in
Indian domestic market way back in 1966
• In 1987 Government of India realized the importance of
containerization and started constructing a satellite
port at Bombay which commenced operations in 1988
and was christened The Jawaharlal Lal Nehru Port .
29

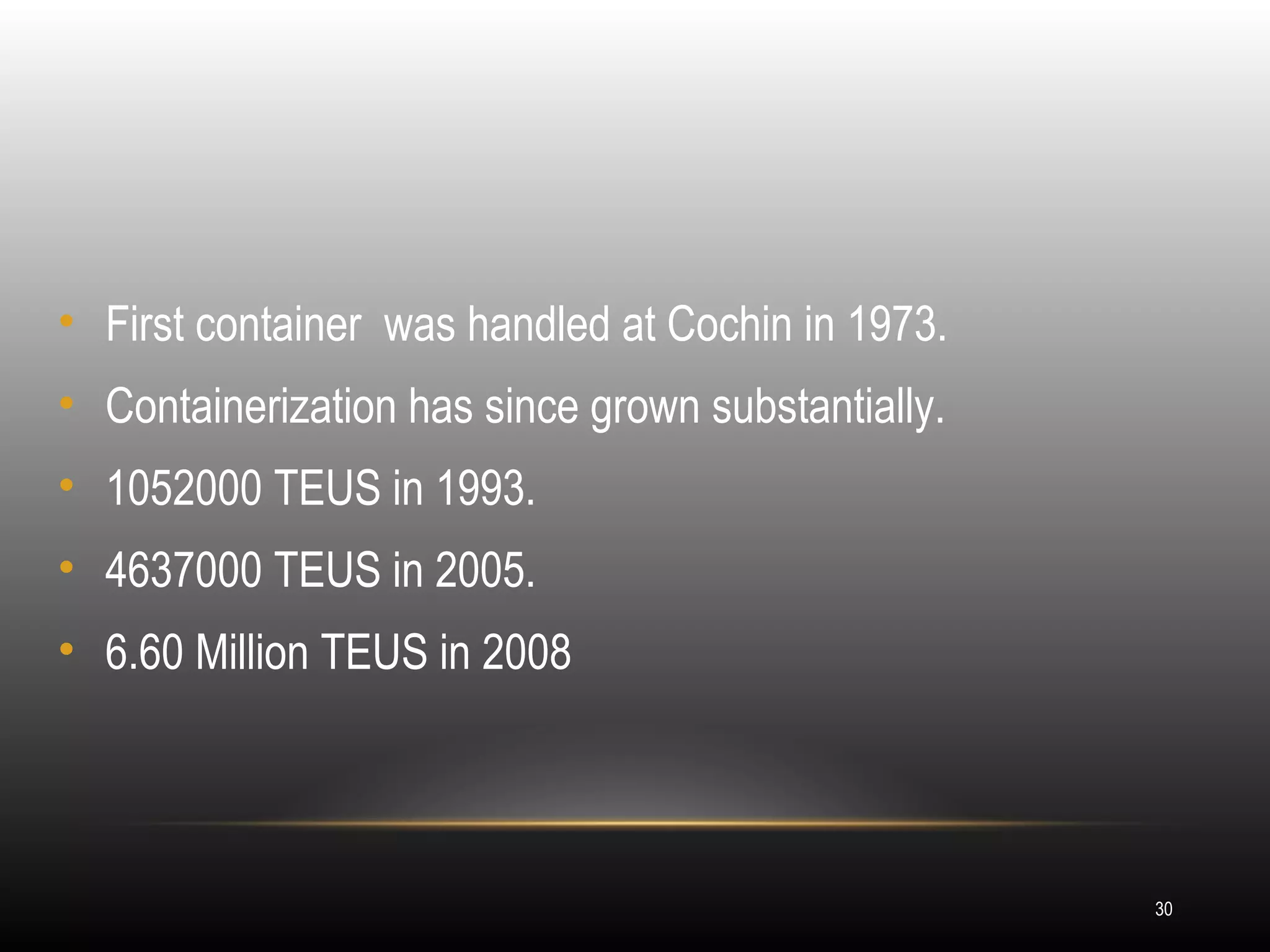

30. • First container was handled at Cochin in 1973.
• Containerization has since grown substantially.
• 1052000 TEUS in 1993.
• 4637000 TEUS in 2005.
• 6.60 Million TEUS in 2008
30

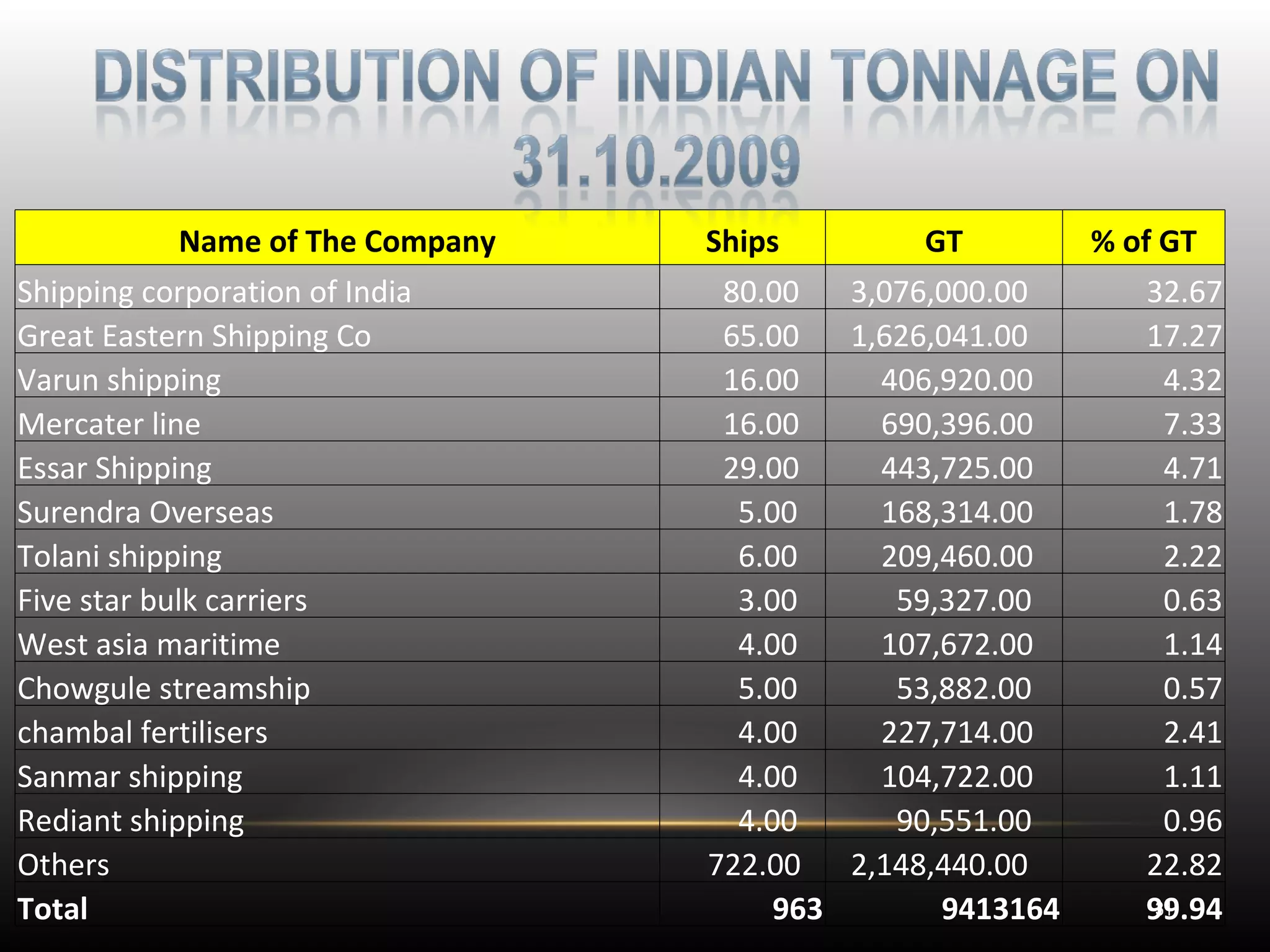

31. Name of The Company Ships GT % of GT
Shipping corporation of India 80.00 3,076,000.00 32.67
Great Eastern Shipping Co 65.00 1,626,041.00 17.27
Varun shipping 16.00 406,920.00 4.32
Mercater line 16.00 690,396.00 7.33
Essar Shipping 29.00 443,725.00 4.71
Surendra Overseas 5.00 168,314.00 1.78
Tolani shipping 6.00 209,460.00 2.22
Five star bulk carriers 3.00 59,327.00 0.63
West asia maritime 4.00 107,672.00 1.14
Chowgule streamship 5.00 53,882.00 0.57
chambal fertilisers 4.00 227,714.00 2.41
Sanmar shipping 4.00 104,722.00 1.11
Rediant shipping 4.00 90,551.00 0.96
Others 722.00 2,148,440.00 22.82
Total 963 9413164 99.94
31

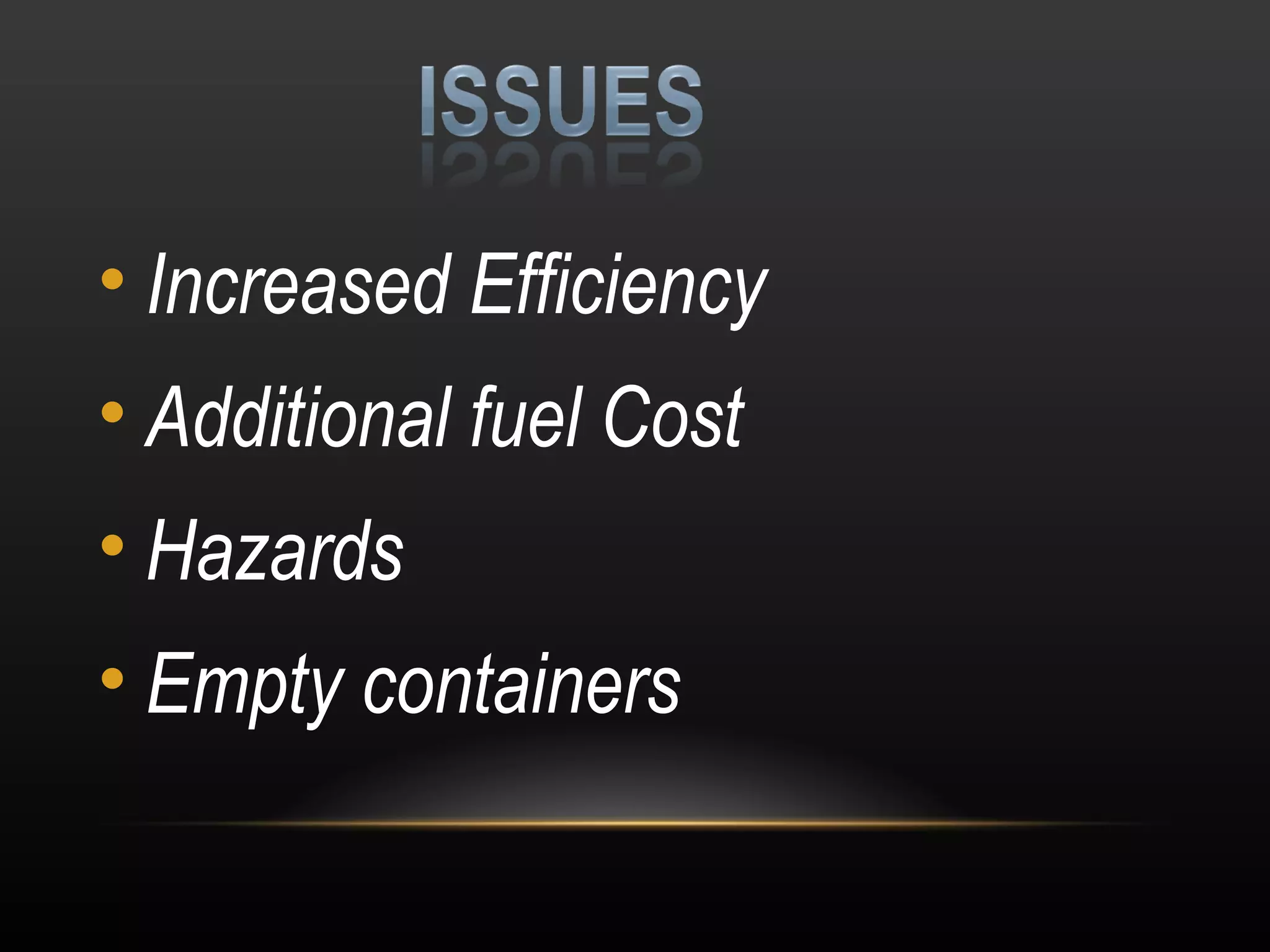

32. • Increased Efficiency
• Additional fuel Cost
• Hazards
• Empty containers
