4. LC: Illustrate the limit of a function using a table
of values and the graph of the function
Consider a function f of a single
variable x. Consider a constant c which
the variable x will approach (c may or
may not be in the domain of f). The limit,
to be denoted by L, is the unique real
value that f(x) will approach as x
approach c. In symbols, we write this
process as
It is read as “The limit of f
of x as x approaches c is
L.”
5. LC: Illustrate the limit of a function using a table
of values and the graph of the function
Let us consider
We consider approaching 2 from its left or through values lesser than
but close to 2
x 1 1.4 1.7 1.9 1.95 1.997 1.9999 2
f(x)/y 4 5.2 6.1 6.7 6.85 6.991 6.9997
#1
6. LC: Illustrate the limit of a function using a table
of values and the graph of the function
Let us consider
Now, we consider approaching 2 from its right or through values
greater than but close to 2
x 2 2.0000001 2.009 2.03 2.1 2.2 2.5 3
f(x)/y 7.0000003 7.027 7.09 7.3 7.6 8.5 10
Therefore;
#1
7. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate

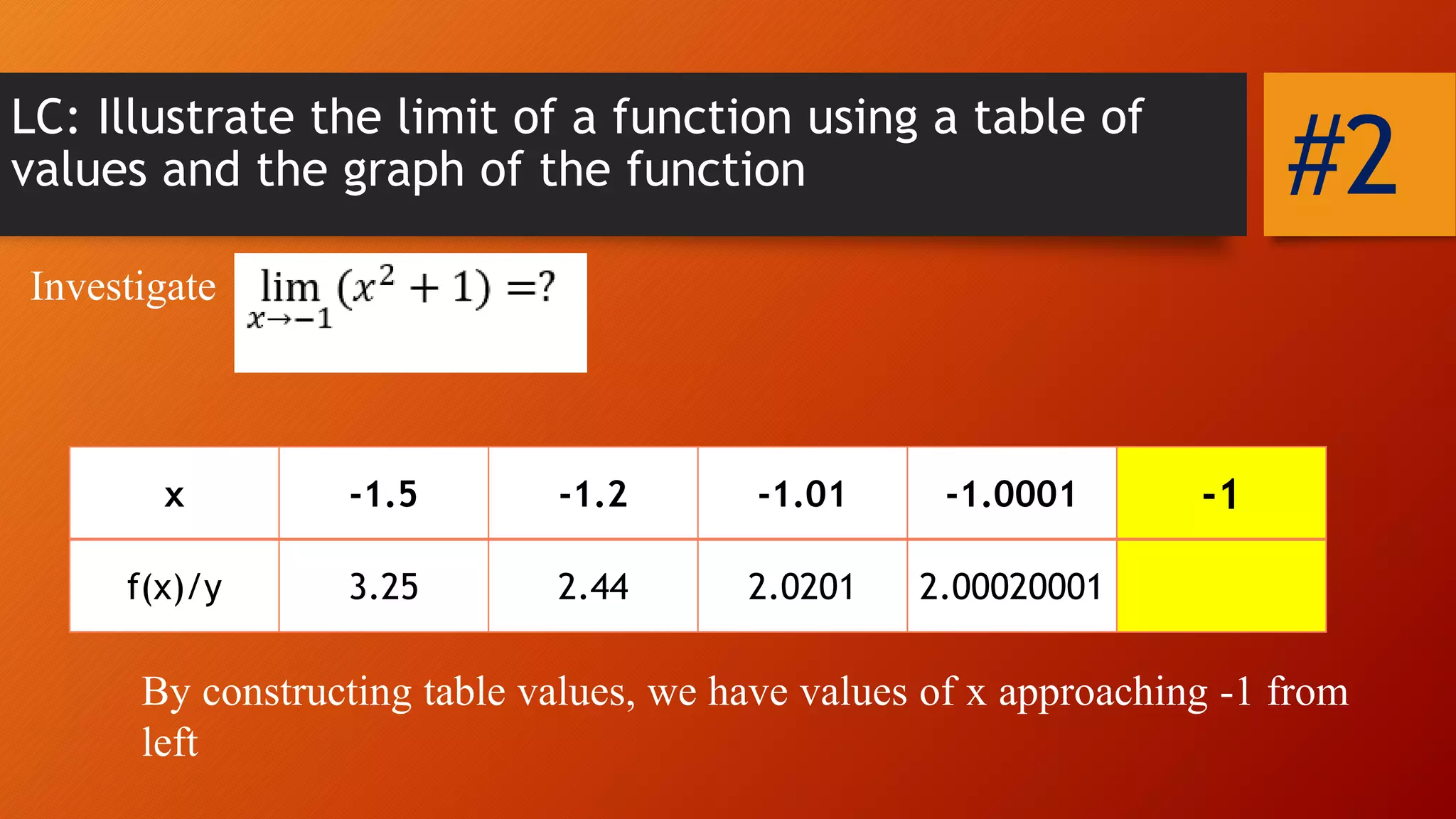

By constructing table values, we have values of x approaching -1 from
left
#2
x -1.5 -1.2 -1.01 -1.0001 -1
f(x)/y 3.25 2.44 2.0201 2.00020001
8. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate

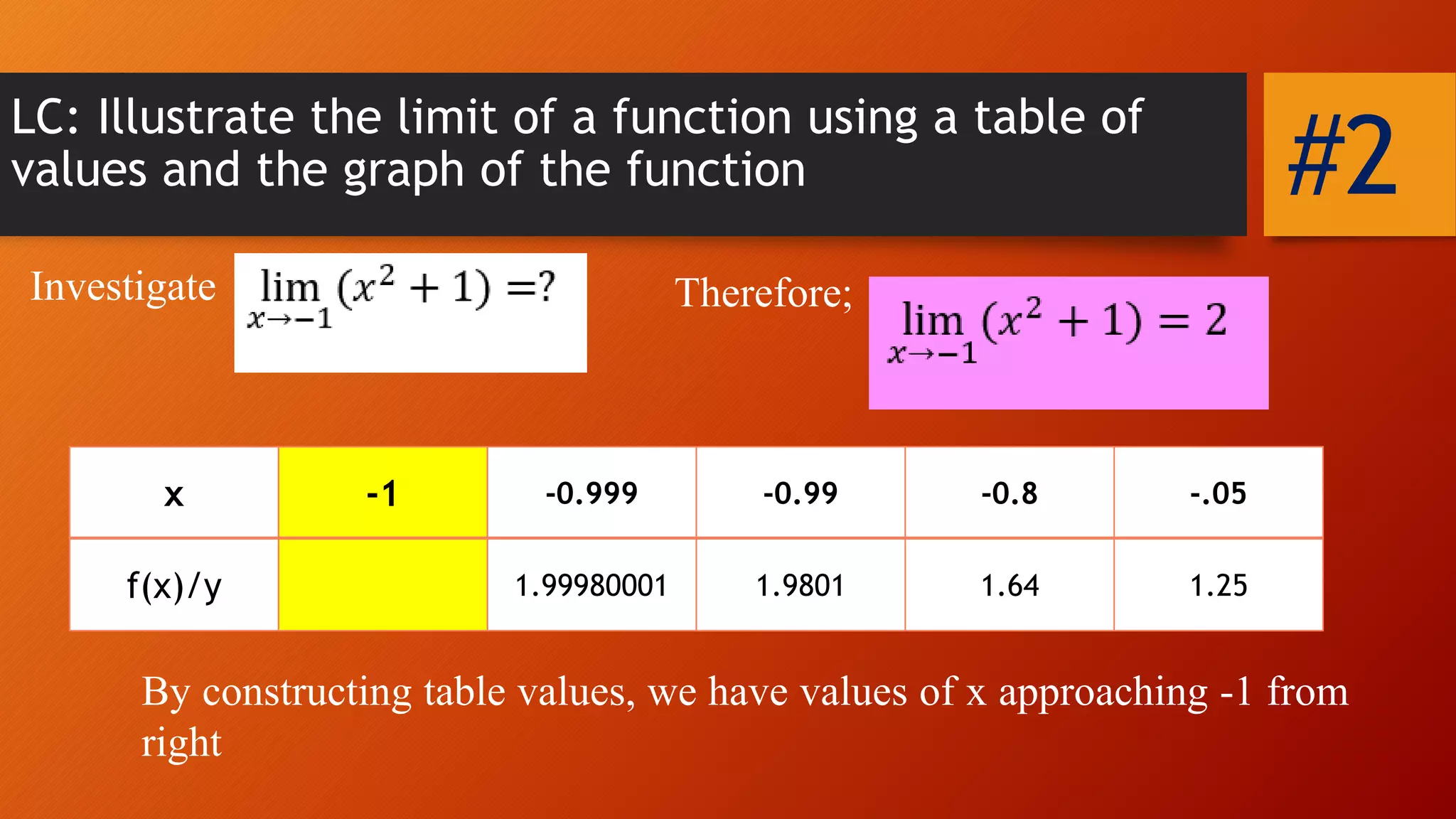

By constructing table values, we have values of x approaching -1 from
right
#2
x -1 -0.999 -0.99 -0.8 -.05
f(x)/y 1.99980001 1.9801 1.64 1.25
Therefore;
9. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate through a table of values, the
given is Approaching 0 from the left and from the right, we
get the following tables
#3
Therefore;
10. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate through a table of values, the
given is Take note that 1 is not a domain of the given
function.
#4
Approach 1 from the left: Approach 1 from the right:
Therefore;
11. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate through a table of values, the
given is
#5

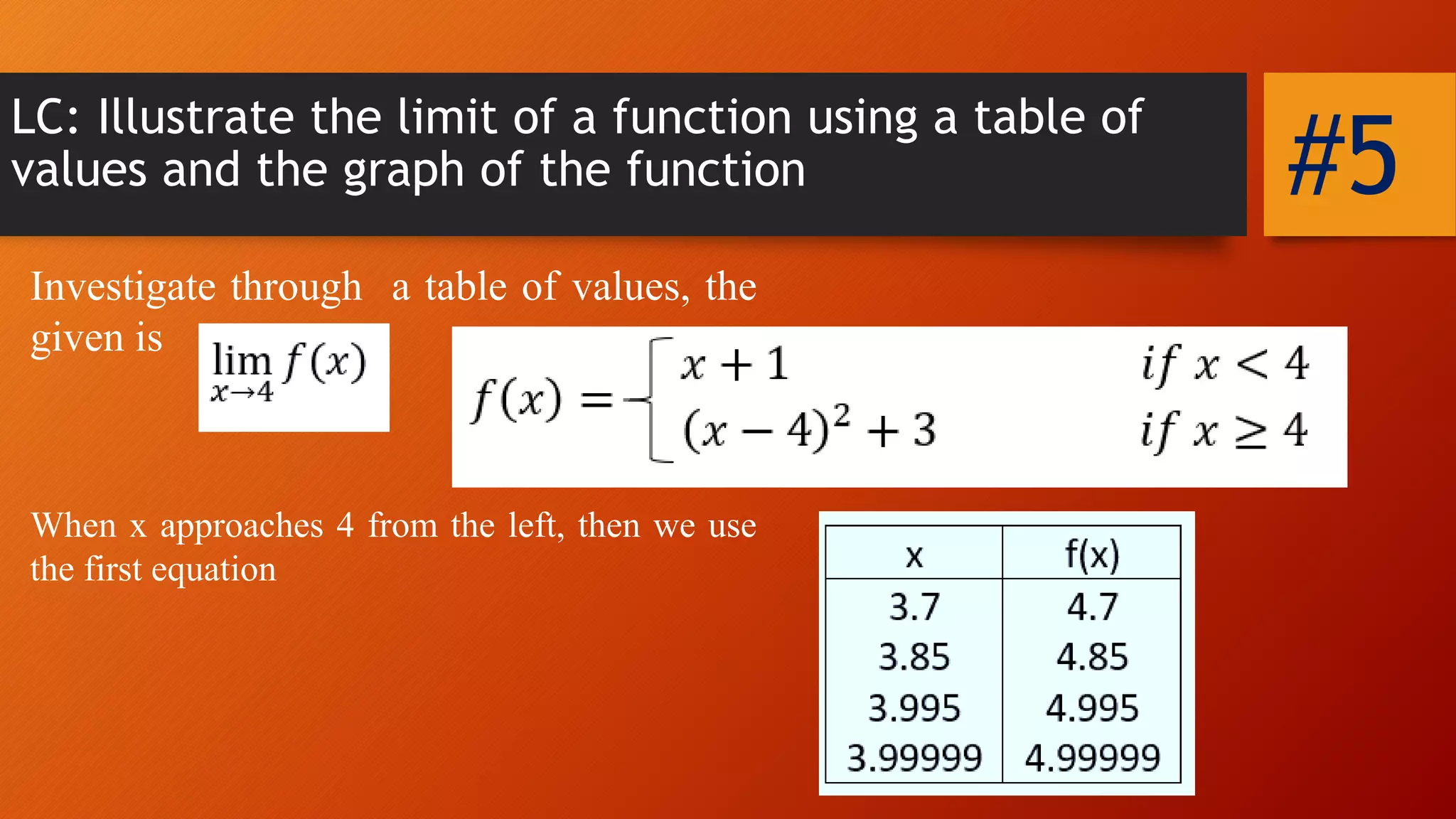

When x approaches 4 from the left, then we use
the first equation
12. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate through a table of values, the
given is
#5

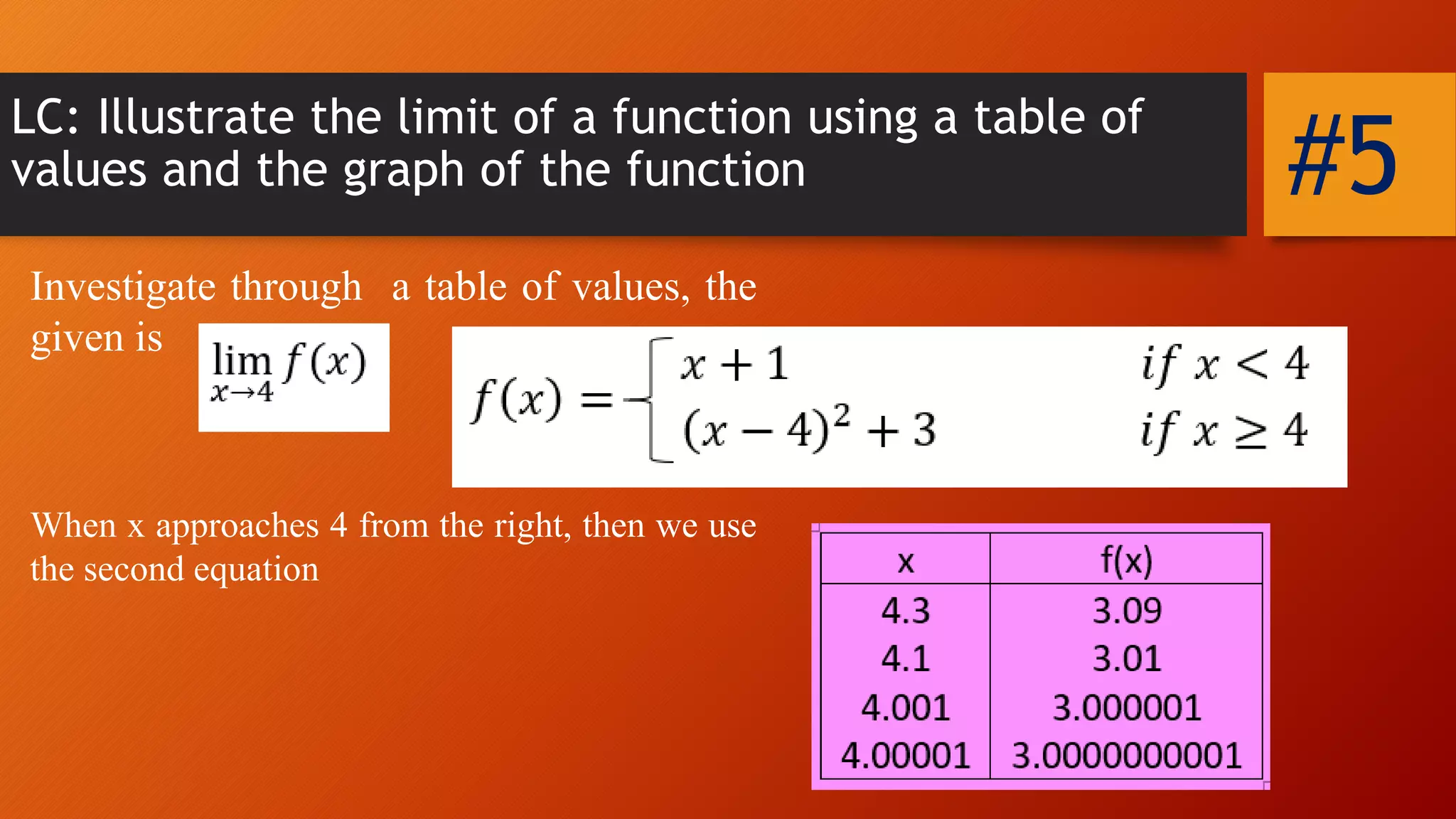

When x approaches 4 from the right, then we use
the second equation
13. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate through a table of values, the
given is
#5
Let’s compare:
14. LC: Illustrate the limit of a function using a table of
values and the graph of the function
Investigate through a table of values, the
given is
#5
Therefore, the limit does not
exist (DNE)
15. LC: Illustrate the limit of a function using a
table of values and the graph of the function
If x approaches c from the left, or through values less than c, then we write
If x approaches c from the right, or through values greater than c, then we write
Furthermore, we say if and only if
In other words, for a limit L to exist, the limits from the left and from the right must both exist and be
equal to L
16. LC: Illustrate the limit of a function using a
table of values and the graph of the function
Therefore,
are also referred to as one-sided limits, since
we only consider values on one side of c.
How about on graphs? How do we know
if the limits exist or not?
17. LC: Illustrate the limit of a function using a table of values and the graph
of the function
How about on graphs? How do we know if the
limits exist or not?
It exist and the limit is 7.
18. LC: Illustrate the limit of a function using a table of values and the graph
of the function
How about on graphs? How do we know if the
limits exist or not?
It exist and the limit is 2.

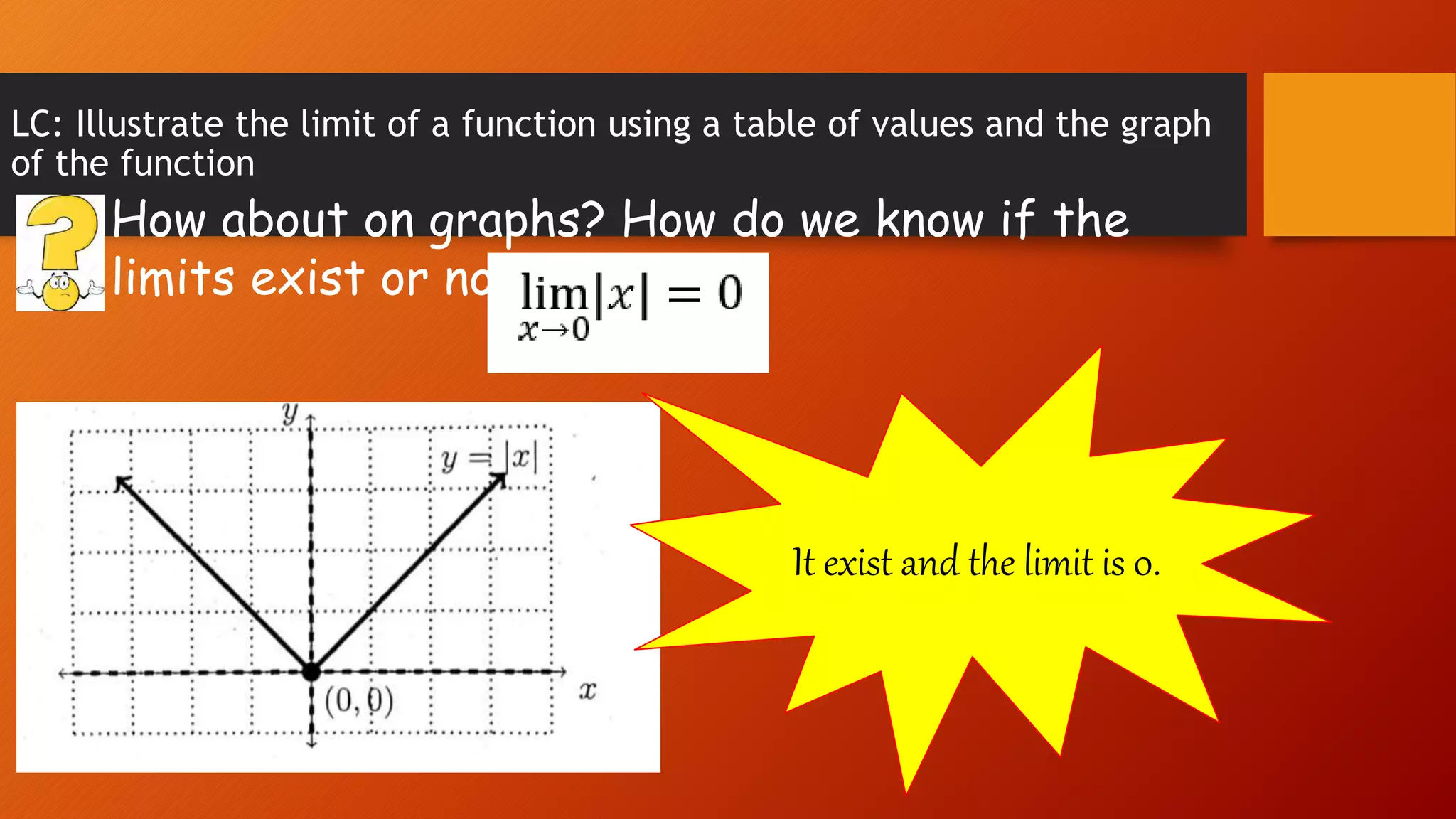

19. LC: Illustrate the limit of a function using a table of values and the graph
of the function
How about on graphs? How do we know if the
limits exist or not?
It exist and the limit is 0.
20. LC: Illustrate the limit of a function using a table of values and the graph
of the function
How about on graphs? How do we know if the
limits exist or not?
It exist and the limit is -
3.
21. LC: Illustrate the limit of a function using a table of values and the graph
of the function
How about on graphs? How
do we know if the limits
exist or not?
The limit does not exist.
22. LC: Illustrate the limit of a function using a table of values and the graph
of the function
Let us identify whether
the following limits exist
based on the graph…..
