Planning of Structural System (M1586.002400)

2. Structural Design Laboratory (SDL) 1

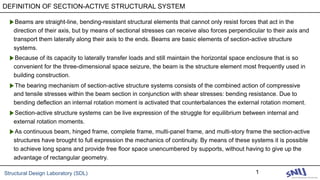

▶Beams are straight-line, bending-resistant structural elements that cannot only resist forces that act in the
direction of their axis, but by means of sectional stresses can receive also forces perpendicular to their axis and
transport them laterally along their axis to the ends. Beams are basic elements of section-active structure
systems.
▶Because of its capacity to laterally transfer loads and still maintain the horizontal space enclosure that is so
convenient for the three-dimensional space seizure, the beam is the structure element most frequently used in
building construction.
▶The bearing mechanism of section-active structure systems consists of the combined action of compressive
and tensile stresses within the beam section in conjunction with shear stresses: bending resistance. Due to
bending deflection an internal rotation moment is activated that counterbalances the external rotation moment.
▶Section-active structure systems can be live expression of the struggle for equilibrium between internal and
external rotation moments.
▶As continuous beam, hinged frame, complete frame, multi-panel frame, and multi-story frame the section-active
structures have brought to full expression the mechanics of continuity. By means of these systems it is possible
to achieve long spans and provide free floor space unencumbered by supports, without having to give up the
advantage of rectangular geometry.
DEFINITION OF SECTION-ACTIVE STRUCTURAL SYSTEM

3. Structural Design Laboratory (SDL) 2

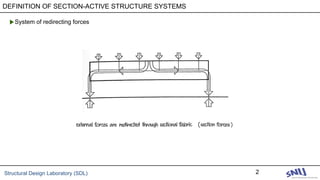

▶System of redirecting forces
DEFINITION OF SECTION-ACTIVE STRUCTURE SYSTEMS

4. Structural Design Laboratory (SDL) 3

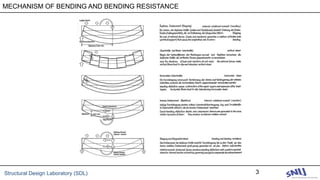

MECHANISM OF BENDING AND BENDING RESISTANCE

5. Structural Design Laboratory (SDL) 4

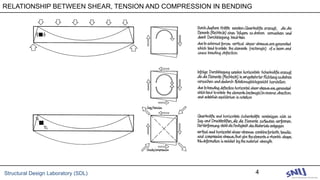

RELATIONSHIP BETWEEN SHEAR, TENSION AND COMPRESSION IN BENDING

6. Structural Design Laboratory (SDL) 5

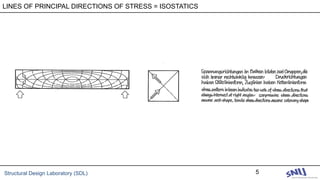

LINES OF PRINCIPAL DIRECTIONS OF STRESS = ISOSTATICS

7. Structural Design Laboratory (SDL) 6

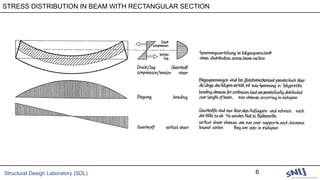

STRESS DISTRIBUTION IN BEAM WITH RECTANGULAR SECTION

8. Structural Design Laboratory (SDL) 7
SECTION DESIGN OF SOLID WEB BEAMS (1/2)

9. Structural Design Laboratory (SDL) 8

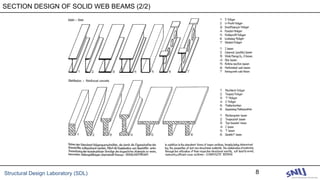

SECTION DESIGN OF SOLID WEB BEAMS (2/2)

10. Structural Design Laboratory (SDL) 9
INFLUENCE OF CANTILEVER ACTION ON BEAM EFFICIENCY

11. Structural Design Laboratory (SDL) 10
INFLUENCE OF SUPPORT CONDITIONS ON BEAM EFFICIENCY

12. Structural Design Laboratory (SDL) 11

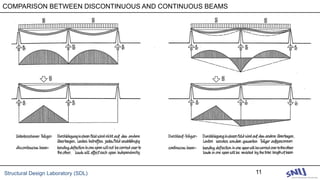

COMPARISON BETWEEN DISCONTINUOUS AND CONTINUOUS BEAMS

13. Structural Design Laboratory (SDL) 12

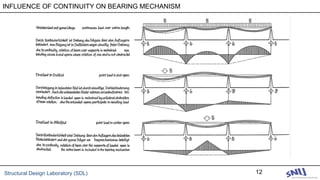

INFLUENCE OF CONTINUITY ON BEARING MECHANISM

14. Structural Design Laboratory (SDL) 13
BENDING MECHANISM IN CONTINUOUS BEAM OVER 5 SPANS

15. Structural Design Laboratory (SDL) 14
POSSIBILITY OF EQUAL DISTRIBUTION OF BENDING IN CONTINUOUS BEAM

16. Structural Design Laboratory (SDL) 15

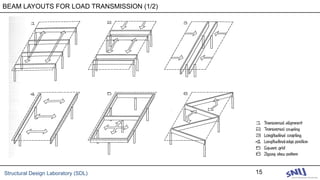

BEAM LAYOUTS FOR LOAD TRANSMISSION (1/2)

17. Structural Design Laboratory (SDL) 16

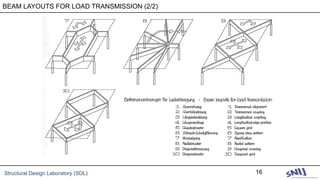

BEAM LAYOUTS FOR LOAD TRANSMISSION (2/2)

18. Structural Design Laboratory (SDL) 17
STRUCTURE SYSTEMS AND DESIGN POSSIBILITIES FOR BEAM OVER FIVE SPANS (1/5)

19. Structural Design Laboratory (SDL) 18

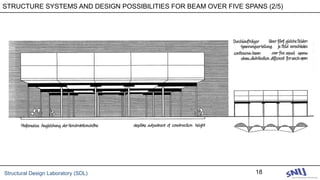

STRUCTURE SYSTEMS AND DESIGN POSSIBILITIES FOR BEAM OVER FIVE SPANS (2/5)

20. Structural Design Laboratory (SDL) 19
STRUCTURE SYSTEMS AND DESIGN POSSIBILITIES FOR BEAM OVER FIVE SPANS (3/5)

21. Structural Design Laboratory (SDL) 20

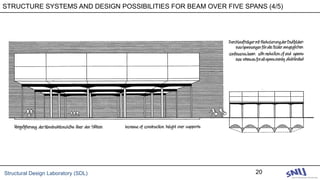

STRUCTURE SYSTEMS AND DESIGN POSSIBILITIES FOR BEAM OVER FIVE SPANS (4/5)

22. Structural Design Laboratory (SDL) 21

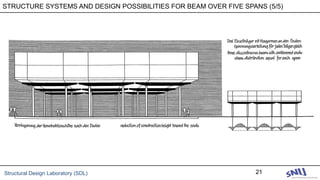

STRUCTURE SYSTEMS AND DESIGN POSSIBILITIES FOR BEAM OVER FIVE SPANS (5/5)

23. Structural Design Laboratory (SDL) 22

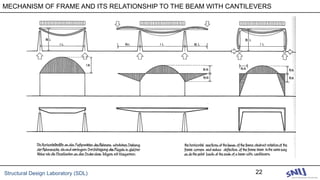

MECHANISM OF FRAME AND ITS RELATIONSHIP TO THE BEAM WITH CANTILEVERS

24. Structural Design Laboratory (SDL) 23
MECHANISM OF RESISTING LATERAL FORCES

25. Structural Design Laboratory (SDL) 24

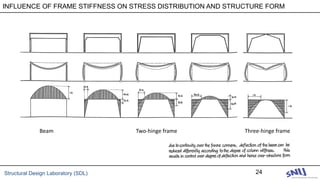

INFLUENCE OF FRAME STIFFNESS ON STRESS DISTRIBUTION AND STRUCTURE FORM
Beam Two-hinge frame Three-hinge frame

26. Structural Design Laboratory (SDL) 25

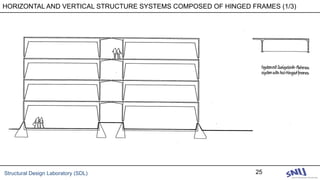

HORIZONTAL AND VERTICAL STRUCTURE SYSTEMS COMPOSED OF HINGED FRAMES (1/3)

27. Structural Design Laboratory (SDL) 26
HORIZONTAL AND VERTICAL STRUCTURE SYSTEMS COMPOSED OF HINGED FRAMES (2/3)

28. Structural Design Laboratory (SDL) 27

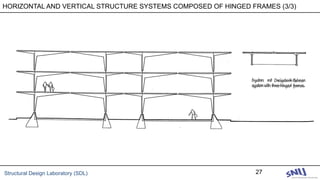

HORIZONTAL AND VERTICAL STRUCTURE SYSTEMS COMPOSED OF HINGED FRAMES (3/3)

29. Structural Design Laboratory (SDL) 28

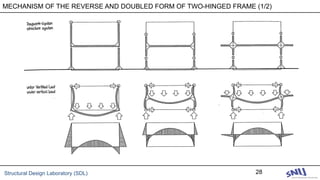

MECHANISM OF THE REVERSE AND DOUBLED FORM OF TWO-HINGED FRAME (1/2)

30. Structural Design Laboratory (SDL) 29
MECHANISM OF THE REVERSE AND DOUBLED FORM OF TWO-HINGED FRAME (2/2)

31. Structural Design Laboratory (SDL) 30

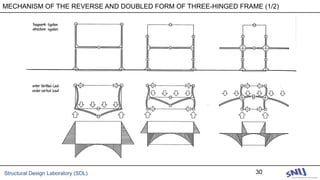

MECHANISM OF THE REVERSE AND DOUBLED FORM OF THREE-HINGED FRAME (1/2)

32. Structural Design Laboratory (SDL) 31
MECHANISM OF THE REVERSE AND DOUBLED FORM OF THREE-HINGED FRAME (2/2)

33. Structural Design Laboratory (SDL) 32

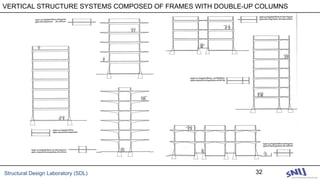

VERTICAL STRUCTURE SYSTEMS COMPOSED OF FRAMES WITH DOUBLE-UP COLUMNS

34. Structural Design Laboratory (SDL) 33

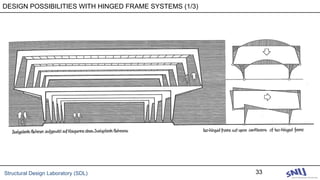

DESIGN POSSIBILITIES WITH HINGED FRAME SYSTEMS (1/3)

35. Structural Design Laboratory (SDL) 34
DESIGN POSSIBILITIES WITH HINGED FRAME SYSTEMS (2/3)

36. Structural Design Laboratory (SDL) 35
DESIGN POSSIBILITIES WITH HINGED FRAME SYSTEMS (3/3)

37. Structural Design Laboratory (SDL) 36
MECHANISM OF COMPLETE FRAME AND MULTI-PANEL FRAME (1/2)

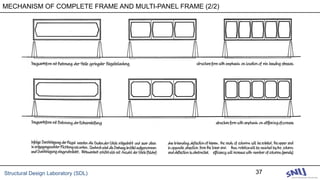

38. Structural Design Laboratory (SDL) 37
MECHANISM OF COMPLETE FRAME AND MULTI-PANEL FRAME (2/2)

39. Structural Design Laboratory (SDL) 38

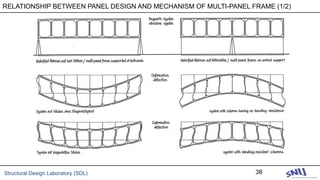

RELATIONSHIP BETWEEN PANEL DESIGN AND MECHANISM OF MULTI-PANEL FRAME (1/2)

40. Structural Design Laboratory (SDL) 39

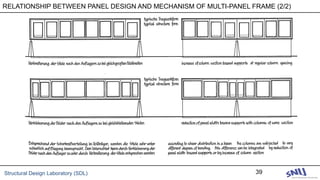

RELATIONSHIP BETWEEN PANEL DESIGN AND MECHANISM OF MULTI-PANEL FRAME (2/2)

41. Structural Design Laboratory (SDL) 40
LONG-SPAN STRUCTURE SYSTEMS COMPOSED OF MULTI-PANEL FRAMES (1/3)

42. Structural Design Laboratory (SDL) 41
LONG-SPAN STRUCTURE SYSTEMS COMPOSED OF MULTI-PANEL FRAMES (2/3)

43. Structural Design Laboratory (SDL) 42
LONG-SPAN STRUCTURE SYSTEMS COMPOSED OF MULTI-PANEL FRAMES (3/3)

44. Structural Design Laboratory (SDL) 43

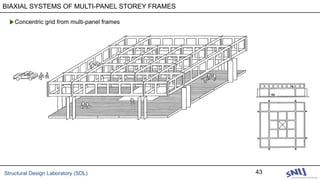

▶Concentric grid from multi-panel frames
BIAXIAL SYSTEMS OF MULTI-PANEL STOREY FRAMES

45. Structural Design Laboratory (SDL) 44

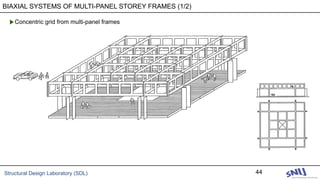

▶Concentric grid from multi-panel frames
BIAXIAL SYSTEMS OF MULTI-PANEL STOREY FRAMES (1/2)

46. Structural Design Laboratory (SDL) 45
BIAXIAL SYSTEMS OF MULTI-PANEL STOREY FRAMES (2/2)
▶Two-way stacking of multi-panel full frames

47. Structural Design Laboratory (SDL) 46
▶Multi-panel frame continuous through all floors
MULTI-STORY STRUCTURE SYSTEMS COMPOSED OF MULTI-PANEL FRAMES (1/3)

48. Structural Design Laboratory (SDL) 47

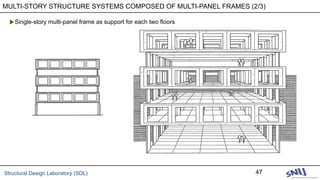

▶Single-story multi-panel frame as support for each two floors
MULTI-STORY STRUCTURE SYSTEMS COMPOSED OF MULTI-PANEL FRAMES (2/3)

49. Structural Design Laboratory (SDL) 48

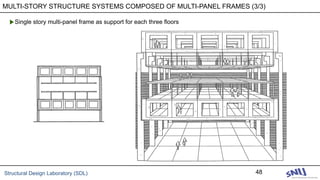

▶Single story multi-panel frame as support for each three floors
MULTI-STORY STRUCTURE SYSTEMS COMPOSED OF MULTI-PANEL FRAMES (3/3)

50. Structural Design Laboratory (SDL) 49
▶Biaxial load dispersal

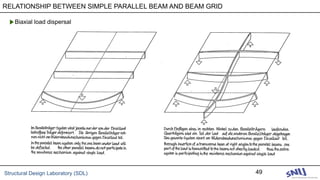

RELATIONSHIP BETWEEN SIMPLE PARALLEL BEAM AND BEAM GRID

51. Structural Design Laboratory (SDL) 50
INFLUENCE OF SIDE PROPORTIONS UPON MAGNITUDE OF BIAXIAL LOAD DISPERSAL

52. Structural Design Laboratory (SDL) 51
BIAXIAL LOAD DISPERSAL OF BEAM GRID WITH RIGID CONNECTIONS

53. Structural Design Laboratory (SDL) 52

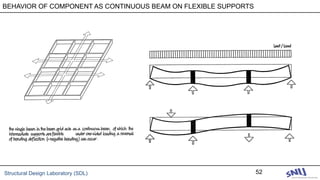

BEHAVIOR OF COMPONENT AS CONTINUOUS BEAM ON FLEXIBLE SUPPORTS

54. Structural Design Laboratory (SDL) 53

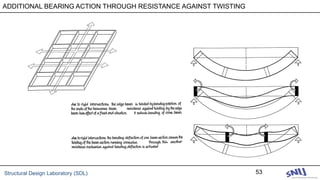

ADDITIONAL BEARING ACTION THROUGH RESISTANCE AGAINST TWISTING

55. Structural Design Laboratory (SDL) 54

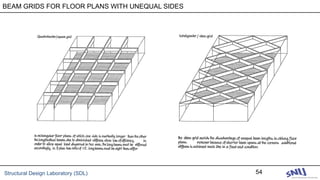

BEAM GRIDS FOR FLOOR PLANS WITH UNEQUAL SIDES

56. Structural Design Laboratory (SDL) 55

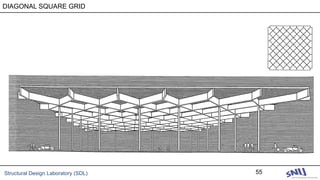

DIAGONAL SQUARE GRID

57. Structural Design Laboratory (SDL) 56
▶Aside from the fundamental commitment to the configuration of floor plan and to the disposition of supports the
design of beam grids is concerned with three form decisions 1) Geometry of beam pattern 2) Grid relationship to
lateral space enclosure 3) Consistency of beam grid structure. Accordingly beam grids will be classified and
identified as:
▶1. Standard geometries of beam grids
CONSTITUENT CONCERNS IN THE DESIGN OF BEAM GRIDS (1/2)

58. Structural Design Laboratory (SDL) 57

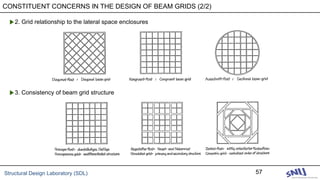

▶2. Grid relationship to the lateral space enclosures
▶3. Consistency of beam grid structure
CONSTITUENT CONCERNS IN THE DESIGN OF BEAM GRIDS (2/2)

59. Structural Design Laboratory (SDL) 58

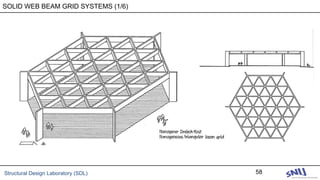

SOLID WEB BEAM GRID SYSTEMS (1/6)

60. Structural Design Laboratory (SDL) 59

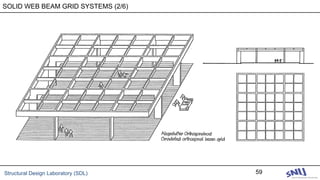

SOLID WEB BEAM GRID SYSTEMS (2/6)

61. Structural Design Laboratory (SDL) 60
SOLID WEB BEAM GRID SYSTEMS (3/6)

62. Structural Design Laboratory (SDL) 61

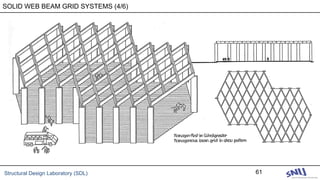

SOLID WEB BEAM GRID SYSTEMS (4/6)

63. Structural Design Laboratory (SDL) 62

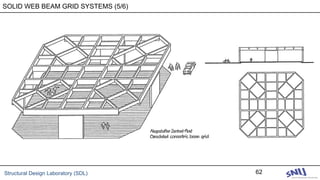

SOLID WEB BEAM GRID SYSTEMS (5/6)

64. Structural Design Laboratory (SDL) 63

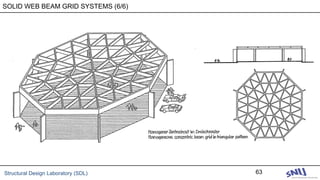

SOLID WEB BEAM GRID SYSTEMS (6/6)

65. Structural Design Laboratory (SDL) 64

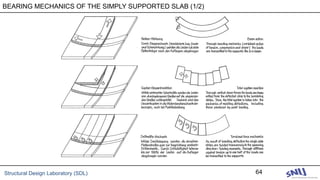

BEARING MECHANICS OF THE SIMPLY SUPPORTED SLAB (1/2)

66. Structural Design Laboratory (SDL) 65
BEARING MECHANICS OF THE SIMPLY SUPPORTED SLAB (2/2)

67. Structural Design Laboratory (SDL) 66

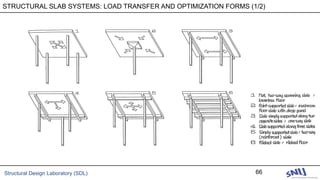

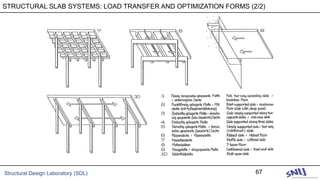

STRUCTURAL SLAB SYSTEMS: LOAD TRANSFER AND OPTIMIZATION FORMS (1/2)

68. Structural Design Laboratory (SDL) 67
STRUCTURAL SLAB SYSTEMS: LOAD TRANSFER AND OPTIMIZATION FORMS (2/2)

69. Structural Design Laboratory (SDL) 68
EXAMPLE OF STRUCTURAL SLAB SYSTEMS (1/3)

70. Structural Design Laboratory (SDL) 69
EXAMPLE OF STRUCTURAL SLAB SYSTEMS (2/3)

71. Structural Design Laboratory (SDL) 70

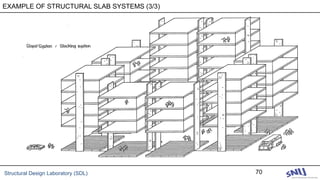

EXAMPLE OF STRUCTURAL SLAB SYSTEMS (3/3)

72. Structural Design Laboratory (SDL) 71

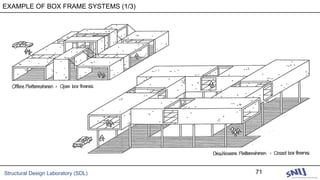

EXAMPLE OF BOX FRAME SYSTEMS (1/3)

73. Structural Design Laboratory (SDL) 72

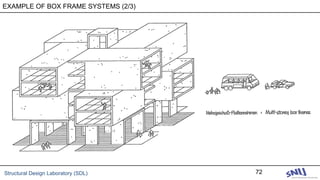

EXAMPLE OF BOX FRAME SYSTEMS (2/3)

74. Structural Design Laboratory (SDL) 73

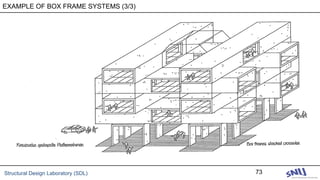

EXAMPLE OF BOX FRAME SYSTEMS (3/3)
