In these slides you can find the basic concepts of natural user interfaces. From the evolution of the classic desktop centered applications to the more intuitive and natural ones.

1. Luigi Oliveto
POLIMI
Natural User Interfaces

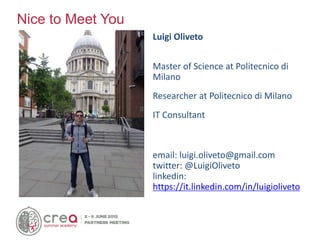

2. Luigi Oliveto
Master of Science at Politecnico di
Milano
Researcher at Politecnico di Milano
IT Consultant
email: luigi.oliveto@gmail.com
twitter: @LuigiOliveto
linkedin:
https://it.linkedin.com/in/luigioliveto
Nice to Meet You

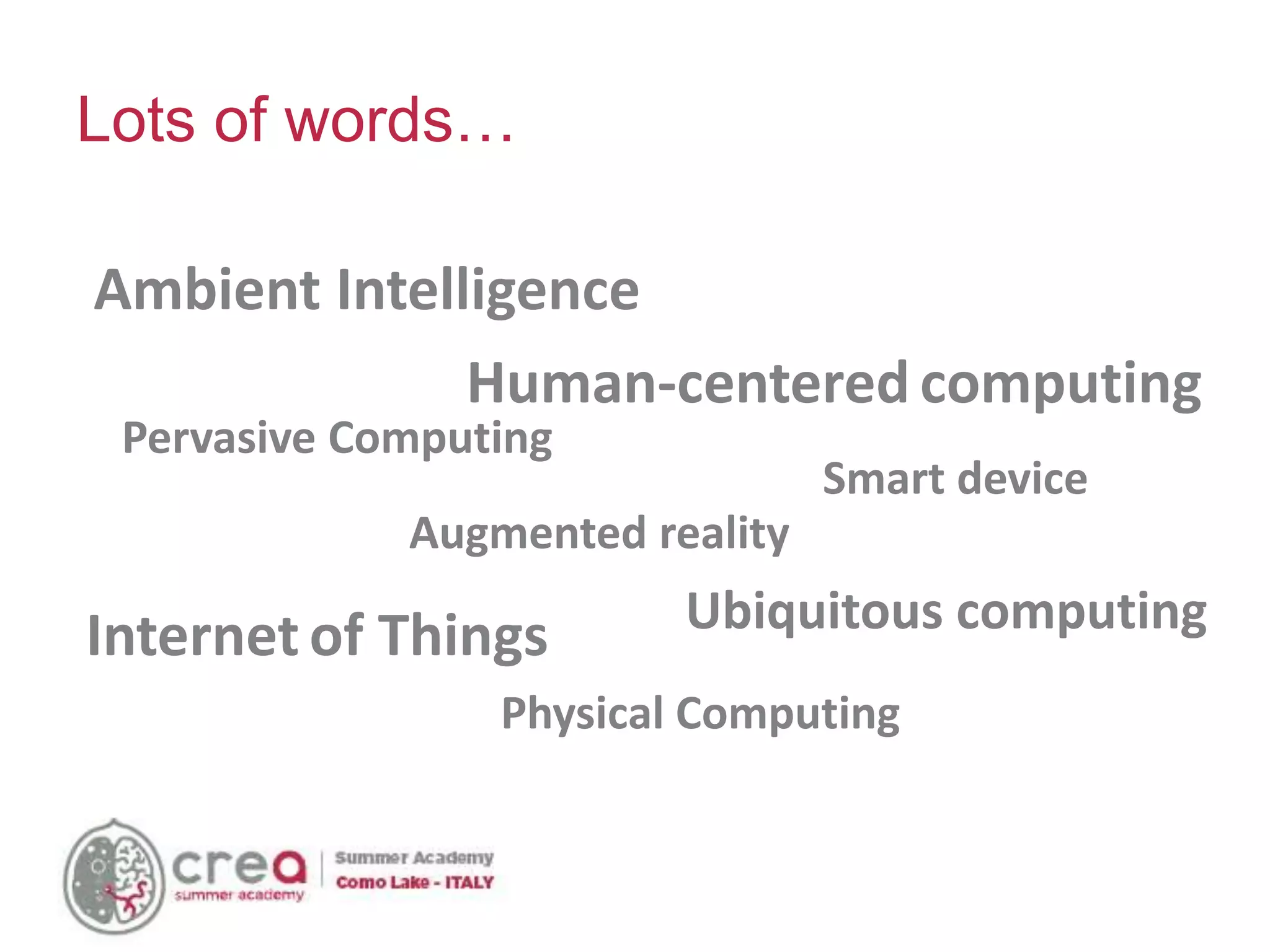

3. Lots of words…
Ambient Intelligence
Internet of Things
Pervasive Computing
Physical Computing
Ubiquitous computing
Augmented reality
Human-centered computing
Smart device

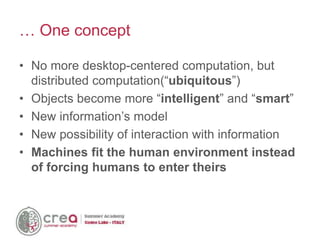

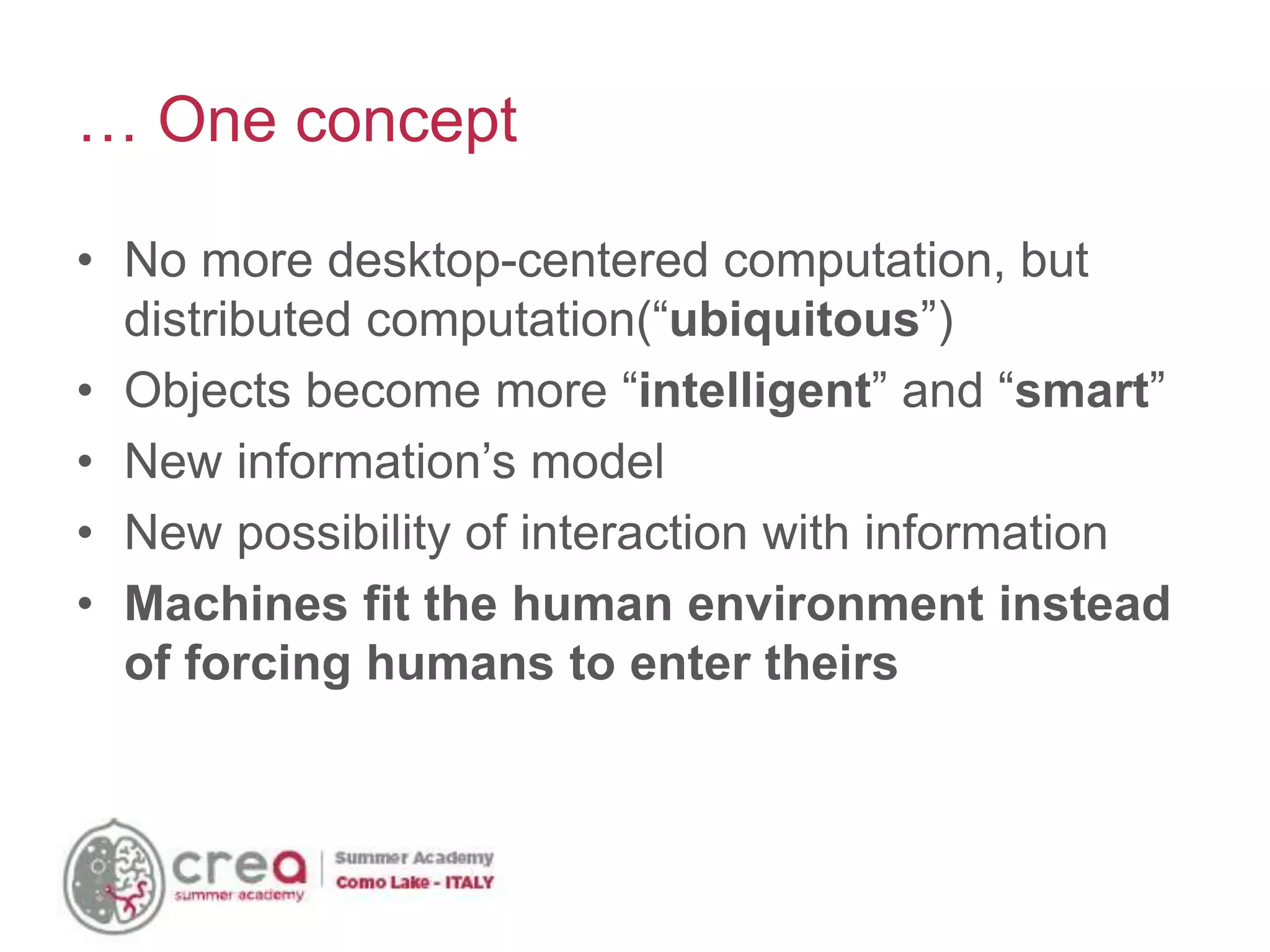

4. • No more desktop-centered computation, but
distributed computation(“ubiquitous”)
• Objects become more “intelligent” and “smart”
• New information’s model
• New possibility of interaction with information
• Machines fit the human environment instead
of forcing humans to enter theirs
… One concept

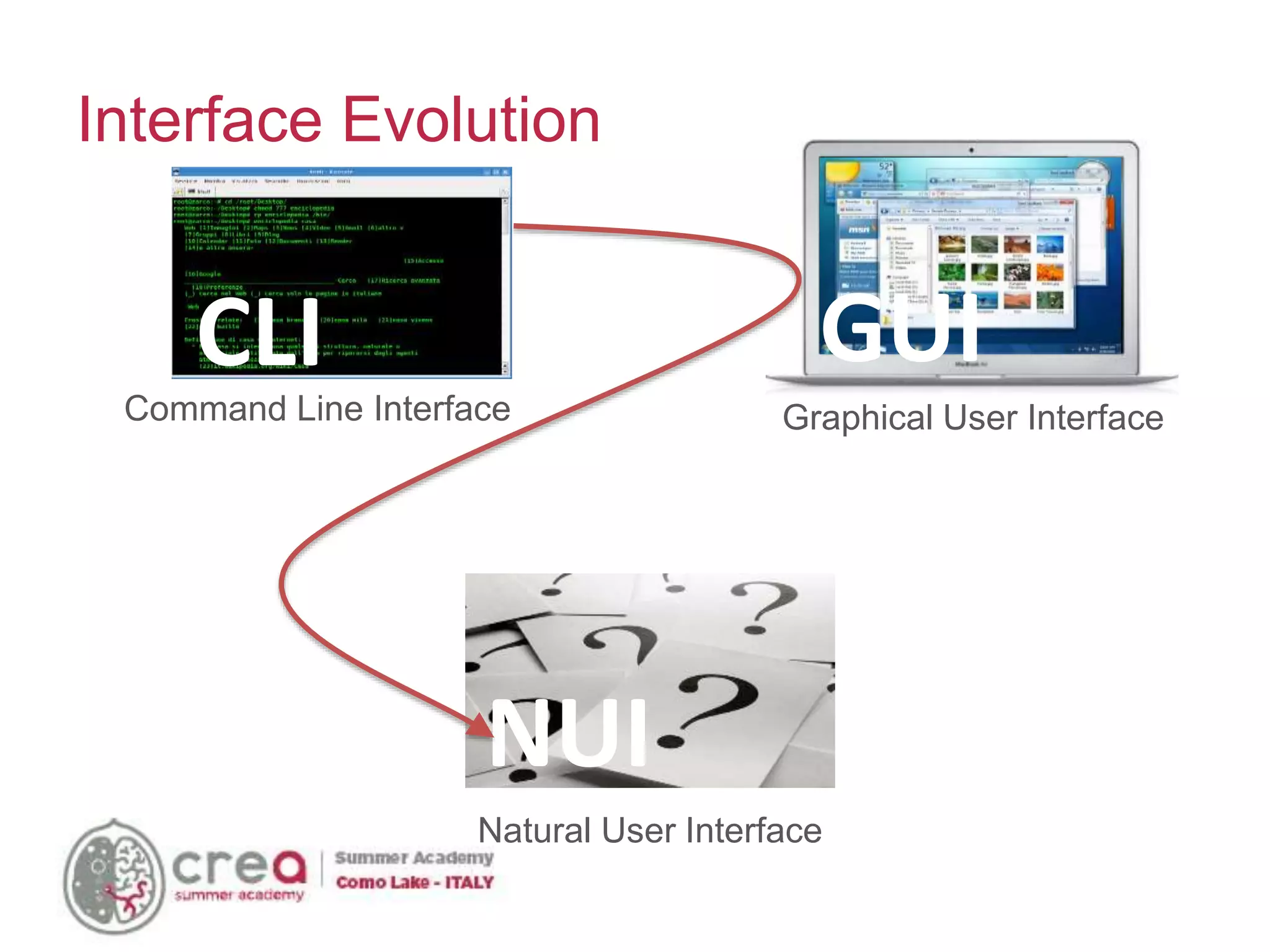

5. Interface Evolution
Command Line Interface
CLI
Graphical User Interface
GUI
NUI
Natural User Interface

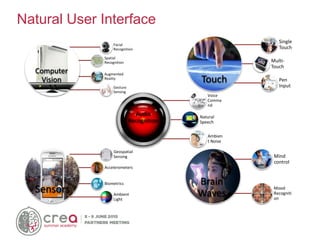

6. Natural User Interface
Computer
Vision
Facial
Recognition
Spatial
Recognition
Augmented
Reality
Gesture
Sensing
Audio
Recognition
Voice
Comma
nd
Natural
Speech
Ambien
t Noise
Touch
Single
Touch
Multi-
Touch
Pen
Input
Sensors
Geospatial
Sensing
Accelerometers
Biometrics
Ambient
Light
Brain
Waves
Mind
control
Mood
Recogniti
on

7. Multi-Touch interfaces

8. make a withdrawal…

9. megawatts86

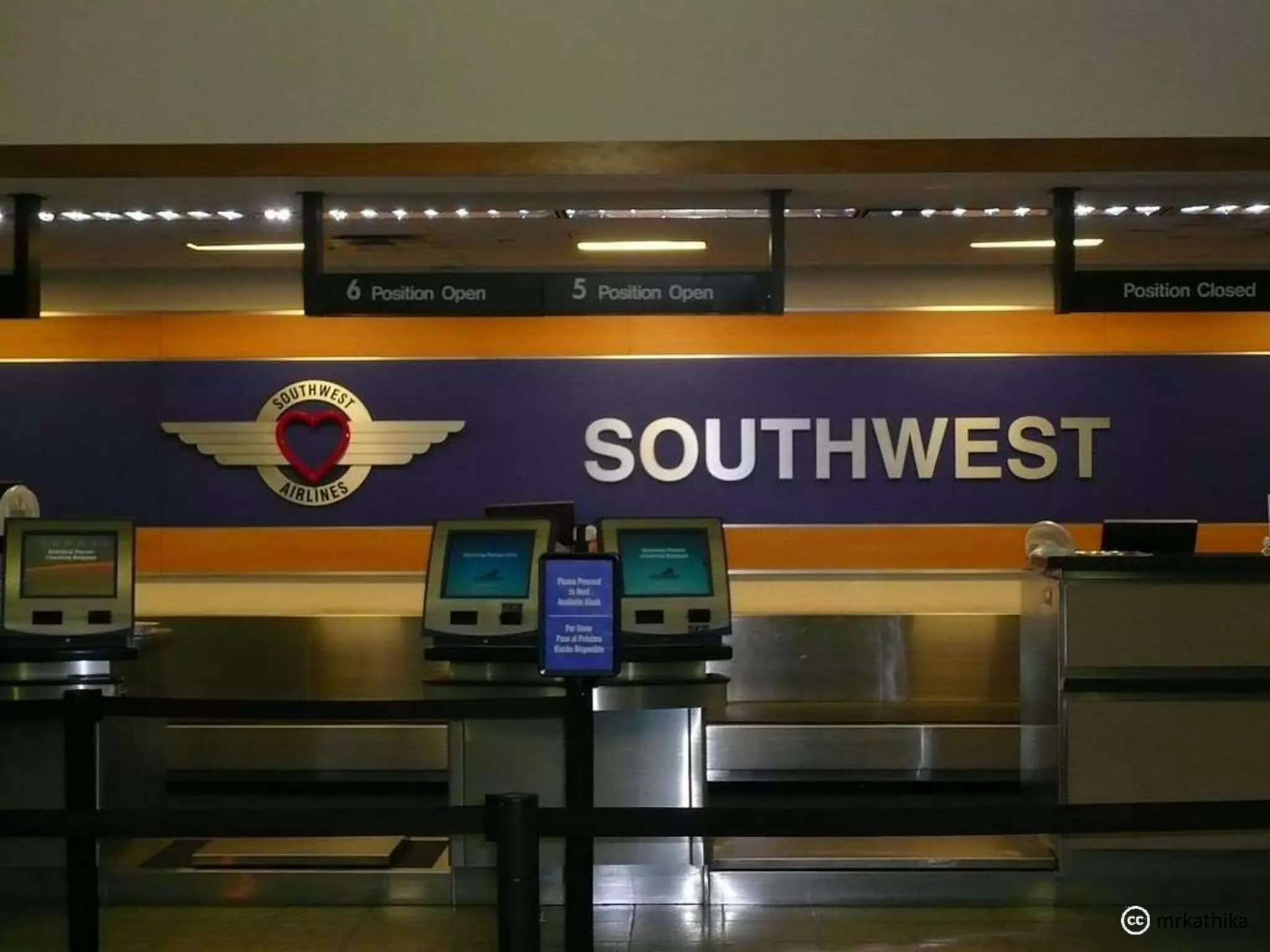

10. Airplane check-in…

11. mrkathika

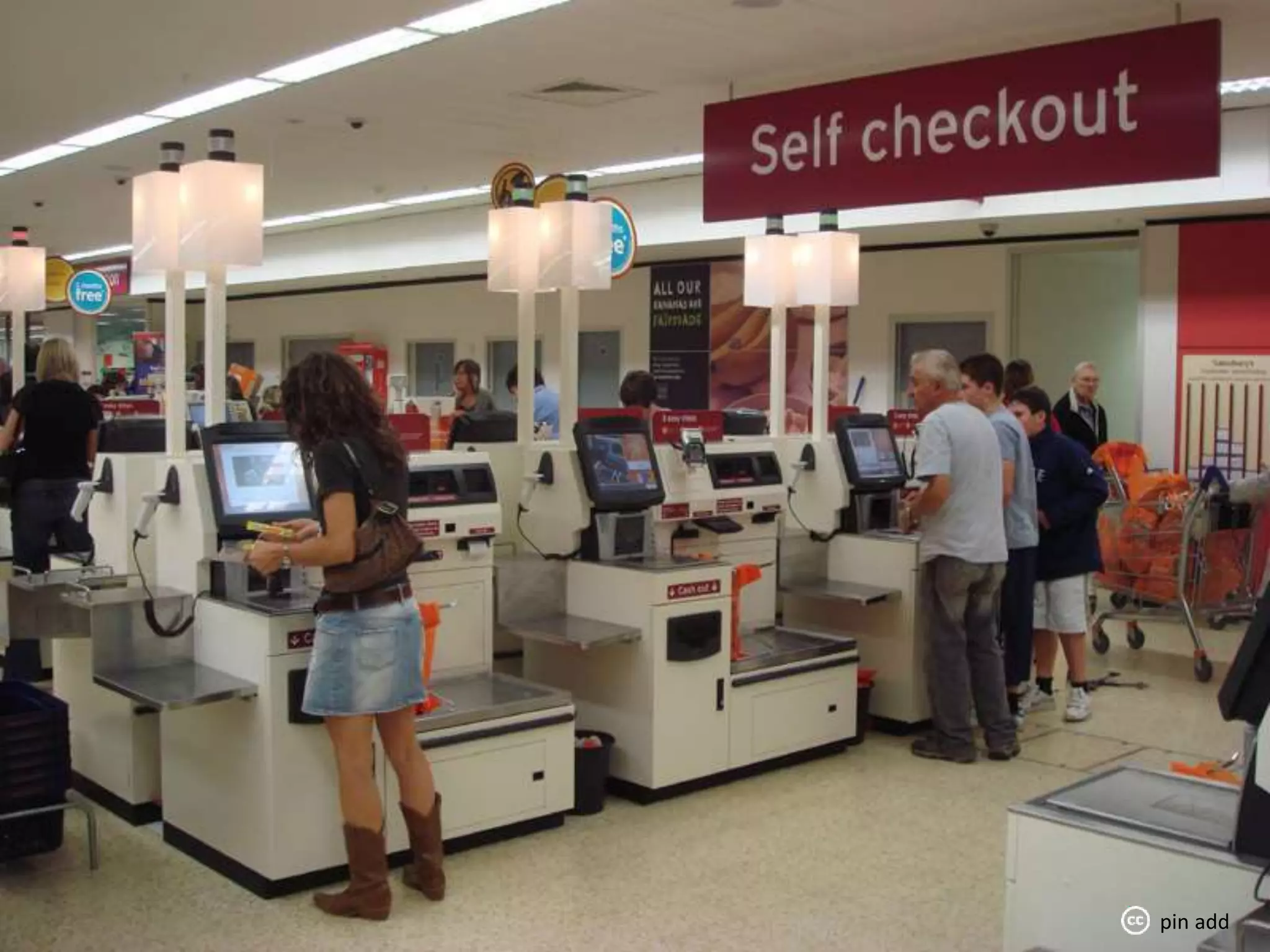

12. Shopping…

13. pin add

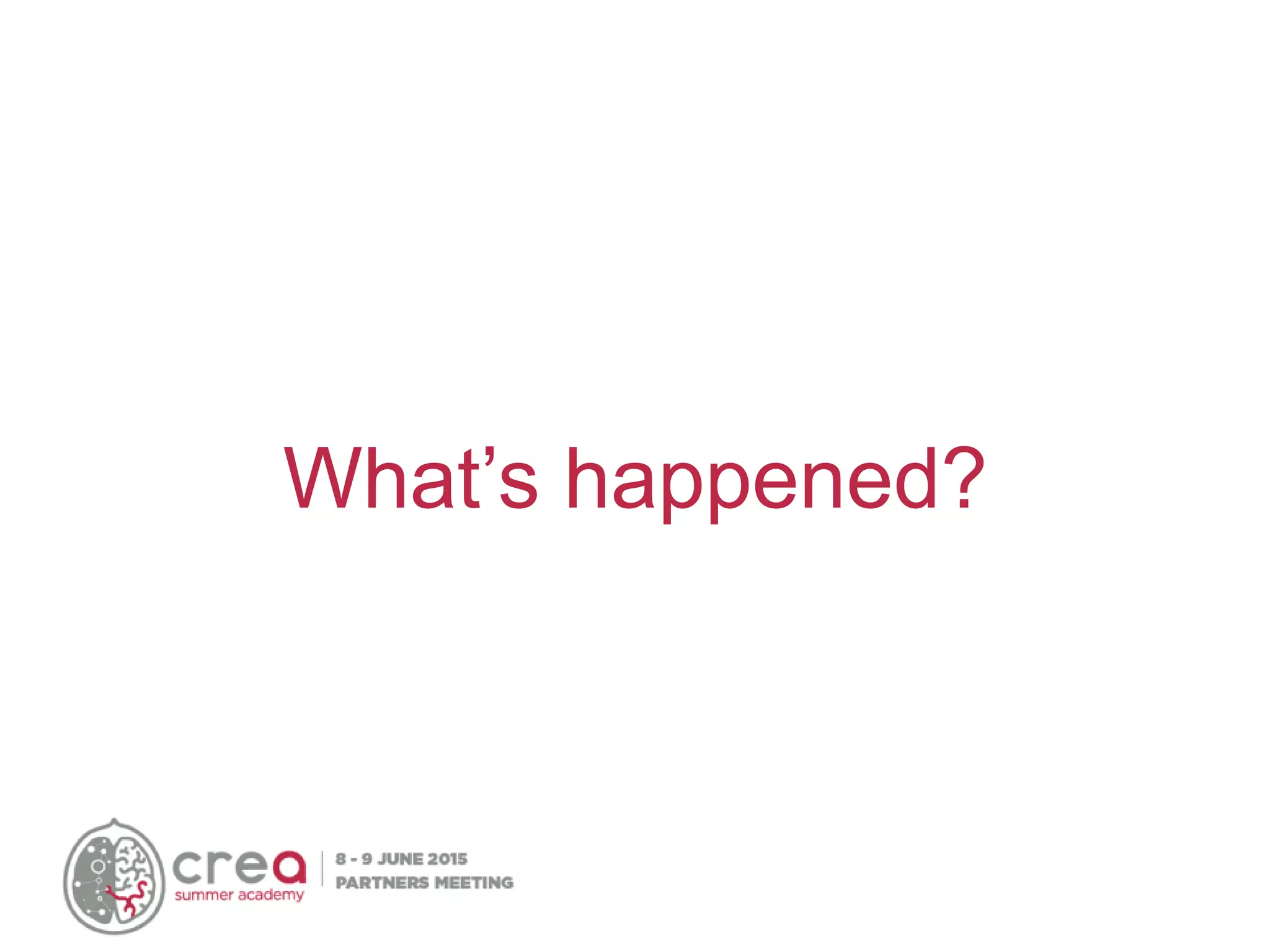

14. What’s happened?

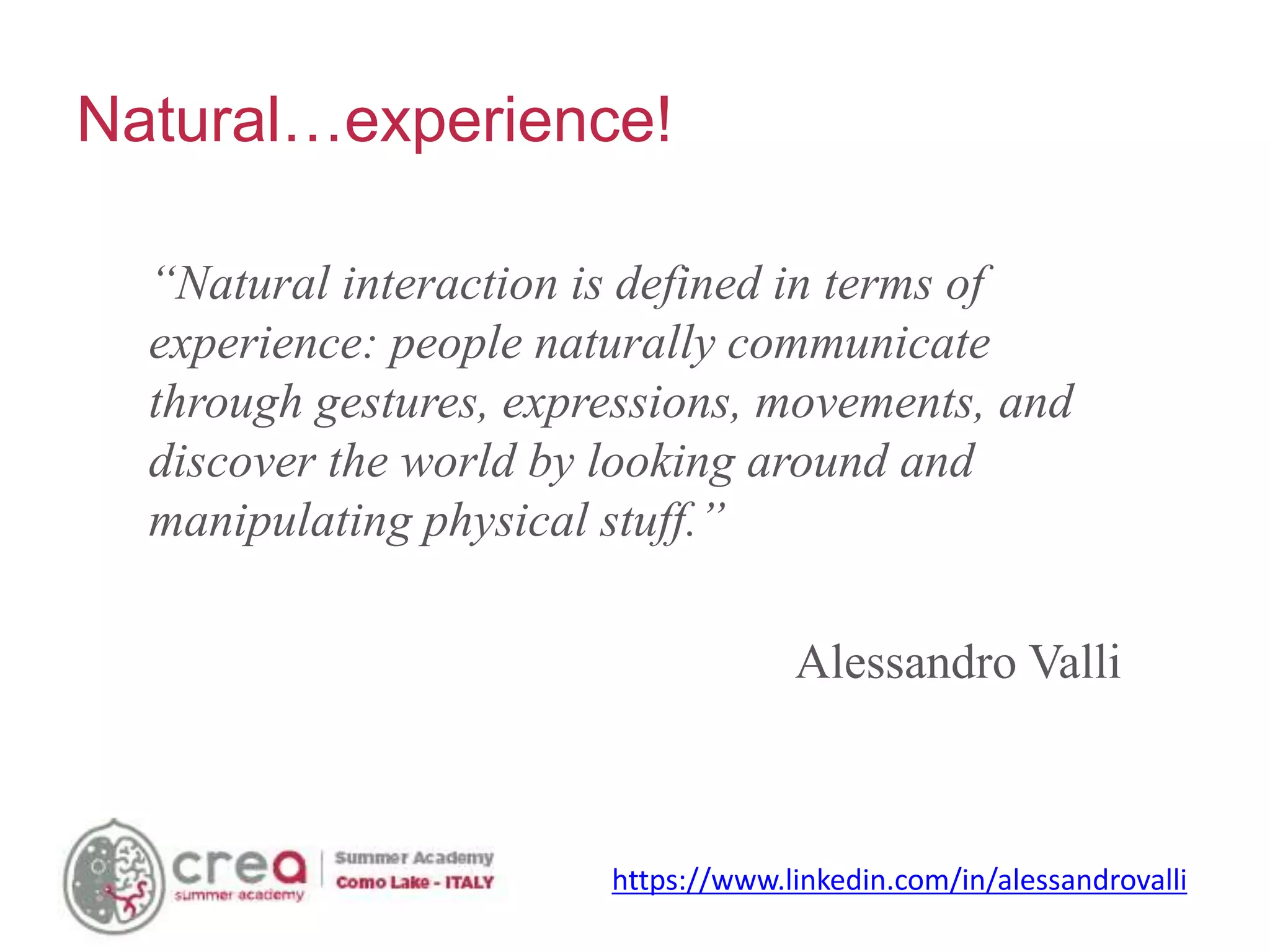

15. Natural…experience!
“Natural interaction is defined in terms of
experience: people naturally communicate
through gestures, expressions, movements, and
discover the world by looking around and
manipulating physical stuff.”
Alessandro Valli
https://www.linkedin.com/in/alessandrovalli

17. What is changed?
AFTERBEFORE
• Single device
• Collaborative experience
• More points
• Multiple devices
• Individual experience
• One click

18. • Sensible to touch surface (touch screen)
Multi-Touch Hardware
RESISTIVE CAPACITIVE

19. • Camera-based technology:
Laser Line Plan
Frustrated Total Internal Reflection
Diffused illumination
Pixel Sense
Multi-Touch Hardware (2)

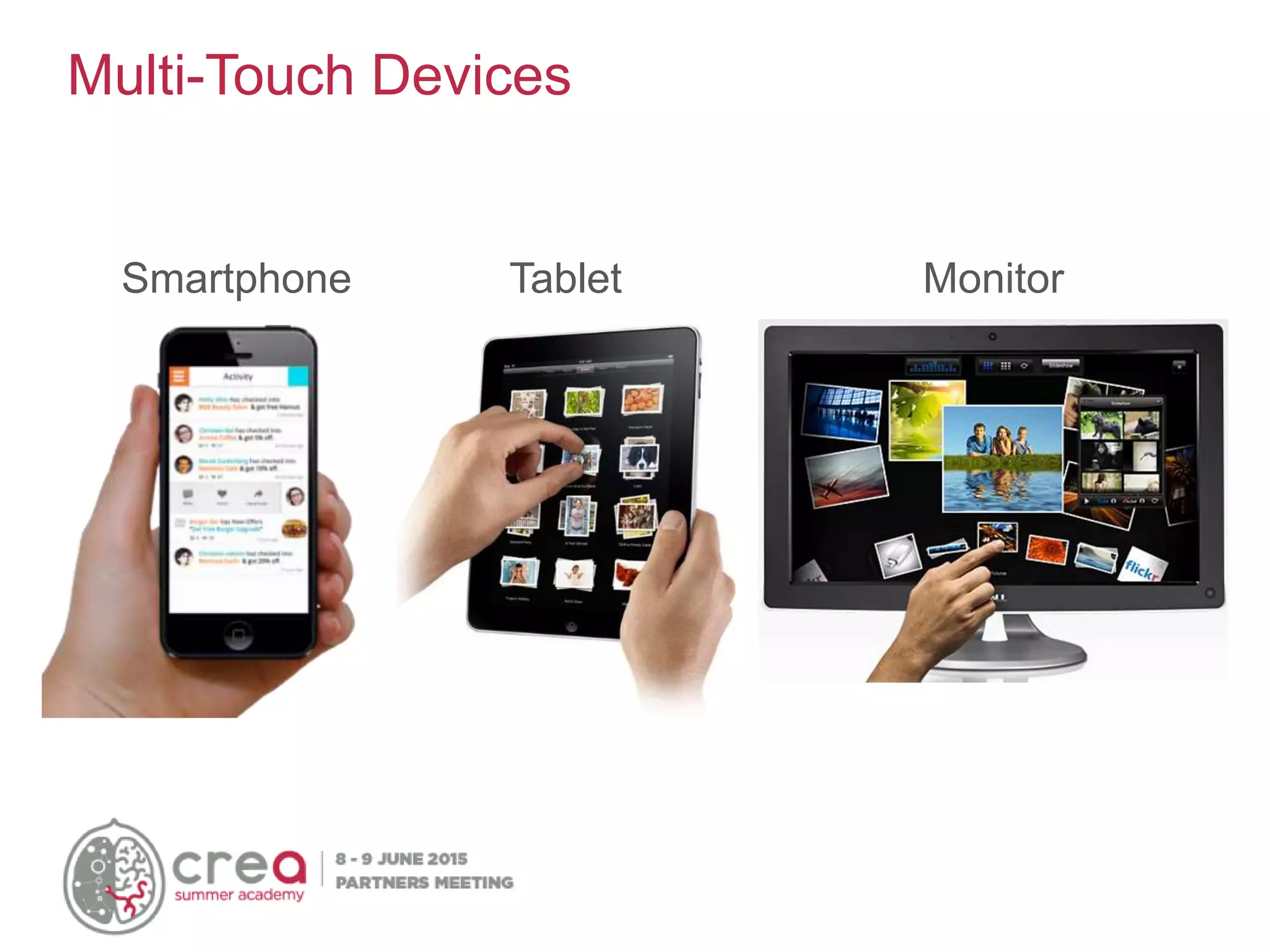

20. Multi-Touch Devices
Smartphone Tablet Monitor

21. Multi-Touch Devices (2)
Tangible Table / Wall

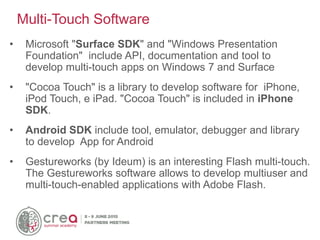

22. • Microsoft "Surface SDK" and "Windows Presentation
Foundation" include API, documentation and tool to
develop multi-touch apps on Windows 7 and Surface
• "Cocoa Touch" is a library to develop software for iPhone,
iPod Touch, e iPad. "Cocoa Touch" is included in iPhone
SDK.
• Android SDK include tool, emulator, debugger and library
to develop App for Android
• Gestureworks (by Ideum) is an interesting Flash multi-touch.
The Gestureworks software allows to develop multiuser and
multi-touch-enabled applications with Adobe Flash.
Multi-Touch Software

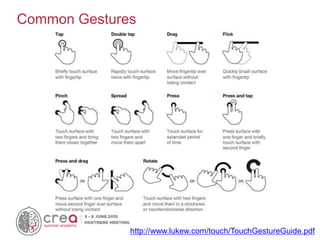

23. http://www.lukew.com/touch/TouchGestureGuide.pdf
Common Gestures

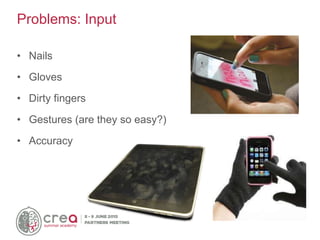

24. • Nails
• Gloves
• Dirty fingers
• Gestures (are they so easy?)
• Accuracy
Problems: Input

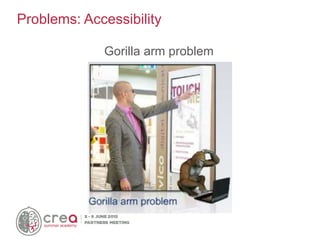

25. Gorilla arm problem
Problems: Accessibility

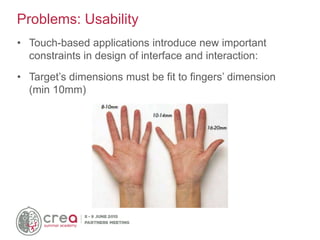

26. • Touch-based applications introduce new important
constraints in design of interface and interaction:
• Target’s dimensions must be fit to fingers’ dimension
(min 10mm)
Problems: Usability

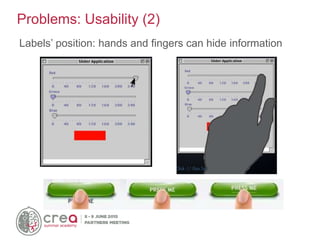

27. Labels’ position: hands and fingers can hide information
Problems: Usability (2)

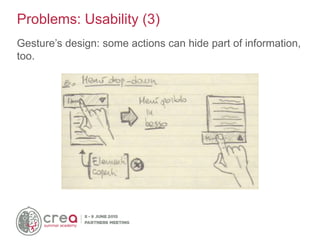

28. Gesture’s design: some actions can hide part of information,
too.
Problems: Usability (3)

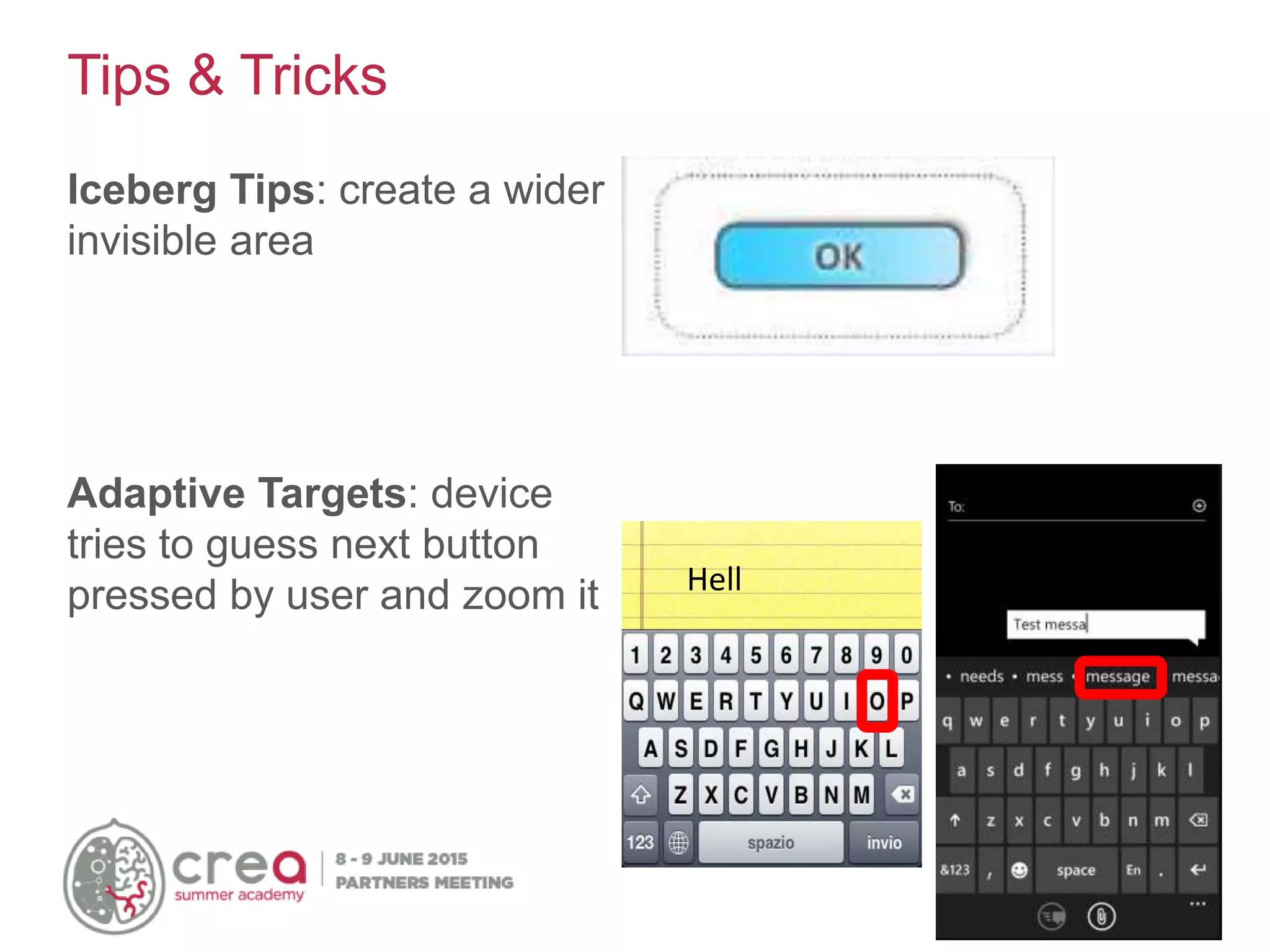

29. Iceberg Tips: create a wider
invisible area
Adaptive Targets: device
tries to guess next button
pressed by user and zoom it Hell
Tips & Tricks

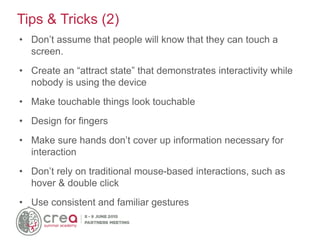

30. • Don’t assume that people will know that they can touch a
screen.
• Create an “attract state” that demonstrates interactivity while
nobody is using the device
• Make touchable things look touchable
• Design for fingers
• Make sure hands don’t cover up information necessary for
interaction
• Don’t rely on traditional mouse-based interactions, such as
hover & double click
• Use consistent and familiar gestures
Tips & Tricks (2)

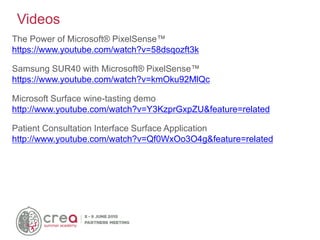

31. The Power of Microsoft® PixelSense™
https://www.youtube.com/watch?v=58dsqozft3k
Samsung SUR40 with Microsoft® PixelSense™
https://www.youtube.com/watch?v=kmOku92MlQc
Microsoft Surface wine-tasting demo
http://www.youtube.com/watch?v=Y3KzprGxpZU&feature=related
Patient Consultation Interface Surface Application
http://www.youtube.com/watch?v=Qf0WxOo3O4g&feature=related
Videos

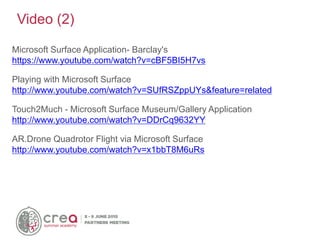

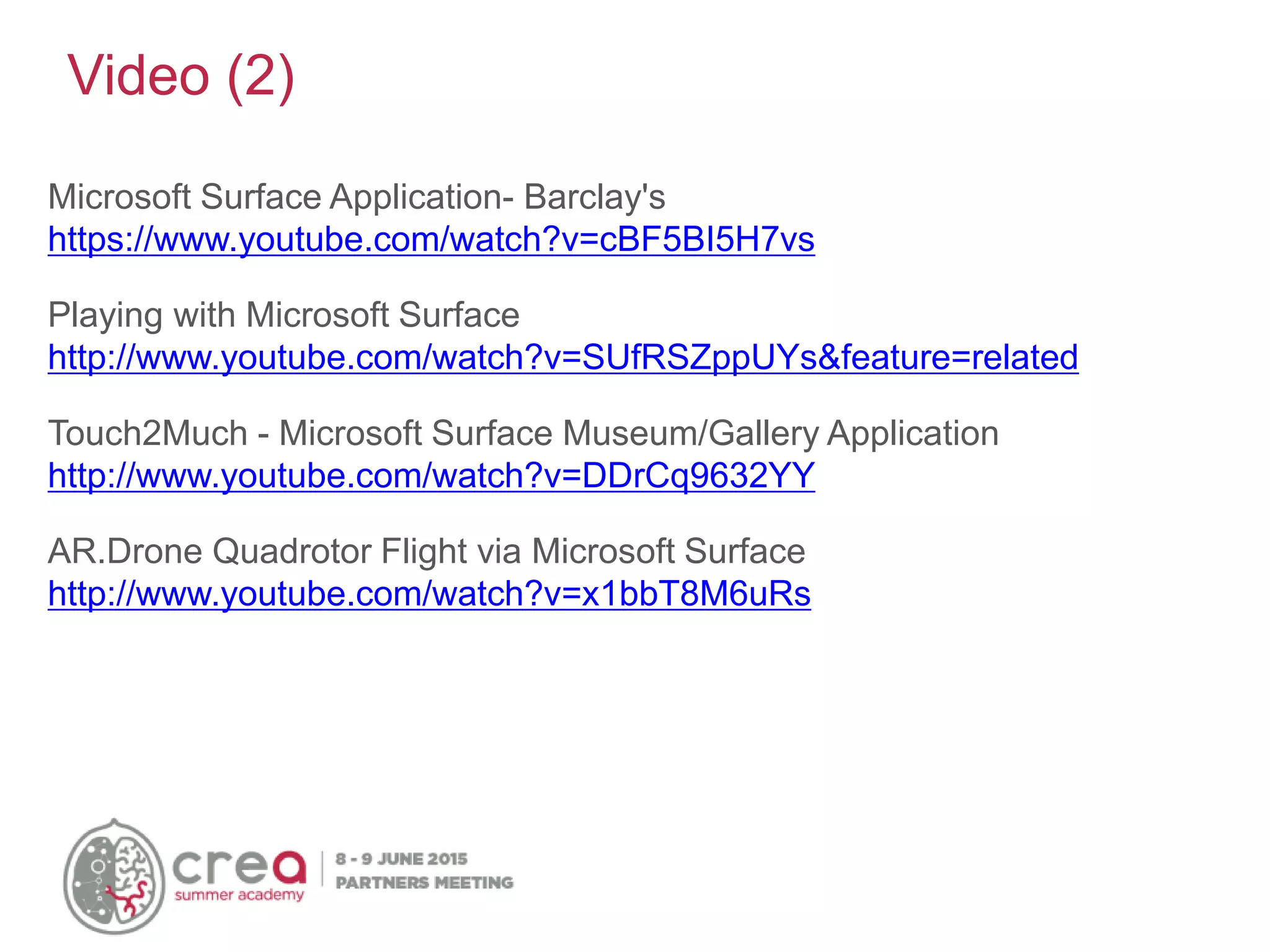

32. Microsoft Surface Application- Barclay's
https://www.youtube.com/watch?v=cBF5BI5H7vs
Playing with Microsoft Surface
http://www.youtube.com/watch?v=SUfRSZppUYs&feature=related
Touch2Much - Microsoft Surface Museum/Gallery Application
http://www.youtube.com/watch?v=DDrCq9632YY
AR.Drone Quadrotor Flight via Microsoft Surface
http://www.youtube.com/watch?v=x1bbT8M6uRs
Video (2)

33. Touchless interfaces

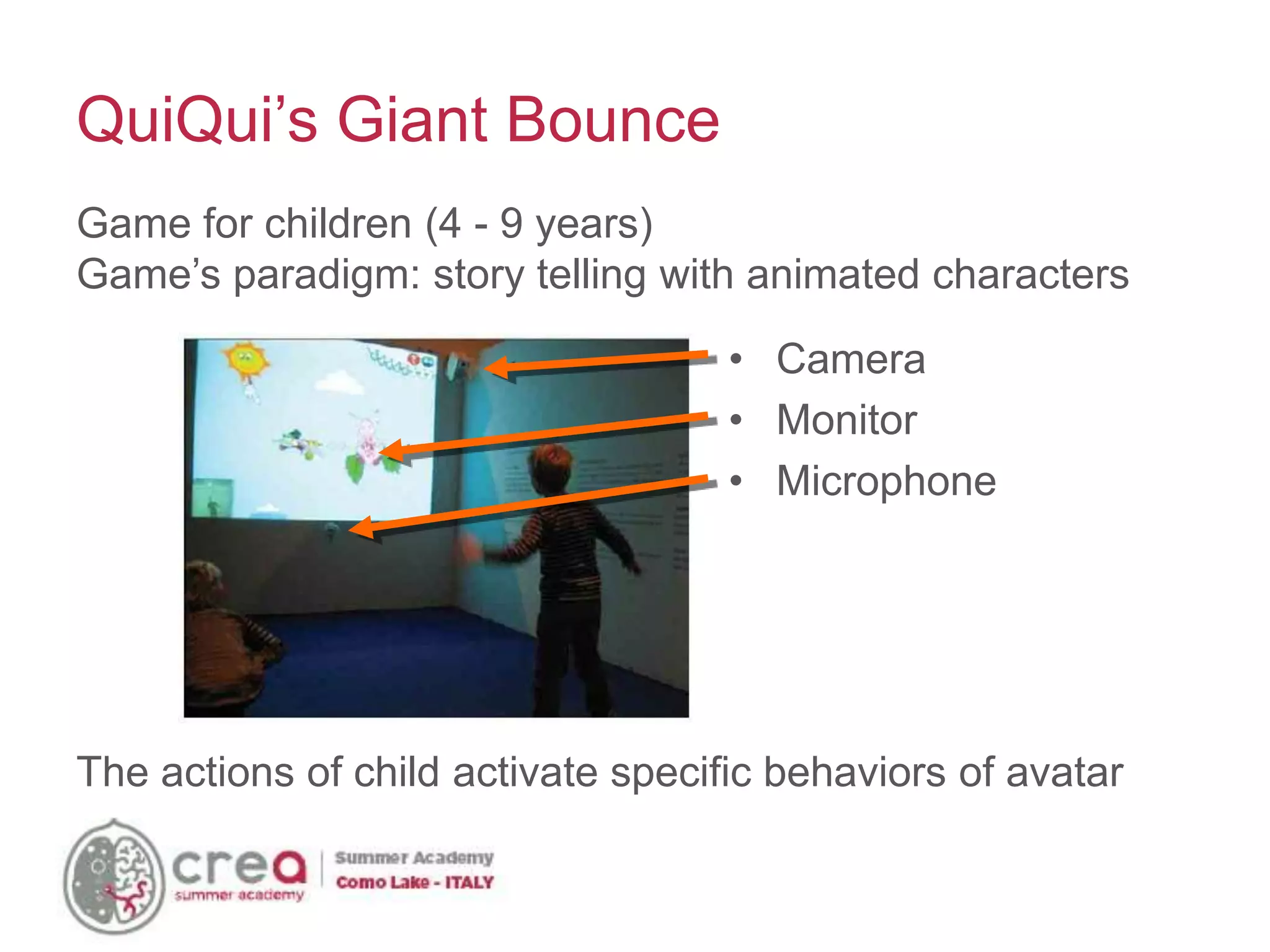

34. • Camera
• Monitor
• Microphone
QuiQui’s Giant Bounce
Game for children (4 - 9 years)
Game’s paradigm: story telling with animated characters
The actions of child activate specific behaviors of avatar

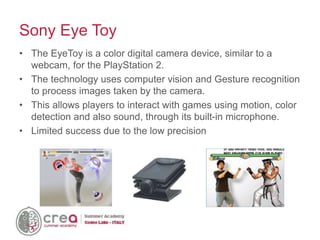

35. • The EyeToy is a color digital camera device, similar to a
webcam, for the PlayStation 2.
• The technology uses computer vision and Gesture recognition
to process images taken by the camera.
• This allows players to interact with games using motion, color
detection and also sound, through its built-in microphone.
• Limited success due to the low precision
Sony Eye Toy

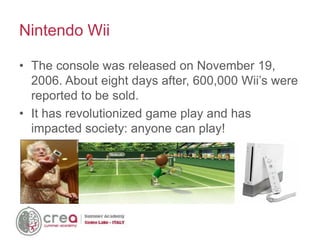

36. • The console was released on November 19,
2006. About eight days after, 600,000 Wii’s were
reported to be sold.
• It has revolutionized game play and has
impacted society: anyone can play!
Nintendo Wii

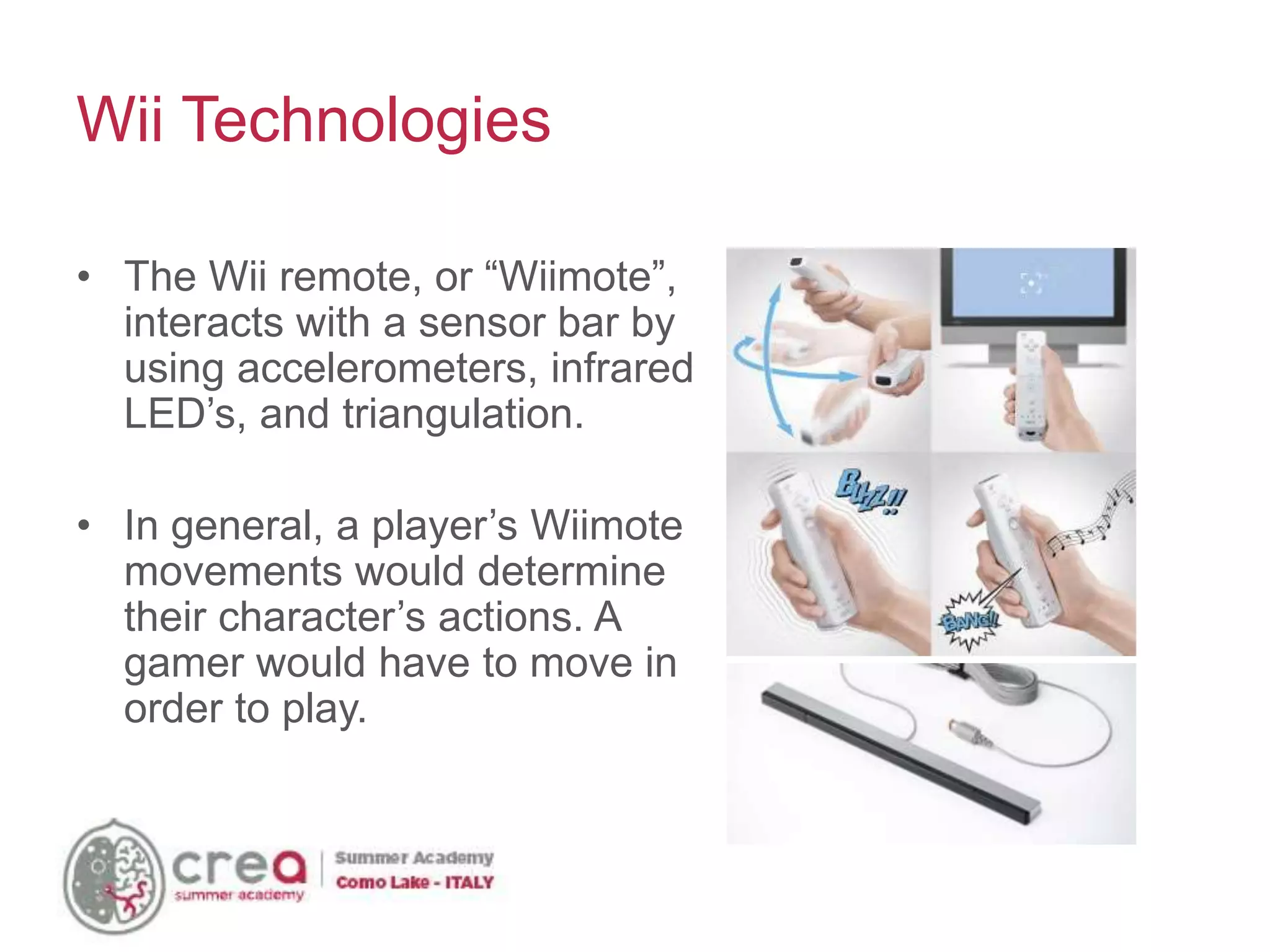

37. • The Wii remote, or “Wiimote”,
interacts with a sensor bar by
using accelerometers, infrared
LED’s, and triangulation.
• In general, a player’s Wiimote
movements would determine
their character’s actions. A
gamer would have to move in
order to play.
Wii Technologies

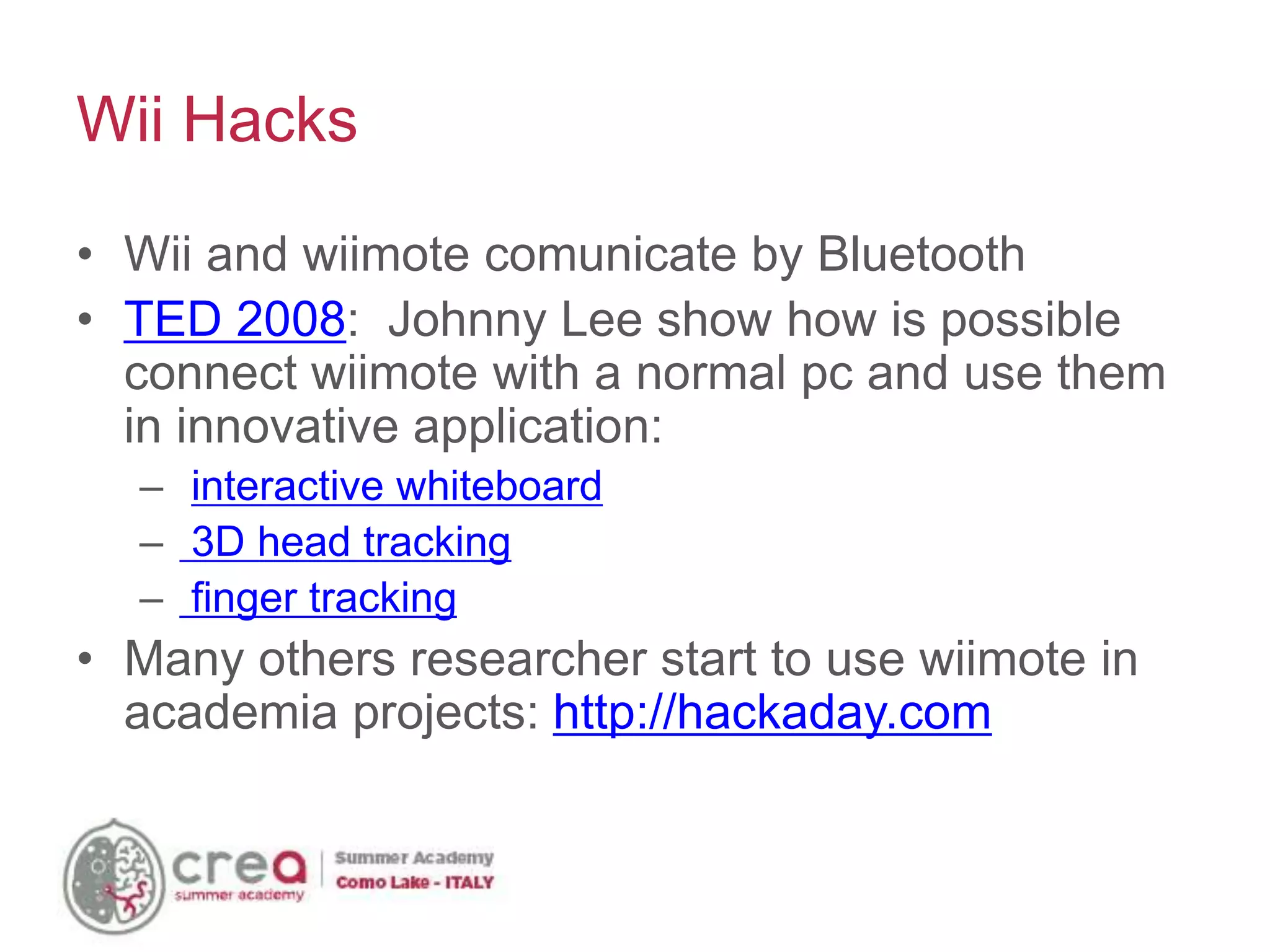

38. • Wii and wiimote comunicate by Bluetooth
• TED 2008: Johnny Lee show how is possible
connect wiimote with a normal pc and use them
in innovative application:
– interactive whiteboard
– 3D head tracking
– finger tracking
• Many others researcher start to use wiimote in
academia projects: http://hackaday.com
Wii Hacks

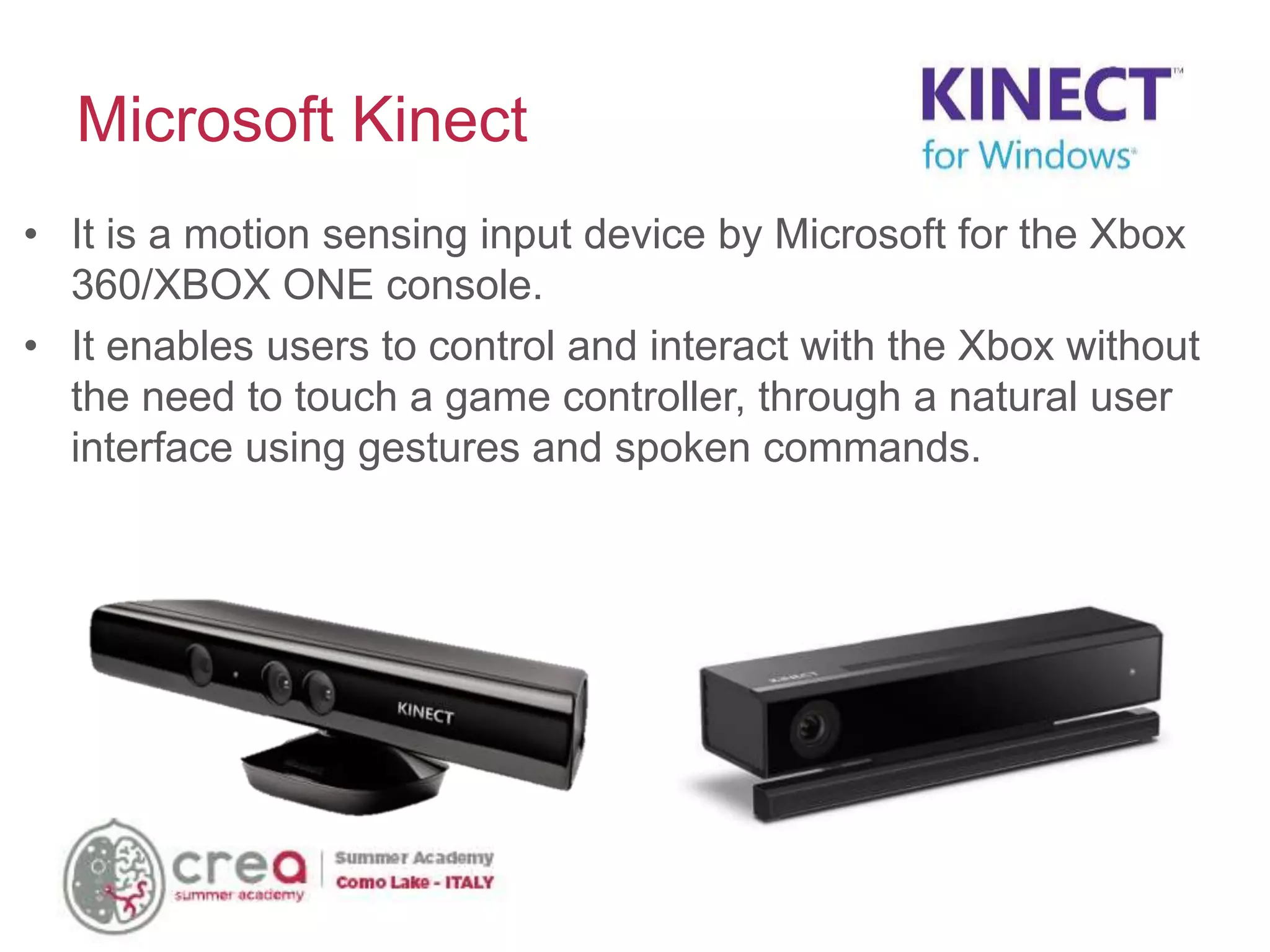

39. • It is a motion sensing input device by Microsoft for the Xbox
360/XBOX ONE console.
• It enables users to control and interact with the Xbox without
the need to touch a game controller, through a natural user
interface using gestures and spoken commands.
Microsoft Kinect

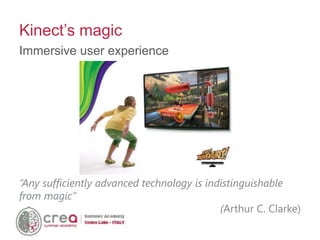

40. Immersive user experience
Kinect’s magic
“Any sufficiently advanced technology is indistinguishable
from magic”
(Arthur C. Clarke)

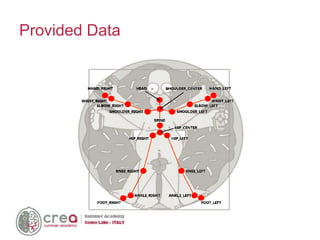

41. Provided Data

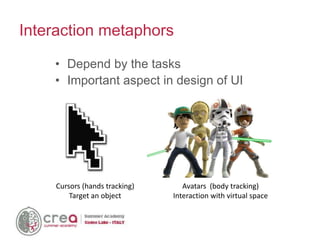

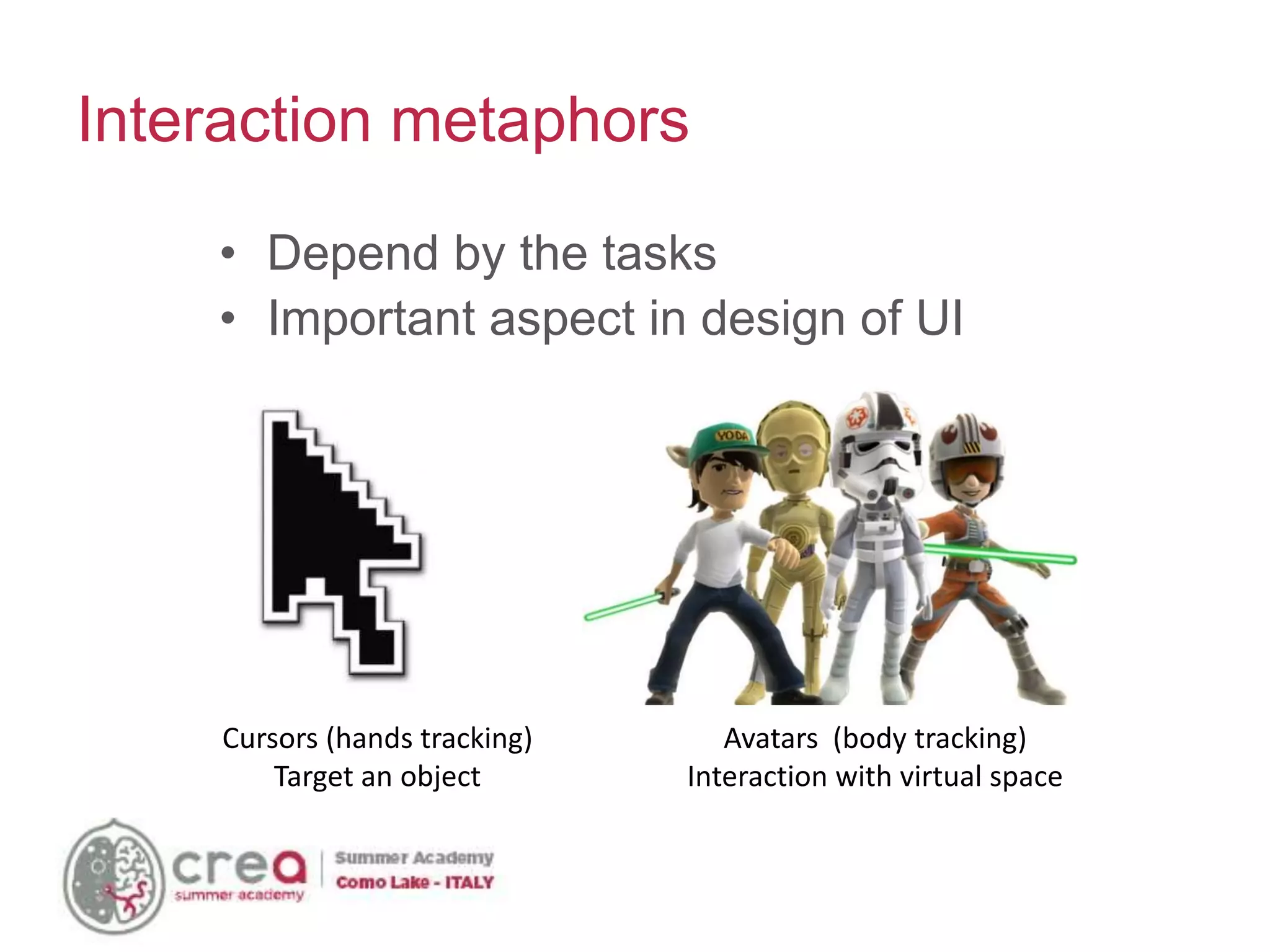

42. Cursors (hands tracking)
Target an object
Avatars (body tracking)
Interaction with virtual space
• Depend by the tasks
• Important aspect in design of UI
Interaction metaphors

43. The shadow/mirror effect
Shadow Effect:
• I see the back of my avatar
• Problems with Z
movements
Mirror Effect:
• I see the front of my
avatar
• Problem with mapping
left/right movements

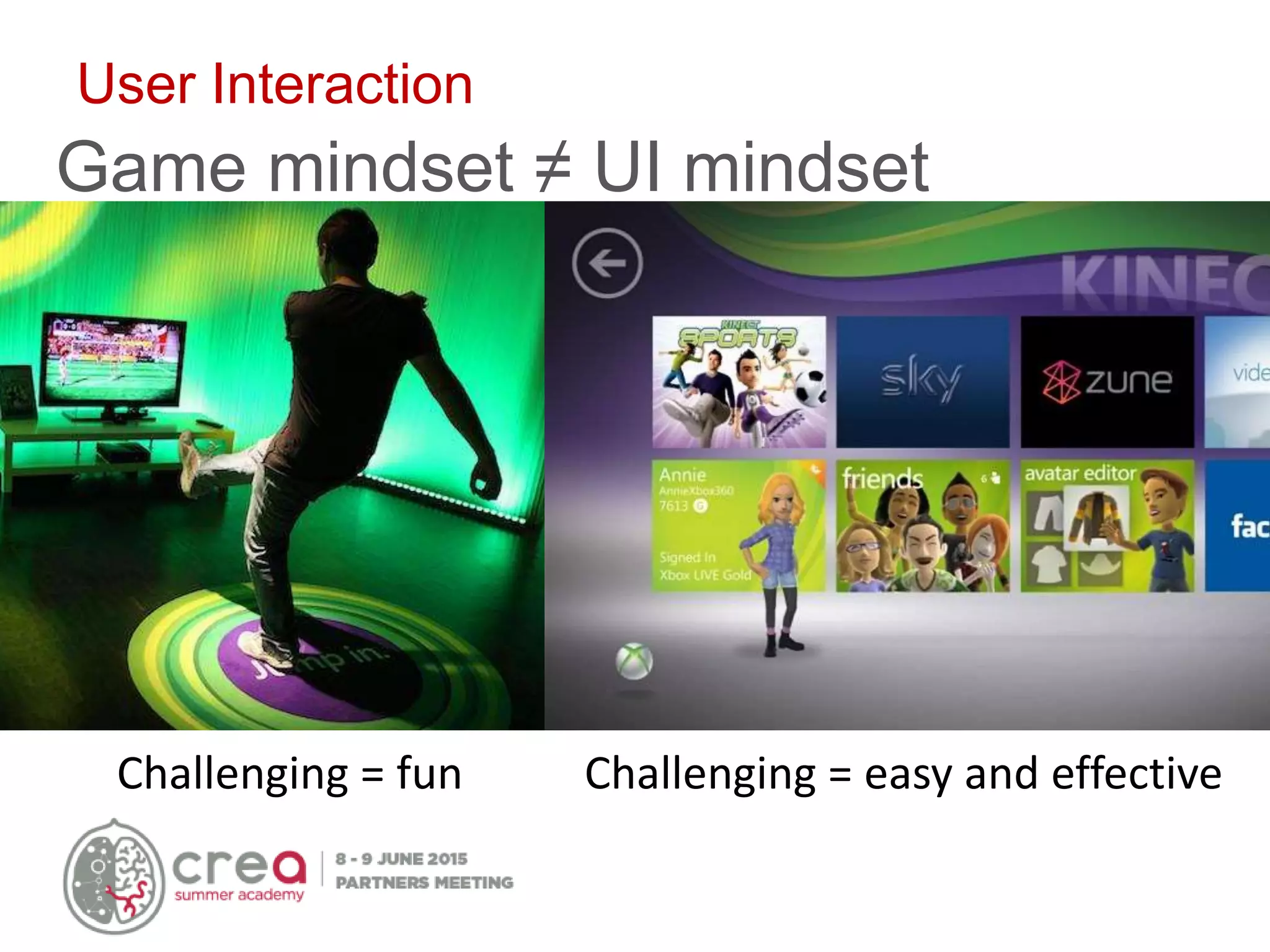

44. User Interaction
Game mindset ≠ UI mindset
Challenging = fun Challenging = easy and effective

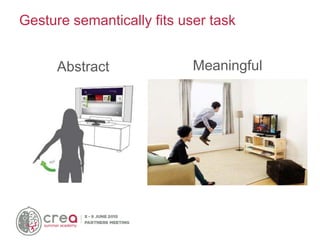

45. Gesture semantically fits user task
Abstract Meaningful

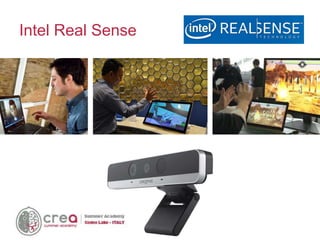

46. Intel Real Sense

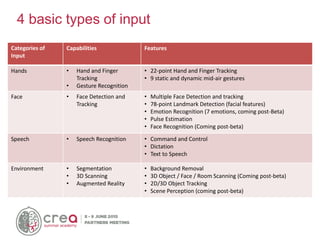

47. 4 basic types of input
Categories of
Input
Capabilities Features
Hands • Hand and Finger
Tracking
• Gesture Recognition
• 22-point Hand and Finger Tracking
• 9 static and dynamic mid-air gestures
Face • Face Detection and
Tracking
• Multiple Face Detection and tracking
• 78-point Landmark Detection (facial features)
• Emotion Recognition (7 emotions, coming post-Beta)
• Pulse Estimation
• Face Recognition (Coming post-beta)
Speech • Speech Recognition • Command and Control
• Dictation
• Text to Speech
Environment • Segmentation
• 3D Scanning
• Augmented Reality
• Background Removal
• 3D Object / Face / Room Scanning (Coming post-beta)
• 2D/3D Object Tracking
• Scene Perception (coming post-beta)

48. https://www.youtube.com/watch?v=_d6KuiuteIA
https://airspace.leapmotion.com/
Leap Motion

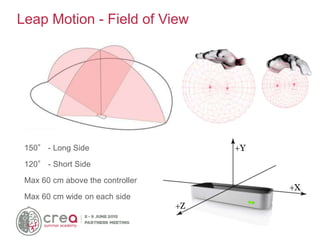

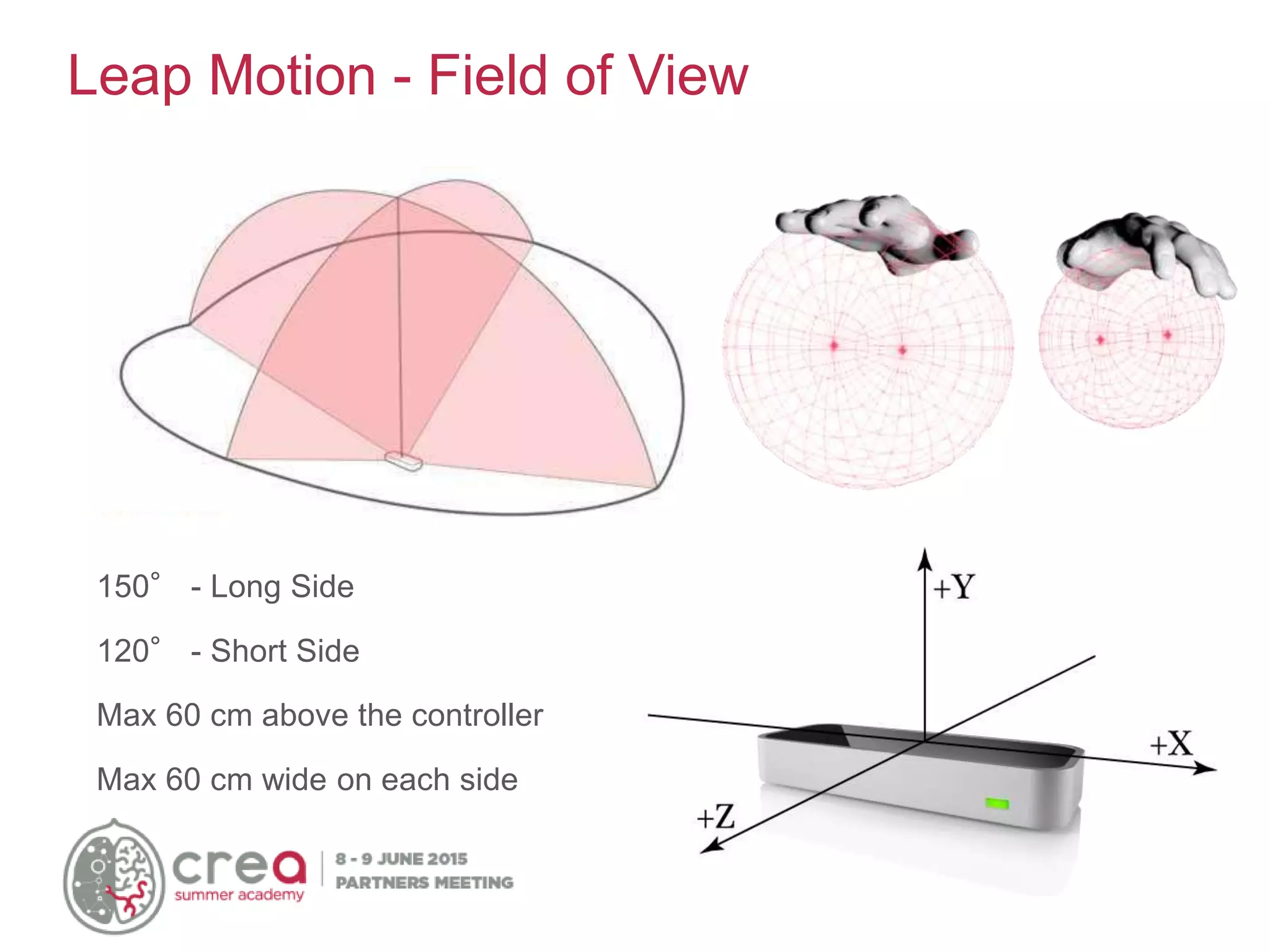

49. Leap Motion - Field of View
150° - Long Side
120° - Short Side
Max 60 cm above the controller
Max 60 cm wide on each side

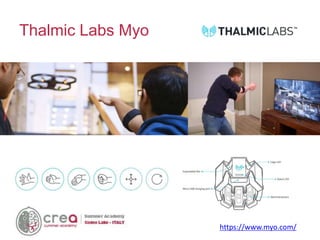

50. Thalmic Labs Myo
https://www.myo.com/

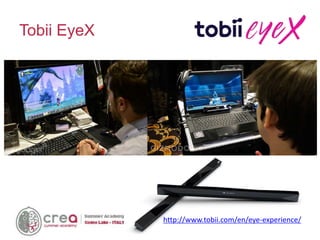

51. http://www.tobii.com/en/eye-experience/
Tobii EyeX

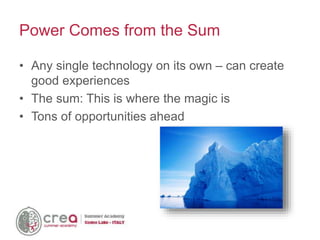

52. Power Comes from the Sum
• Any single technology on its own – can create
good experiences
• The sum: This is where the magic is
• Tons of opportunities ahead

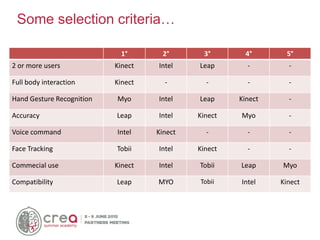

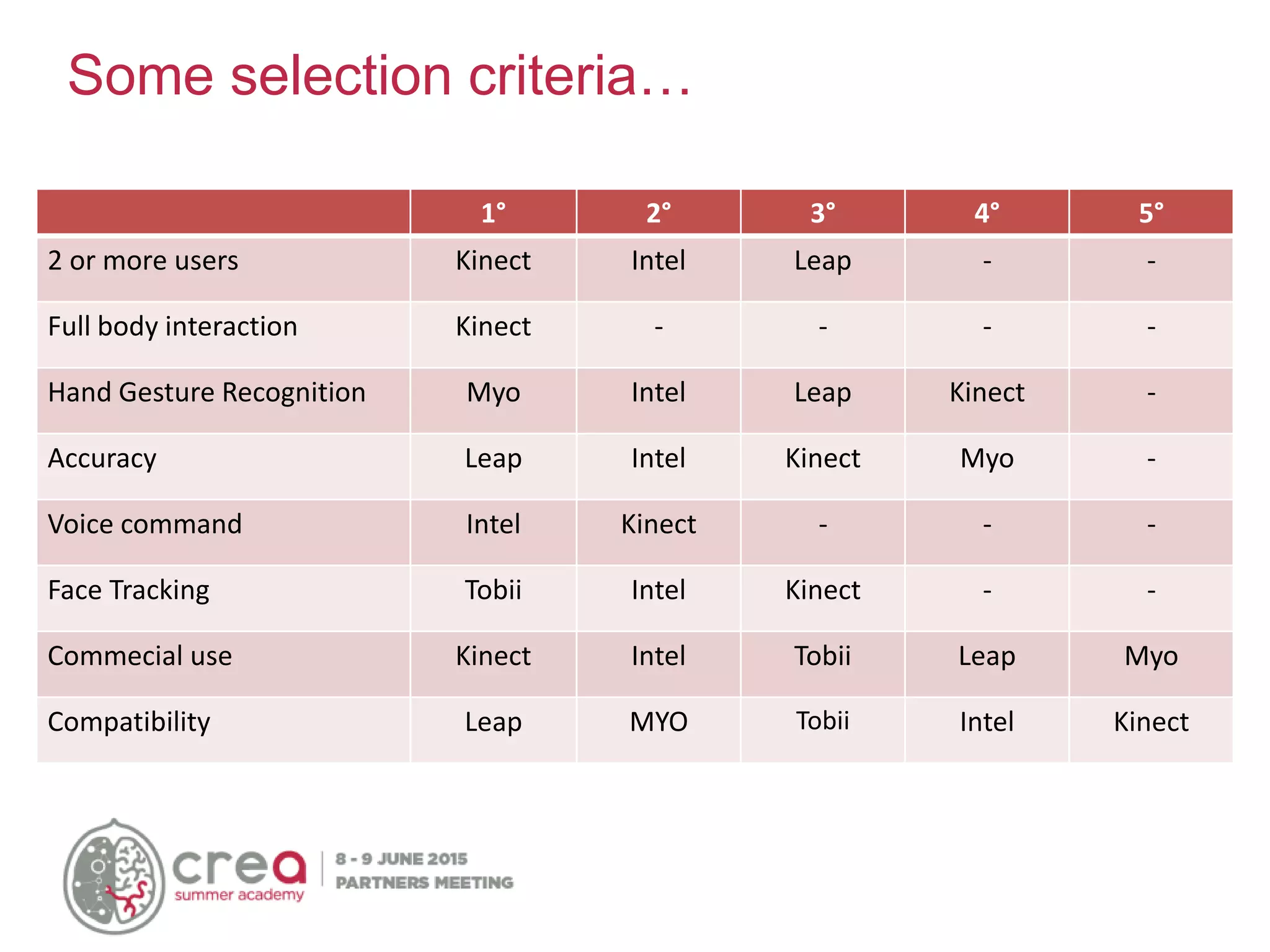

53. Some selection criteria…
1° 2° 3° 4° 5°
2 or more users Kinect Intel Leap - -
Full body interaction Kinect - - - -
Hand Gesture Recognition Myo Intel Leap Kinect -
Accuracy Leap Intel Kinect Myo -
Voice command Intel Kinect - - -
Face Tracking Tobii Intel Kinect - -
Commecial use Kinect Intel Tobii Leap Myo
Compatibility Leap MYO Tobii Intel Kinect

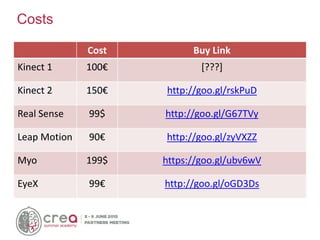

54. Costs
Cost Buy Link
Kinect 1 100€ [???]
Kinect 2 150€ http://goo.gl/rskPuD
Real Sense 99$ http://goo.gl/G67TVy
Leap Motion 90€ http://goo.gl/zyVXZZ
Myo 199$ https://goo.gl/ubv6wV
EyeX 99€ http://goo.gl/oGD3Ds

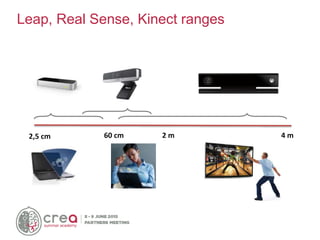

55. Leap, Real Sense, Kinect ranges
2,5 cm 60 cm 2 m 4 m

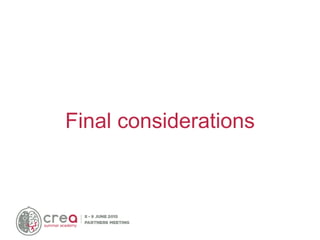

56. Final considerations

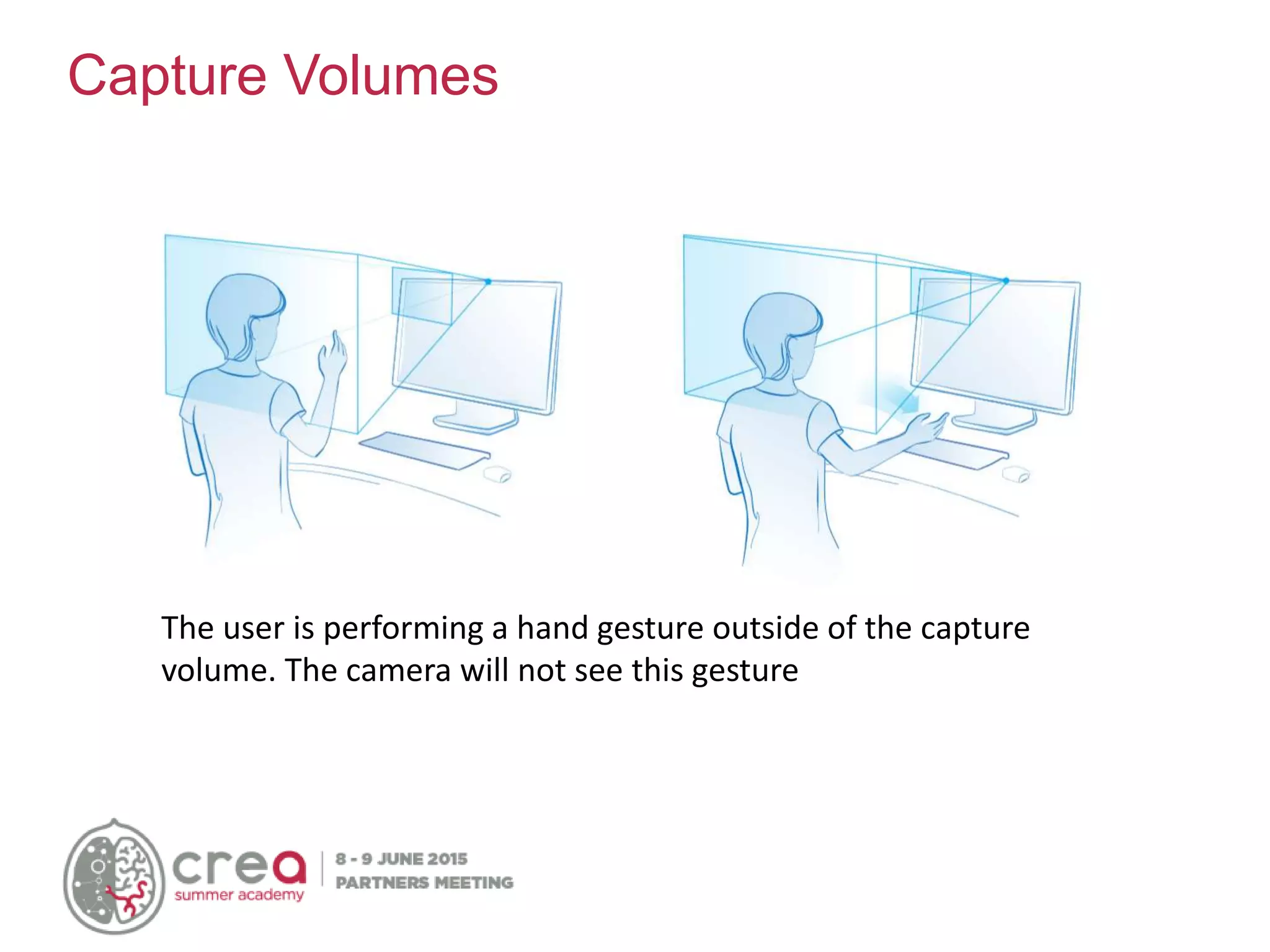

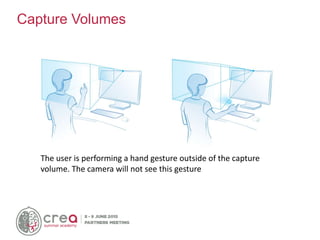

57. Capture Volumes
The user is performing a hand gesture outside of the capture
volume. The camera will not see this gesture

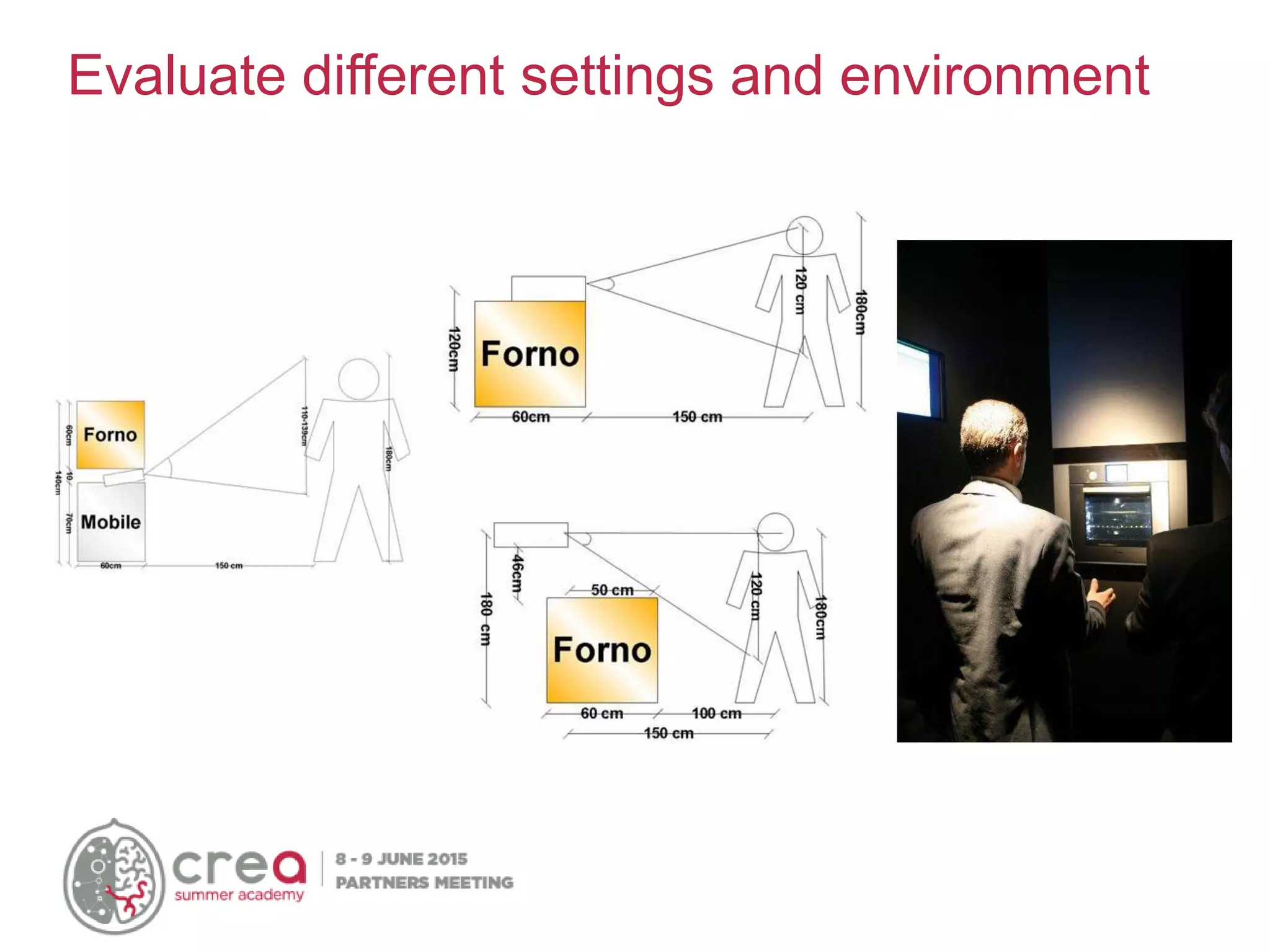

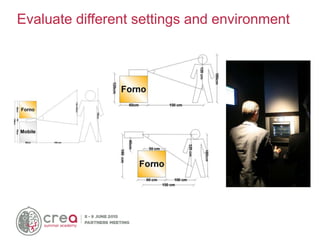

58. Evaluate different settings and environment

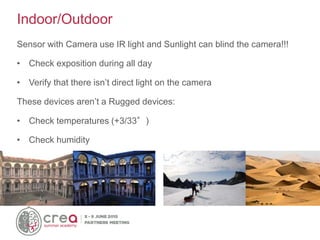

59. Sensor with Camera use IR light and Sunlight can blind the camera!!!
• Check exposition during all day
• Verify that there isn’t direct light on the camera
These devices aren’t a Rugged devices:
• Check temperatures (+3/33°)
• Check humidity
Indoor/Outdoor

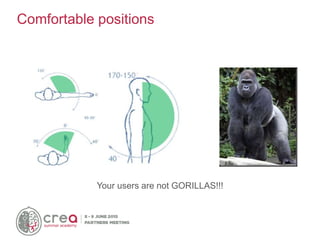

60. Comfortable positions
Your users are not GORILLAS!!!

61. User posture may affect design of a gesture

62. Input variability

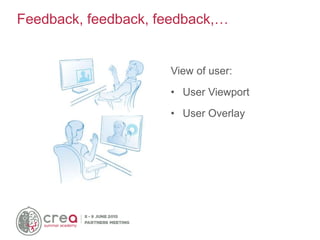

63. Feedback, feedback, feedback,…
View of user:
• User Viewport
• User Overlay

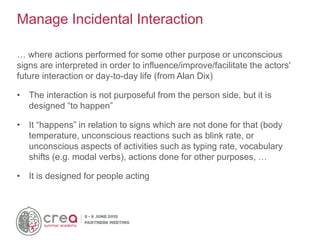

64. … where actions performed for some other purpose or unconscious
signs are interpreted in order to influence/improve/facilitate the actors'
future interaction or day-to-day life (from Alan Dix)
• The interaction is not purposeful from the person side, but it is
designed “to happen”
• It “happens” in relation to signs which are not done for that (body
temperature, unconscious reactions such as blink rate, or
unconscious aspects of activities such as typing rate, vocabulary
shifts (e.g. modal verbs), actions done for other purposes, …
• It is designed for people acting
Manage Incidental Interaction
