introduction to JavaFX to learn Desktop Application .

1. Java FX

2. What is Java FX
JavaFX is a Java library used to build Rich
Internet Applications. The applications
written using this library can run consistently
across multiple platforms.
To develop GUI Applications using Java
programming language.
2Hussein zayed

3. 3
1- FXML
2-Scene Builder
3-CSS Like Stylee
4-Integrated Graphics library
5-Swing interoperability
6-Multitouch Support
Hussein zayed
Features of JavaFX

4. Hussein zayed
JavaFX
Form

5. Stage (a window) contains all the
objects of a JavaFX application
scene represents the physical contents of a
JavaFX application
Node Anything added to the scene is said to
be Node.

6. “
6
Imoprt javafx.stage.Stage // imoprt
show() // display stage Hussein zayed
Stage
Properties
setTitle(“”);
setWidth(x);
setHeight(x);
setMaxWidth(x);
setMinWidth();
setX(n);
setY(n);
setResizable(bool);
setOpacity(x);
setAlwaysOnTop(bool);

7. Scene
1-create group (container)
2-create scene
3-add group to scene
4-add node to group
5-add scene to stage
6-show stage 7
Hussein zayed

8. 8
Node
Hussein zayed
Any component is node
1-One of the geometric shapes either 2D - 3D (Rectangle - Circle - Box - Sphere)
2-One of the control interface elements is like (Button - CheckBox - RadioButton)
3-It can be one of the types of containers that can enumerate several Nodes such as(
GridPane - StakPane)
4-It can be a component of Media (Audio - Image - Video)

9. 9
Lifecycle of JavaFX Application
When creating an application with JavaFX, the primary layer in this application must
be inherited from the Application class
Within the application you must do an Override of the start () function inherited from
the Application layer and place the code to create the main window in the application.
When you do these two steps, the Java Application Engine (JVM) will automatically
execute the Application class functions in the same order as in the image above .
Hussein zayed

10. 10

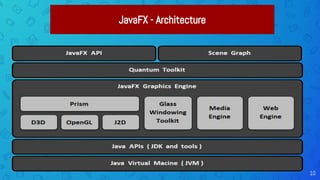

JavaFX - Architecture

11. 11
Classes (component)
Label - JavaFX
Button - JavaFX
TextField - JavaFX
PasswordField - JavaFX
TextArea - JavaFX
ToogleButton - JavaFX
RadioButton - JavaFX
CheckBox - JavaFX
ChoiceBox - JavaFX
ComboBox - JavaFX
ListView - JavaFX
TableView - JavaFX
Hussein zayed
and many

12. 12
Label
Hussein zayed
public String getText()
public void setText(String text)
public final void setTextFill(Paint value)
public final void setBackground(Background value)
public final void setFont(Font newFont)
public final void setTranslateX(double value)
public final void setScaleY(double value)
public void setPrefSize(double prefWidth, double prefHeight)

13. 13

14. 14
TextFiled
public String getText()
public void setText(String text)
public final void setTextFill(Paint value)
public final void setBackground(Background value)
public final void setFont(Font newFont)
public final void setTranslateX(double value)
public final void setScaleY(double value)
public void setPrefSize(double prefWidth, double prefHeight)

15. 15

16. 16
Task
Design login form include
label , TextFiled ,PasswordField , Button

17. 17
Thanks!
FCI menoufia
Development Team at mufix community
