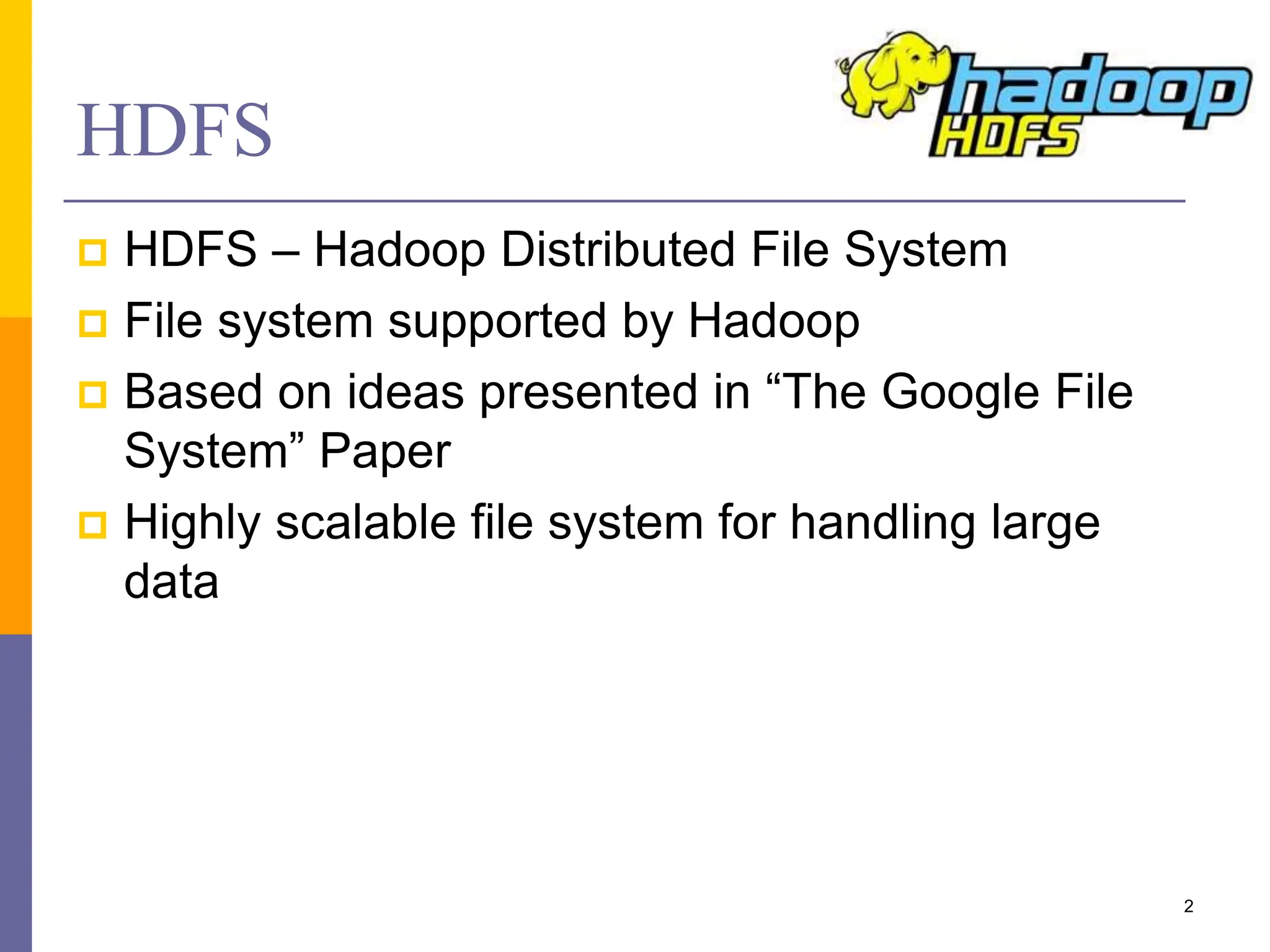

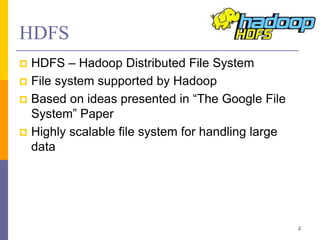

2. HDFS
HDFS – Hadoop Distributed File System
File system supported by Hadoop
Based on ideas presented in “The Google File
System” Paper
Highly scalable file system for handling large
data
2

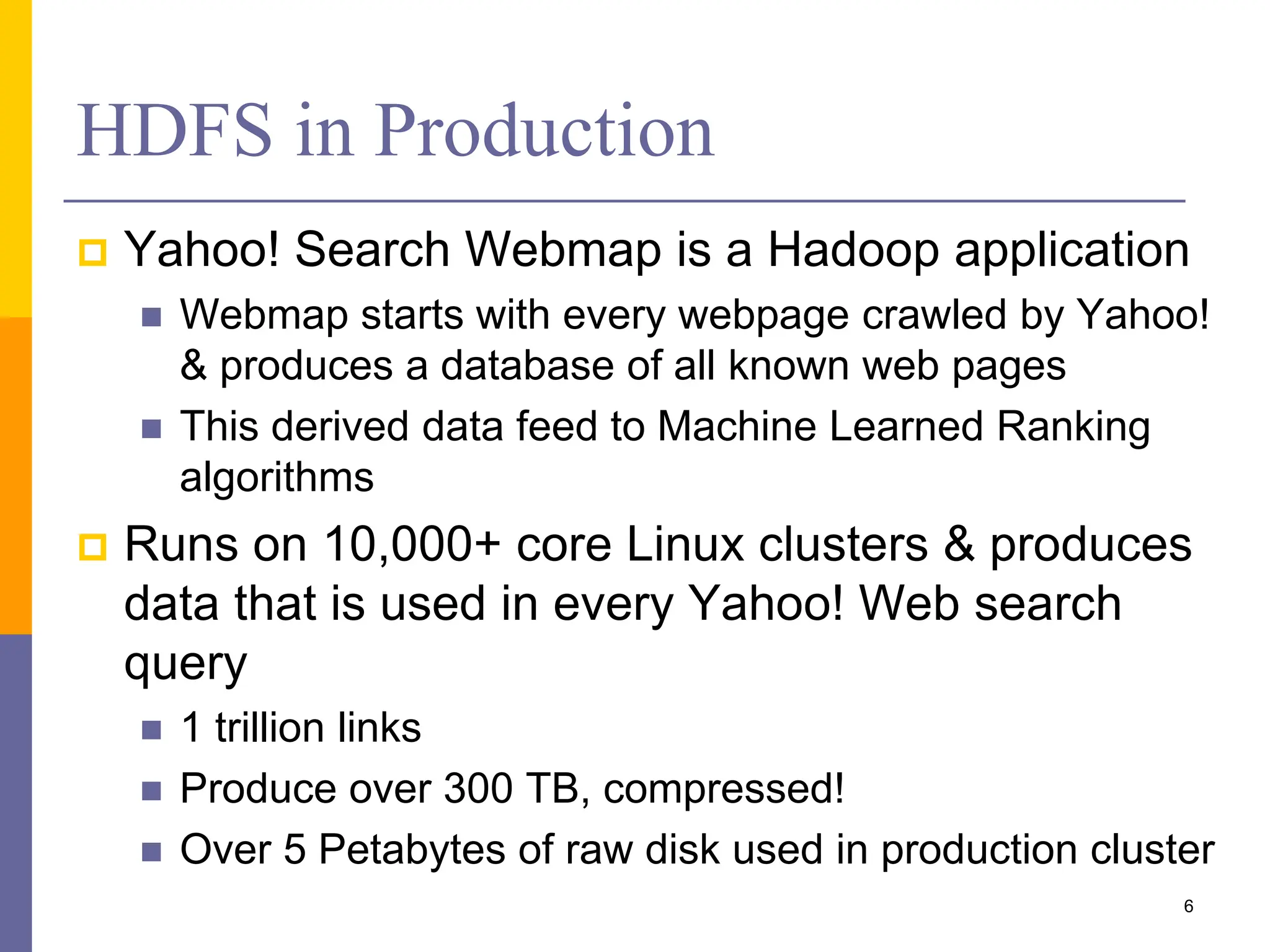

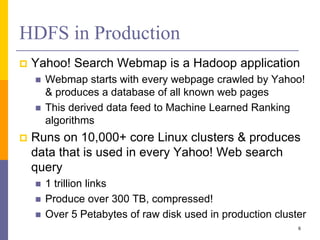

6. HDFS in Production
Yahoo! Search Webmap is a Hadoop application
Webmap starts with every webpage crawled by Yahoo!
& produces a database of all known web pages
This derived data feed to Machine Learned Ranking
algorithms
Runs on 10,000+ core Linux clusters & produces
data that is used in every Yahoo! Web search
query
1 trillion links
Produce over 300 TB, compressed!
Over 5 Petabytes of raw disk used in production cluster
6

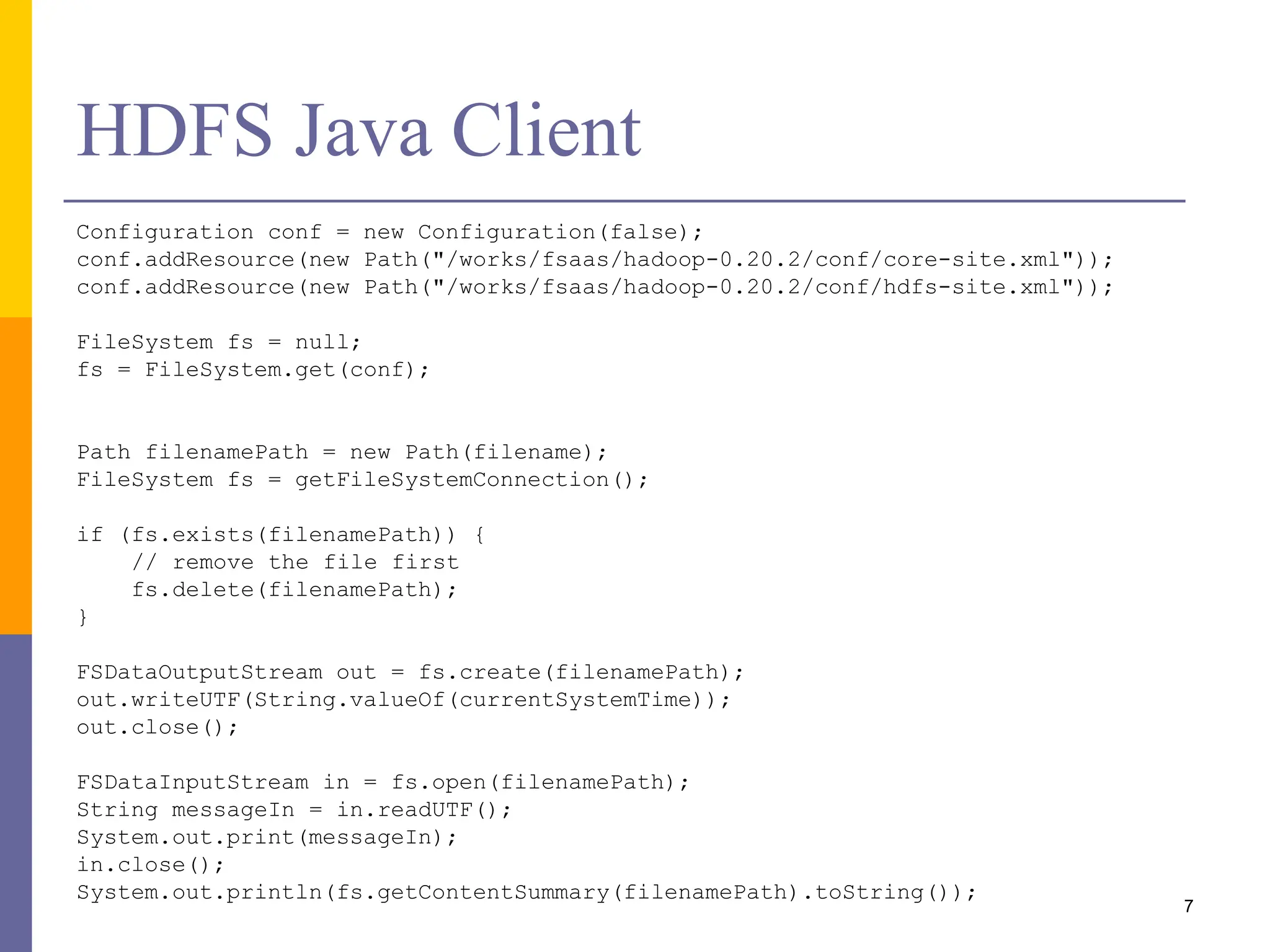

7. HDFS Java Client
Configuration conf = new Configuration(false);
conf.addResource(new Path("/works/fsaas/hadoop-0.20.2/conf/core-site.xml"));
conf.addResource(new Path("/works/fsaas/hadoop-0.20.2/conf/hdfs-site.xml"));
FileSystem fs = null;
fs = FileSystem.get(conf);
Path filenamePath = new Path(filename);
FileSystem fs = getFileSystemConnection();
if (fs.exists(filenamePath)) {
// remove the file first
fs.delete(filenamePath);
}
FSDataOutputStream out = fs.create(filenamePath);
out.writeUTF(String.valueOf(currentSystemTime));
out.close();
FSDataInputStream in = fs.open(filenamePath);
String messageIn = in.readUTF();
System.out.print(messageIn);
in.close();
System.out.println(fs.getContentSummary(filenamePath).toString());
7

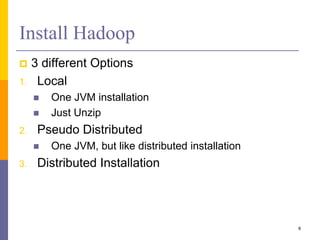

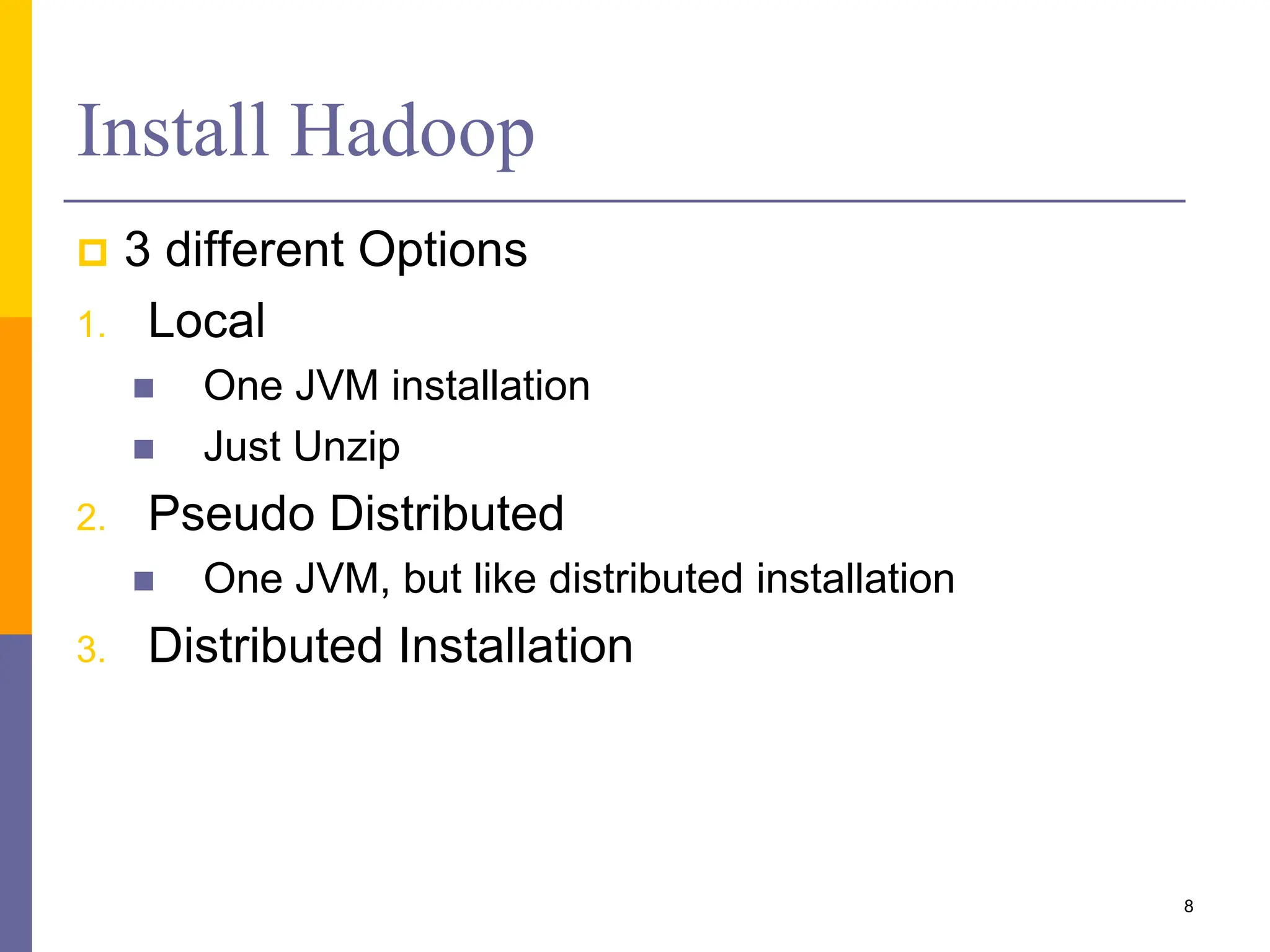

8. Install Hadoop
3 different Options
1. Local
One JVM installation
Just Unzip
2. Pseudo Distributed
One JVM, but like distributed installation
3. Distributed Installation
8

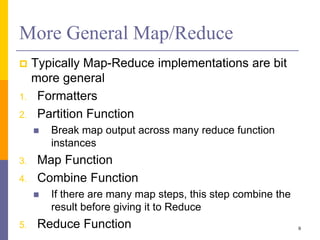

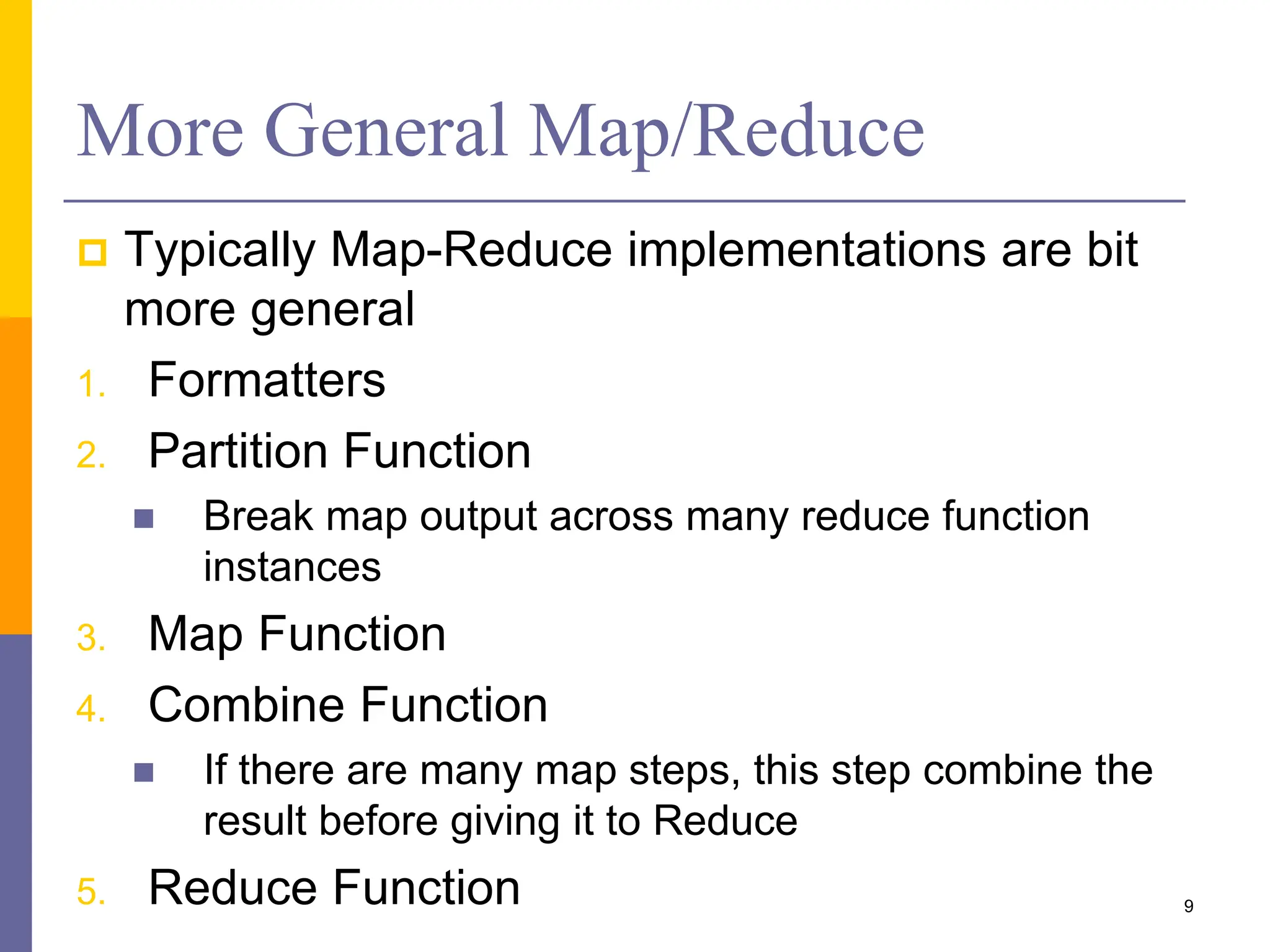

9. More General Map/Reduce
Typically Map-Reduce implementations are bit
more general
1. Formatters
2. Partition Function
Break map output across many reduce function
instances
3. Map Function
4. Combine Function
If there are many map steps, this step combine the
result before giving it to Reduce
5. Reduce Function 9

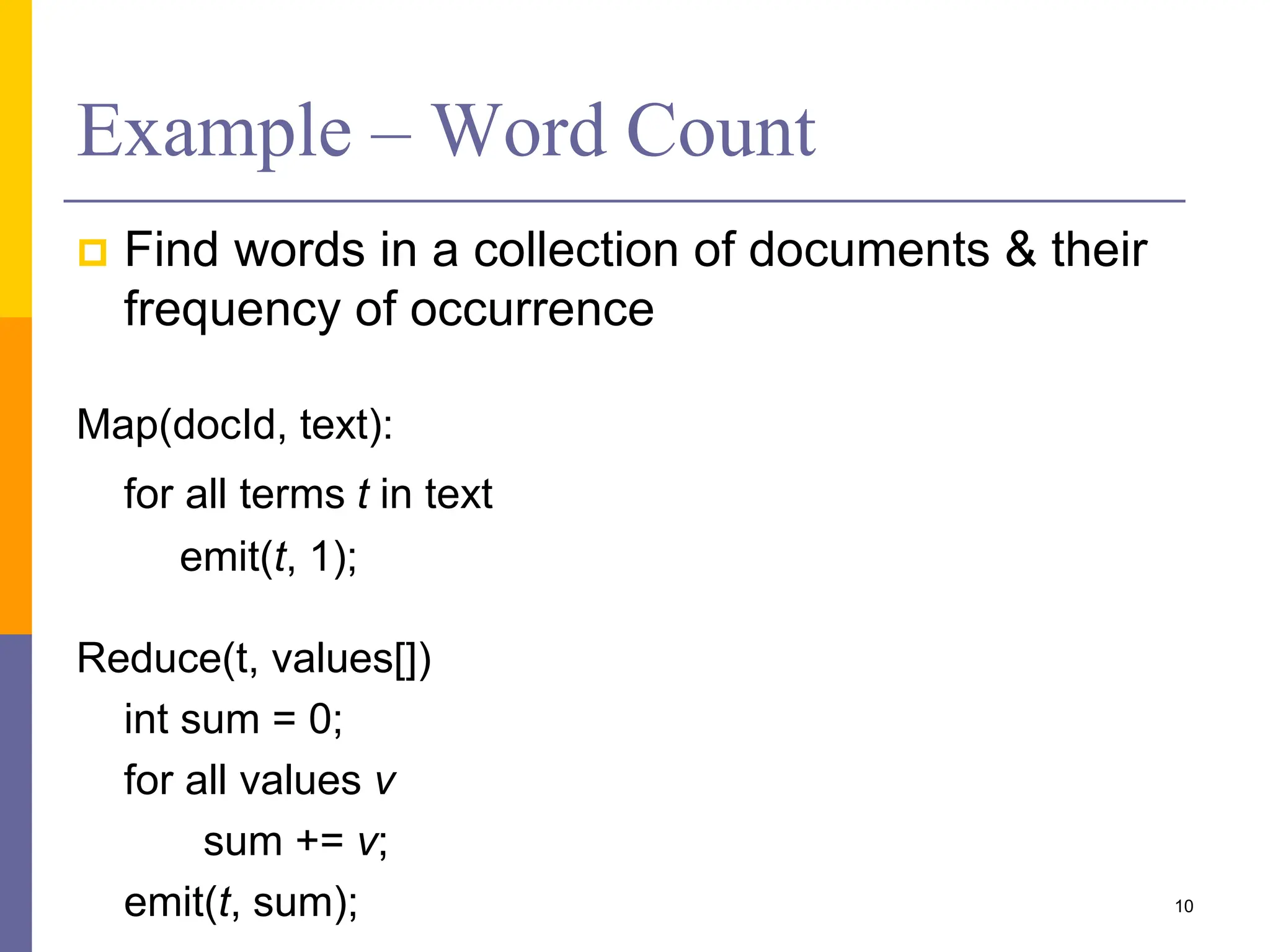

10. Example – Word Count
Find words in a collection of documents & their
frequency of occurrence
Map(docId, text):
for all terms t in text
emit(t, 1);
Reduce(t, values[])
int sum = 0;
for all values v
sum += v;
emit(t, sum); 10

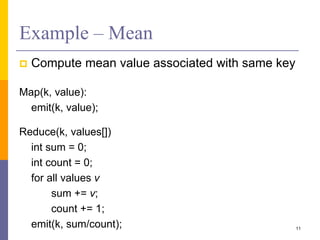

11. Example – Mean
Compute mean value associated with same key
Map(k, value):
emit(k, value);
Reduce(k, values[])
int sum = 0;
int count = 0;
for all values v
sum += v;
count += 1;
emit(k, sum/count); 11

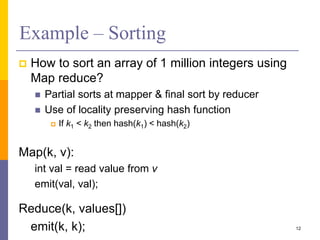

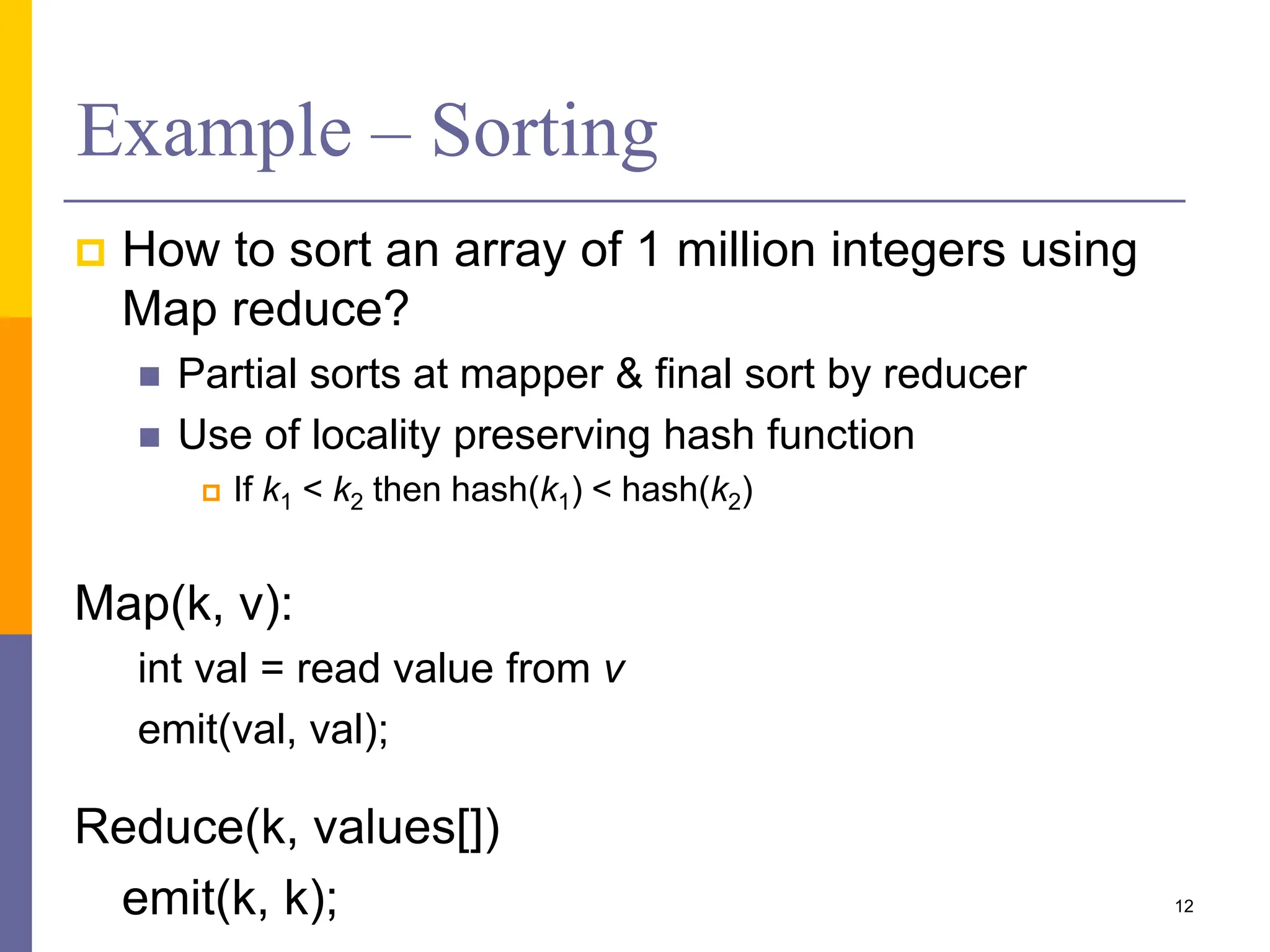

12. Example – Sorting
How to sort an array of 1 million integers using
Map reduce?
Partial sorts at mapper & final sort by reducer
Use of locality preserving hash function
If k1 < k2 then hash(k1) < hash(k2)
Map(k, v):
int val = read value from v
emit(val, val);
Reduce(k, values[])
emit(k, k); 12

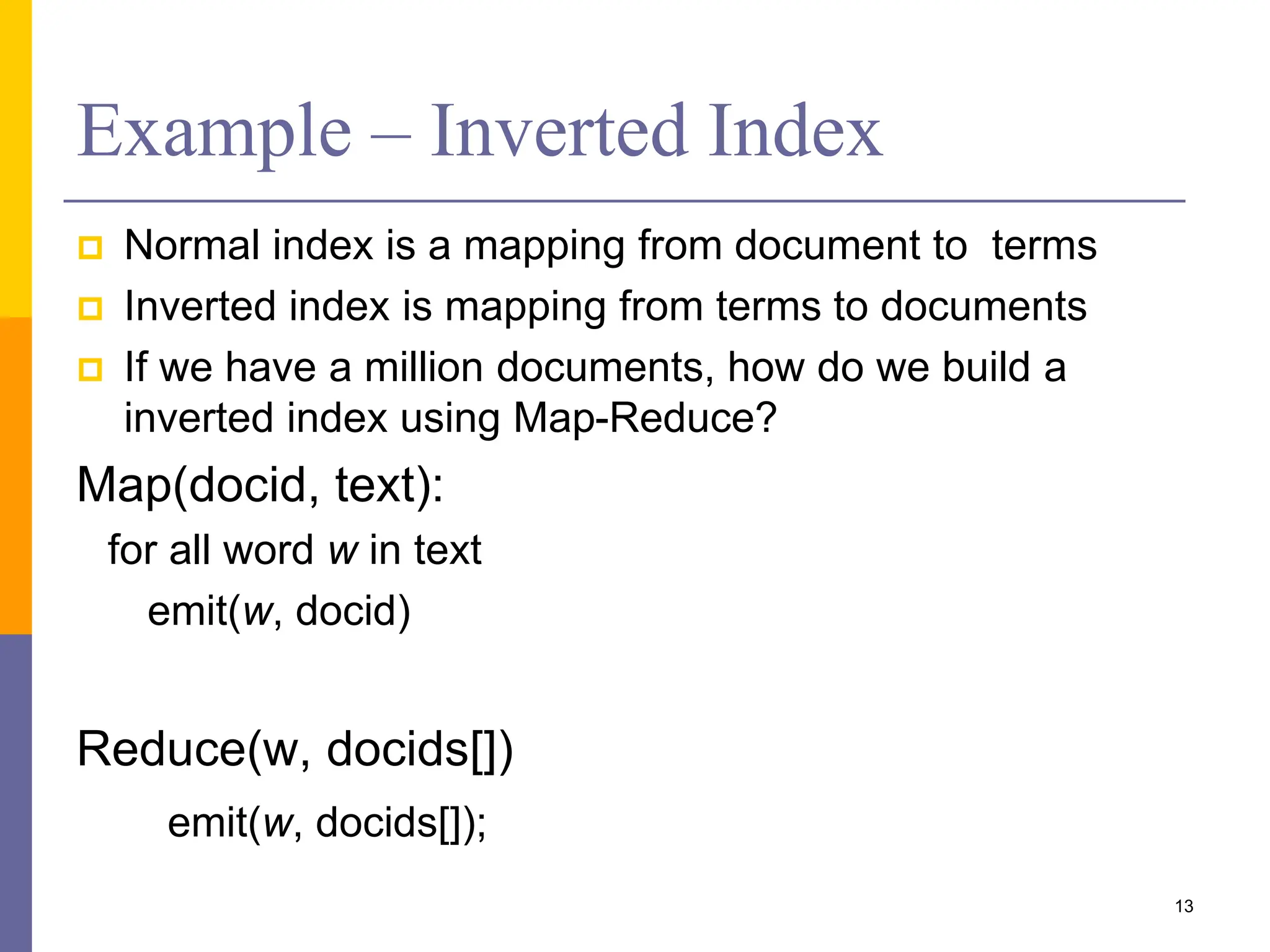

13. Example – Inverted Index
Normal index is a mapping from document to terms
Inverted index is mapping from terms to documents
If we have a million documents, how do we build a
inverted index using Map-Reduce?
Map(docid, text):
for all word w in text
emit(w, docid)
Reduce(w, docids[])
emit(w, docids[]);
13

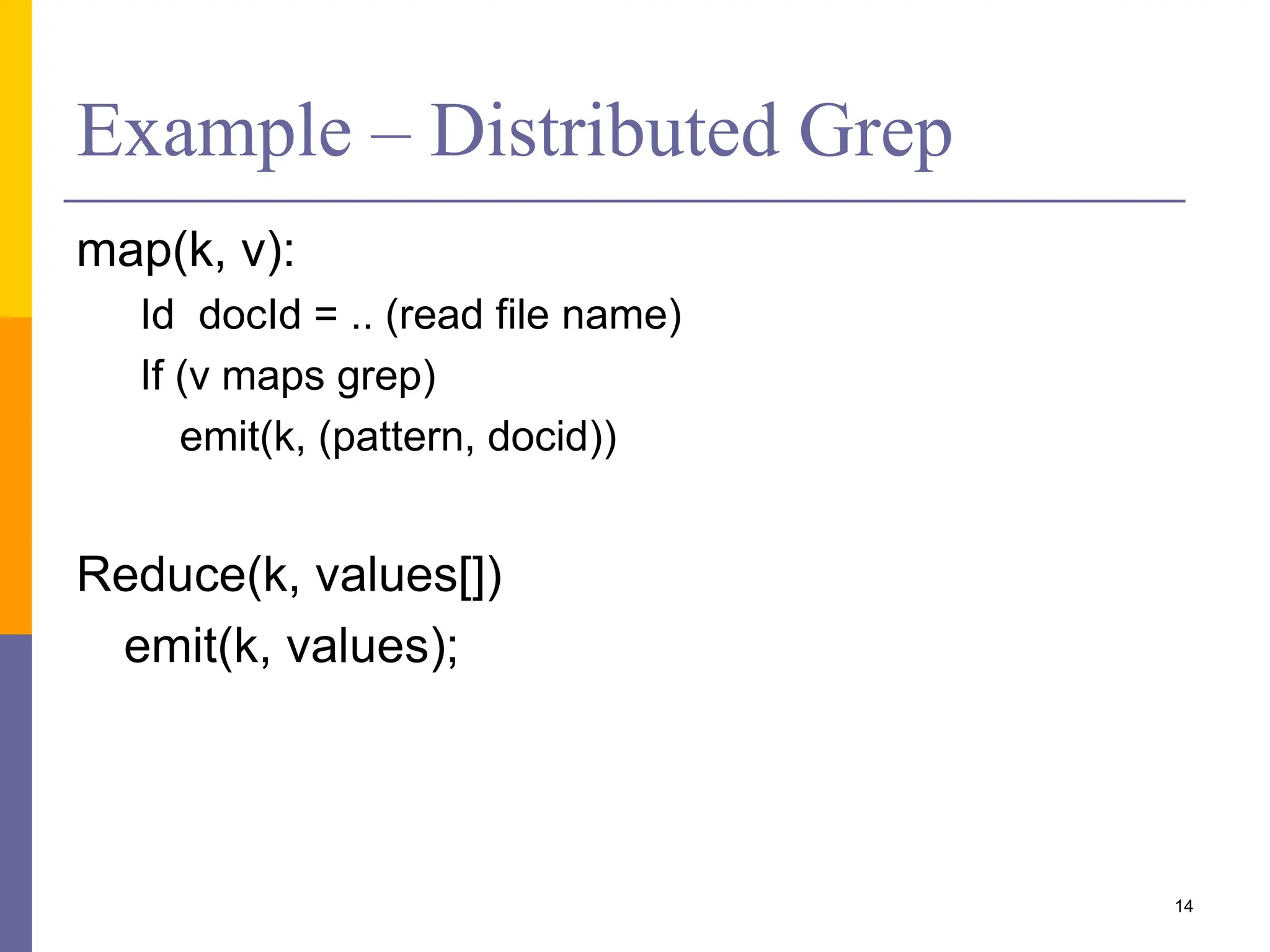

14. Example – Distributed Grep
map(k, v):
Id docId = .. (read file name)
If (v maps grep)
emit(k, (pattern, docid))
Reduce(k, values[])
emit(k, values);
14

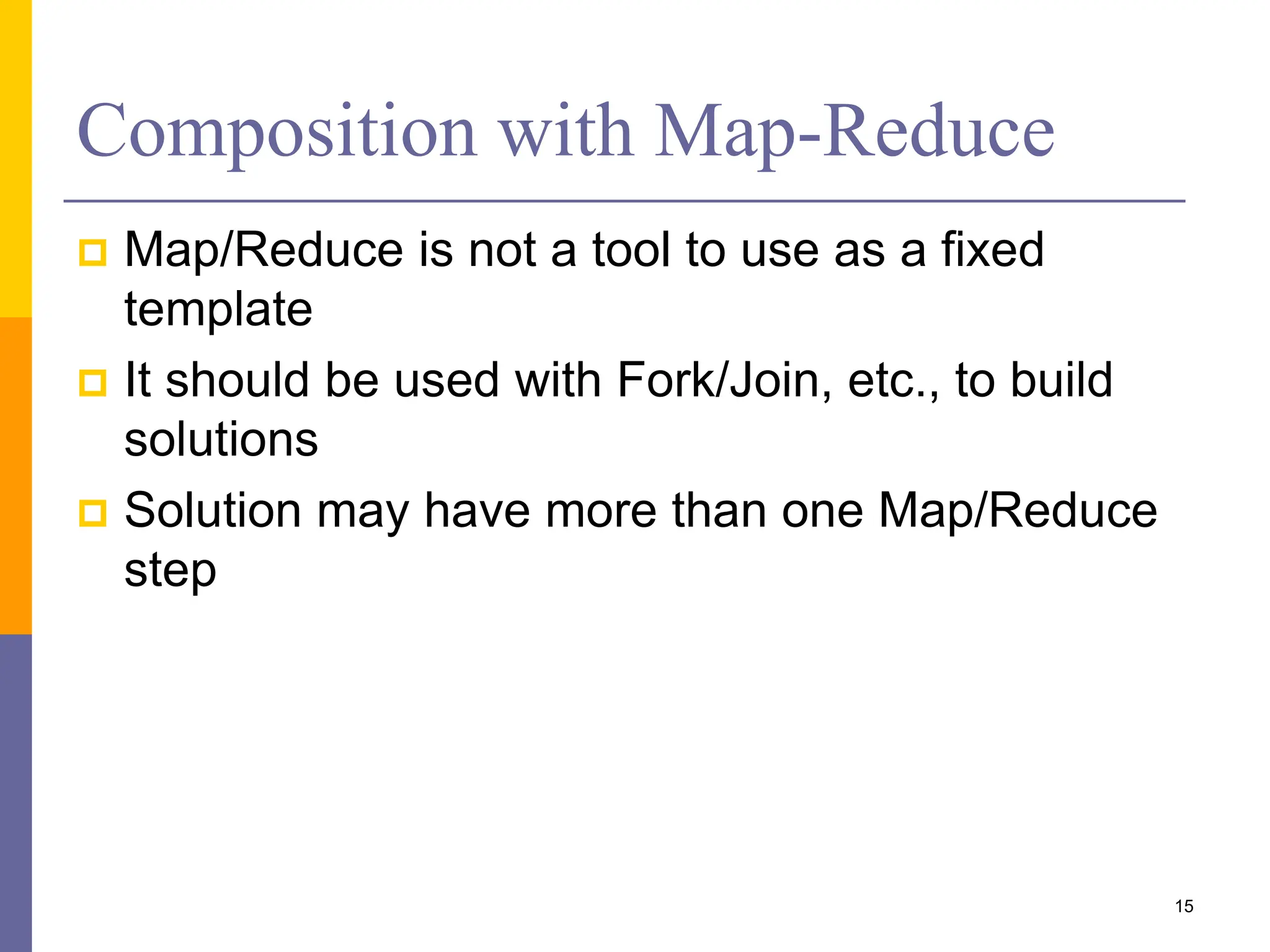

15. Composition with Map-Reduce
Map/Reduce is not a tool to use as a fixed
template
It should be used with Fork/Join, etc., to build
solutions
Solution may have more than one Map/Reduce
step
15

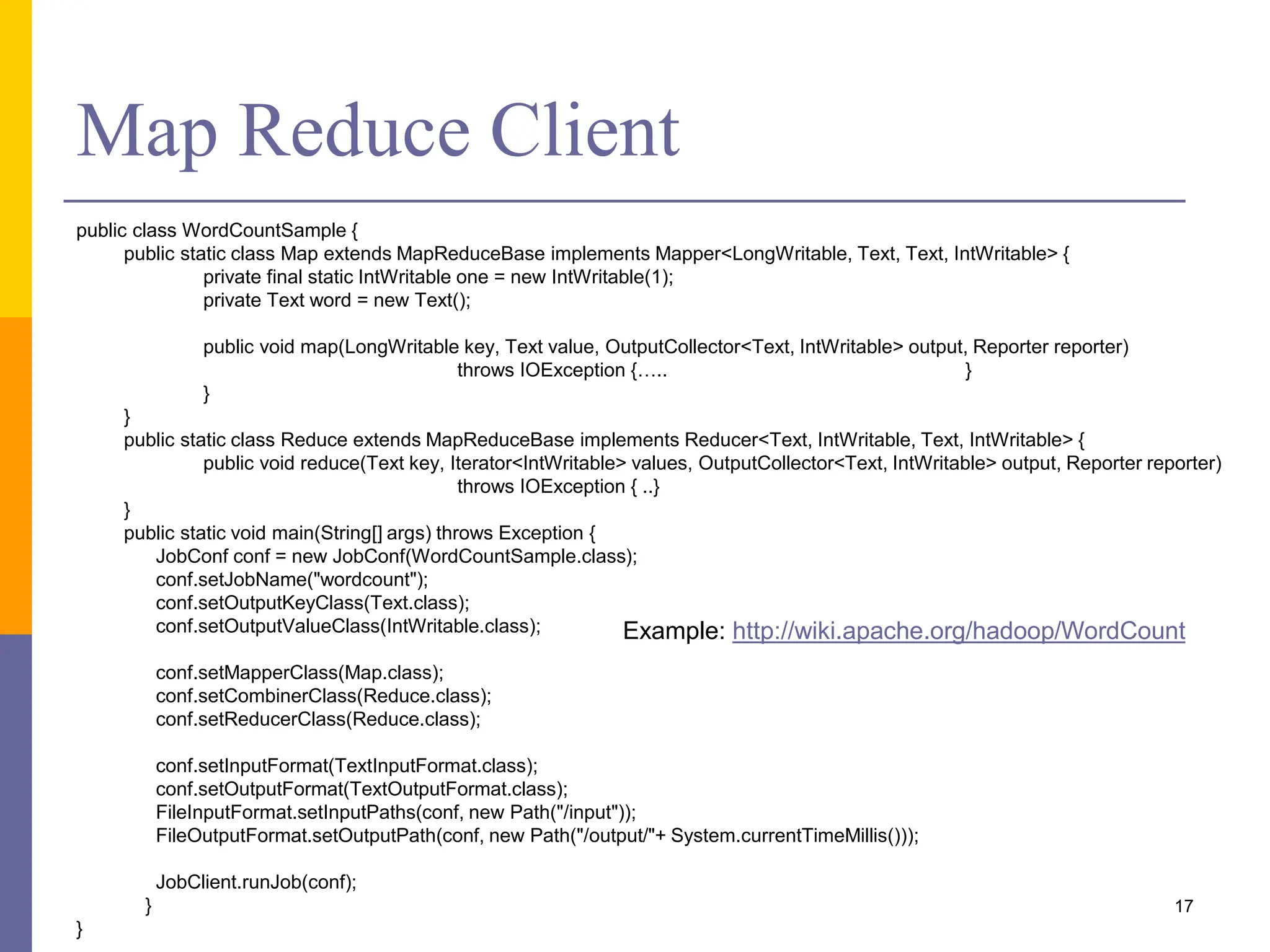

17. Map Reduce Client
public class WordCountSample {
public static class Map extends MapReduceBase implements Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
private Text word = new Text();
public void map(LongWritable key, Text value, OutputCollector<Text, IntWritable> output, Reporter reporter)
throws IOException {….. }
}
}
public static class Reduce extends MapReduceBase implements Reducer<Text, IntWritable, Text, IntWritable> {
public void reduce(Text key, Iterator<IntWritable> values, OutputCollector<Text, IntWritable> output, Reporter reporter)
throws IOException { ..}
}
public static void main(String[] args) throws Exception {
JobConf conf = new JobConf(WordCountSample.class);
conf.setJobName("wordcount");
conf.setOutputKeyClass(Text.class);
conf.setOutputValueClass(IntWritable.class);
conf.setMapperClass(Map.class);
conf.setCombinerClass(Reduce.class);
conf.setReducerClass(Reduce.class);
conf.setInputFormat(TextInputFormat.class);
conf.setOutputFormat(TextOutputFormat.class);
FileInputFormat.setInputPaths(conf, new Path("/input"));
FileOutputFormat.setOutputPath(conf, new Path("/output/"+ System.currentTimeMillis()));
JobClient.runJob(conf);
}
}
17
Example: http://wiki.apache.org/hadoop/WordCount

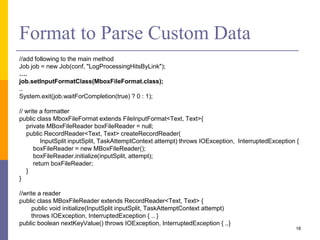

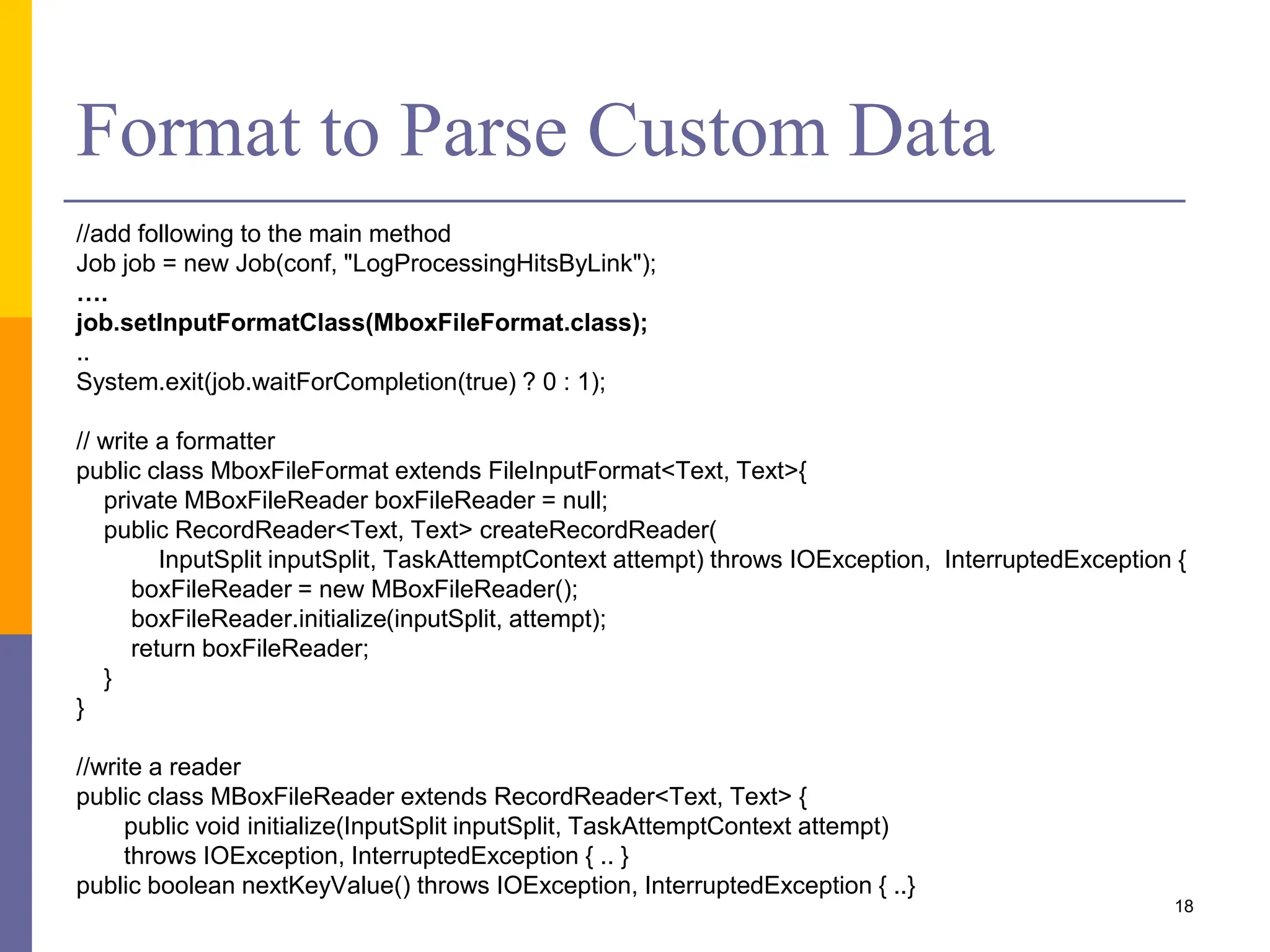

18. Format to Parse Custom Data
//add following to the main method
Job job = new Job(conf, "LogProcessingHitsByLink");
….
job.setInputFormatClass(MboxFileFormat.class);
..
System.exit(job.waitForCompletion(true) ? 0 : 1);
// write a formatter
public class MboxFileFormat extends FileInputFormat<Text, Text>{
private MBoxFileReader boxFileReader = null;
public RecordReader<Text, Text> createRecordReader(
InputSplit inputSplit, TaskAttemptContext attempt) throws IOException, InterruptedException {
boxFileReader = new MBoxFileReader();
boxFileReader.initialize(inputSplit, attempt);
return boxFileReader;
}
}
//write a reader
public class MBoxFileReader extends RecordReader<Text, Text> {
public void initialize(InputSplit inputSplit, TaskAttemptContext attempt)
throws IOException, InterruptedException { .. }
public boolean nextKeyValue() throws IOException, InterruptedException { ..}
18

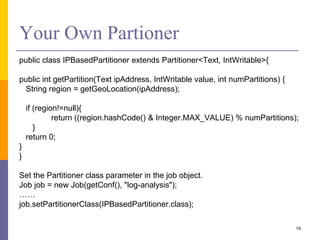

19. Your Own Partioner
public class IPBasedPartitioner extends Partitioner<Text, IntWritable>{
public int getPartition(Text ipAddress, IntWritable value, int numPartitions) {
String region = getGeoLocation(ipAddress);
if (region!=null){
return ((region.hashCode() & Integer.MAX_VALUE) % numPartitions);
}
return 0;
}
}
Set the Partitioner class parameter in the job object.
Job job = new Job(getConf(), "log-analysis");
……
job.setPartitionerClass(IPBasedPartitioner.class);
19

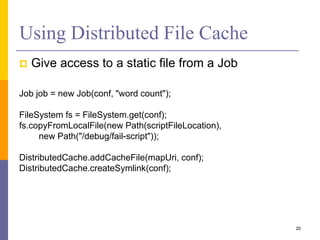

20. Using Distributed File Cache
Give access to a static file from a Job
Job job = new Job(conf, "word count");
FileSystem fs = FileSystem.get(conf);
fs.copyFromLocalFile(new Path(scriptFileLocation),
new Path("/debug/fail-script"));
DistributedCache.addCacheFile(mapUri, conf);
DistributedCache.createSymlink(conf);
20
