Four Ways to add Features to Ext JS

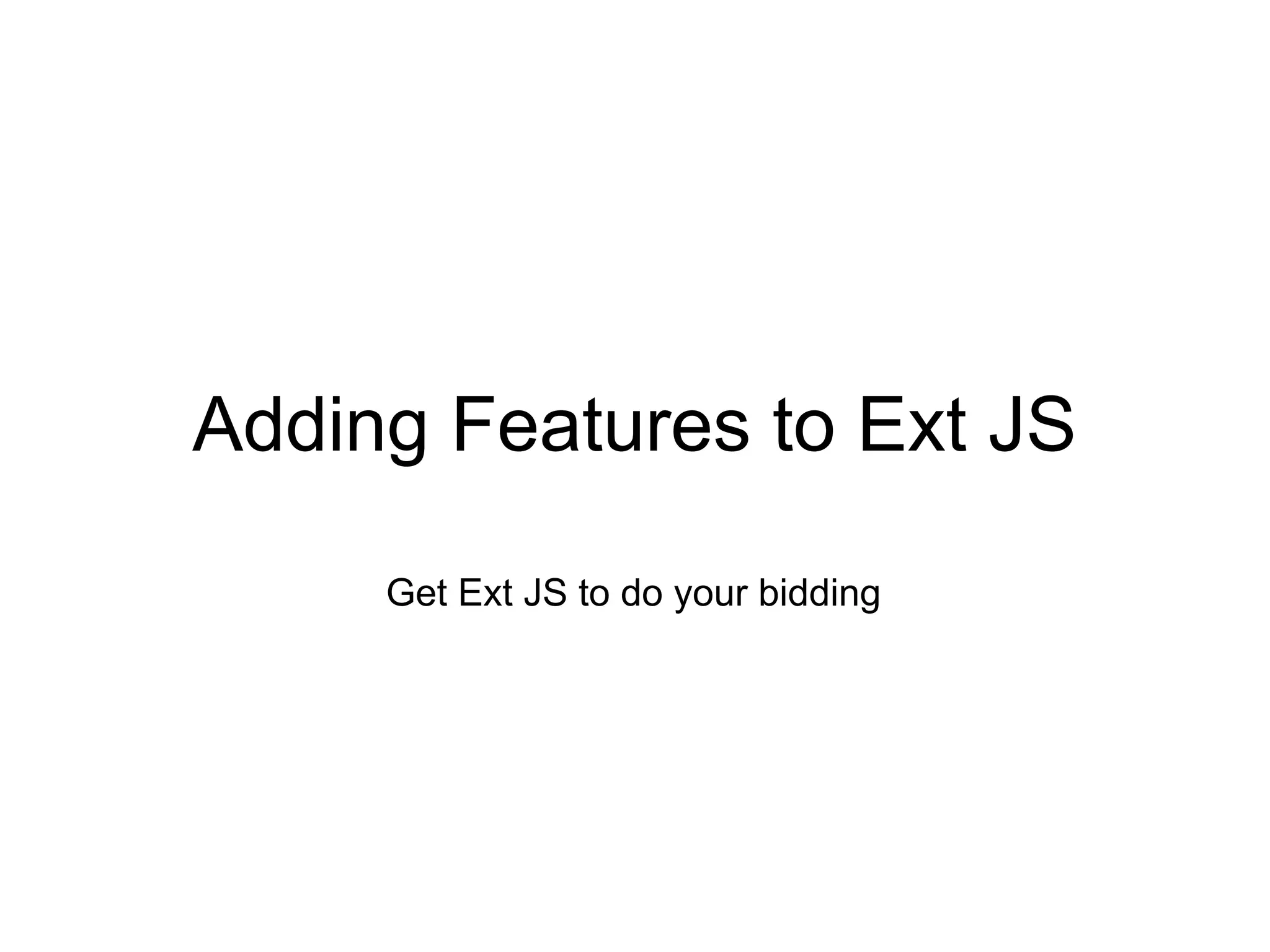

Adding Features to Ext JS

Get Ext JS to do your bidding

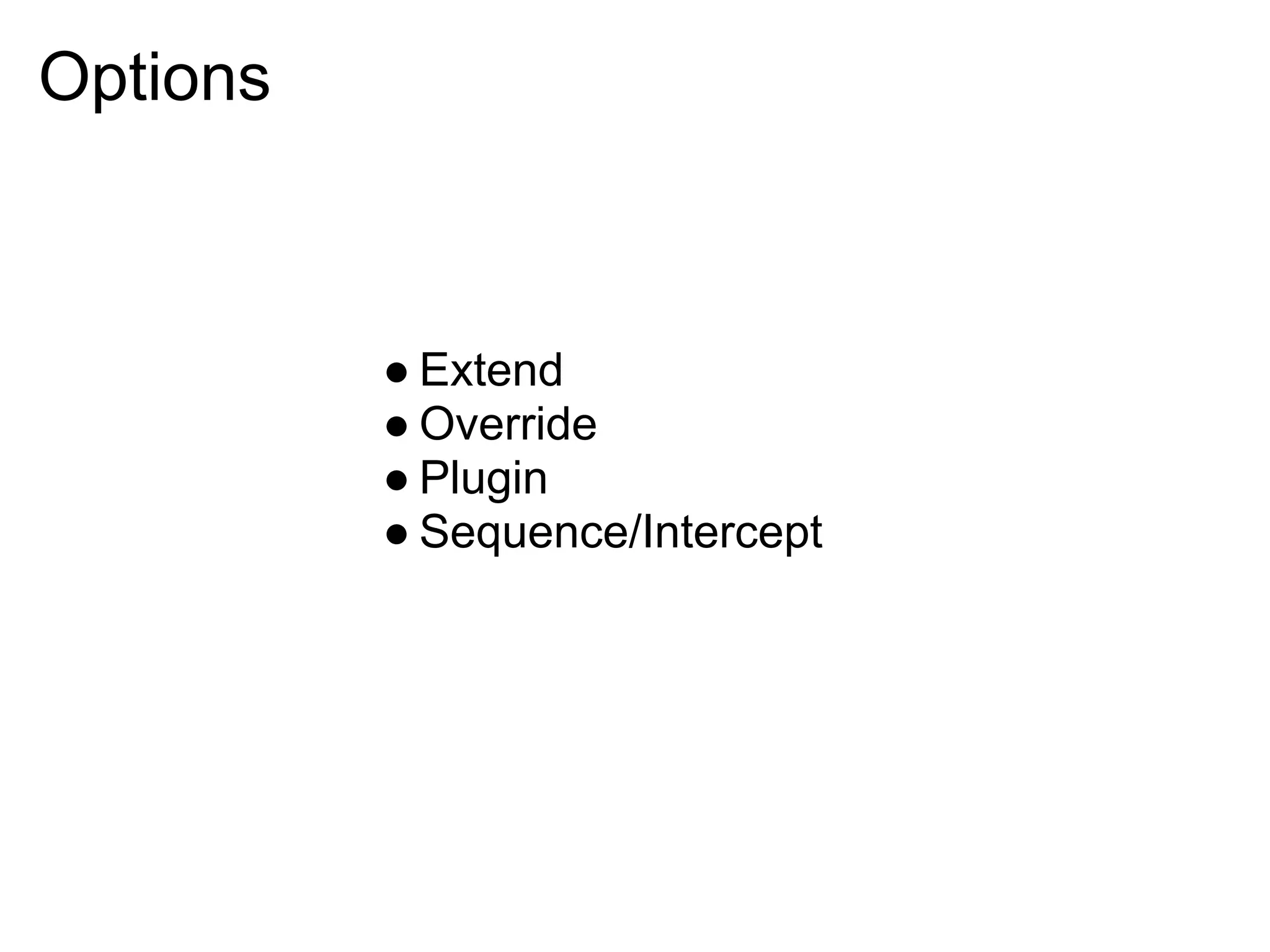

Options

● Extend
● Override
● Plugin
● Sequence/Intercept

Extending

New component based on another

Inherits functionality

Somewhat lightweight (well come back to this)
Four step process

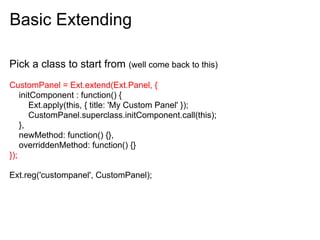

Basic Extending

Pick a class to start from (well come back to this)
CustomPanel = Ext.extend(Ext.Panel, {
initComponent : function() {
Ext.apply(this, { title: 'My Custom Panel' });
CustomPanel.superclass.initComponent.call(this);
},
newMethod: function() {},
overriddenMethod: function() {}
});

Ext.reg('custompanel', CustomPanel);

Basic Extending

Configure it with initComponent (well come back to this)
},
});

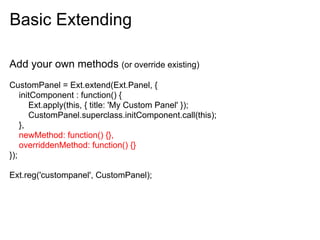

Basic Extending

Add your own methods (or override existing)
},
});

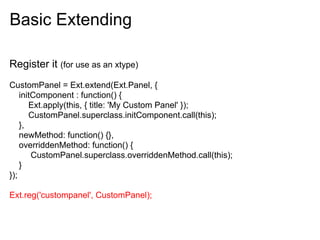

Basic Extending

Register it (for use as an xtype)
},
overriddenMethod: function() {
CustomPanel.superclass.overriddenMethod.call(this);
}
});

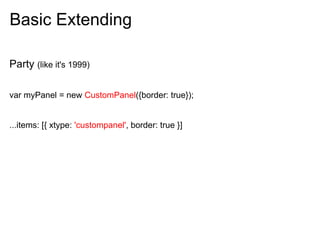

Basic Extending

Party (like it's 1999)

var myPanel = new CustomPanel({border: true});

...items: [{ xtype: 'custompanel', border: true }]

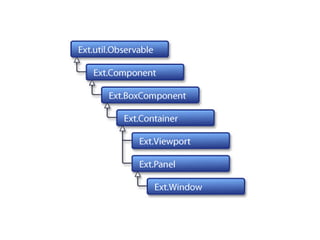

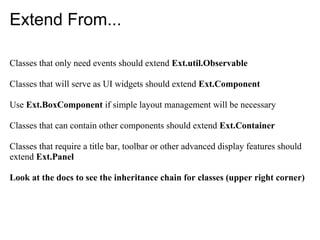

Extend From...

Classes that only need events should extend Ext.util.Observable

Classes that will serve as UI widgets should extend Ext.Component

Use Ext.BoxComponent if simple layout management will be necessary

Classes that can contain other components should extend Ext.Container

Classes that require a title bar, toolbar or other advanced display features should
extend Ext.Panel

Look at the docs to see the inheritance chain for classes (upper right corner)

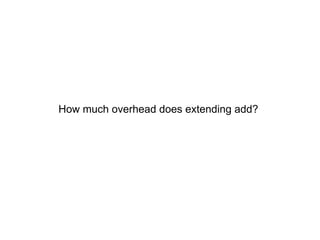

How much overhead does extending add?

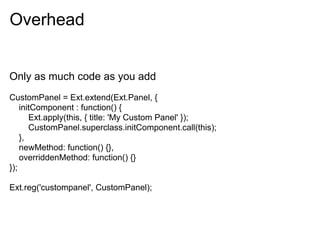

Overhead

Only as much code as you add
},
});

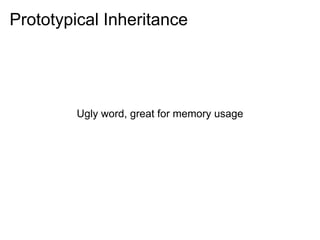

Prototypical Inheritance

Ugly word, great for memory usage

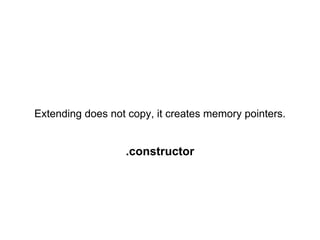

Extending does not copy, it creates memory pointers.

.constructor

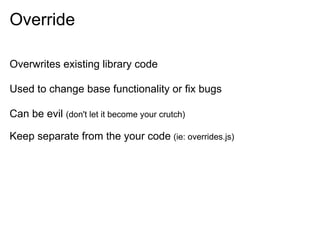

Override

Overwrites existing library code

Used to change base functionality or fix bugs

Can be evil (don't let it become your crutch)

Keep separate from the your code (ie: overrides.js)

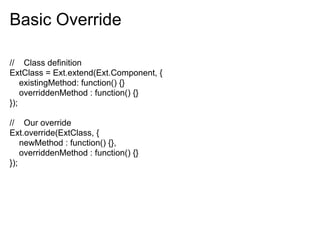

Basic Override

// Class definition
ExtClass = Ext.extend(Ext.Component, {
existingMethod: function() {}
overriddenMethod : function() {}
});

// Our override
Ext.override(ExtClass, {
newMethod : function() {},
});

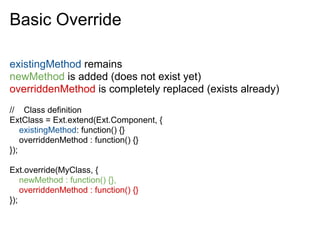

Basic Override

existingMethod remains
newMethod is added (does not exist yet)
overriddenMethod is completely replaced (exists already)
// Class definition
ExtClass = Ext.extend(Ext.Component, {
existingMethod: function() {}
});

Ext.override(MyClass, {
newMethod : function() {},
});

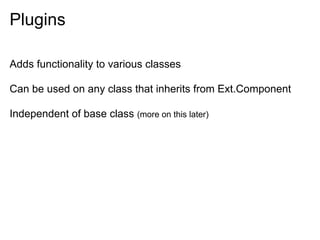

Plugins

Adds functionality to various classes

Can be used on any class that inherits from Ext.Component

Independent of base class (more on this later)

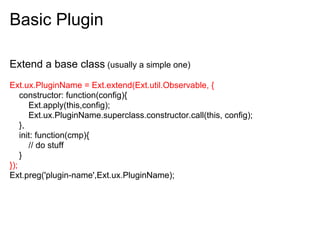

Basic Plugin

Extend a base class (usually a simple one)
Ext.ux.PluginName = Ext.extend(Ext.util.Observable, {
constructor: function(config){
Ext.apply(this,config);
Ext.ux.PluginName.superclass.constructor.call(this, config);
},
init: function(cmp){
// do stuff
}
});
Ext.preg('plugin-name',Ext.ux.PluginName);

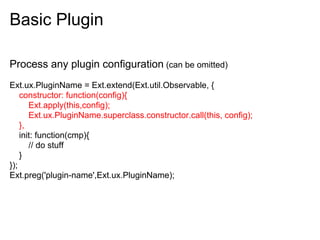

Basic Plugin

Process any plugin configuration (can be omitted)
},
// do stuff
}
});

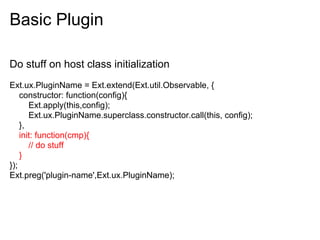

Basic Plugin

Do stuff on host class initialization
},
// do stuff
}
});

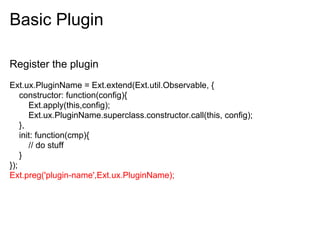

Basic Plugin

Register the plugin
},
// do stuff
}
});

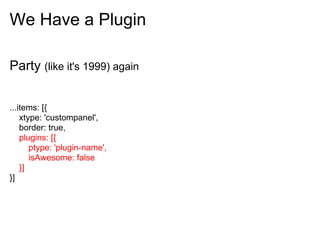

We Have a Plugin

Party (like it's 1999) again

...items: [{
xtype: 'custompanel',
border: true,
plugins: [{
ptype: 'plugin-name',
isAwesome: false
}]
}]

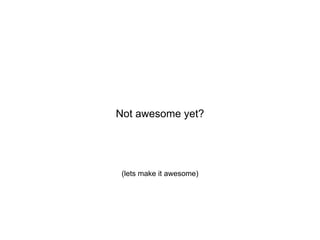

Not awesome yet?

(lets make it awesome)

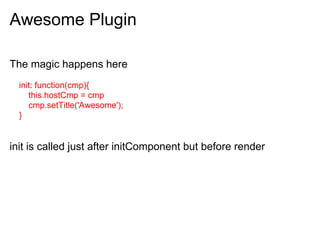

Awesome Plugin

The magic happens here
this.hostCmp = cmp
cmp.setTitle('Awesome');
}

init is called just after initComponent but before render

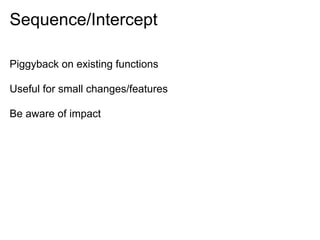

Sequence/Intercept

Piggyback on existing functions

Useful for small changes/features

Be aware of impact

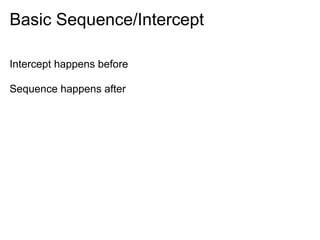

Basic Sequence/Intercept

Intercept happens before

Sequence happens after


Class and method to sequence or intercept

Ext.intercept(Ext.form.Field.prototype, 'initComponent', function() {
var fl = this.fieldLabel, ab = this.allowBlank;
if (ab === false && fl) {
this.fieldLabel = '<span style="color:red;">*</span> '+fl;
} else if (ab === true && fl) {
this.fieldLabel = ' '+fl;
}
});

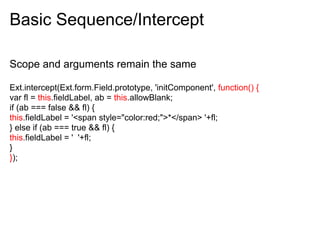

Scope and arguments remain the same

Ext.intercept(Ext.form.Field.prototype, 'initComponent', function() {
var fl = this.fieldLabel, ab = this.allowBlank;
if (ab === false && fl) {
this.fieldLabel = '<span style="color:red;">*</span> '+fl;
} else if (ab === true && fl) {
this.fieldLabel = ' '+fl;
}
});


...
{

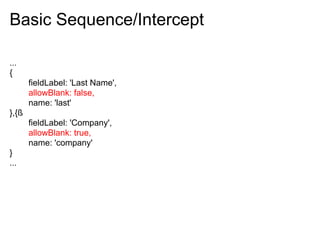

fieldLabel: 'Last Name',
allowBlank: false,
name: 'last'
},{ß
fieldLabel: 'Company',
allowBlank: true,
name: 'company'
}
...

Four Ways to add Features to Ext JS
