For the last 3 years, I've been building a complete Linux distribution, Chimera
Linux (https://chimera-linux.org) using solely LLVM as its system toolchain -
that means Clang, compiler-rt, and libc++, alongside its other tooling. Right
now, it is a complete desktop system that is already used by many, with a
familiar GNOME interface and thousands of packages, targeting 5 CPU
architectures. In this talk I would like to focus on my experiences using the
toolchain, what obstacles got in the way, how I dealt with them, the issues
that are still left and I would like to see addressed, the many benefits using
LLVM gave the project, and overall give the audience an insight into practical
deployment of LLVM in a project where it isn't simply a drop-in alternative to
GCC.
(c) FOSDEM 2024
3 & 4 February 2024
https://fosdem.org/2024/schedule/event/fosdem-2024-2555-building-a-linux-distro-with-llvm/
2. 2023/02/03 Chimera Linux @ FOSDEM 2024 2

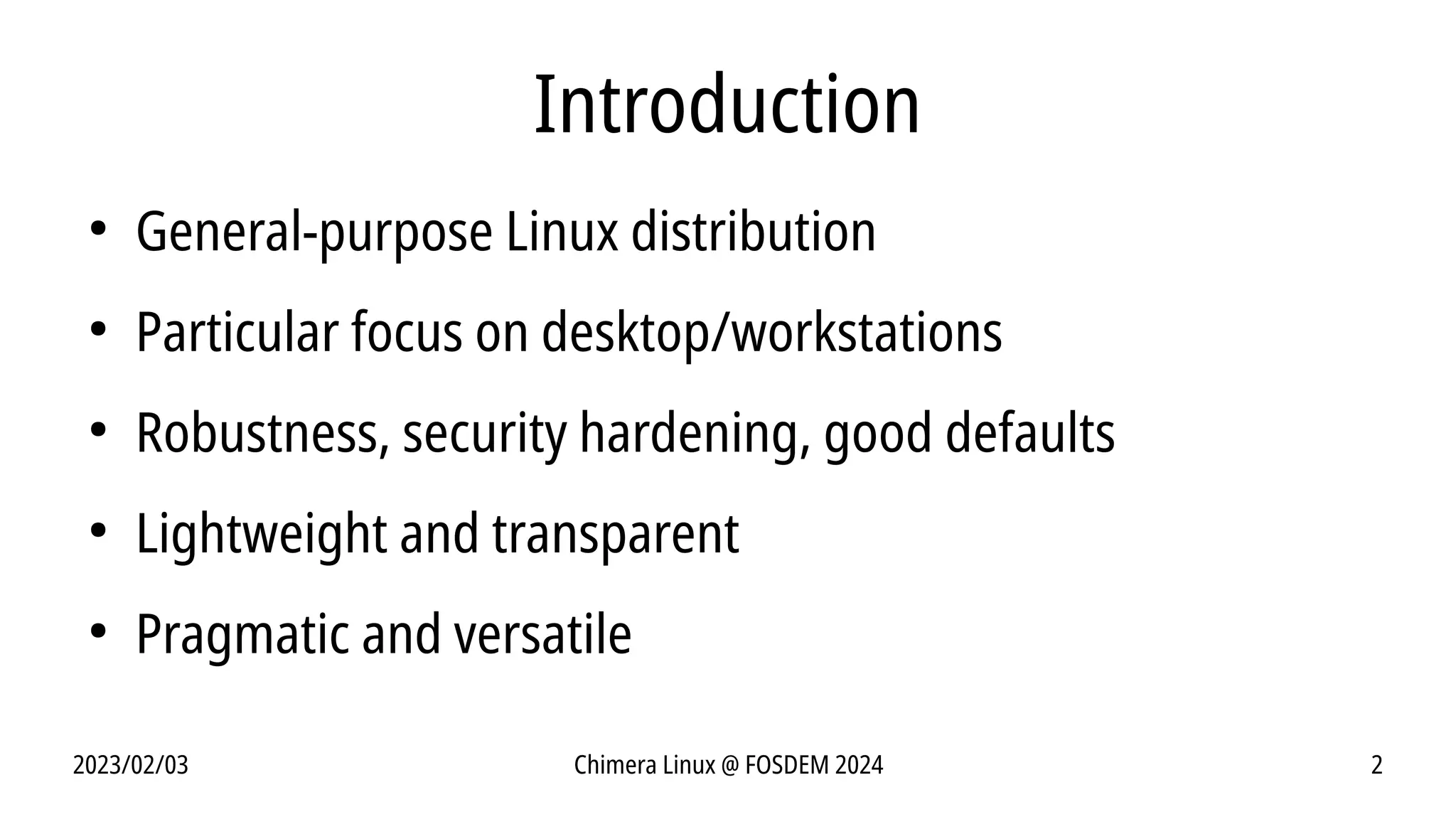

Introduction
●
General-purpose Linux distribution
●
Particular focus on desktop/workstations
●
Robustness, security hardening, good defaults
●
Lightweight and transparent
●
Pragmatic and versatile

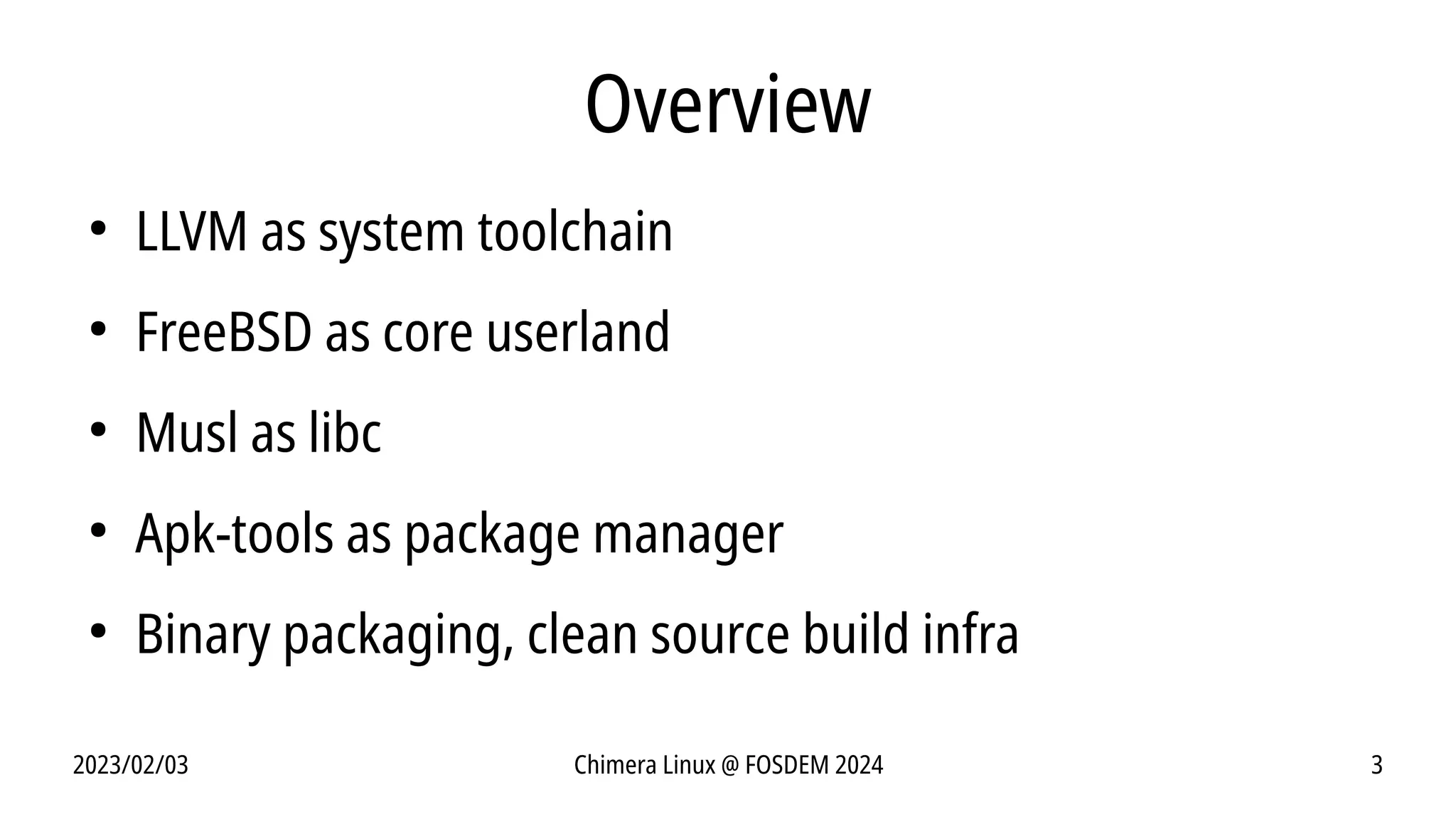

3. 2023/02/03 Chimera Linux @ FOSDEM 2024 3
Overview
●
LLVM as system toolchain
●
FreeBSD as core userland
●
Musl as libc
●
Apk-tools as package manager
●
Binary packaging, clean source build infra

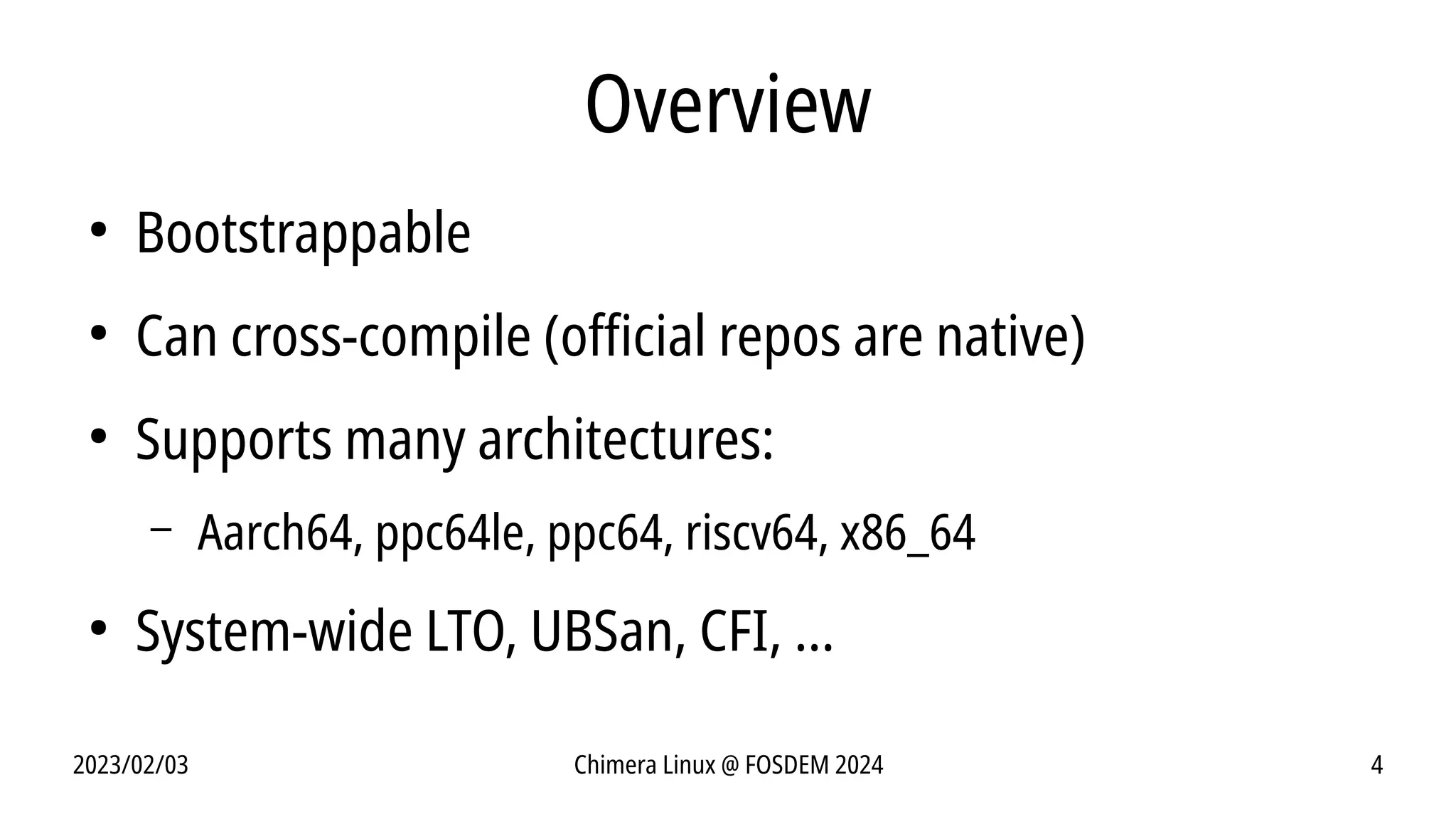

4. 2023/02/03 Chimera Linux @ FOSDEM 2024 4
Overview
●
Bootstrappable
●
Can cross-compile (official repos are native)
●
Supports many architectures:
– Aarch64, ppc64le, ppc64, riscv64, x86_64
●
System-wide LTO, UBSan, CFI, ...
5. 2023/02/03 Chimera Linux @ FOSDEM 2024 5

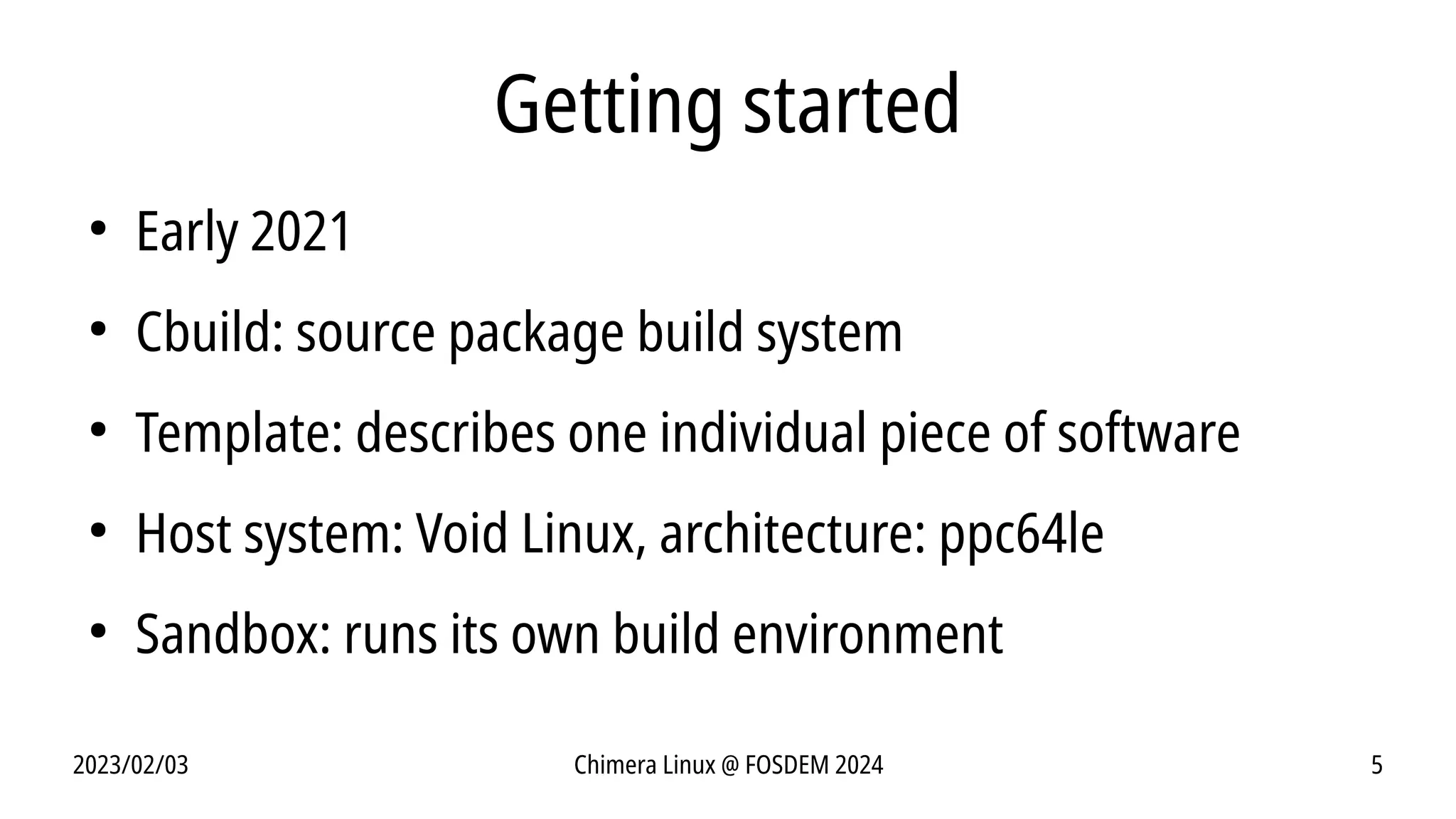

Getting started
●
Early 2021
●
Cbuild: source package build system
●
Template: describes one individual piece of software
●
Host system: Void Linux, architecture: ppc64le
●
Sandbox: runs its own build environment

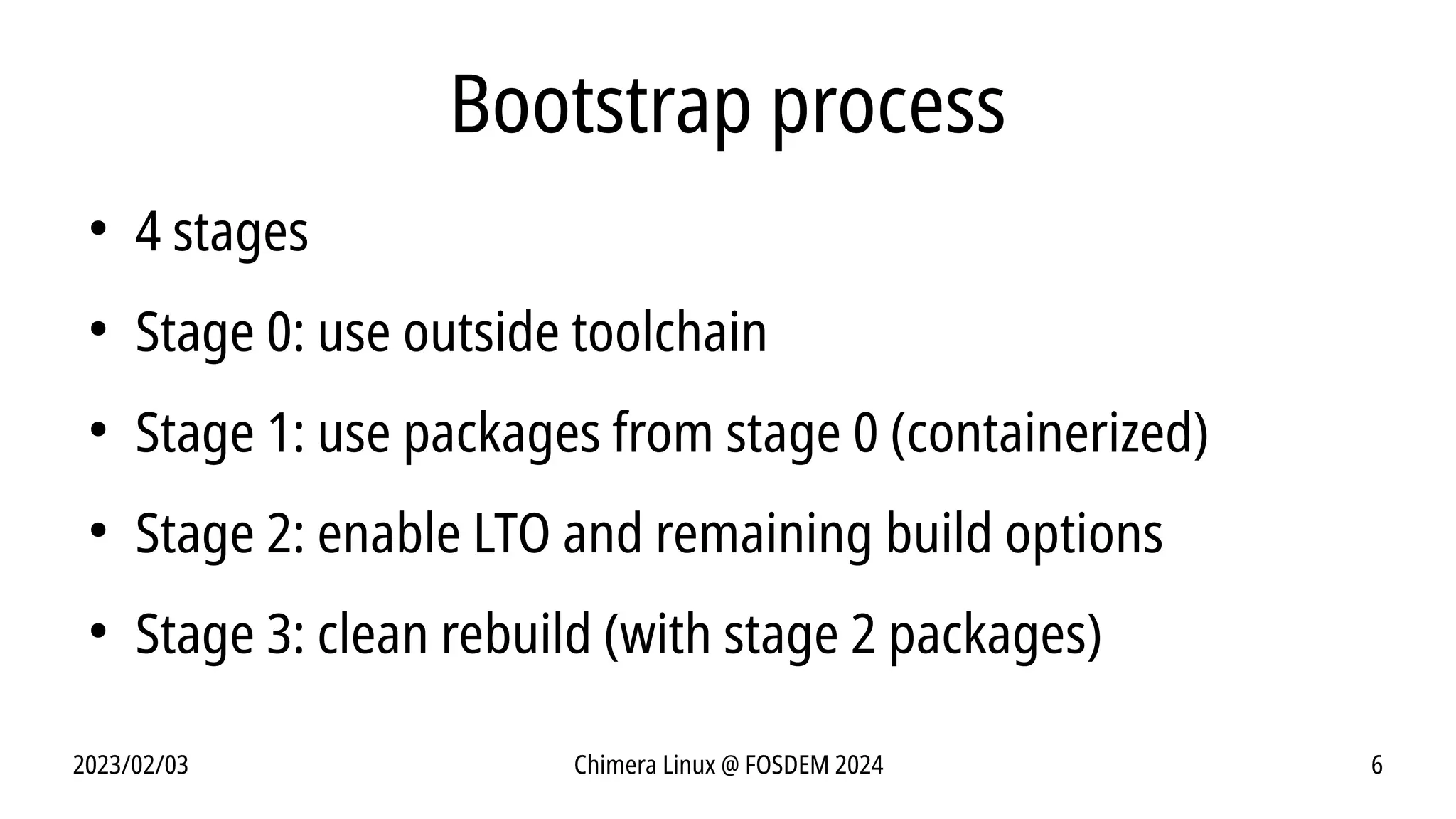

6. 2023/02/03 Chimera Linux @ FOSDEM 2024 6
Bootstrap process
●
4 stages
●
Stage 0: use outside toolchain
●
Stage 1: use packages from stage 0 (containerized)
●
Stage 2: enable LTO and remaining build options
●
Stage 3: clean rebuild (with stage 2 packages)

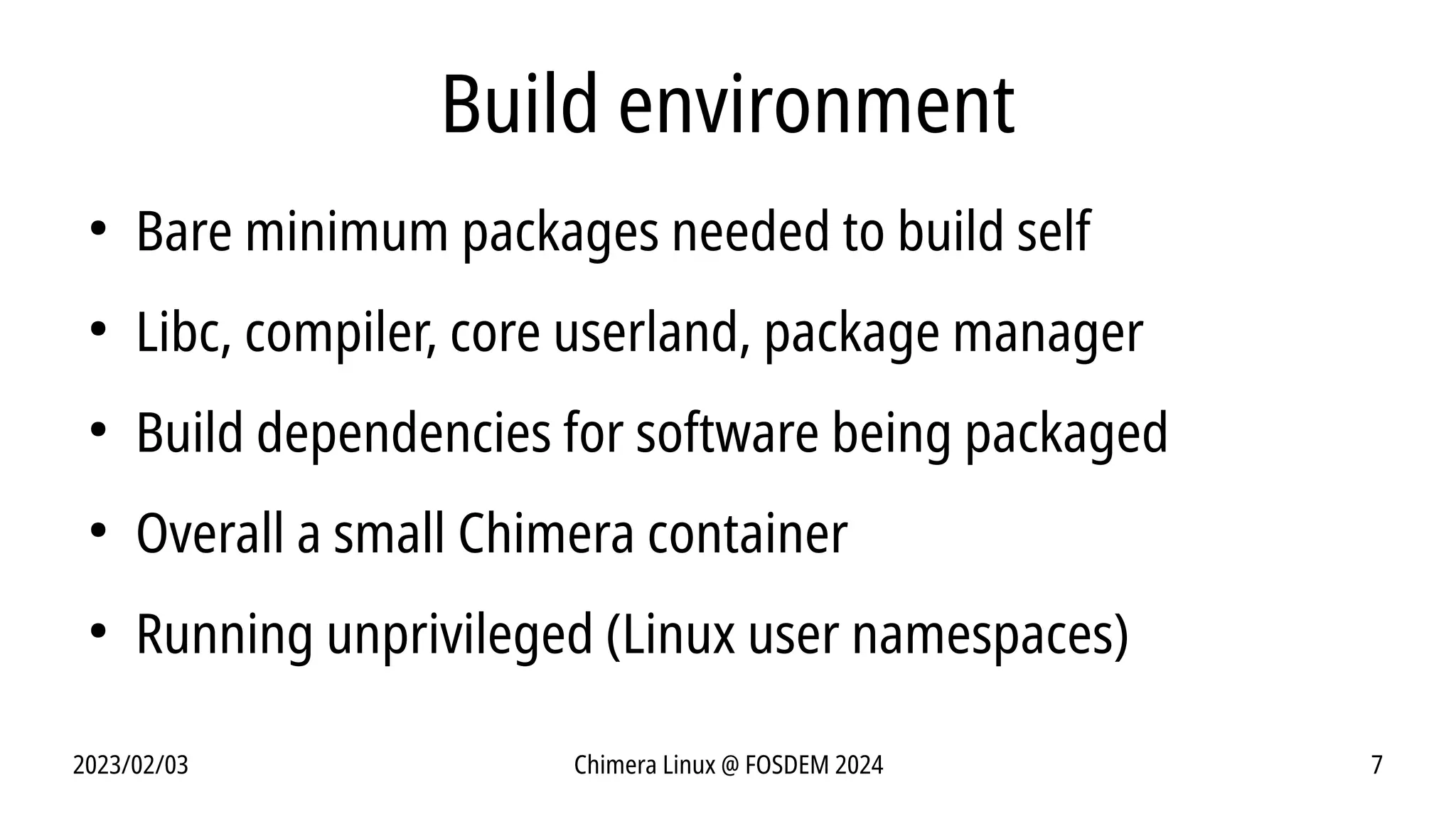

7. 2023/02/03 Chimera Linux @ FOSDEM 2024 7
Build environment
●
Bare minimum packages needed to build self
●
Libc, compiler, core userland, package manager
●
Build dependencies for software being packaged
●
Overall a small Chimera container
●
Running unprivileged (Linux user namespaces)
8. 2023/02/03 Chimera Linux @ FOSDEM 2024 8

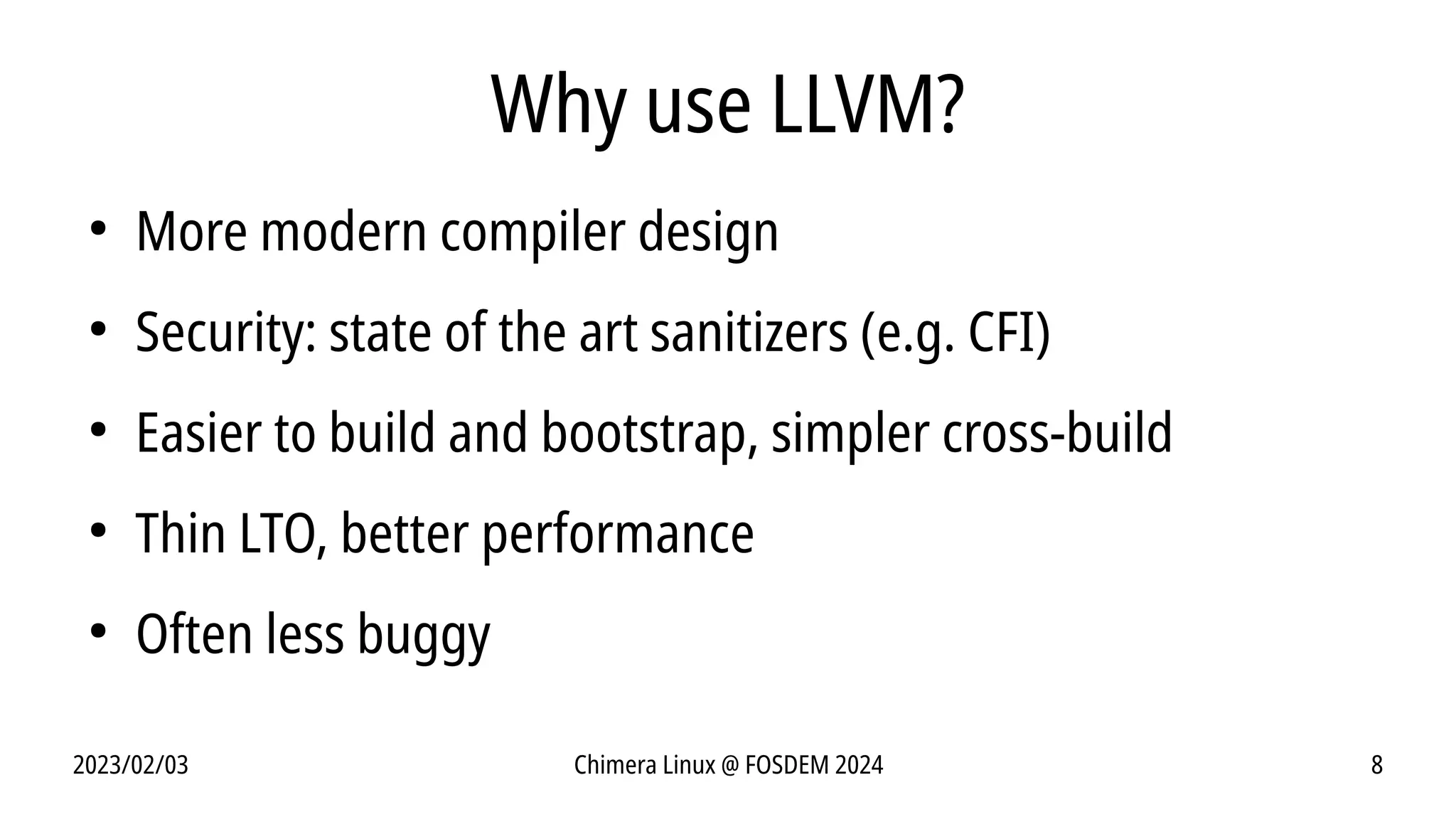

Why use LLVM?
●
More modern compiler design
●
Security: state of the art sanitizers (e.g. CFI)
●
Easier to build and bootstrap, simpler cross-build
●
Thin LTO, better performance
●
Often less buggy
9. 2023/02/03 Chimera Linux @ FOSDEM 2024 9
Why not use LLVM?
●
Very occasionally worse compatibility
●
Fewer architectures supported
●
Some of the supported ones are less maintained
●
Takes longer to build (bigger, idiomatic C++)
●
Very rarely worse performance
10. 2023/02/03 Chimera Linux @ FOSDEM 2024 10

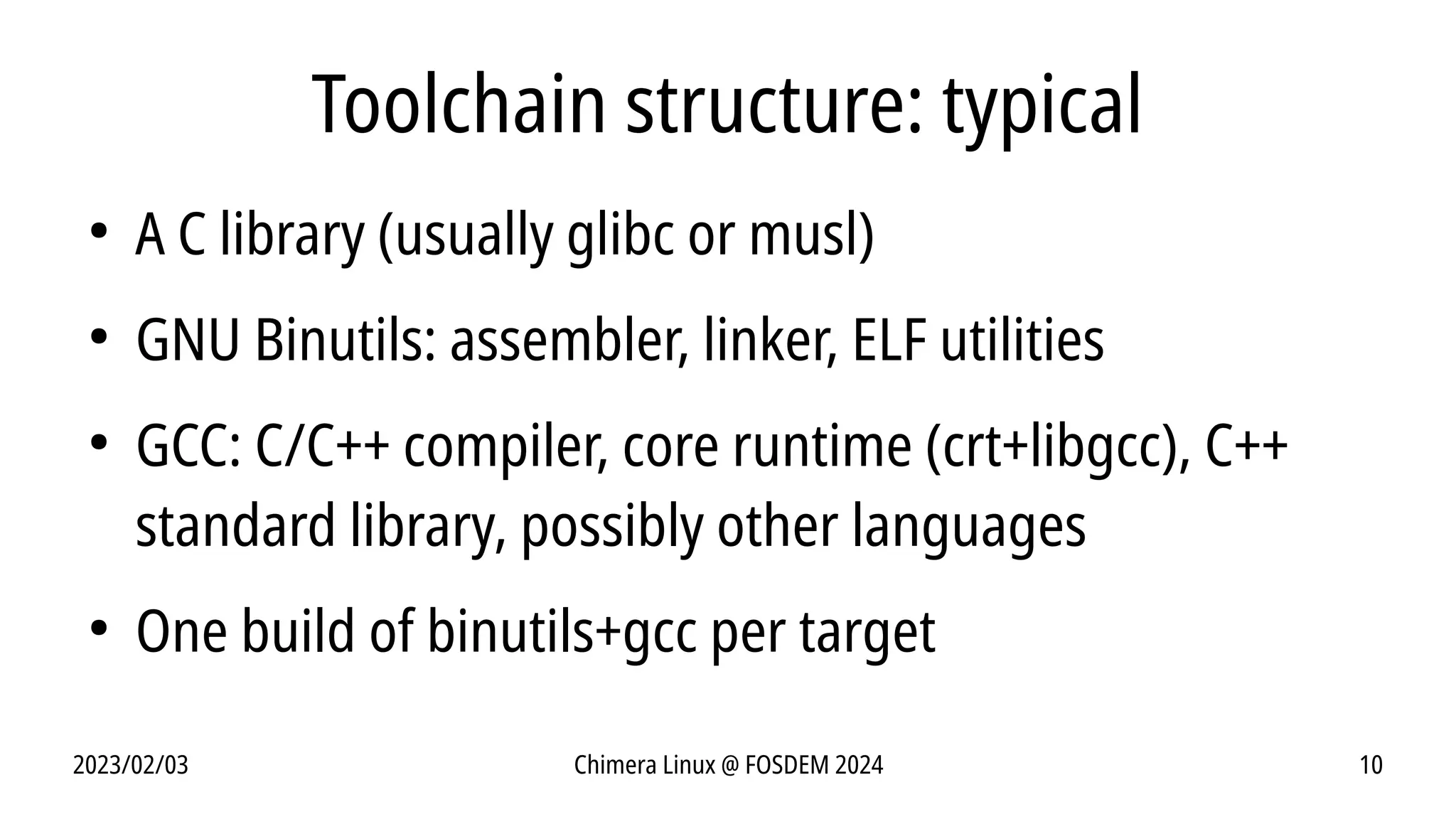

Toolchain structure: typical
●
A C library (usually glibc or musl)
●
GNU Binutils: assembler, linker, ELF utilities
●
GCC: C/C++ compiler, core runtime (crt+libgcc), C++
standard library, possibly other languages
●
One build of binutils+gcc per target

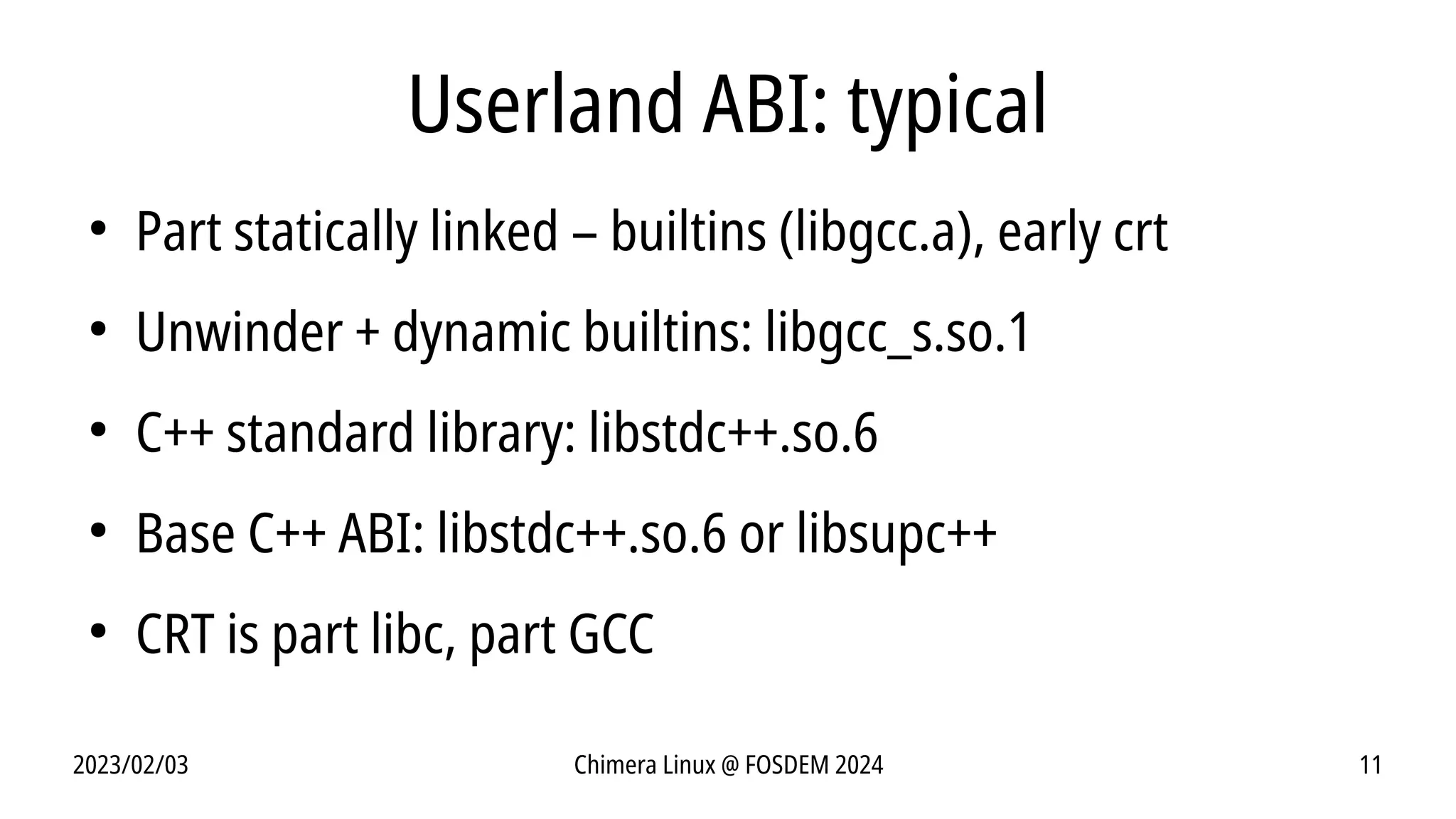

11. 2023/02/03 Chimera Linux @ FOSDEM 2024 11
Userland ABI: typical
●
Part statically linked – builtins (libgcc.a), early crt
●
Unwinder + dynamic builtins: libgcc_s.so.1
●
C++ standard library: libstdc++.so.6
●
Base C++ ABI: libstdc++.so.6 or libsupc++
●
CRT is part libc, part GCC
12. 2023/02/03 Chimera Linux @ FOSDEM 2024 12

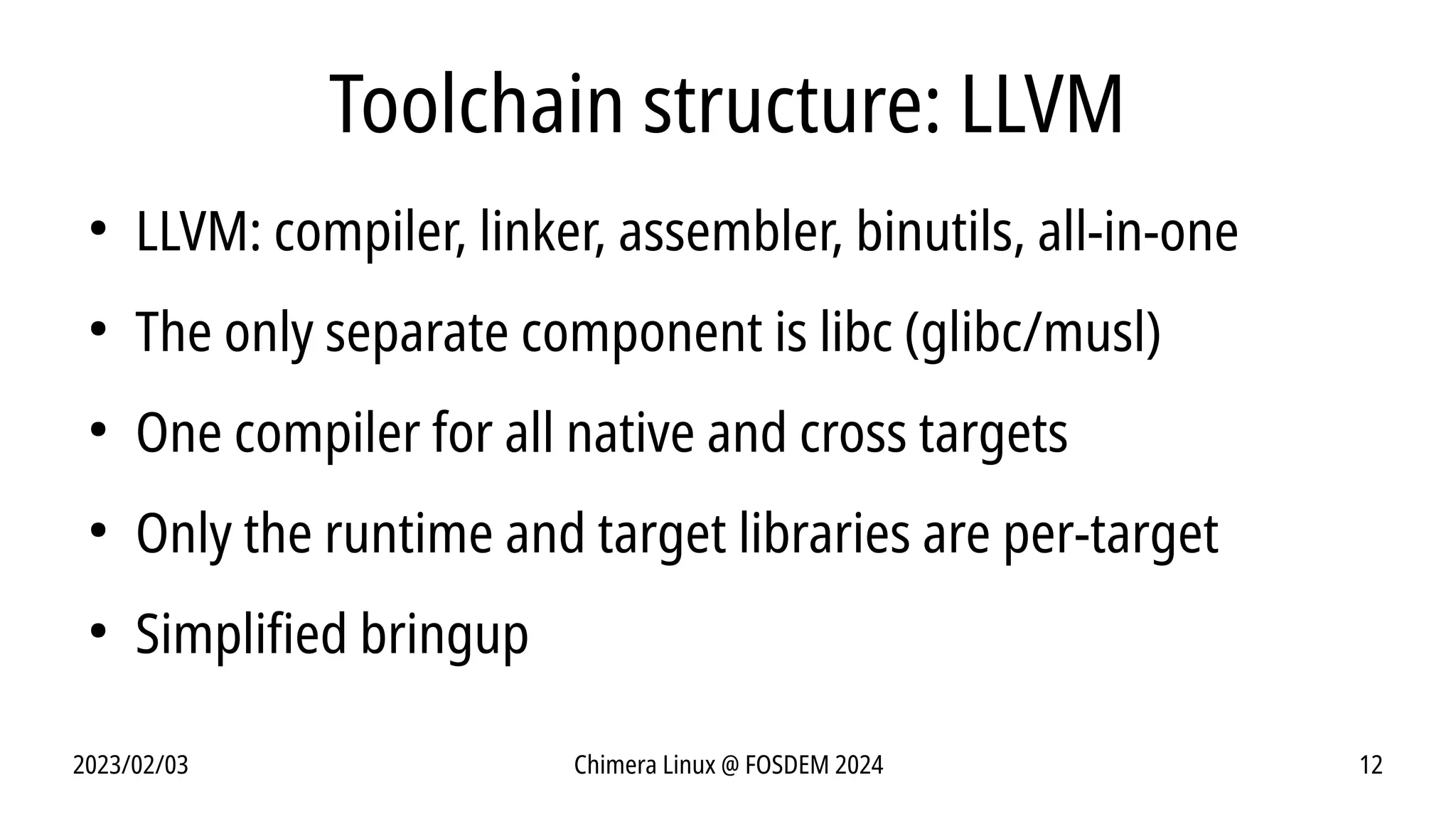

Toolchain structure: LLVM
●
LLVM: compiler, linker, assembler, binutils, all-in-one
●
The only separate component is libc (glibc/musl)
●
One compiler for all native and cross targets
●
Only the runtime and target libraries are per-target
●
Simplified bringup

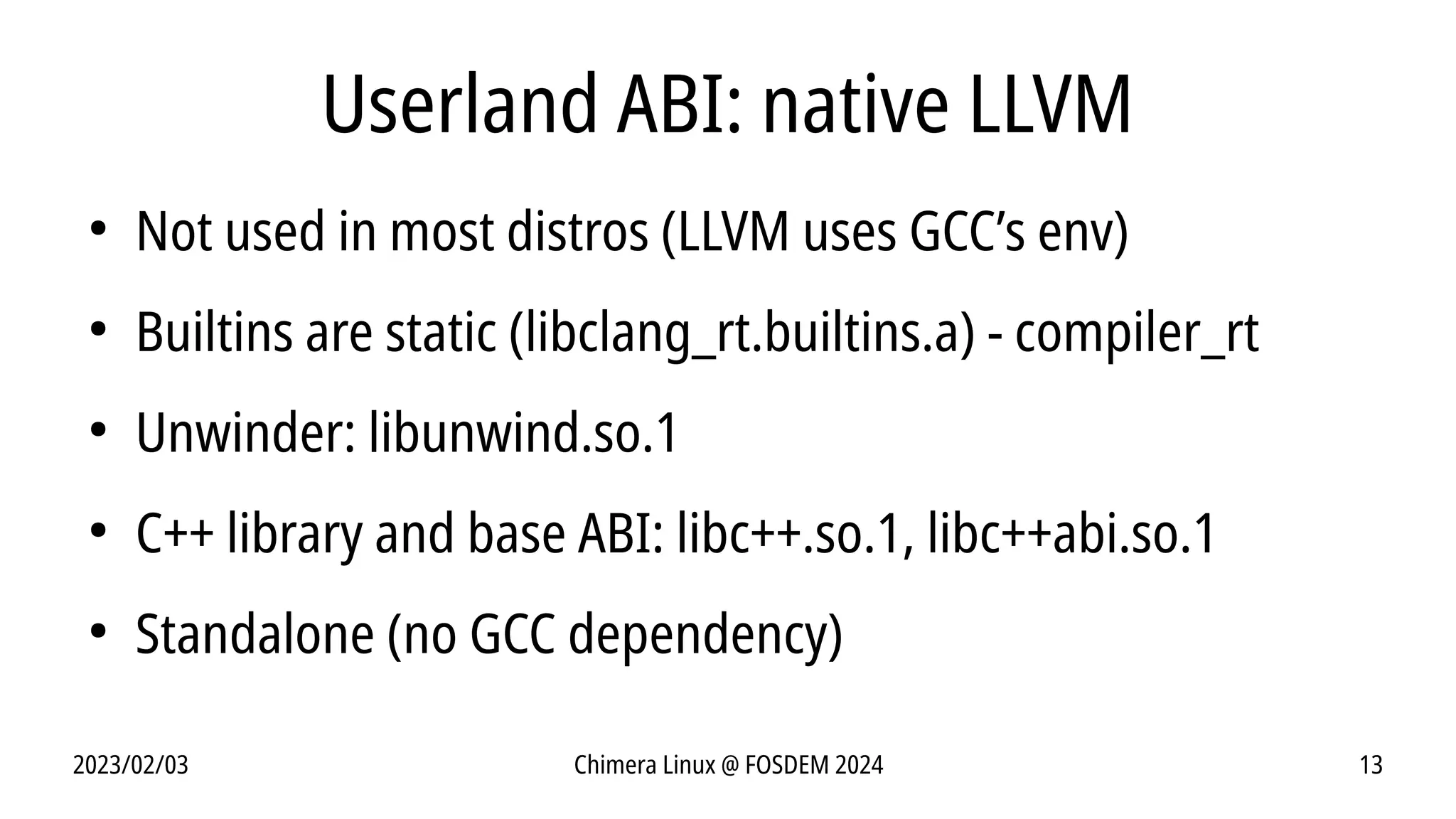

13. 2023/02/03 Chimera Linux @ FOSDEM 2024 13
Userland ABI: native LLVM
●
Not used in most distros (LLVM uses GCC’s env)
●
Builtins are static (libclang_rt.builtins.a) - compiler_rt
●
Unwinder: libunwind.so.1
●
C++ library and base ABI: libc++.so.1, libc++abi.so.1
●
Standalone (no GCC dependency)

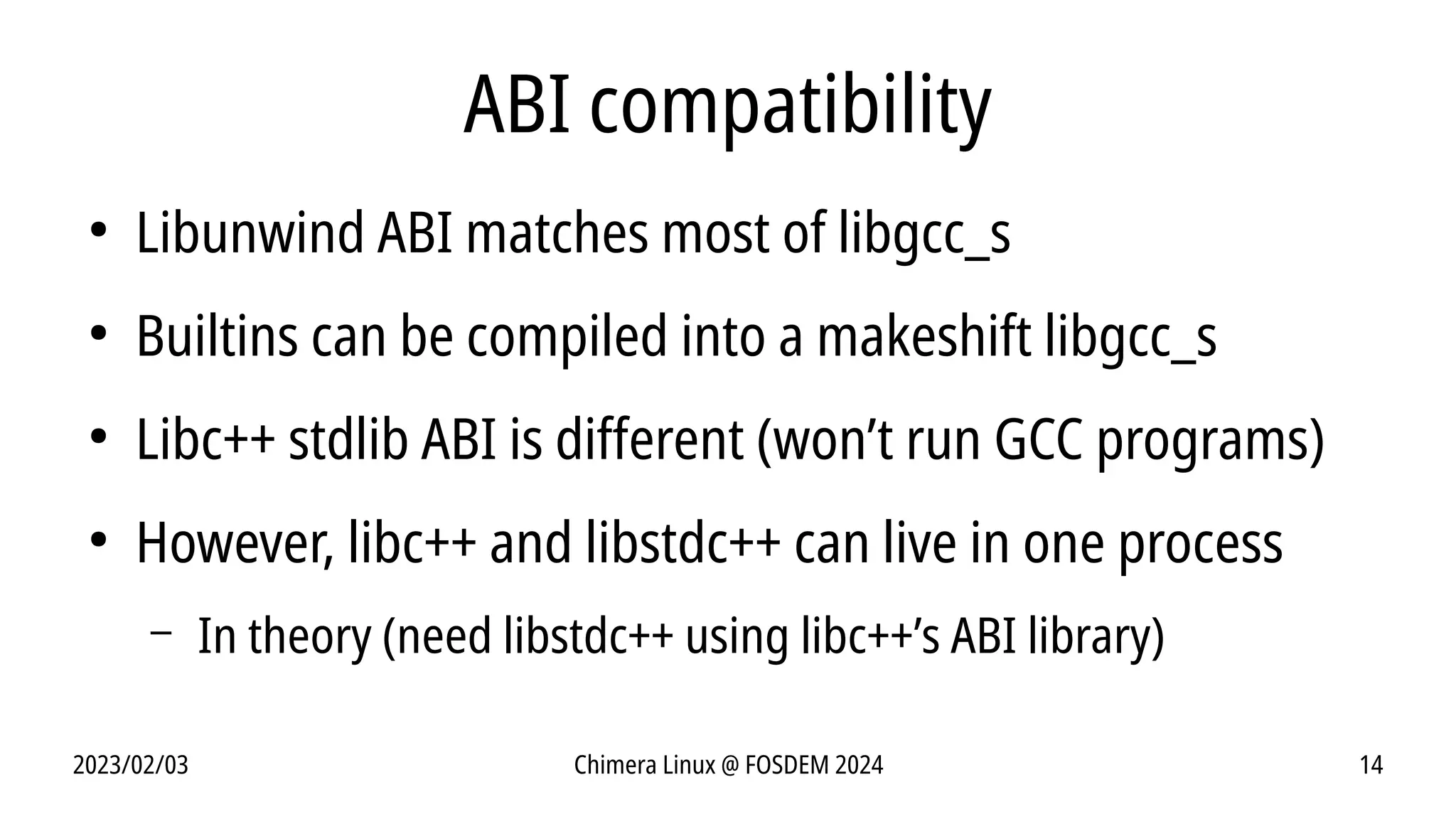

14. 2023/02/03 Chimera Linux @ FOSDEM 2024 14
ABI compatibility
●
Libunwind ABI matches most of libgcc_s
●
Builtins can be compiled into a makeshift libgcc_s
●
Libc++ stdlib ABI is different (won’t run GCC programs)
●
However, libc++ and libstdc++ can live in one process
– In theory (need libstdc++ using libc++’s ABI library)

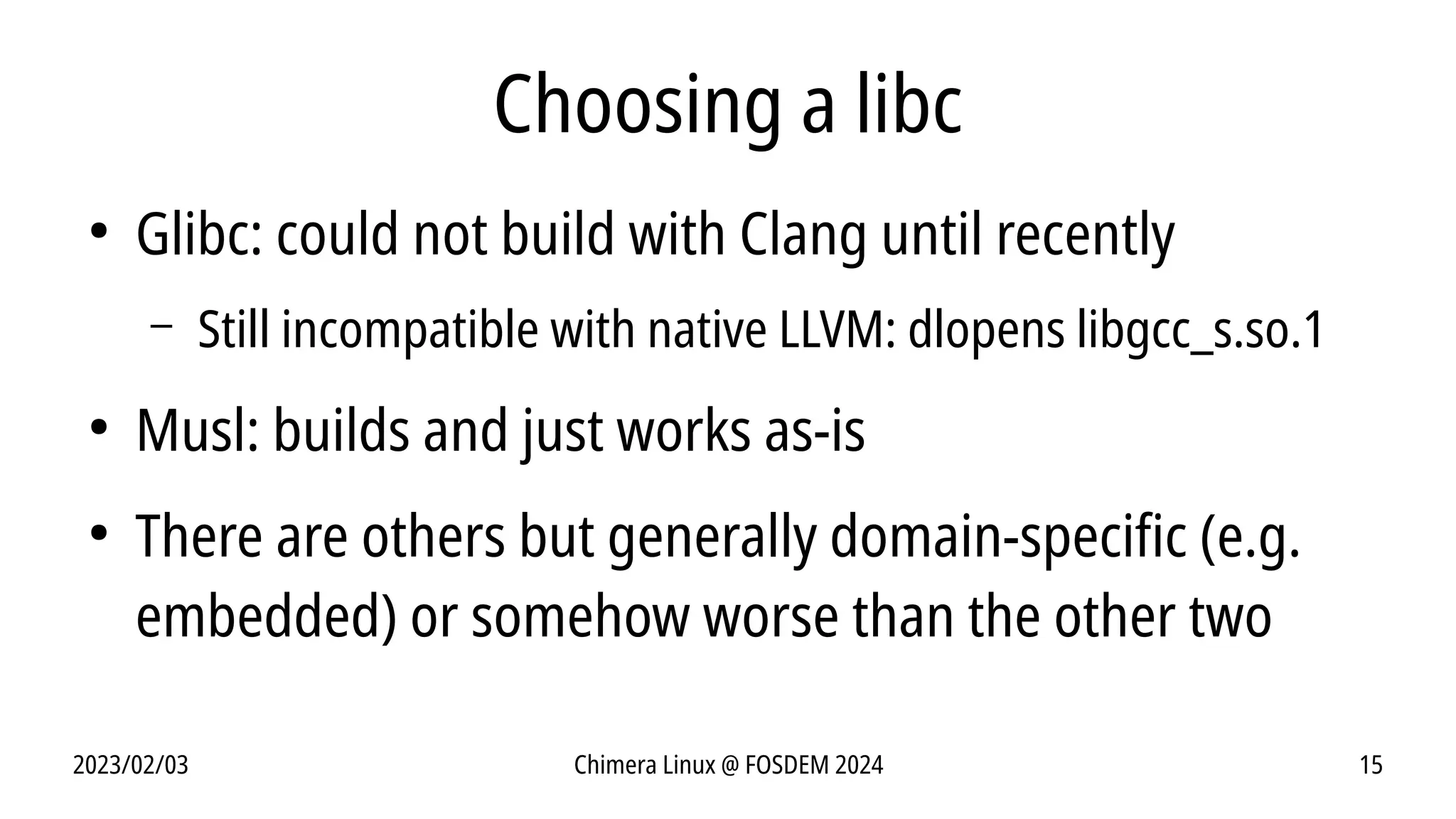

15. 2023/02/03 Chimera Linux @ FOSDEM 2024 15
Choosing a libc
●
Glibc: could not build with Clang until recently
– Still incompatible with native LLVM: dlopens libgcc_s.so.1
●
Musl: builds and just works as-is
●
There are others but generally domain-specific (e.g.
embedded) or somehow worse than the other two
16. 2023/02/03 Chimera Linux @ FOSDEM 2024 16

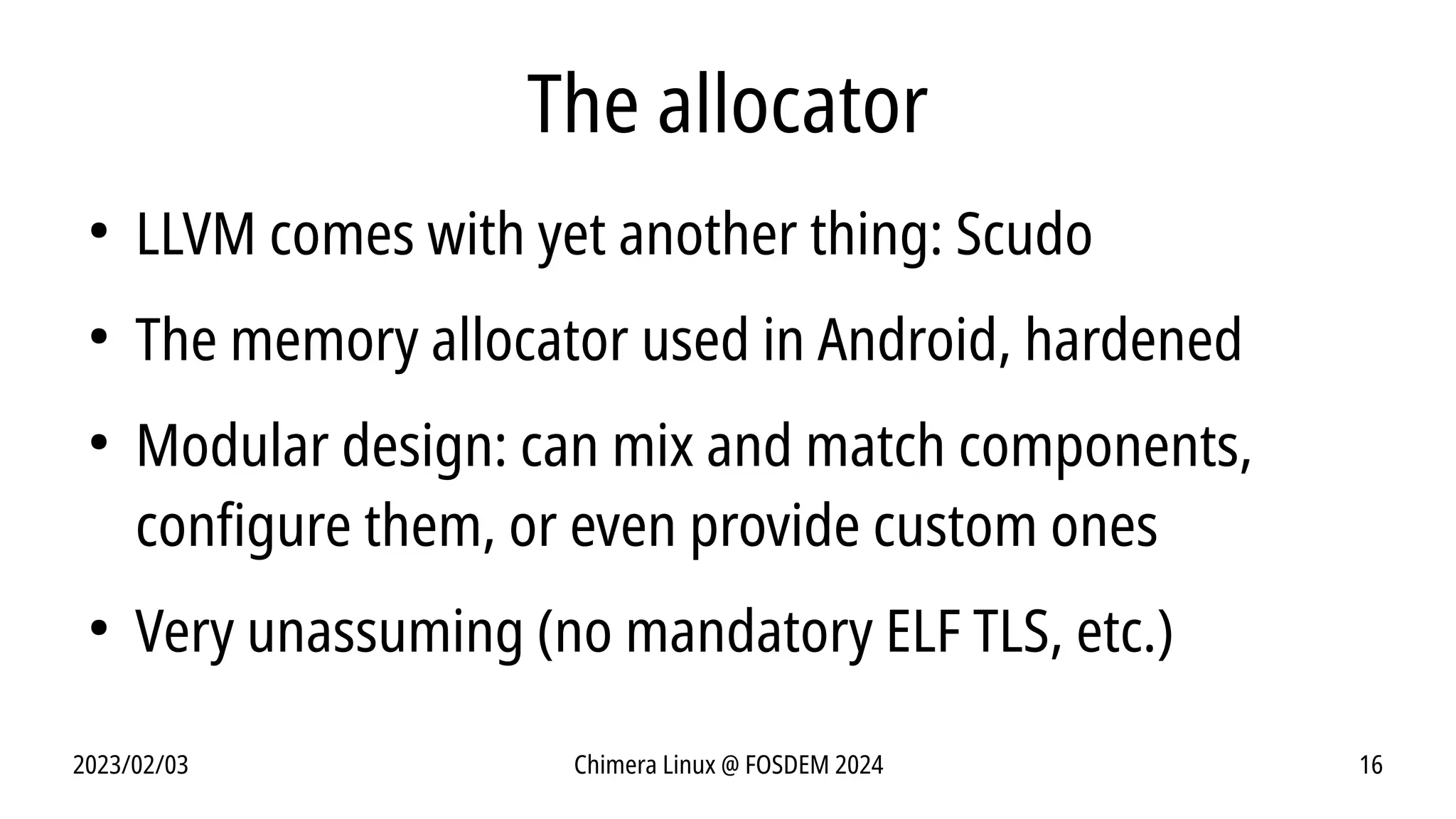

The allocator
●
LLVM comes with yet another thing: Scudo
●
The memory allocator used in Android, hardened
●
Modular design: can mix and match components,
configure them, or even provide custom ones
●
Very unassuming (no mandatory ELF TLS, etc.)
17. 2023/02/03 Chimera Linux @ FOSDEM 2024 17

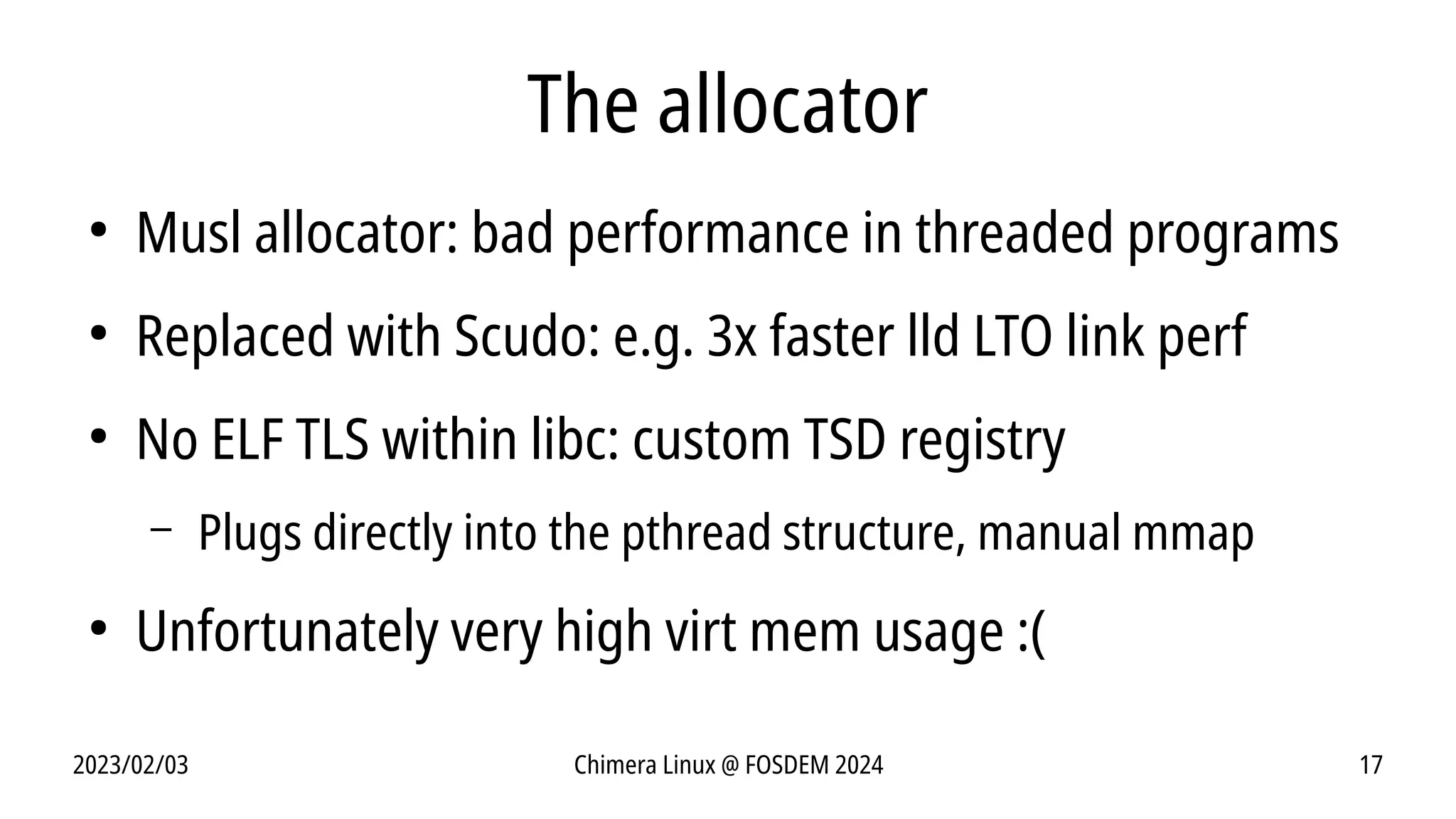

The allocator
●
Musl allocator: bad performance in threaded programs
●
Replaced with Scudo: e.g. 3x faster lld LTO link perf
●
No ELF TLS within libc: custom TSD registry
– Plugs directly into the pthread structure, manual mmap
●
Unfortunately very high virt mem usage :(

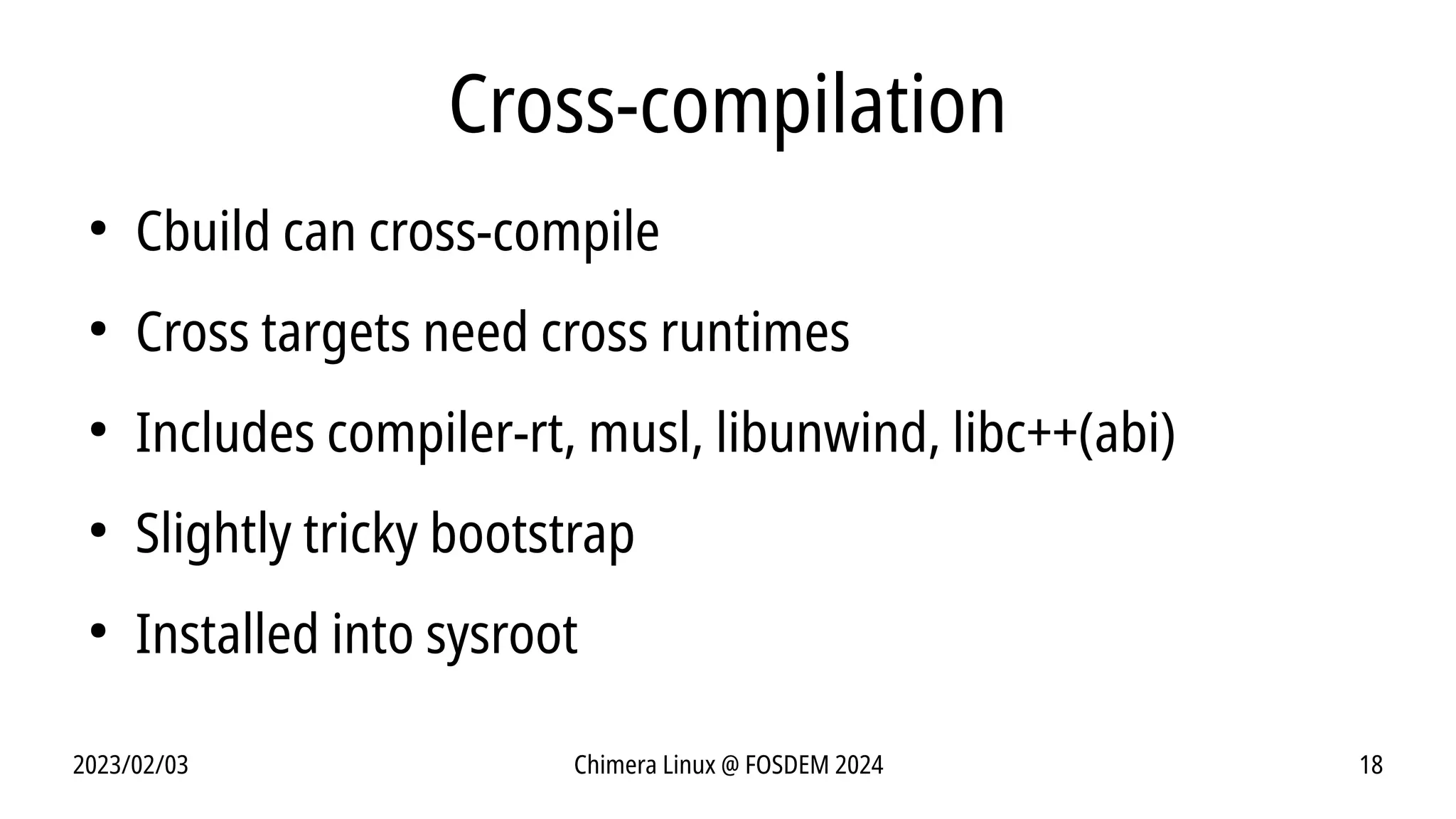

18. 2023/02/03 Chimera Linux @ FOSDEM 2024 18
Cross-compilation
●
Cbuild can cross-compile
●
Cross targets need cross runtimes
●
Includes compiler-rt, musl, libunwind, libc++(abi)
●
Slightly tricky bootstrap
●
Installed into sysroot

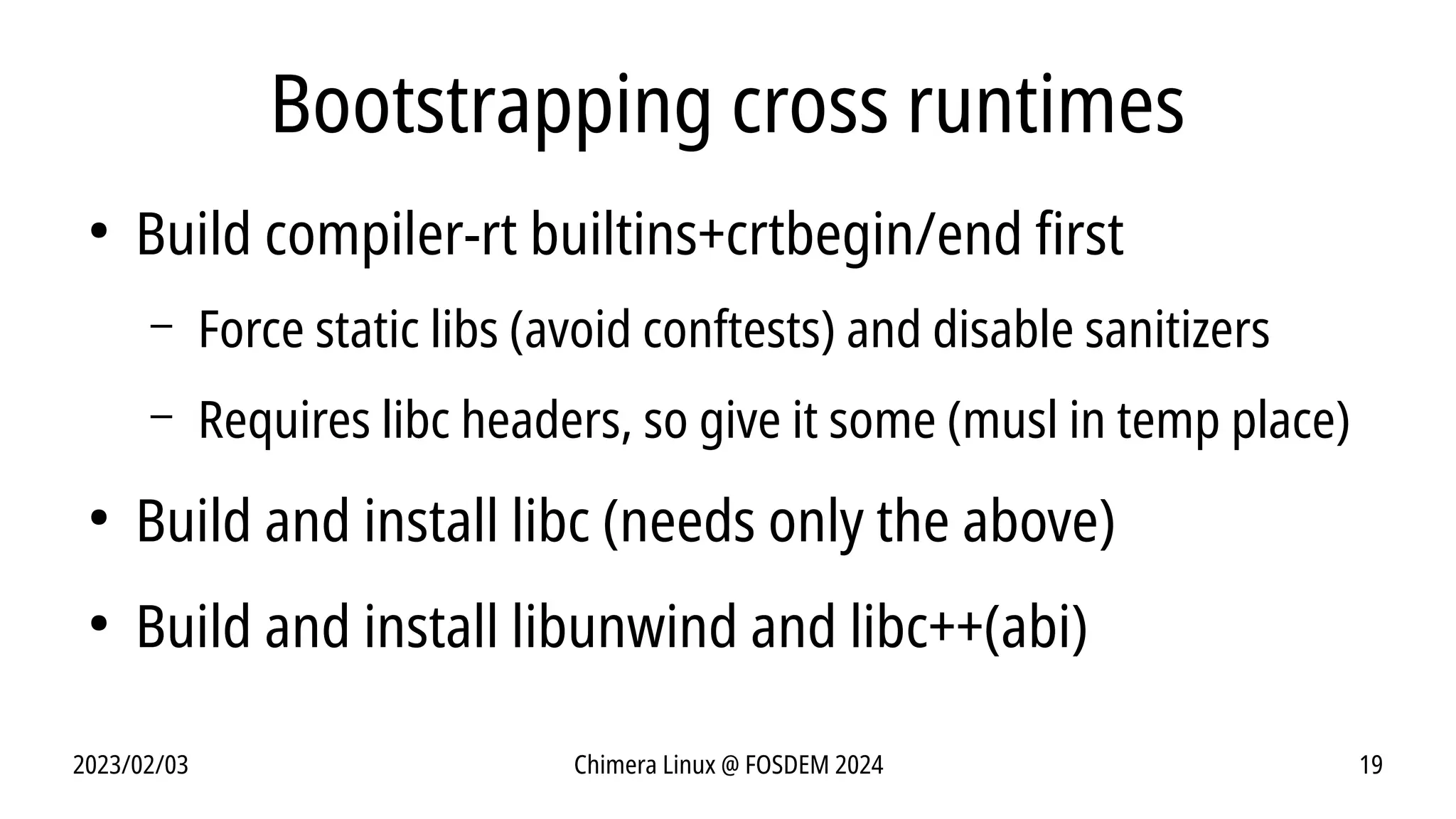

19. 2023/02/03 Chimera Linux @ FOSDEM 2024 19
Bootstrapping cross runtimes
●
Build compiler-rt builtins+crtbegin/end first
– Force static libs (avoid conftests) and disable sanitizers
– Requires libc headers, so give it some (musl in temp place)
●
Build and install libc (needs only the above)
●
Build and install libunwind and libc++(abi)
20. 2023/02/03 Chimera Linux @ FOSDEM 2024 20

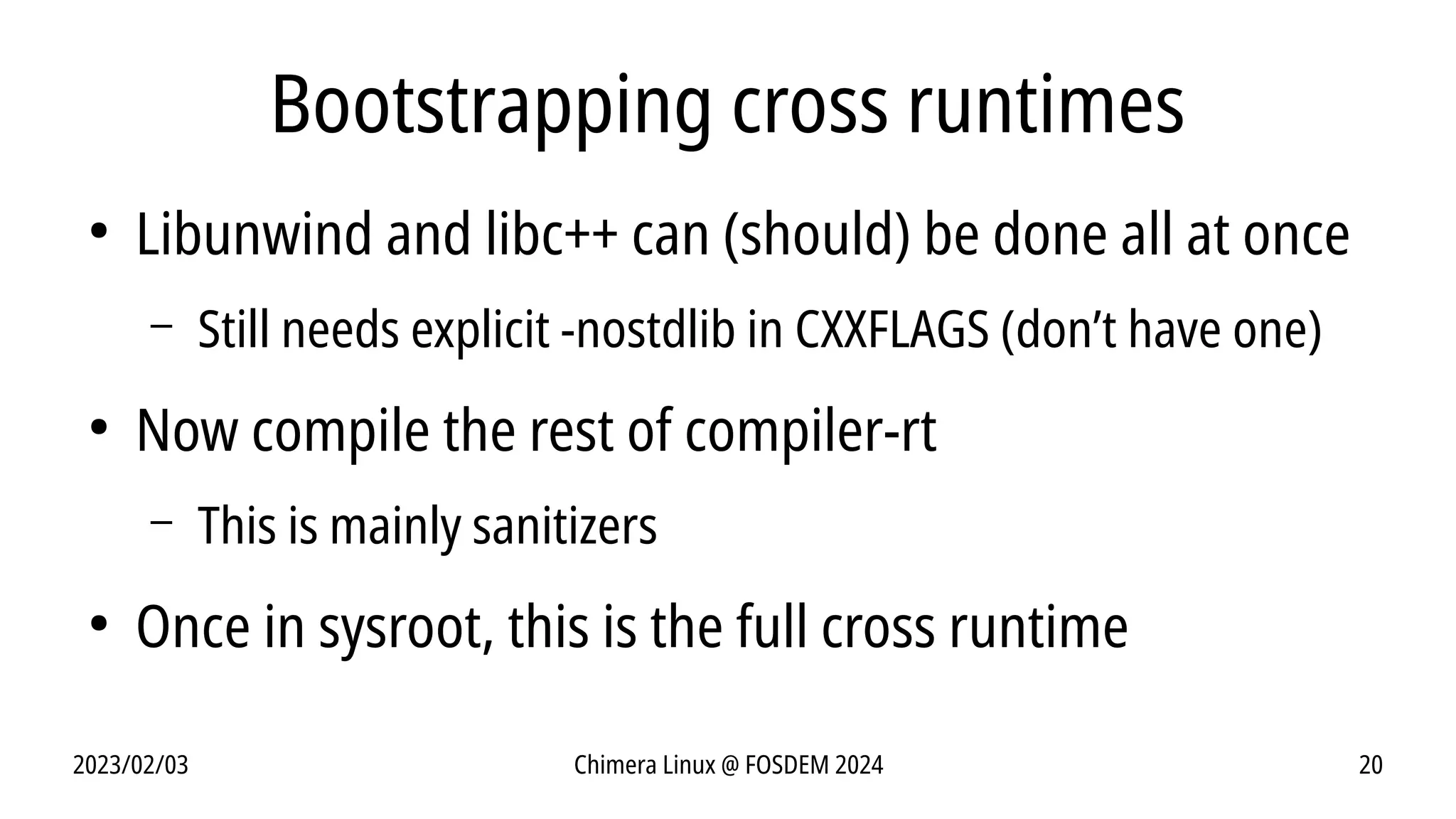

Bootstrapping cross runtimes
●
Libunwind and libc++ can (should) be done all at once
– Still needs explicit -nostdlib in CXXFLAGS (don’t have one)
●
Now compile the rest of compiler-rt
– This is mainly sanitizers
●
Once in sysroot, this is the full cross runtime

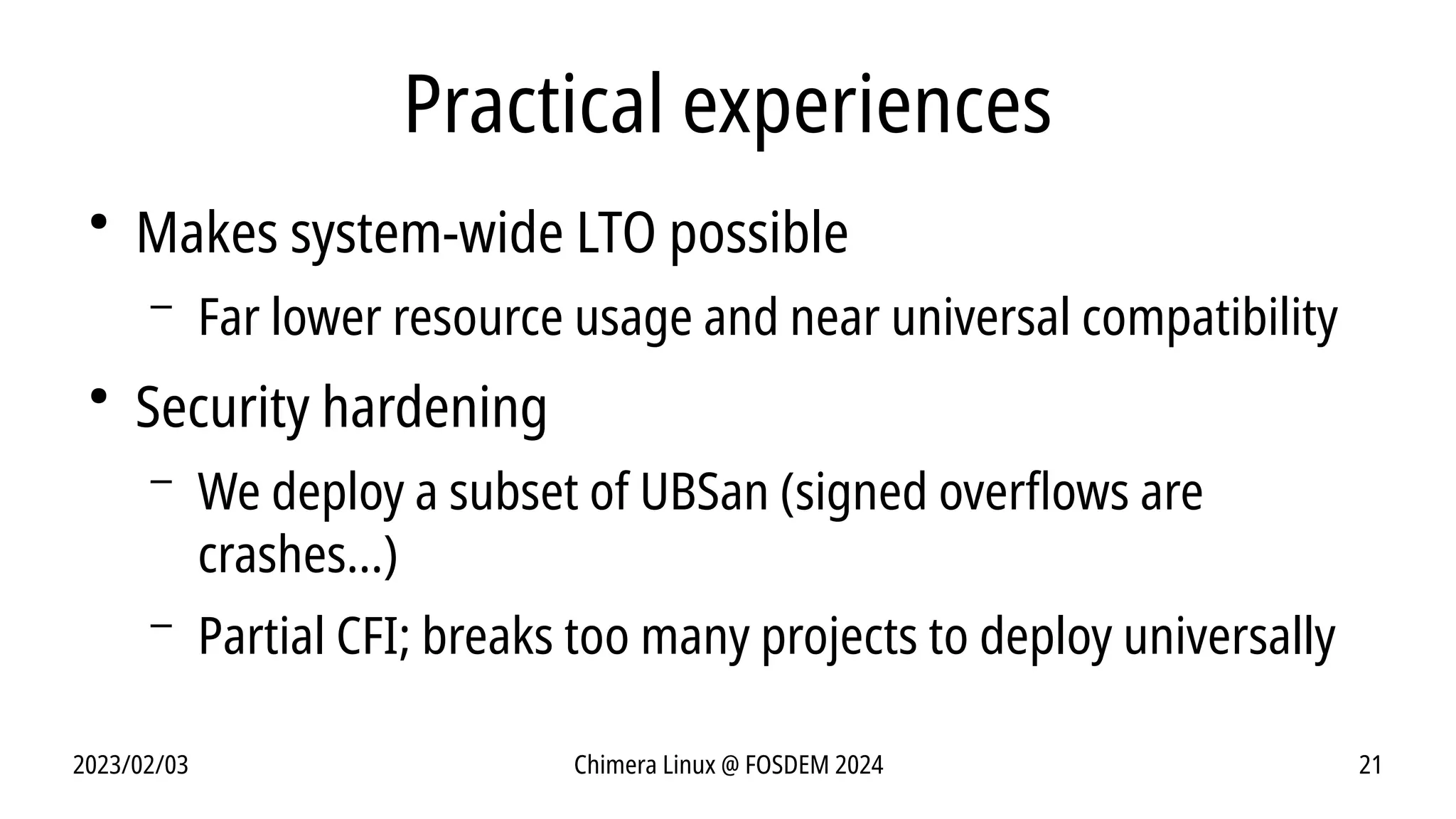

21. 2023/02/03 Chimera Linux @ FOSDEM 2024 21
Practical experiences
●
Makes system-wide LTO possible
– Far lower resource usage and near universal compatibility
●
Security hardening
– We deploy a subset of UBSan (signed overflows are
crashes...)
– Partial CFI; breaks too many projects to deploy universally

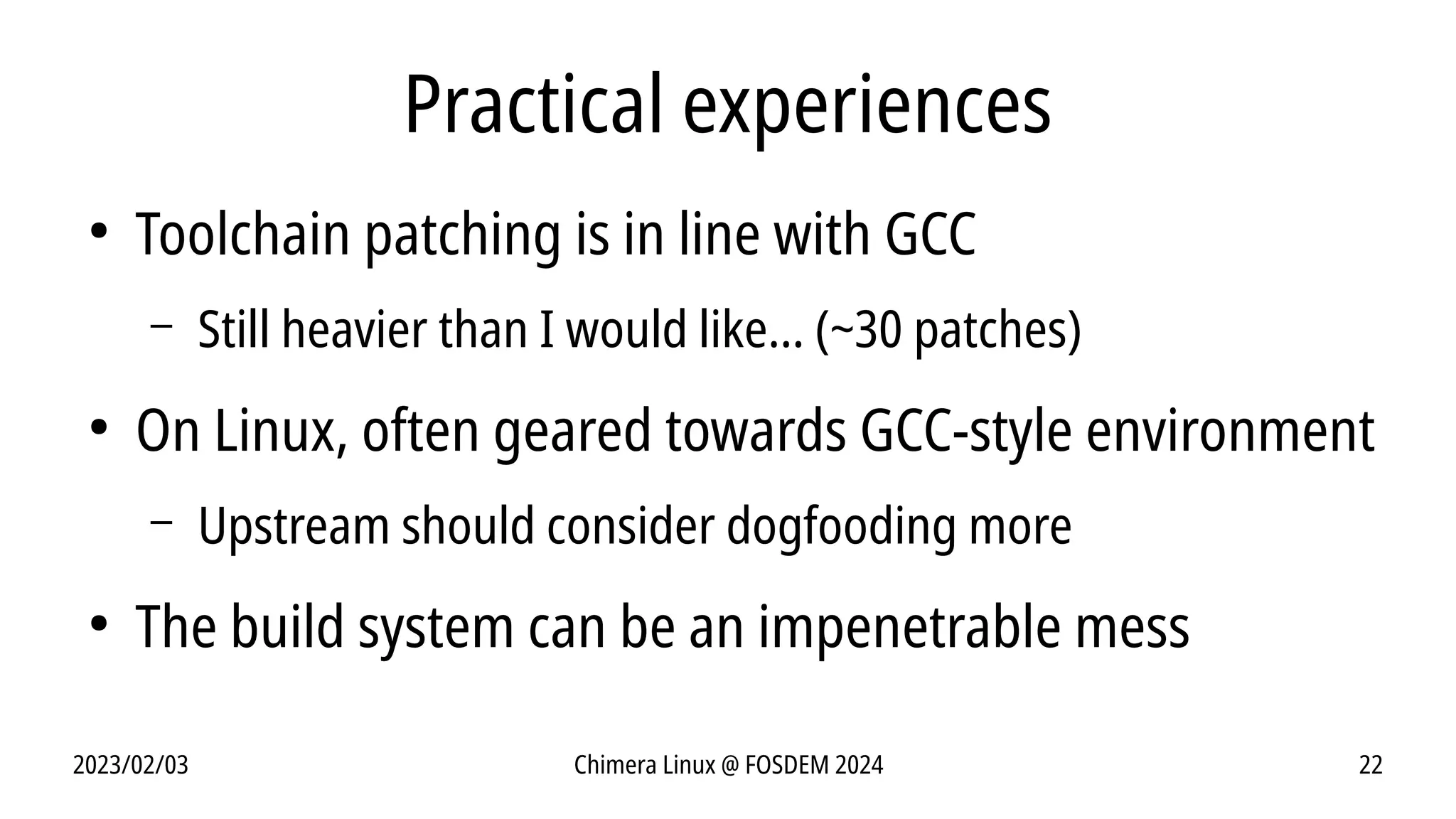

22. 2023/02/03 Chimera Linux @ FOSDEM 2024 22
Practical experiences
●
Toolchain patching is in line with GCC
– Still heavier than I would like… (~30 patches)
●
On Linux, often geared towards GCC-style environment
– Upstream should consider dogfooding more
●
The build system can be an impenetrable mess

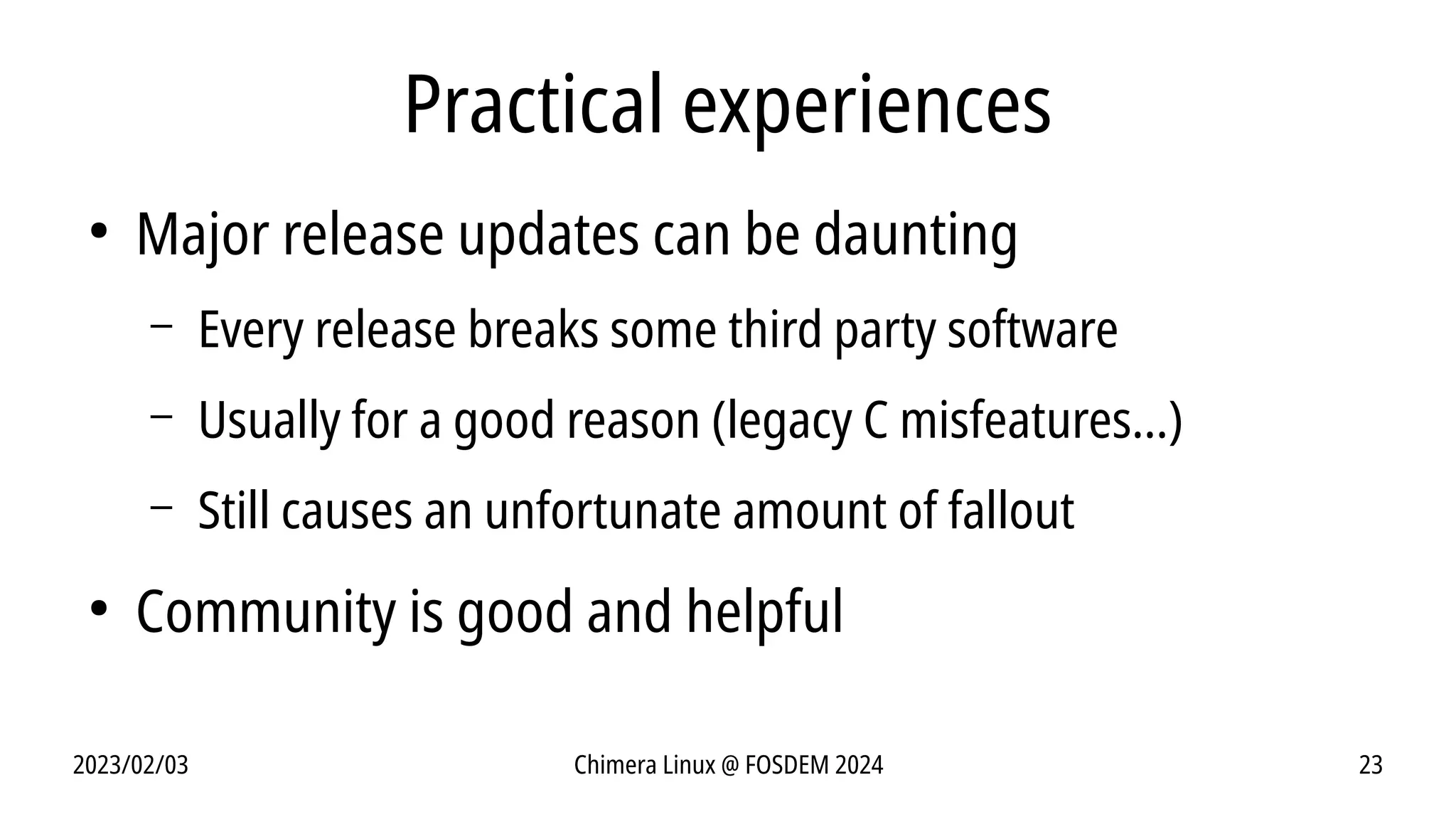

23. 2023/02/03 Chimera Linux @ FOSDEM 2024 23
Practical experiences
●
Major release updates can be daunting
– Every release breaks some third party software
– Usually for a good reason (legacy C misfeatures…)
– Still causes an unfortunate amount of fallout
●
Community is good and helpful
24. 2023/02/03 Chimera Linux @ FOSDEM 2024 24
Conclusion
●
Generally a great toolchain
●
Some pain points, but generally practical
●
Can build just about any Linux software
– Given GCC’s history, an amazing feat
●
Should not be reduced to “that GCC drop-in”
