Presentation from ITDevCon 2023 (day 2), a follow-up to my presentation from day 1. This time I describe some advanced features of the engines, useful to some game/application projects: - using engine rendering on VCL / FMX form - 3D generation using X3D nodes - writing your own shaders - customizing the editor (with custom components)

1. Advanced
Castle Game Engine
Forms, 3D generation, shaders,
customizing the editor (and more)
Michalis Kamburelis

2. 2023
CGE
+
FMX / VCL

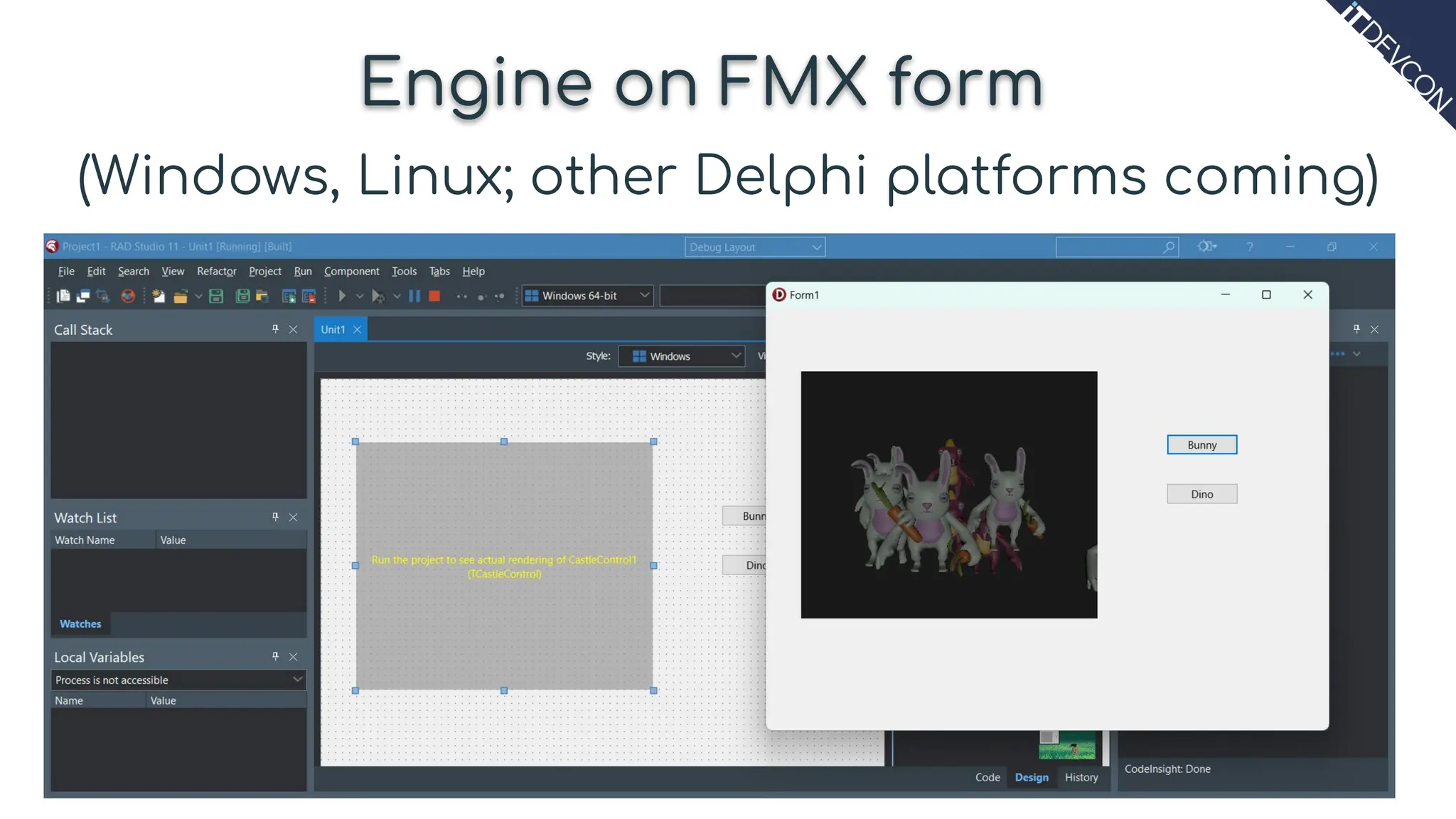

3. Engine on FMX form
(Windows, Linux; other Delphi platforms coming)

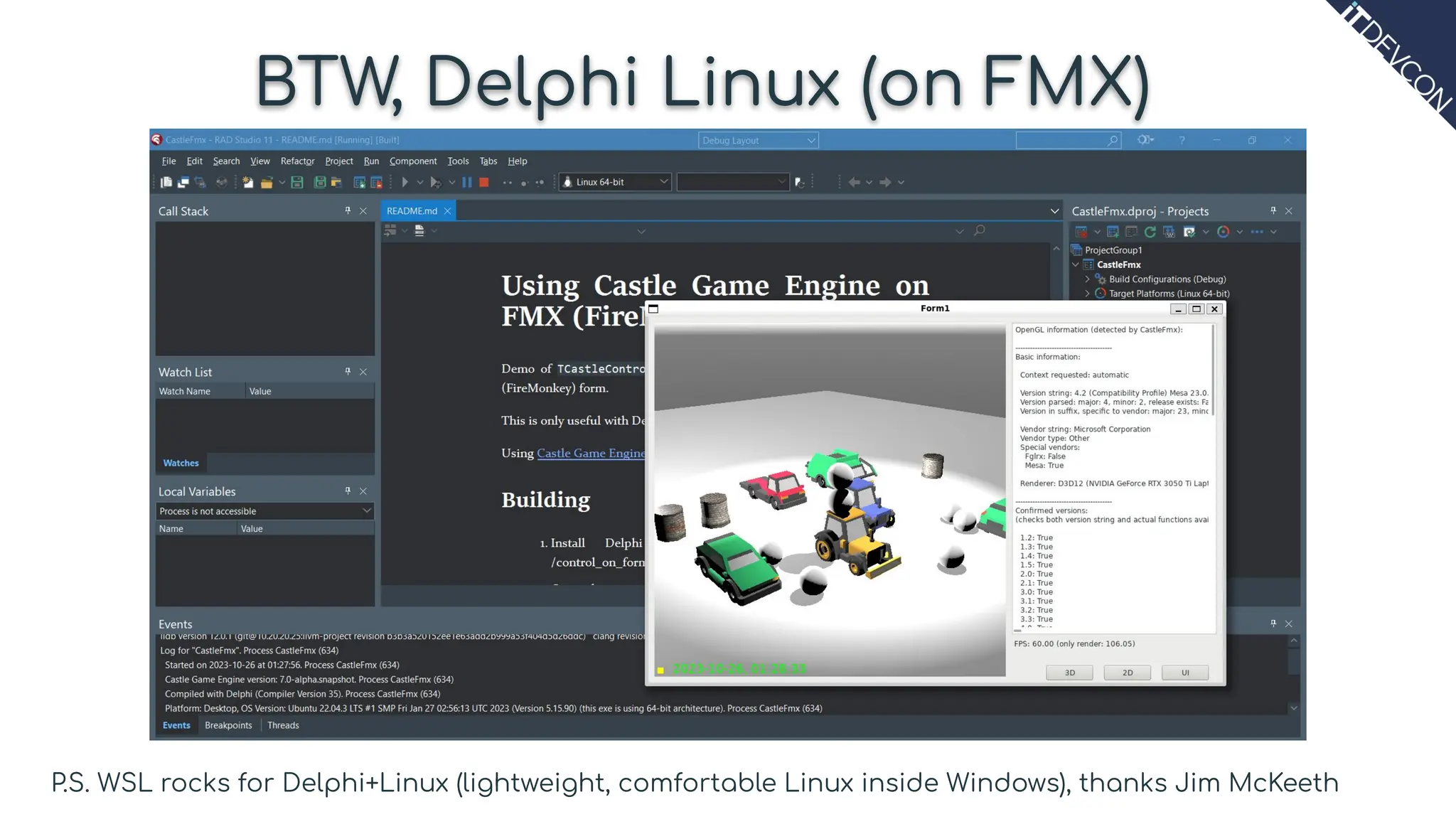

4. BTW, Delphi Linux (on FMX)
P.S. WSL rocks for Delphi+Linux (lightweight, comfortable Linux inside Windows), thanks Jim McKeeth

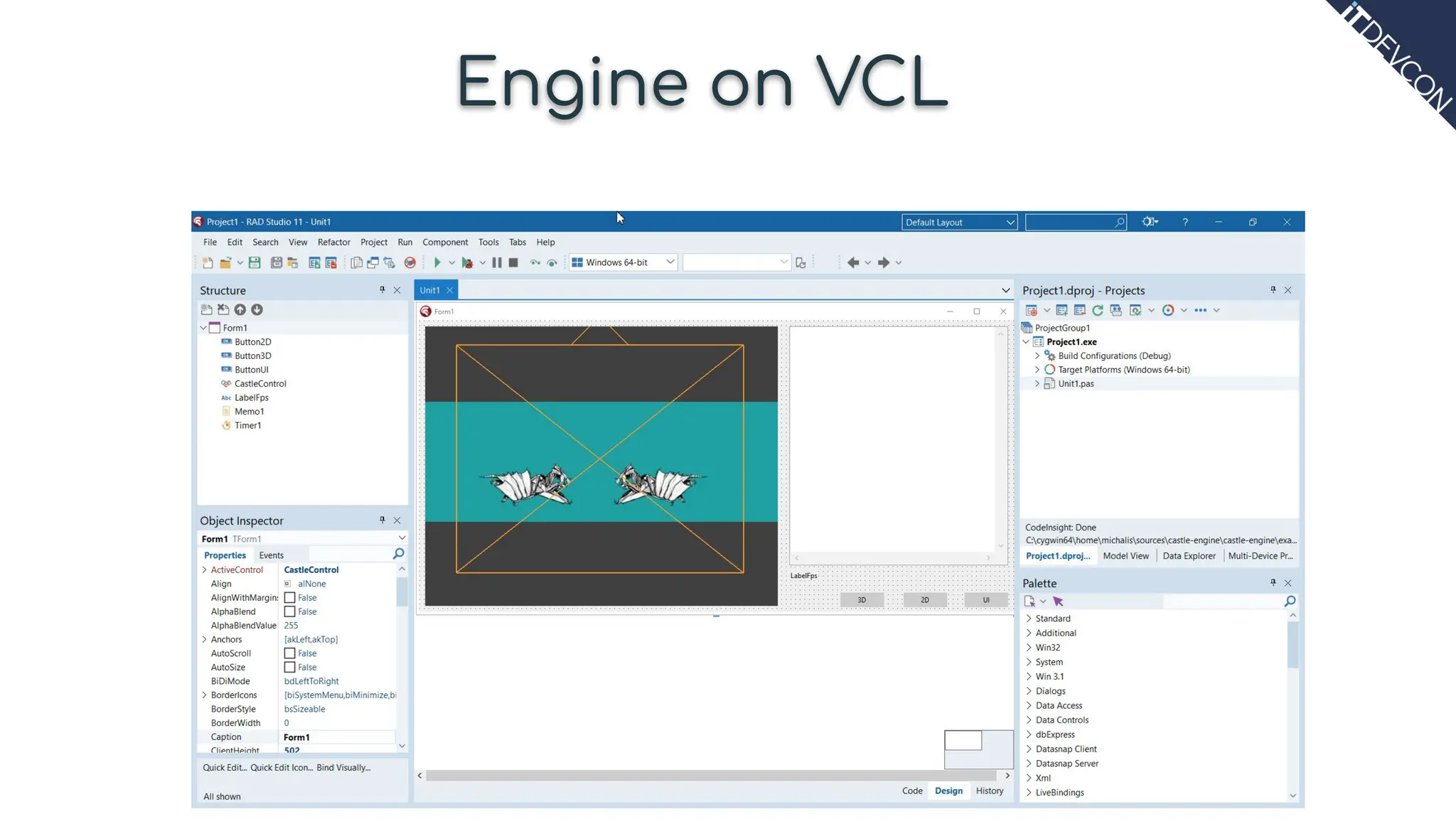

5. Engine on VCL

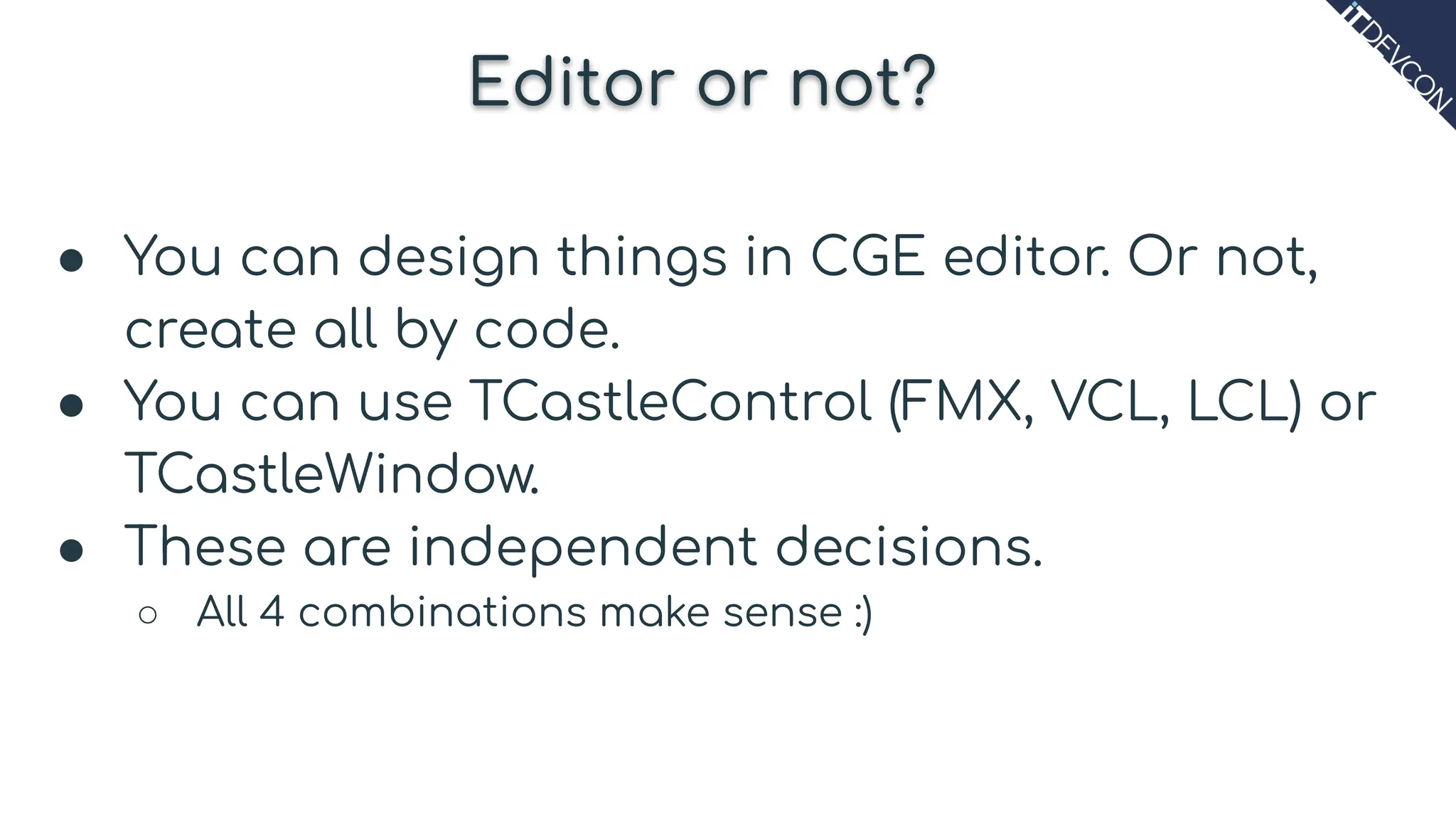

6. Editor or not?
● You can design things in CGE editor. Or not,
create all by code.
● You can use TCastleControl (FMX, VCL, LCL) or
TCastleWindow.
● These are independent decisions.
○ All 4 combinations make sense :)

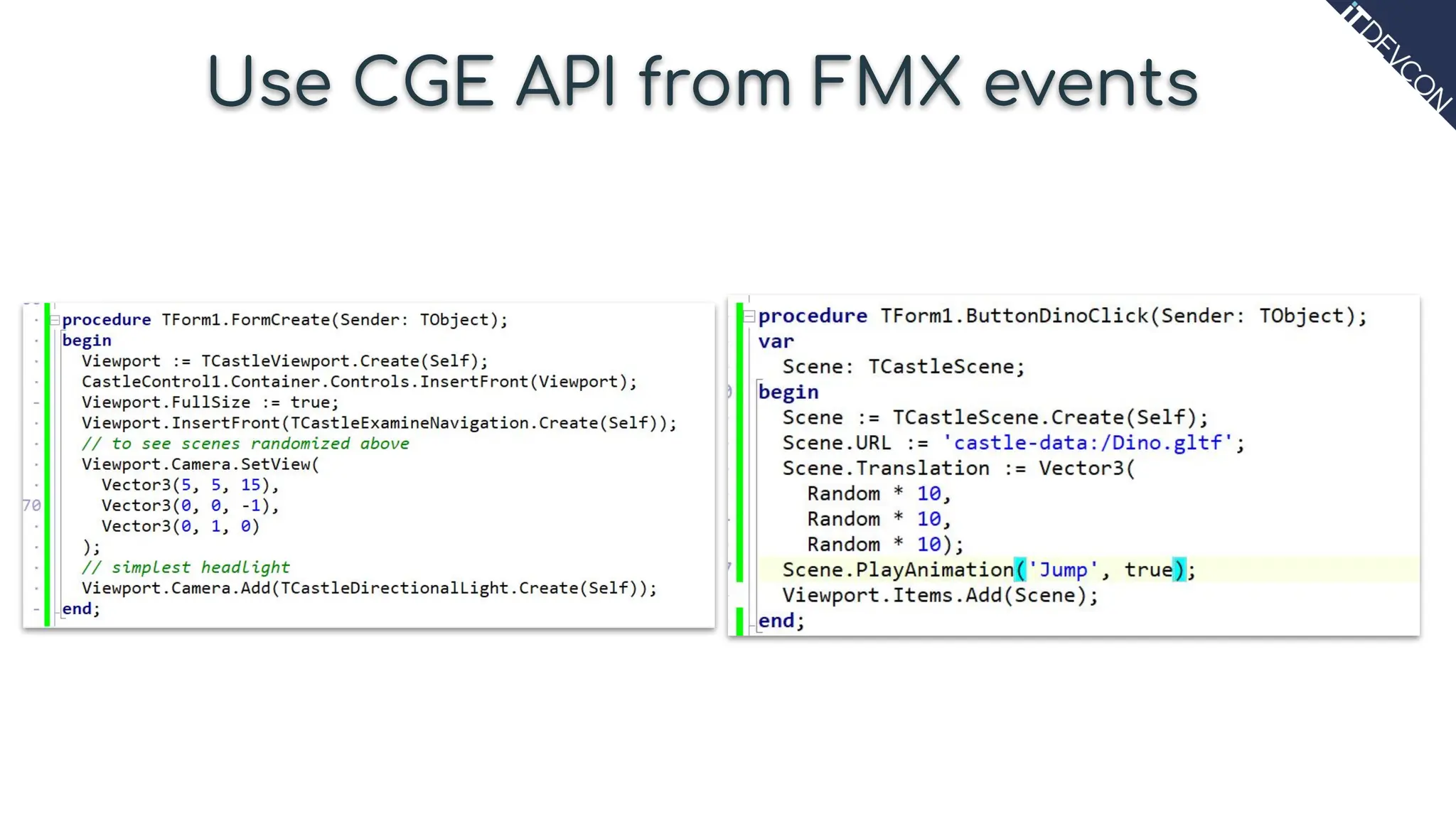

7. Use CGE API from FMX events

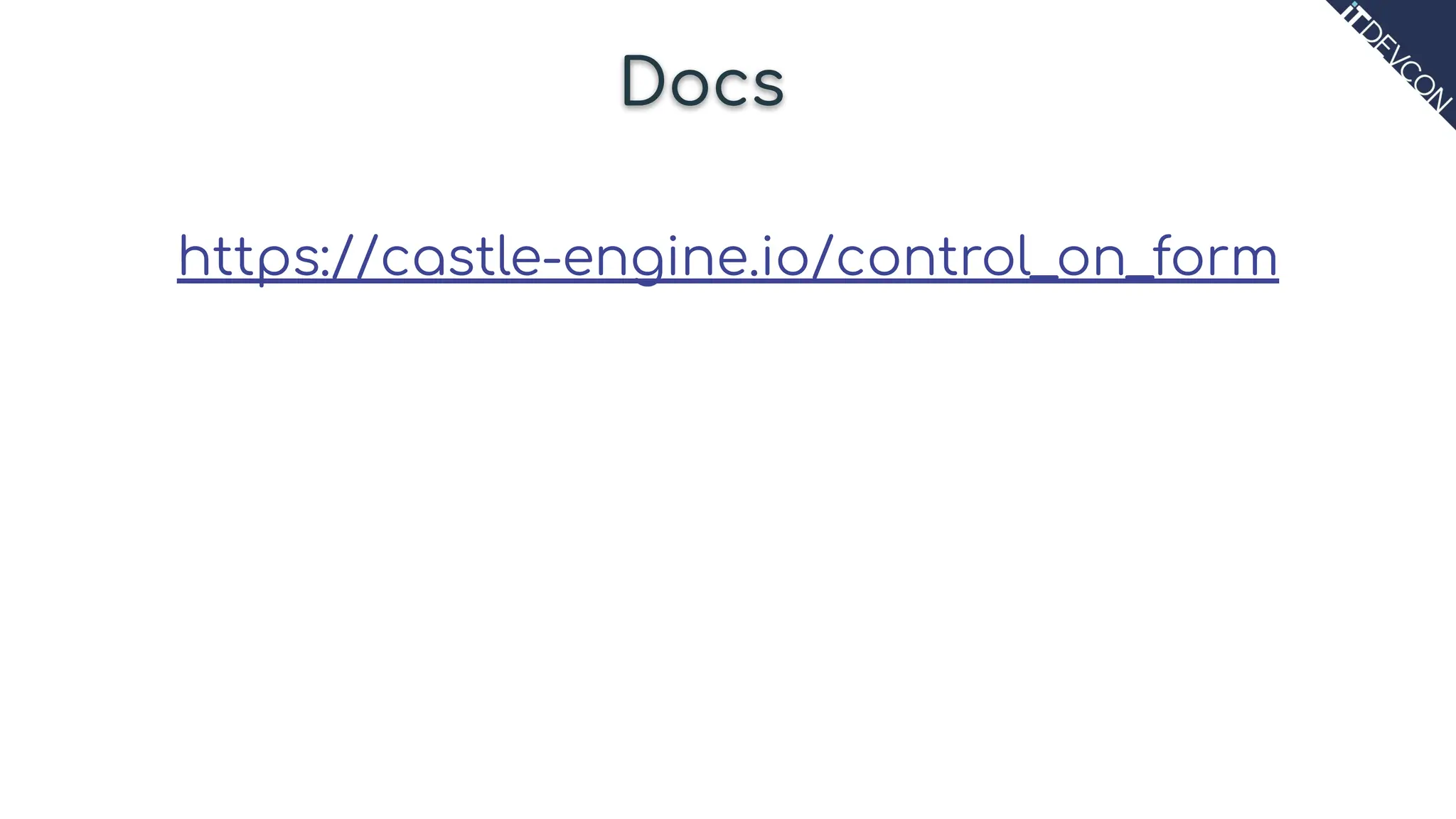

8. Docs
https://castle-engine.io/control_on_form

9. 2023
Generate (or modify) 3D worlds

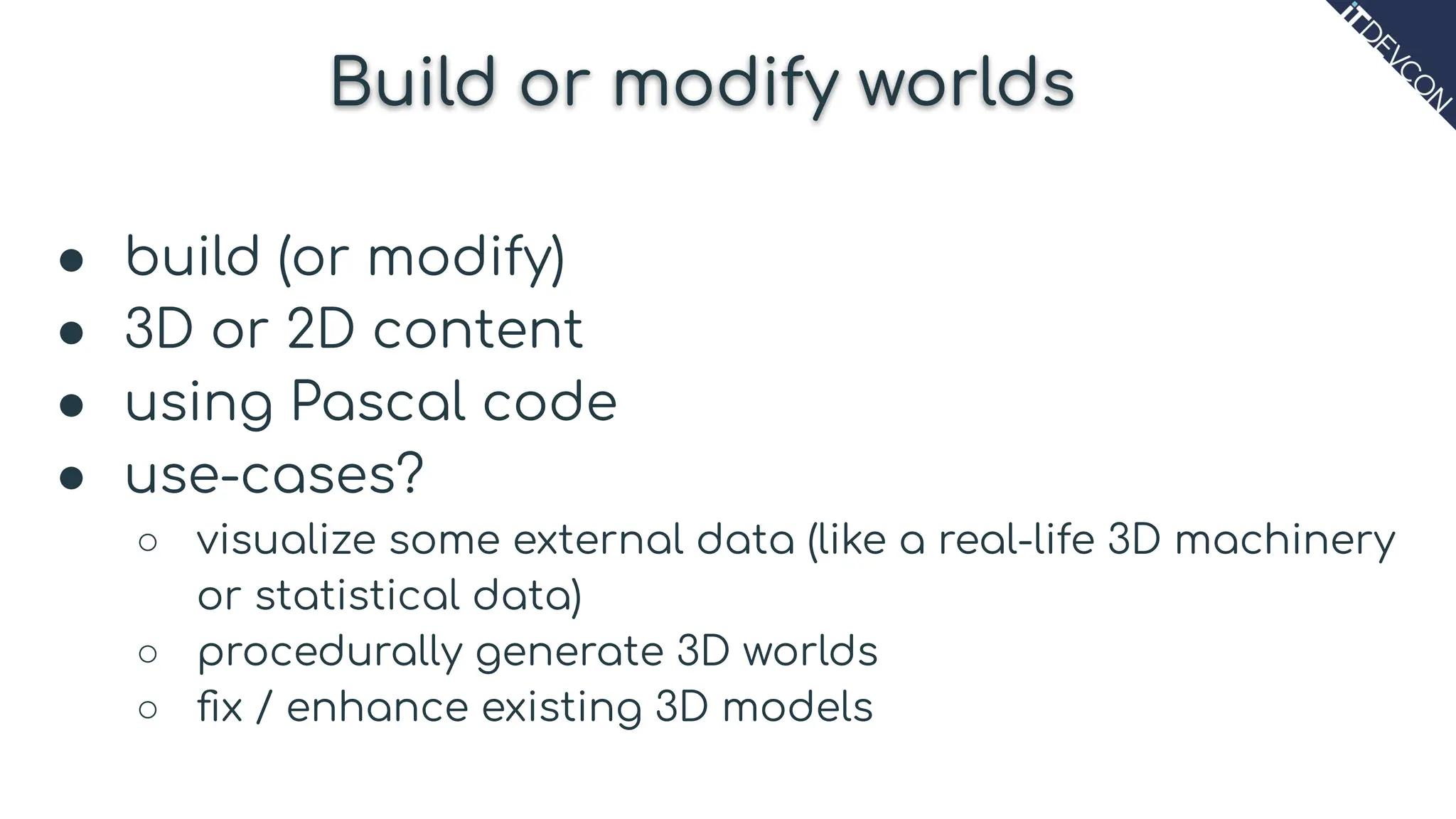

10. Build or modify worlds
● build (or modify)
● 3D or 2D content
● using Pascal code
● use-cases?
○ visualize some external data (like a real-life 3D machinery
or statistical data)
○ procedurally generate 3D worlds
○ fix / enhance existing 3D models

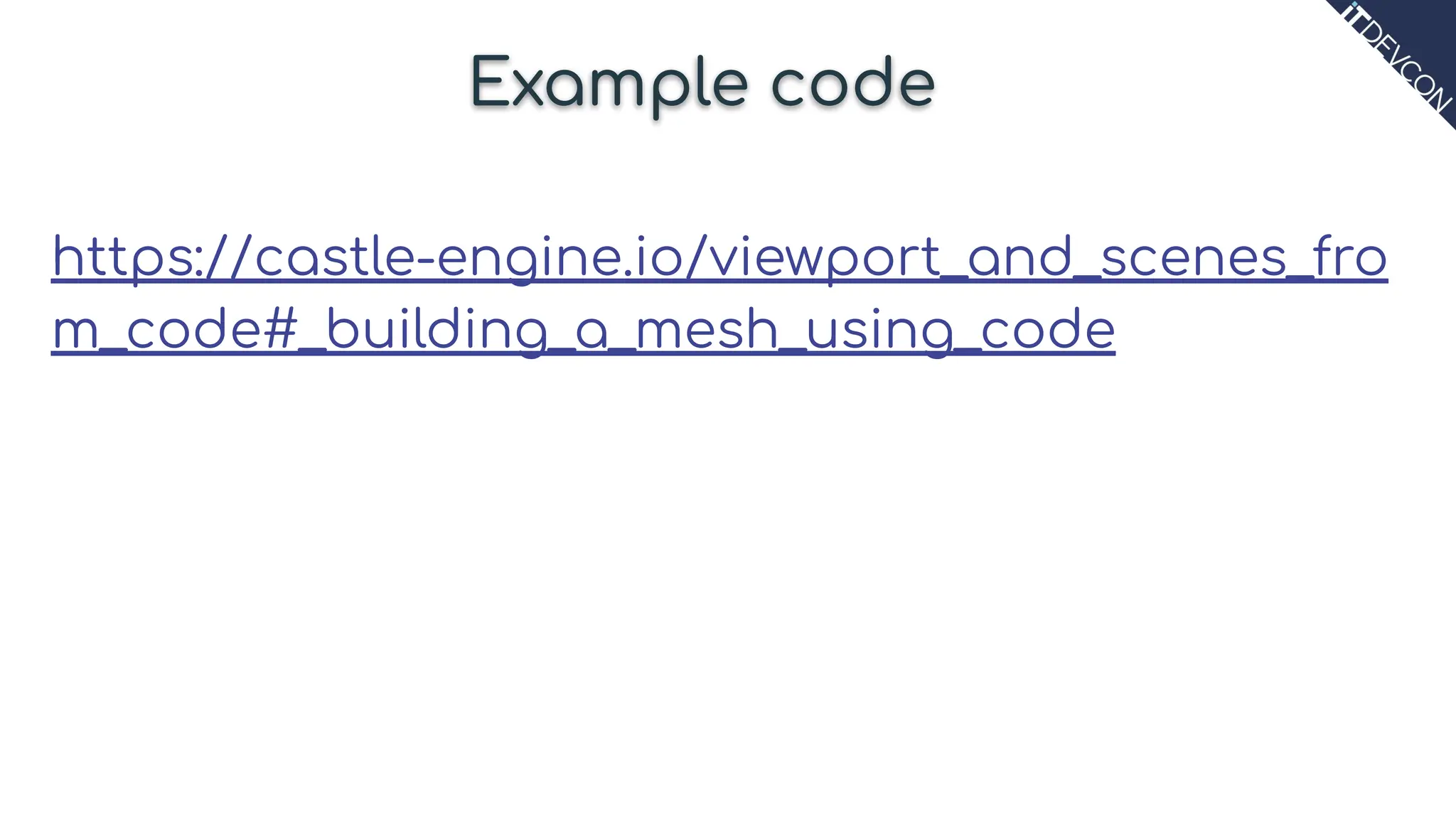

11. Example code
https://castle-engine.io/viewport_and_scenes_fro
m_code#_building_a_mesh_using_code

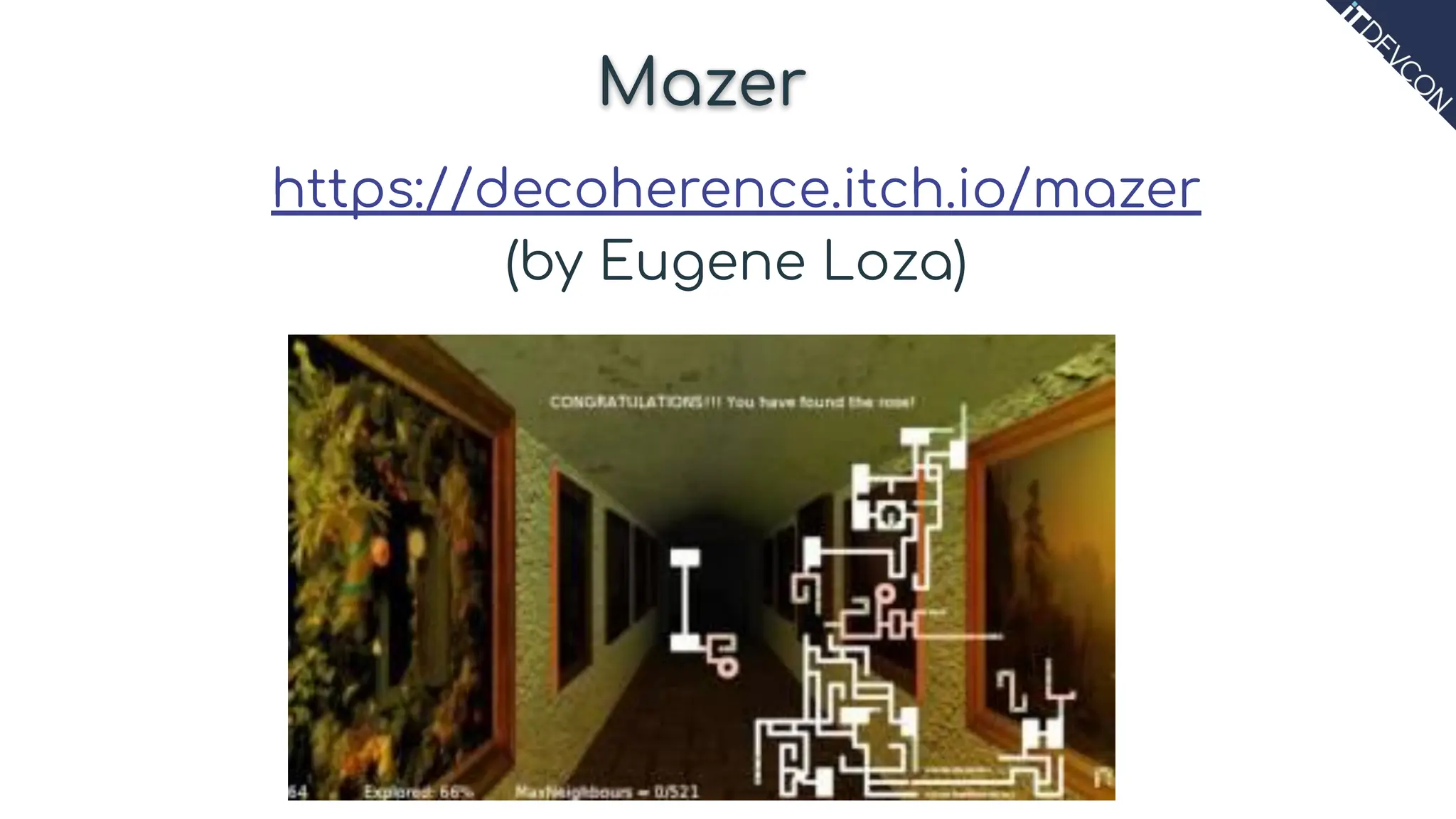

12. Mazer
https://decoherence.itch.io/mazer
(by Eugene Loza)

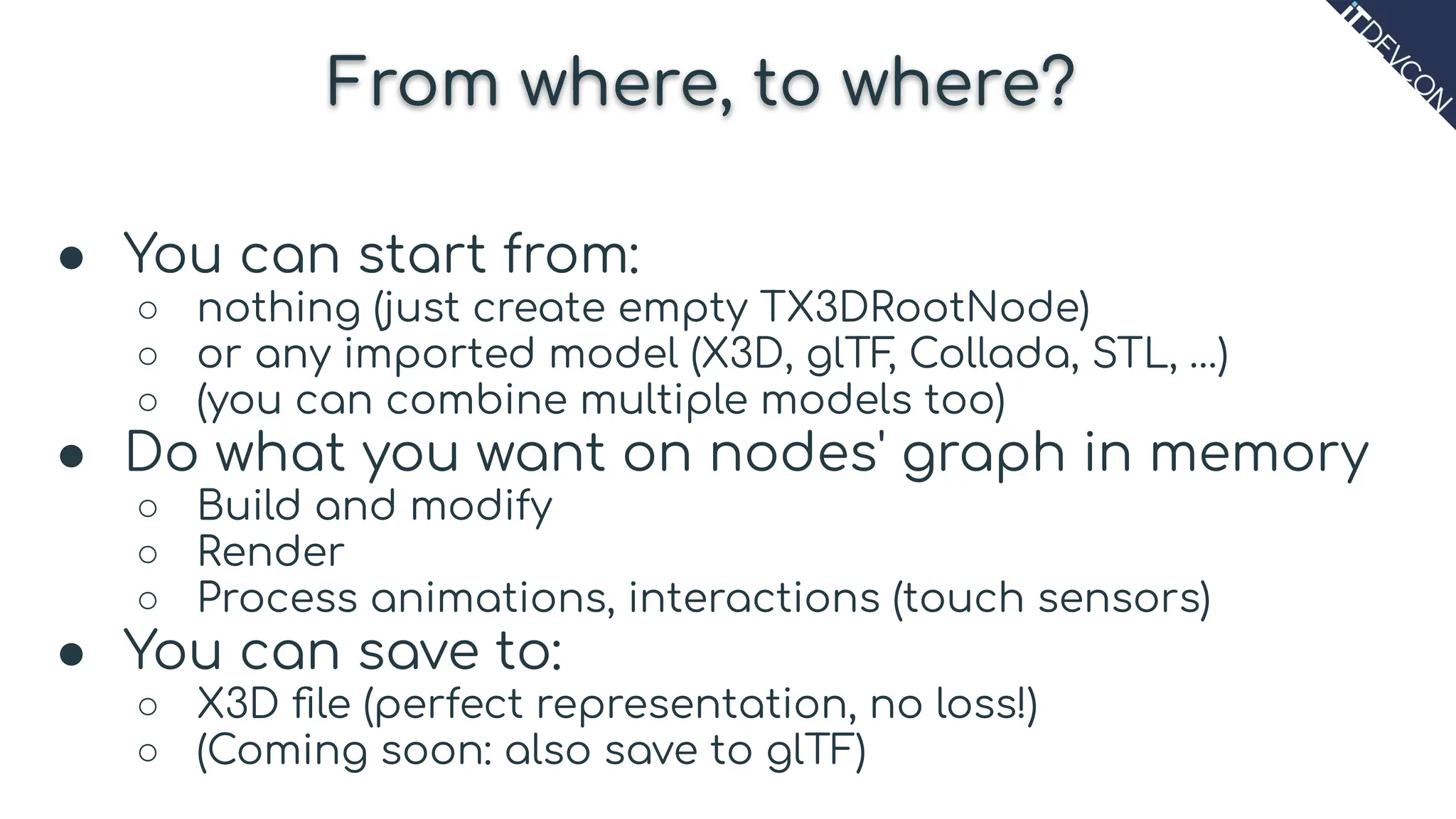

13. From where, to where?
● You can start from:
○ nothing (just create empty TX3DRootNode)
○ or any imported model (X3D, glTF
, Collada, STL, …)
○ (you can combine multiple models too)
● Do what you want on nodes' graph in memory
○ Build and modify
○ Render
○ Process animations, interactions (touch sensors)
● You can save to:
○ X3D file (perfect representation, no loss!)
○ (Coming soon: also save to glTF)

14. Docs
https://castle-engine.io/vrml_x3d.php

15. 2023
Shader e ects

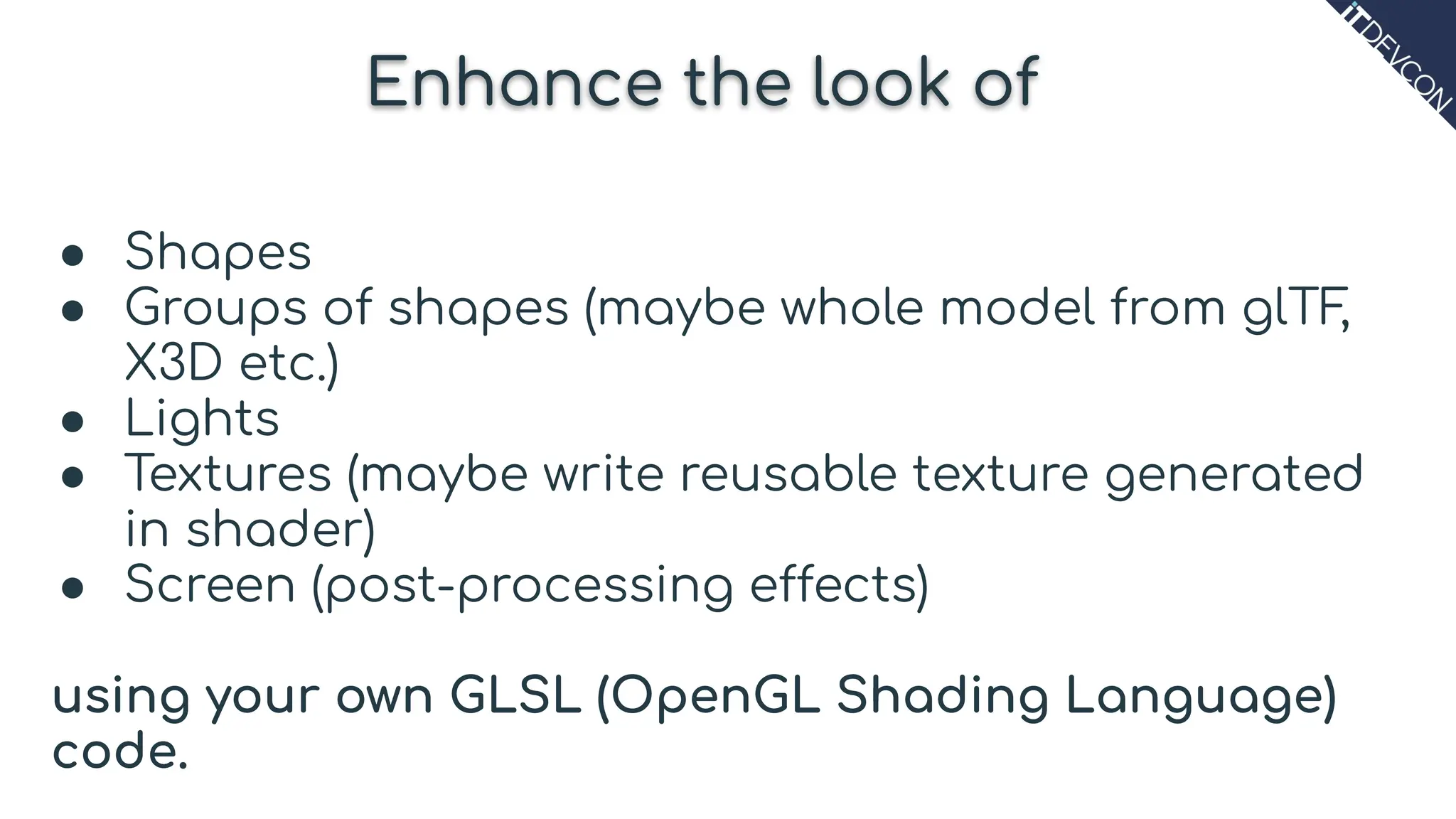

16. Enhance the look of
● Shapes
● Groups of shapes (maybe whole model from glTF
,
X3D etc.)
● Lights
● Textures (maybe write reusable texture generated
in shader)
● Screen (post-processing effects)
using your own GLSL (OpenGL Shading Language)
code.

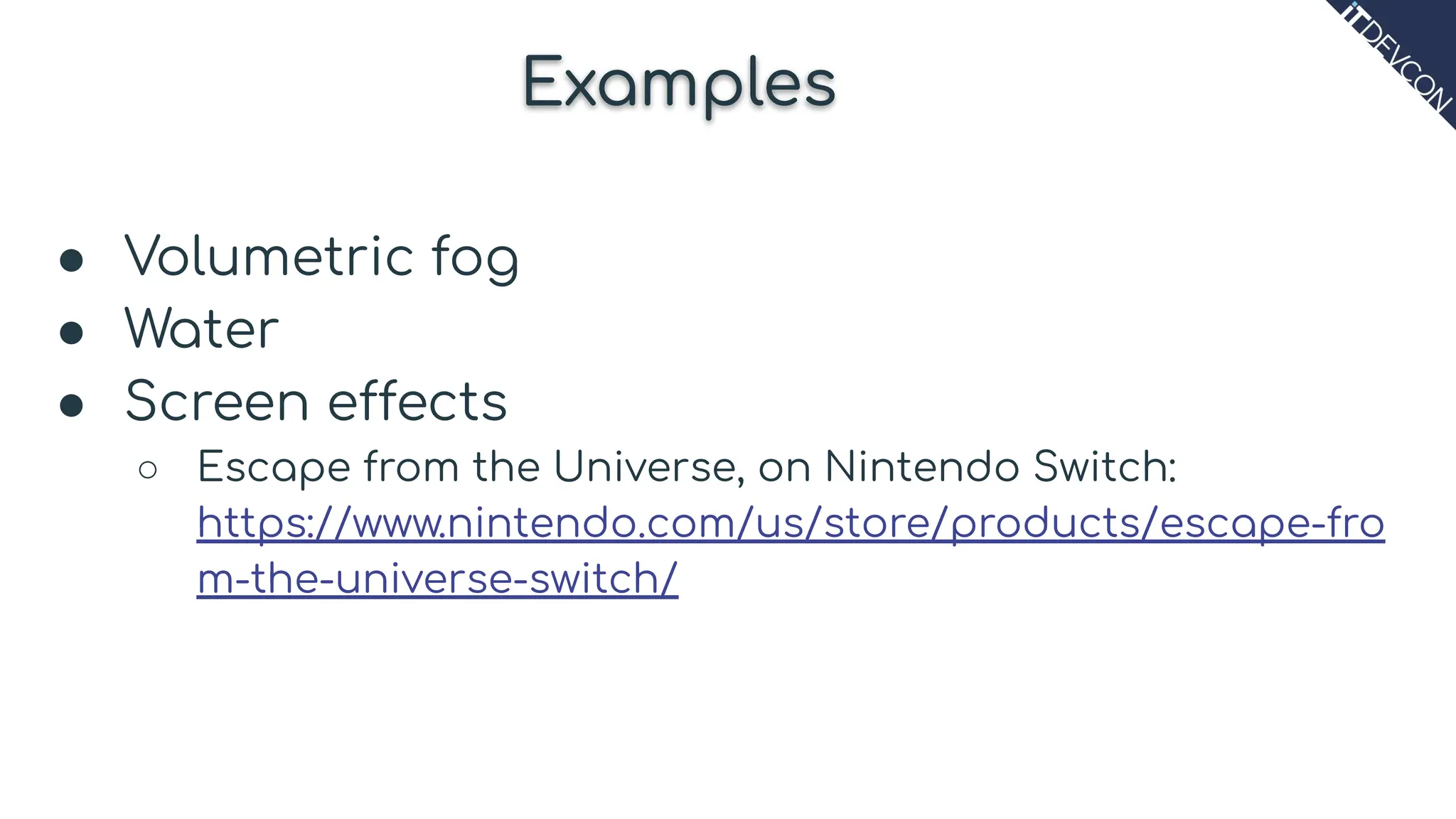

17. Examples
● Volumetric fog
● Water
● Screen effects

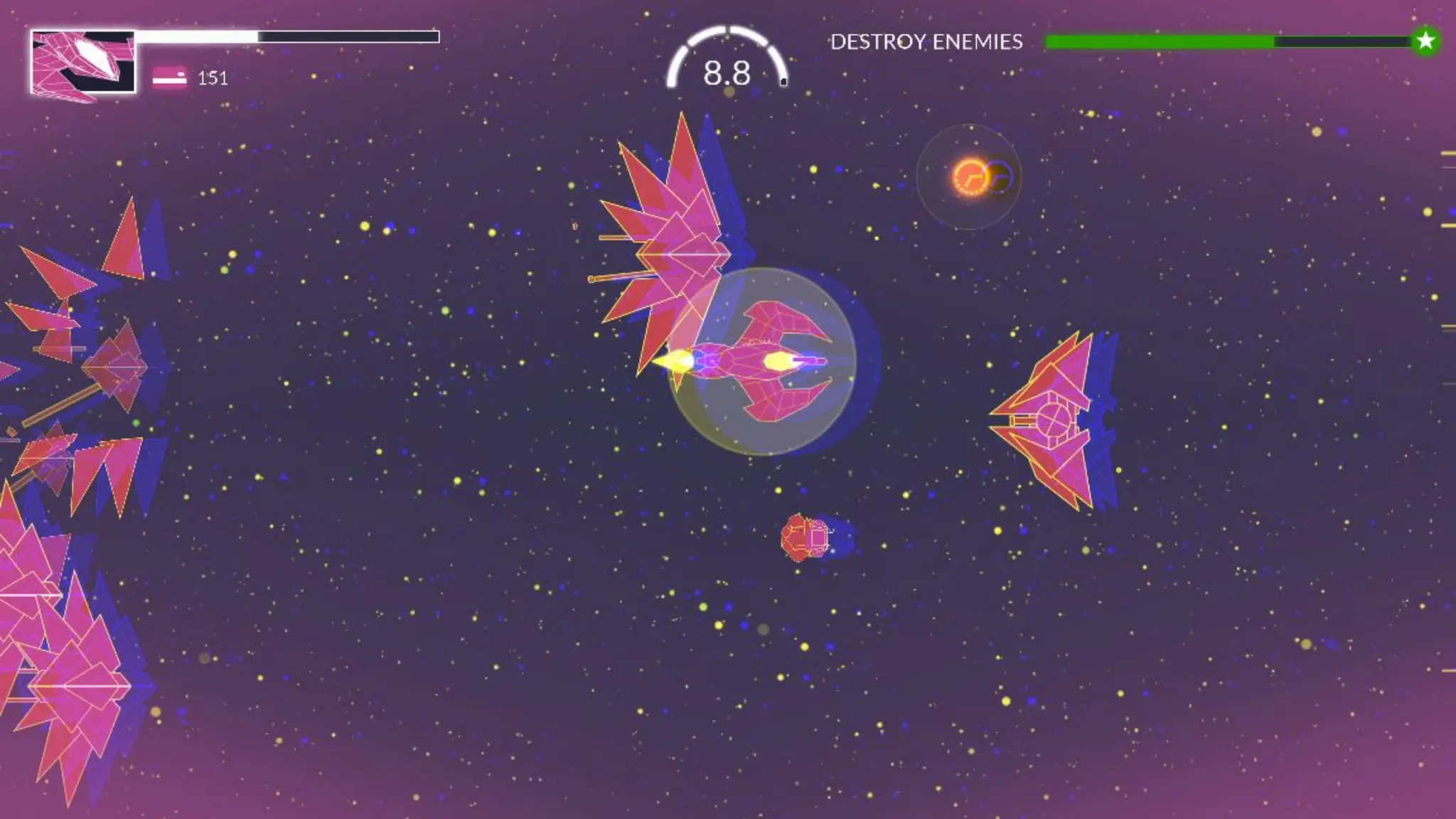

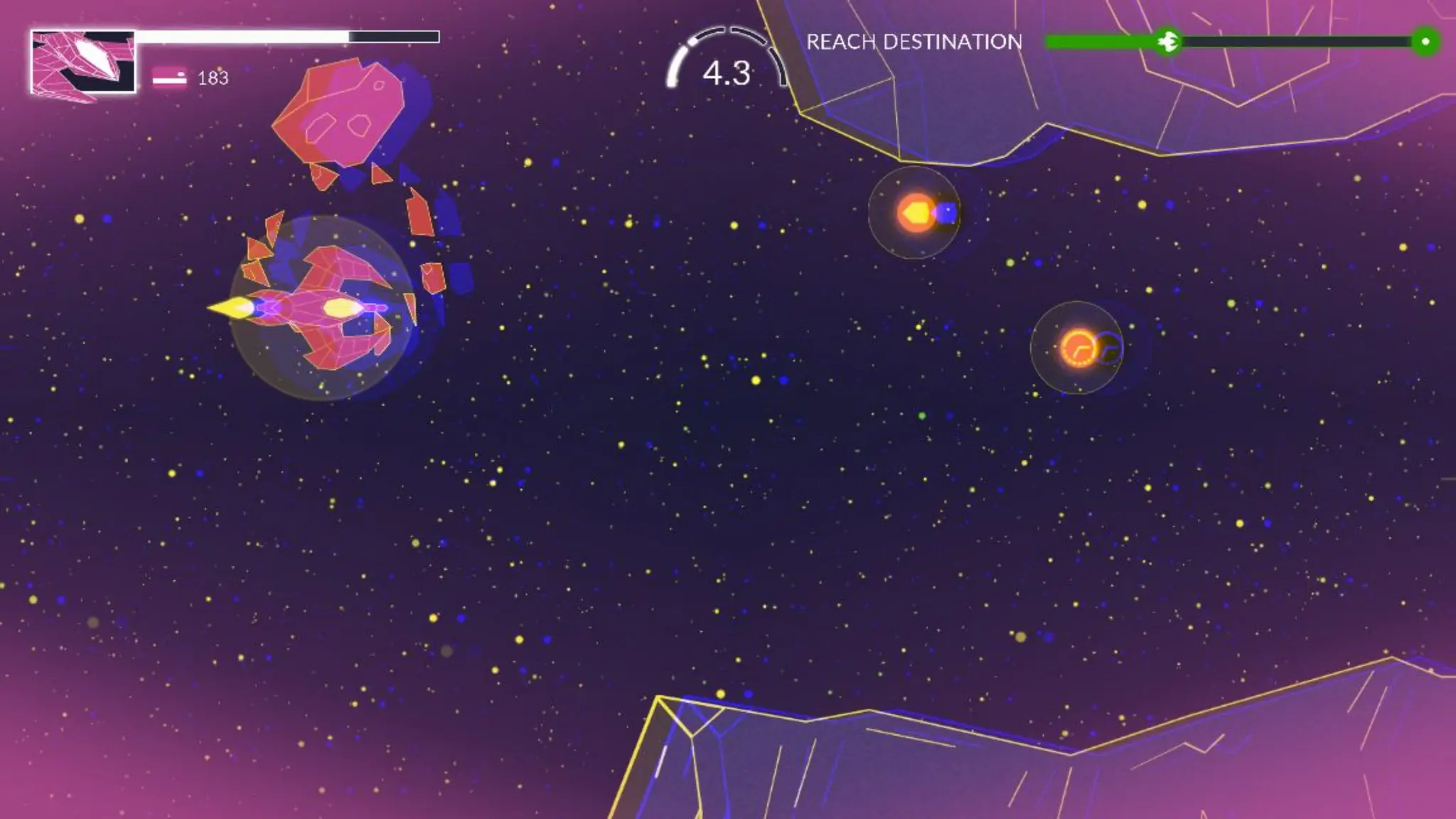

○ Escape from the Universe, on Nintendo Switch:
https://www.nintendo.com/us/store/products/escape-fro
m-the-universe-switch/

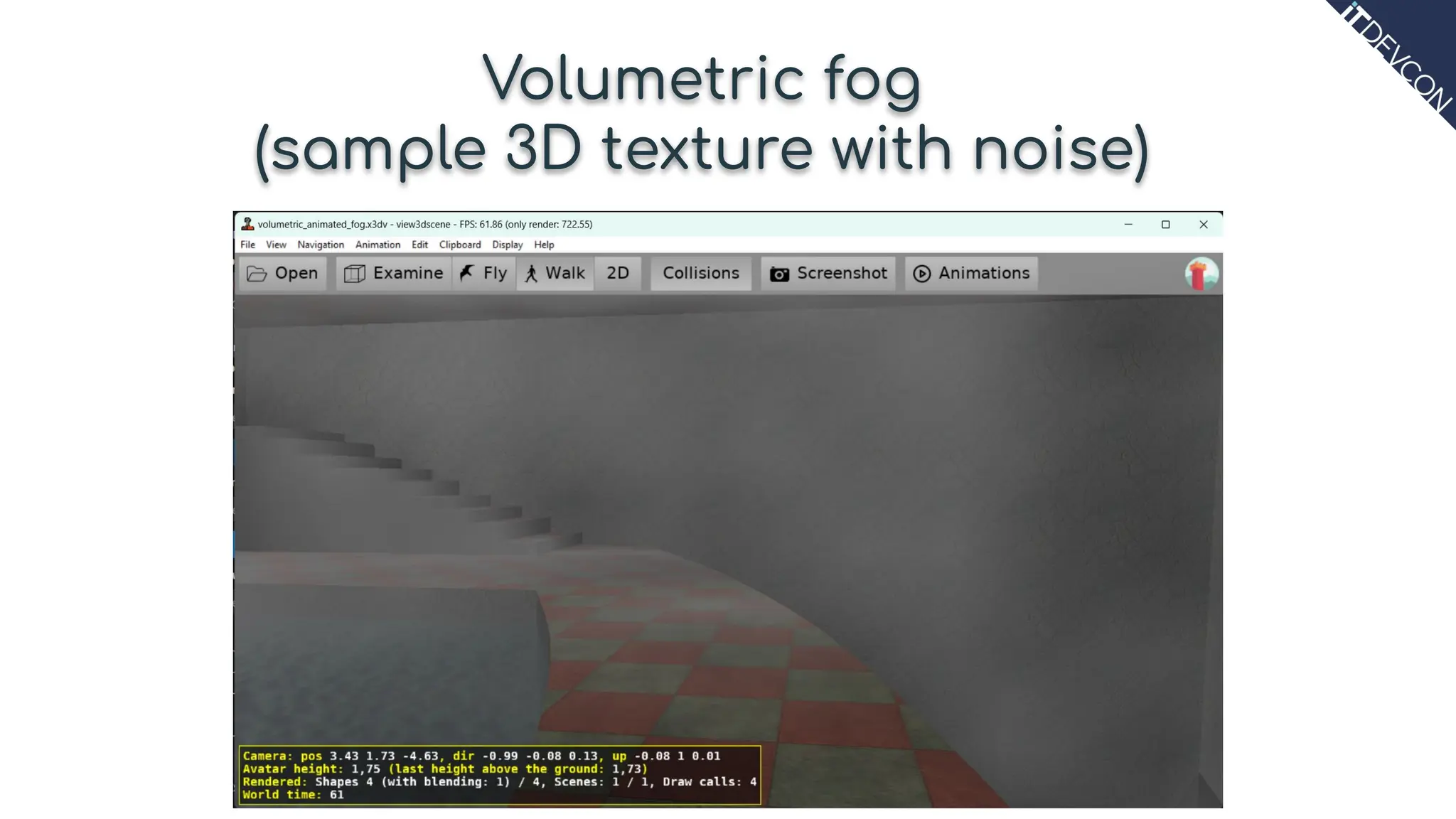

18. Volumetric fog
(sample 3D texture with noise)

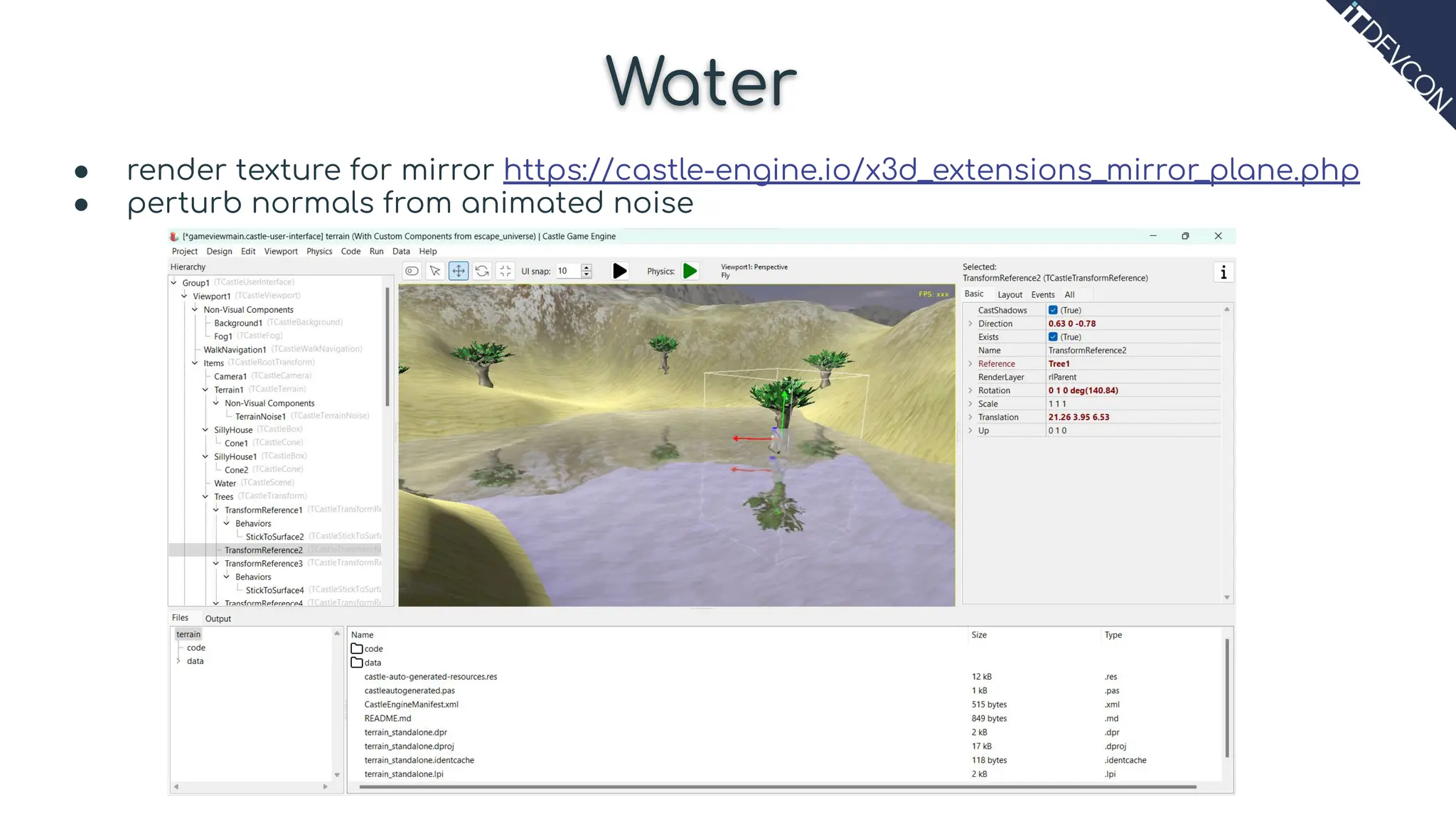

19. Water
● render texture for mirror https://castle-engine.io/x3d_extensions_mirror_plane.php
● perturb normals from animated noise

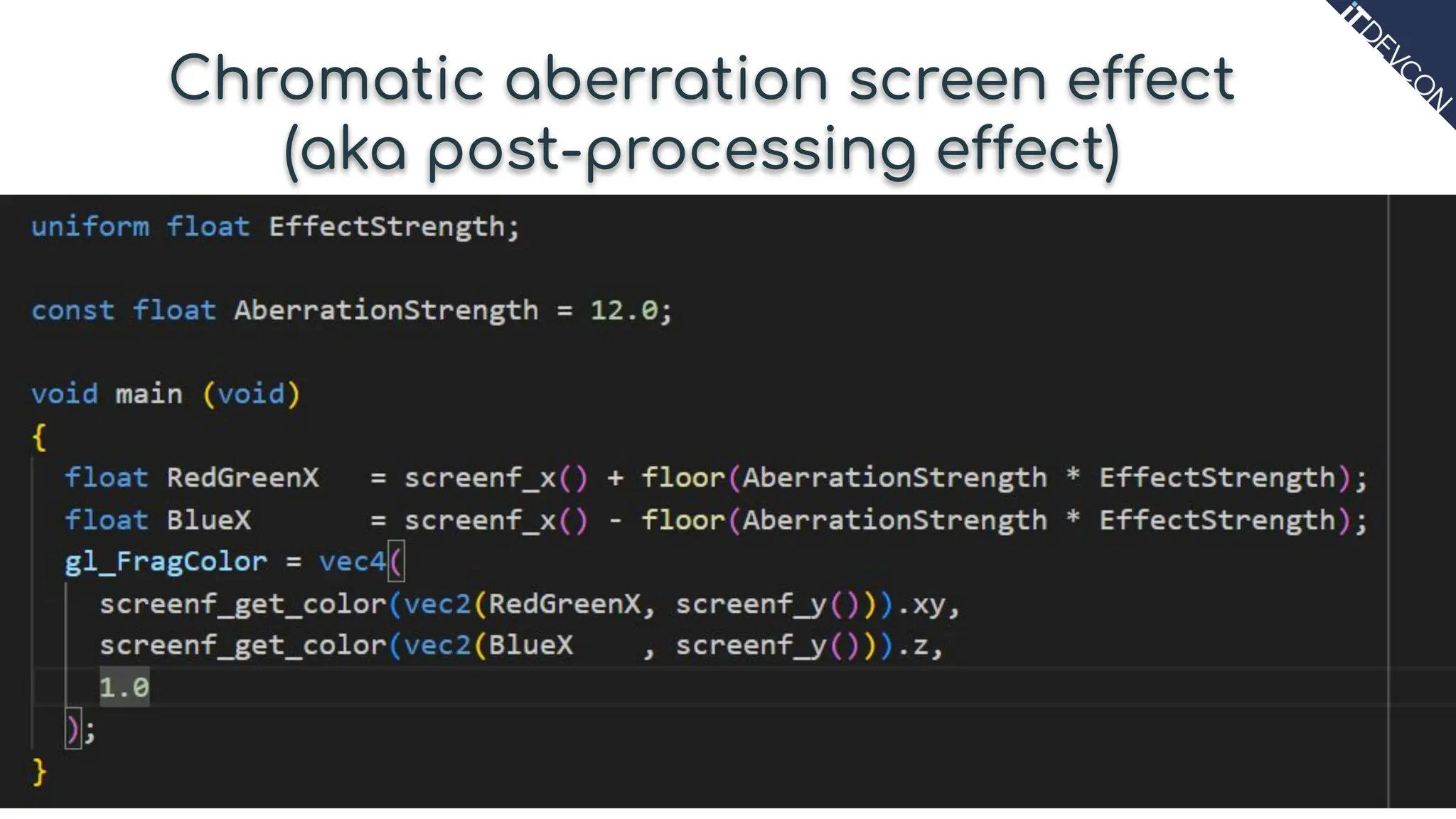

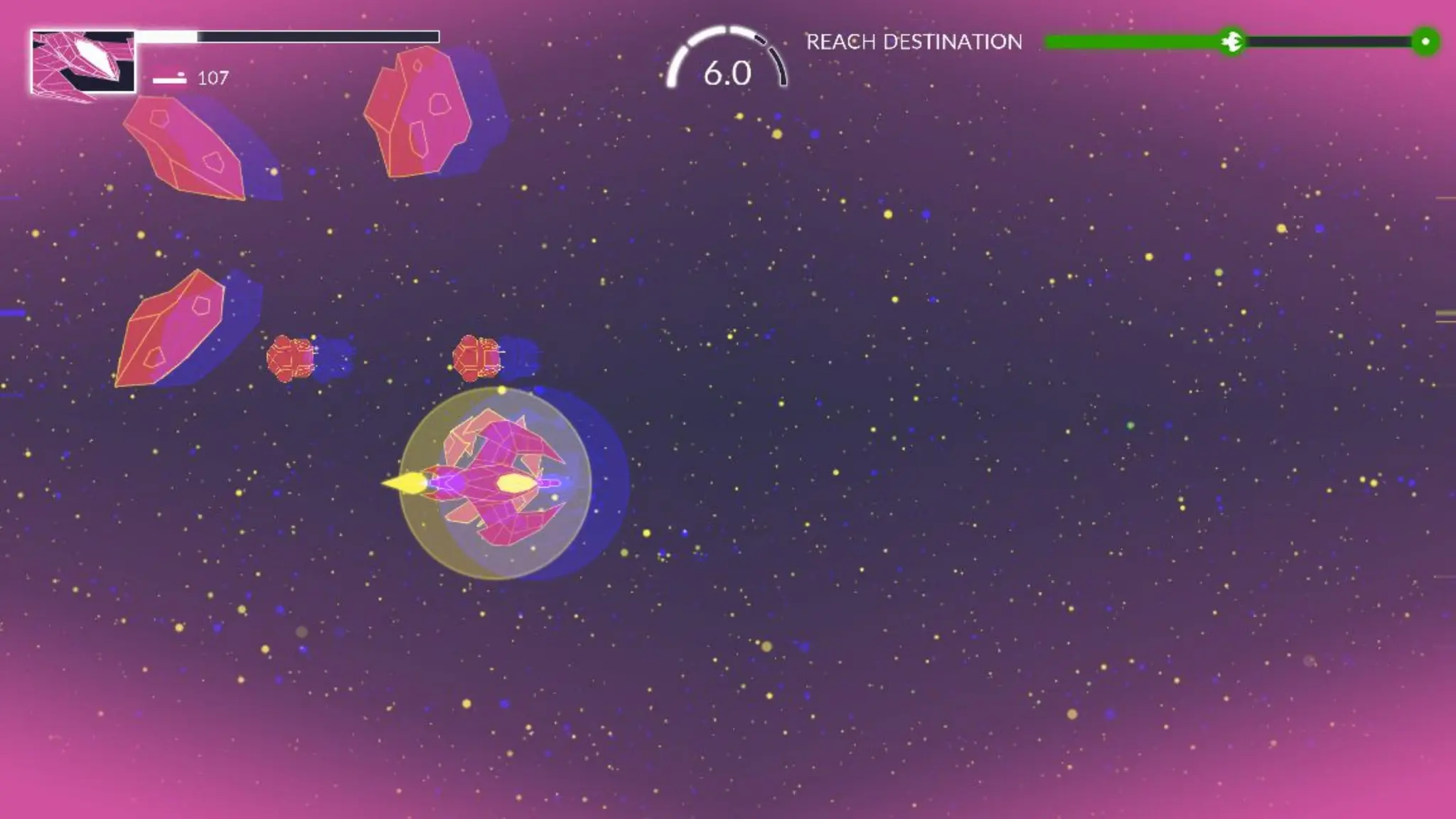

20. Chromatic aberration screen e ect
(aka post-processing e ect)

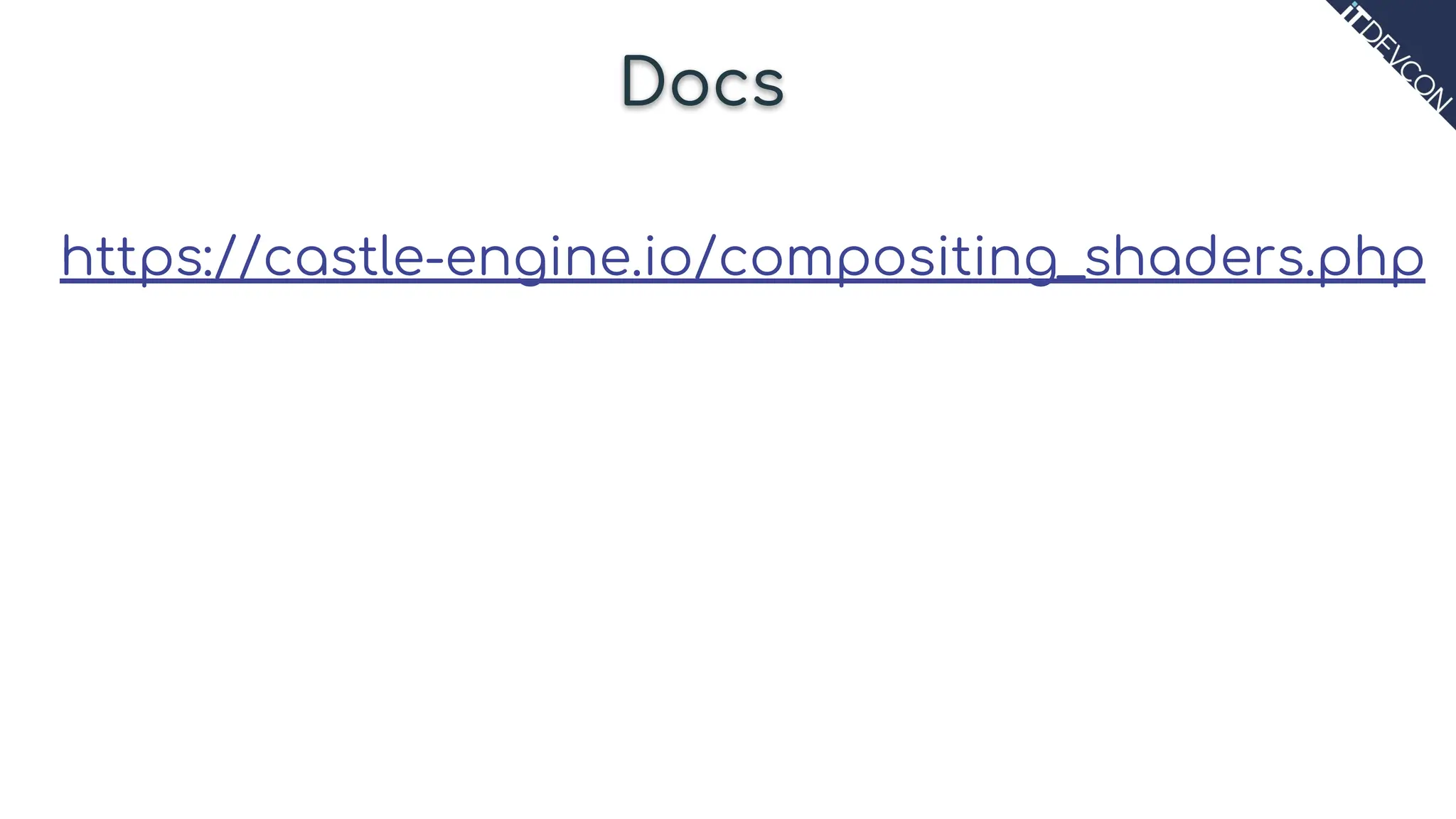

24. Docs
https://castle-engine.io/compositing_shaders.php

25. 2023
Custom components

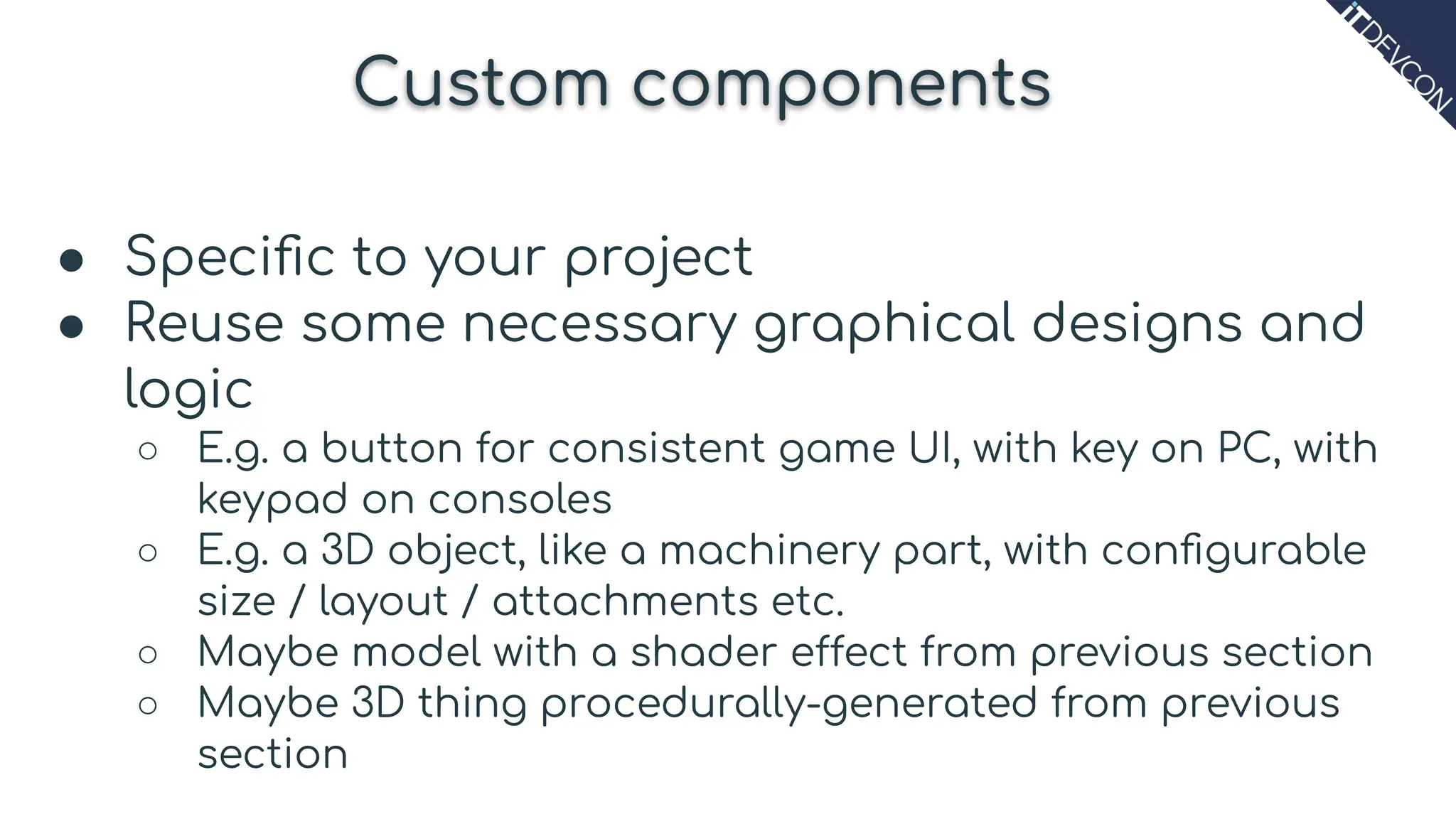

26. Custom components
● Specific to your project
● Reuse some necessary graphical designs and
logic
○ E.g. a button for consistent game UI, with key on PC, with
keypad on consoles
○ E.g. a 3D object, like a machinery part, with configurable
size / layout / attachments etc.
○ Maybe model with a shader effect from previous section
○ Maybe 3D thing procedurally-generated from previous
section

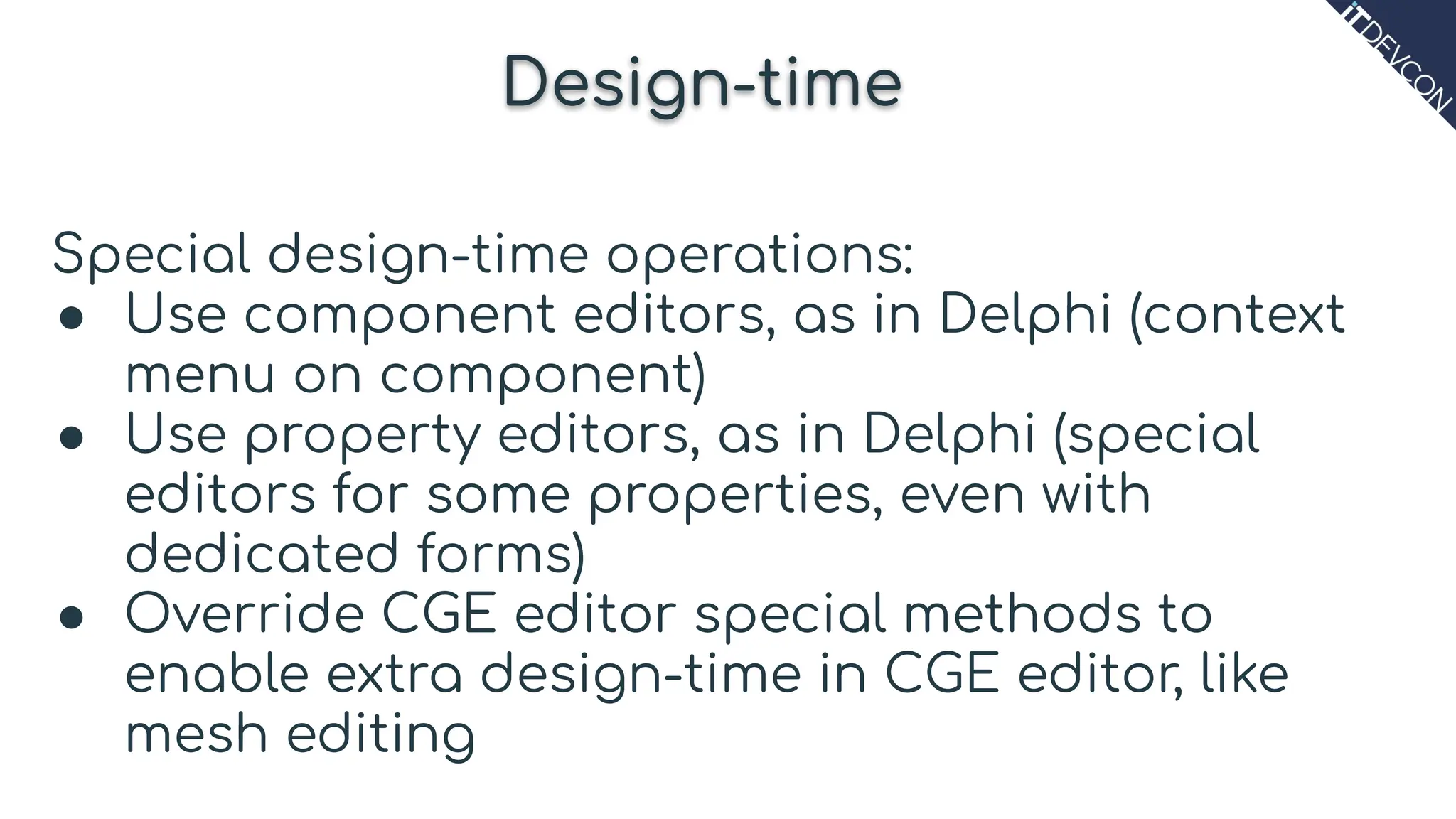

27. Design-time
Special design-time operations:
● Use component editors, as in Delphi (context
menu on component)
● Use property editors, as in Delphi (special
editors for some properties, even with
dedicated forms)
● Override CGE editor special methods to
enable extra design-time in CGE editor, like
mesh editing

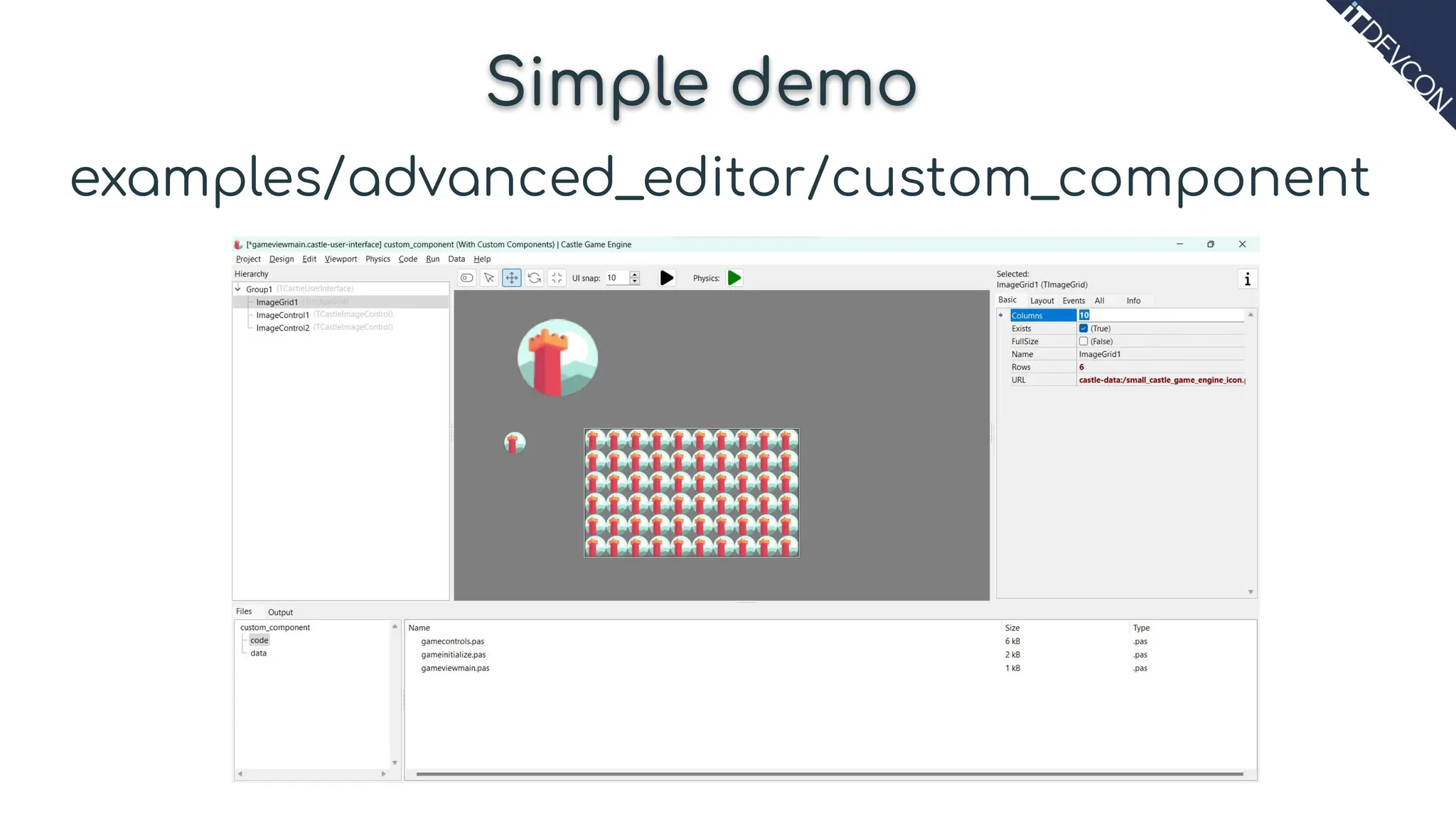

28. Simple demo
examples/advanced_editor/custom_component

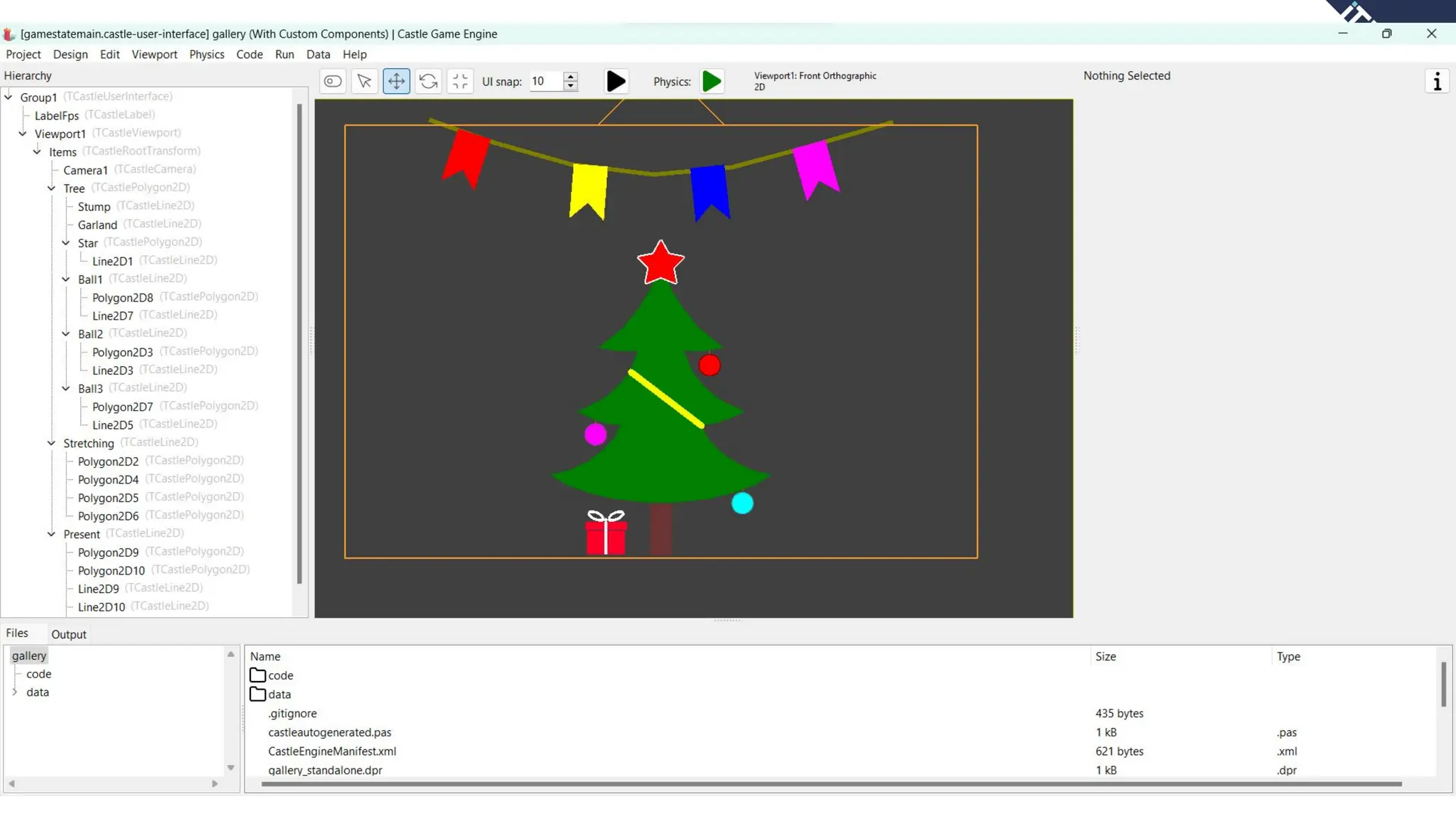

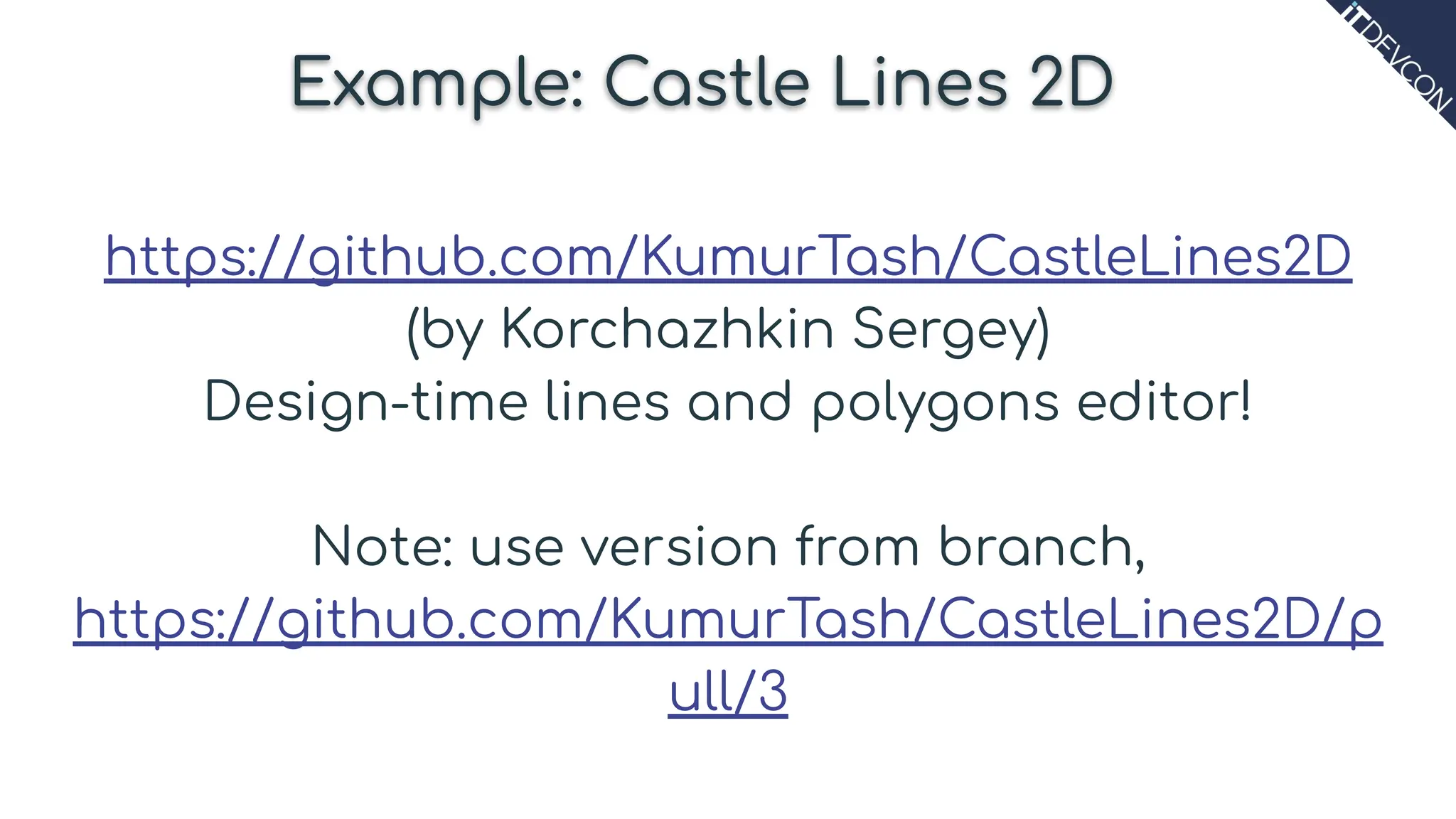

29. Example: Castle Lines 2D
https://github.com/KumurTash/CastleLines2D
(by Korchazhkin Sergey)
Design-time lines and polygons editor!
Note: use version from branch,
https://github.com/KumurTash/CastleLines2D/p
ull/3

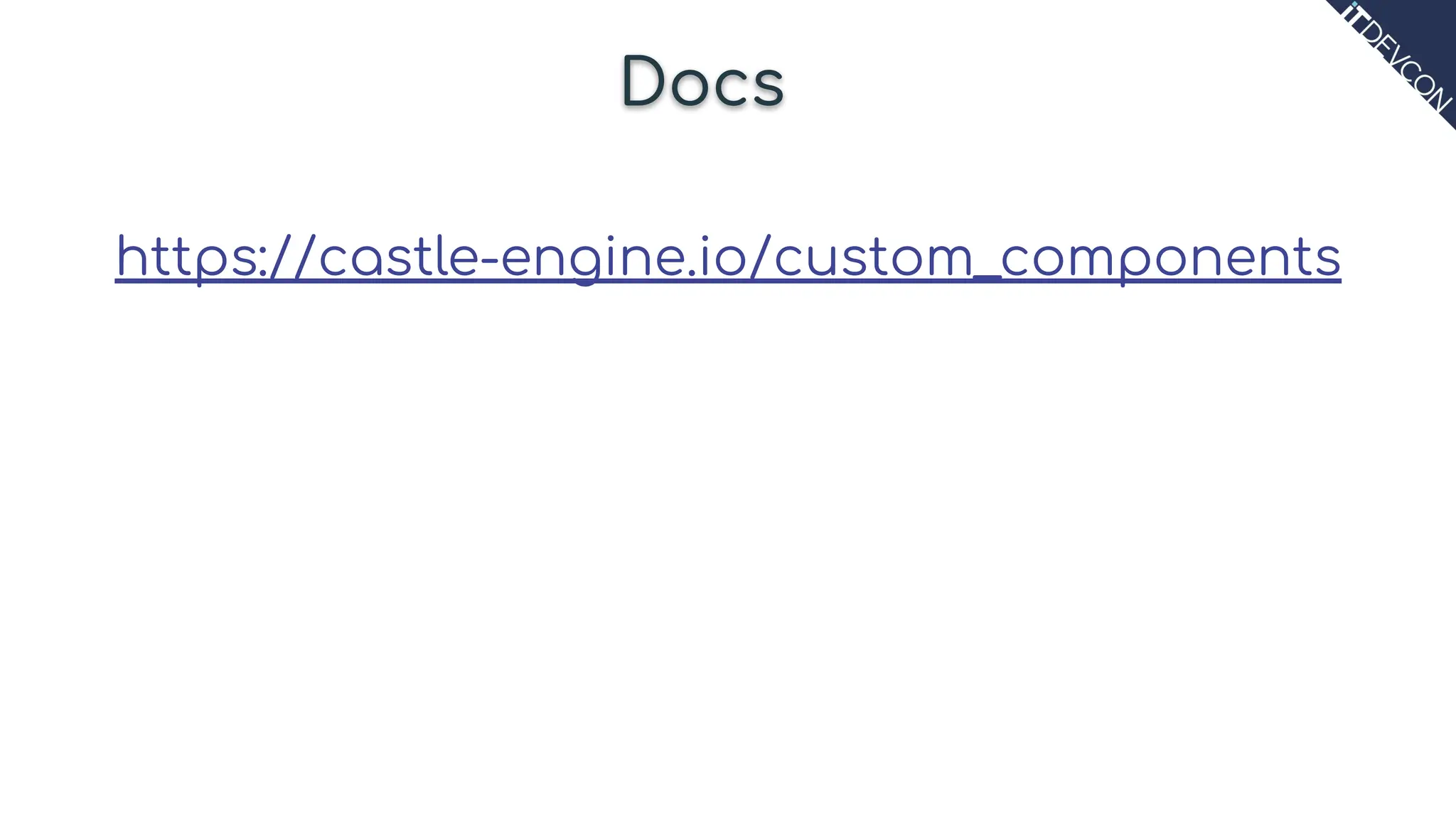

31. Docs
https://castle-engine.io/custom_components

32. 2023
Anything I forgot

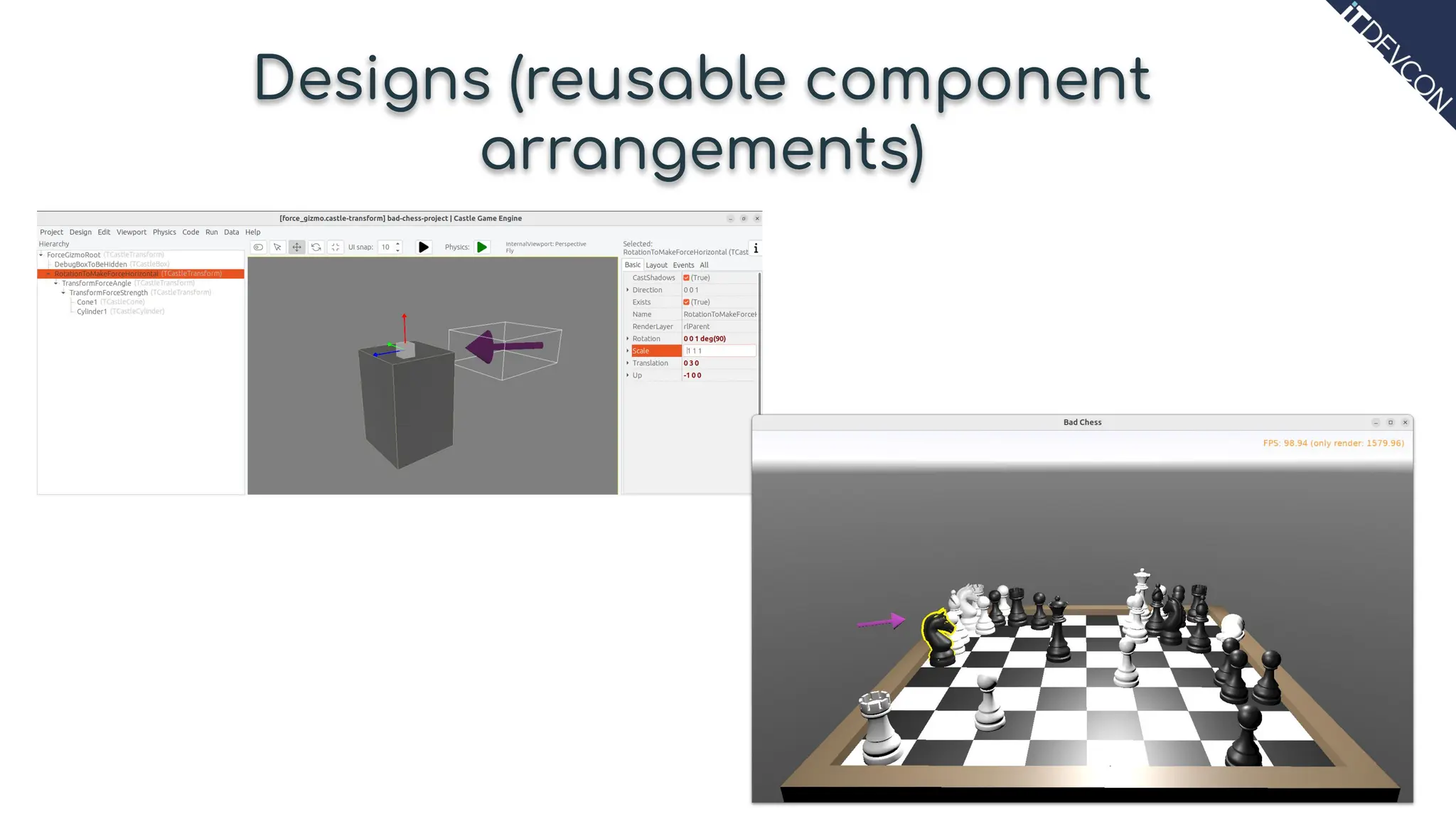

33. Designs (reusable component
arrangements)

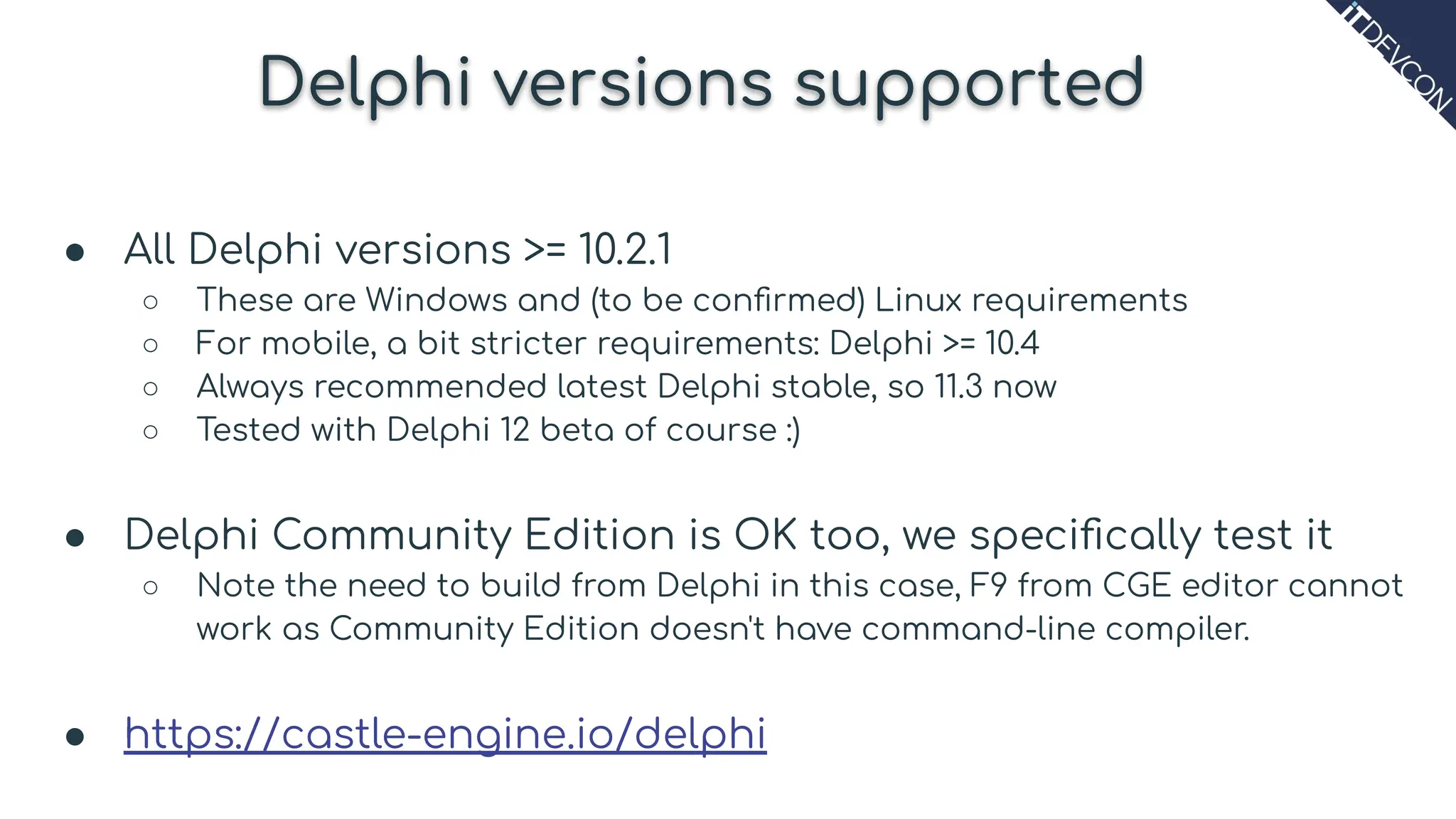

34. Delphi versions supported
● All Delphi versions >= 10.2.1
○ These are Windows and (to be confirmed) Linux requirements
○ For mobile, a bit stricter requirements: Delphi >= 10.4
○ Always recommended latest Delphi stable, so 11.3 now
○ Tested with Delphi 12 beta of course :)
● Delphi Community Edition is OK too, we specifically test it
○ Note the need to build from Delphi in this case, F9 from CGE editor cannot
work as Community Edition doesn't have command-line compiler.
● https://castle-engine.io/delphi

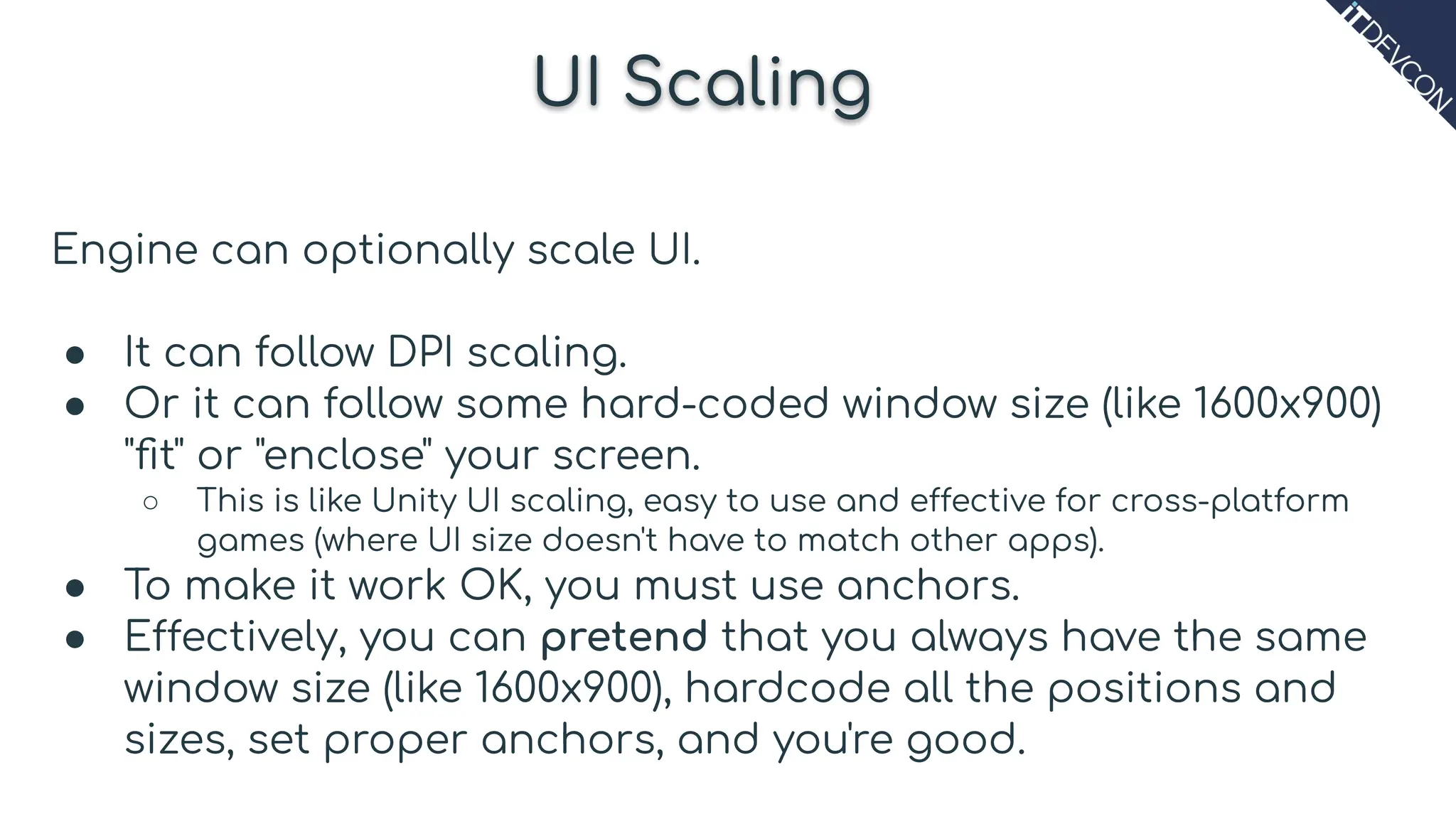

35. Engine can optionally scale UI.
● It can follow DPI scaling.
● Or it can follow some hard-coded window size (like 1600x900)
"fit" or "enclose" your screen.
○ This is like Unity UI scaling, easy to use and effective for cross-platform
games (where UI size doesn't have to match other apps).
● To make it work OK, you must use anchors.
● Effectively, you can pretend that you always have the same
window size (like 1600x900), hardcode all the positions and
sizes, set proper anchors, and you're good.
UI Scaling

36. Thank you!
https://castle-engine.io
michalis@castle-engine.io
https://github.com/
castle-engine/
conference-itdevcon-2023/
