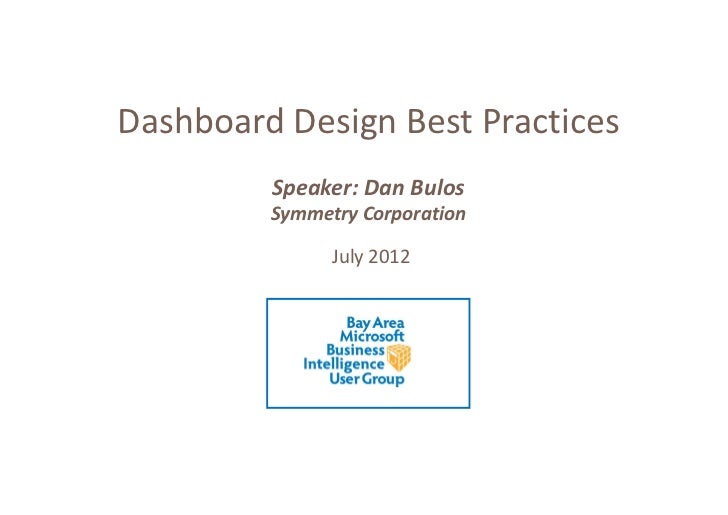

Dashboard Design Best Practices
         Speaker: Dan Bulos
         Symmetry Corporation

               July 2012
Best Practices in
Dashboard Design




Dan Bulos – bulos@symcorp.com


©2012 Symmetry Corporation   http://www.symcorp.com
Agenda

    What is a Dashboard?

    Dashboard Best Practices

    Dashboard Components

    Navigation


©2012 Symmetry Corporation     http://www.symcorp.com
Metaphors Go Only So Far
                              Monitors a
                             Continuous
                               Process



       At a                                 Gauge
      Glance                               Oriented




©2012 Symmetry Corporation                 http://www.symcorp.com
Reporting Spectrum

      Managed                       Dashboards                        Analysis
                              Tables, Crosstabs, Charts, Graphs
 P      Customization                        Ease of                        Depth &           D
 r      & Distribution                    Development                      Quickness          i
 o       Alternatives                       & Usage                       of Analytics
                                                                                              s
 d                                         Paramount
                             Parameter                      Interactive                       c
 u                             Driven                       Navigation                        o
 c
                                                                                              v
 t          Highly
          Formatted
                                                                            Advanced          e
 i                                                                         Visualization
                                                                                              r
 o                                       Guided Analytics
                                                                                              y
 n         Programmer                        Line                            Staff
            Developed                      Developed                       Developed



©2012 Symmetry Corporation                                                     http://www.symcorp.com
Dashboard Definition
                                 Visual Display
                                        of the

                   most important information
                             needed to achieve one or more

                                    objectives
                                which fits entirely on a

                         single computer screen
                                      so it can be

                             monitored at a glance
                                                           Information Dashboard Design
                                                                 By Stephen Few

©2012 Symmetry Corporation                                              http://www.symcorp.com
What Makes a Good Dashboard
Some are Better




                              Than Others




 ©2012 Symmetry Corporation                 http://www.symcorp.com
Dashboard - Best Practices
                                              Key
                                          Data/Metrics
                                           In Context




                       Dense                                       Zero
                    Information                                  Learning
                        Not                                       Curve
                     Cluttered              Single
                                             Page
                                          Graphically
                                           Oriented




                              Access to
                                                          Highlight
                             Supporting
                                                         Exceptions
                               Details



©2012 Symmetry Corporation                                                  http://www.symcorp.com
General Design Considerations

                      “Single Page”   “Graphical”

          No Scrolling                       Displays Patterns
        Nothing Hidden                        Abstract Data
        Linked Content          Better         Minimal Grids

                              Dashboard
      All Relevant Info        Design          Domain Aware
      One Place to Look                          Leverages
       Not Data Driven                          Knowledge


               “Disparate Data”       “Guided Analytics”

©2012 Symmetry Corporation                          http://www.symcorp.com
Key Data/Metrics in Context
    Key Data/Metrics
    ▪ High level performance metrics
    ▪ Generally tied to goals and bonuses
    ▪ Focus on actionable data
    ▪ Disparate sources


    Context
    ▪ The 3Ts = Target, Trend, Typical
    ▪ Similar/Related Data/Metrics
    ▪ Basis for interpretation
©2012 Symmetry Corporation                  http://www.symcorp.com
Dense, not Cluttered

    Dense Information
    ▪ All relevant data/metrics
    ▪ Different perspectives
    Not Cluttered – “At a Glance”
    ▪ It is not how much, but how well
    ▪ Easy to view, not an eye chart
    Data-Ink Ratio (                        )
                             The Visual Display of Quantitative Information
                                            Edward R. Tufte

    ▪ Non-essential ink should be removed
    ▪ Supporting ink (axis lines) = low visual impact

©2012 Symmetry Corporation                                              http://www.symcorp.com
Zero Learning Curve

    Dashboard viewing is not a person’s job
    ▪ Oriented at casual users, line mgt, & execs
    ▪ Little/No accumulated experience
            ●   Each viewing is the first time

    Dashboards are not analytical tools
    ▪ But they provide guided analytics

    Targeted to a Person/Role/Problem Set


©2012 Symmetry Corporation                       http://www.symcorp.com
Exception Oriented

    Outliers should POP out        Visual Cues

    Highlight Both                    Color
    ▪ Problems                         Size
    ▪ Opportunities                   Shape
                                     Boldness
    What is an Exception?
                                     Position
    ▪ > 1 Std Dev, 2…. Five9s
                                      Icons
    ▪ When action needs be taken
©2012 Symmetry Corporation             http://www.symcorp.com
Supporting Detail
  Dashboards are not an                                 Associated
   end unto themselves                                    Layers


                                         Guided
    Contextual
                                         Analytics        Update
  Content Updates
                                                         Dashboard
                                                         Webparts
                              Links to
                             New Pages   Hierarchical
                                         Drill-Down
  Root Cause
   Analysis
                                 Ad Hoc Analysis        Detail Reports
©2012 Symmetry Corporation                                 http://www.symcorp.com
Dashboard Components
Scorecards
                                        Diagrams

                              Grids                 Charts




              Gauges                        Maps



Tree Map                      Decomp Tree

                                                      And So
                                                   Much More……
 ©2012 Symmetry Corporation                         http://www.symcorp.com
First a Word on Color
    Use Color Sparingly – Generally Soft Colors
    ▪ Highlighting – Bold Colors
    Different Colors = Different Meaning
    ▪ Try shades of grey
    Use a Single Hue
    ▪ Increase the intensity for low to high values
    Remember - 7% of men are color blind

                             A dashboard is not a painting
                               Usefulness is Paramount
©2012 Symmetry Corporation                                   http://www.symcorp.com
Grids

   When to use:
   ▪ Values are familiar
   ▪ Need to lookup a value
   ▪ Small differences are important
   ▪ Mixed units of measure

   Design Considerations
   ▪ Try to keep square-ish
   ▪ Comparisons are done by column
   ▪ Limit length with Top/Bottom
©2012 Symmetry Corporation             http://www.symcorp.com
Grid Embellishments

    Highlights
    ▪ Items of interest
    Data Bars
    ▪ Helpful to read magnitude
    Color Scales/Icons                  Icons
                                  are best used to:
    ▪ Can overwhelm the data
    Arrows                              Replace
                                  data to save space
    ▪ Used for change over time
                                        Show
                                  variance or score
©2012 Symmetry Corporation               http://www.symcorp.com
Scorecards

    Are a special type of grid
    ▪ Created for KPIs and Objectives
    Can be methodology oriented
    ▪ Balanced Scorecard, 6 Sigma, …
    Used as a navigation aid
    ▪ A list with data

                                  Scorecards
                               are less about data
                             and more about process
©2012 Symmetry Corporation                  http://www.symcorp.com
Basic Charts
    Lines Charts – Time Series oriented
     ▪ Highlights trend, patterns or variability
     ▪ Highlights relationships between series
     ▪ Trend lines & projections can be added
    Bar Chart – Comparison Oriented
     ▪ Categorical comparisons within a dimension
     ▪ Nominal comparisons across data (sales to cost)
    Pie Charts – Part to Whole
     ▪ Only works with small sets
     ▪ Hard to visually quantify
     ▪ A lot of space for not much data
©2012 Symmetry Corporation                  http://www.symcorp.com
Interlude: Form vs. Function
                        If the dashboard is not
                        visually appealing,
                        people will not go to it       1 Page – 6#s

                         If the dashboard is not
                         effective and practical,
                         people will not use it     Pretty Yes! Useful?

                                What is fun
                               the first time

                             Might be boring
                              the 100th time
                                                        Too Dense?
©2012 Symmetry Corporation                                http://www.symcorp.com
Bar Charts
   Horizontal
    ▪ Long labels
    ▪ Pattern comparisons
    ▪ Long-ish lists
   Vertical
    ▪ Groups with in groups
    ▪ Stacked and 100% Bars
    ▪ Pareto Charts

   Doesn’t work for large numbers of groups
   Bars are easily drilled into


©2012 Symmetry Corporation                    http://www.symcorp.com
Hybrids – Charts in Grids


                                             Effective
                              Great
                                             Mixing Of
                             Data-Ink
                                             Charts &
                               Ratio
                                              Values


                                  Introduction of
                             Sparklines & Bullet Graphs




©2012 Symmetry Corporation                                http://www.symcorp.com
Bullet Graphs
  A bullet graph is a variation of a bar
   graph developed by Stephen Few.
 Seemingly inspired by the traditional
thermometer charts and progress bars
 found in many dashboards, the bullet
   graph serves as a replacement for       Symmetry’s
     dashboard gauges and meters            Variation
                                           Sales
                                           Costs


                                           Black Bar = Value
                                           Green/Red Bar = Target
                                           Blue Pointer = Last Year




©2012 Symmetry Corporation                         http://www.symcorp.com
Maps
                                       Useful in
                                 showing regional
                                     components
Maps are great for
demographics

                         Maps are highly specialized
                                                       Impact grids
                                                    can be effective
                     Be careful of charts
                     within a map


 ©2012 Symmetry Corporation                             http://www.symcorp.com
Gauges




                                             When using a set of
  Hard to set gauge scale
                                            gauges expected value
    for the general case
                                             should be straight up



                             Best for continuous process
                                Poor Data-Ink Ratio
©2012 Symmetry Corporation                                 http://www.symcorp.com
Diagrams
  Balanced                                                Process Diagram
 Scorecard
Strategy Map




                                   Diagrams are
                                    underutilized
                              Graphical Representations




Impact Diagram                                 Root Cause/Fishbone Diagram
 ©2012 Symmetry Corporation                                http://www.symcorp.com
Graphical Excellence

    Show the data
    Focus on the substance of the numbers
    Don’t distort the data
    Present many numbers in a small space
    Encourage comparisons
    Show data in several perspectives

                             The Visual Display of Quantitative Information
                                                           Edward R. Tufte

©2012 Symmetry Corporation                                  http://www.symcorp.com
Screen Layout
 Number of Frames
  ▪ Up to 4 is good, no more than 6
 Frame Proportions
  ▪ Size = implied importance
  ▪ Uniform otherwise
 Location
  ▪ Top left = primary focus
  ▪ Bottom right = supporting detail
  ▪ Off page = irrelevant
 Printing
  ▪ The dirty little secret
©2012 Symmetry Corporation             http://www.symcorp.com
Frame Options
   Different frame on same page
   ▪ Must fit on the page
   ▪ Can drill from here to new page
   New page in same browser
   ▪ Easy to get back
   ▪ Full page available
   New browser tab/window
   ▪ Allows for comparisons
   ▪ Users must close windows/tabs

©2012 Symmetry Corporation             http://www.symcorp.com
Navigation Framework
A tiered set of dashboards
based on role or function



 A set of grids, graphs, or
visualizations that examine
       a single metric



 A set of detailed reports or
      ad-hoc analytics

©2012 Symmetry Corporation      http://www.symcorp.com
Navigation

    Identify the key dimensions for the metric
     ▪ Customer, product, department
     ▪ Drill into one or more of these
     ▪ Top 10 rankings

    Identify the audience
     ▪ Marketing manager – Drill to product
     ▪ Sales Manager – Drill to customer

©2012 Symmetry Corporation                http://www.symcorp.com
Navigation - What to Show




©2012 Symmetry Corporation   http://www.symcorp.com
Microsoft Software Components

 Reporting Services
 ▪ Formal report view
 ▪ Highly formatted
 Performance Point Server
 ▪ Analytical Charts and Graphs
 ▪ Less control over format
 ▪ Built in Slice and Dice
 Excel Services
 ▪ Shared user-created content
 ▪ Fast changing
©2012 Symmetry Corporation        http://www.symcorp.com
Summary

    Choose the right tool for the job

    Simple is better

    Conserve your screen real estate

    Use color to highlight

    Put focus on the data not the decoration


©2012 Symmetry Corporation              http://www.symcorp.com
Symmetry
   Founded in 1986
   Experienced Consultants
    ▪ Each with over 15 years of BI experience
   Microsoft Relationship
    ▪      Gold Certified Partner
    ▪          Microsoft-nominated BI Partner Advisory
         Council member since 1999
     ▪ Licensed Technology to Microsoft
                 ▫ SQL Server Accelerator for BI
     ▪ Internal Microsoft Consulting
                 ▫ SQL Server
                 ▫ PerformancePoint Server
                 ▫ Internal departmental BI application development
©2012 Symmetry Corporation                                   http://www.symcorp.com
Resources
      ▪ Show Me the Numbers: Designing Tables and Graphs to Enlighten
            ● Stephen Few
      ▪   Information Dashboard Design: The Effective Visual
          Communication of Data
            ● Stephen Few

      ▪ The Visual Display of Quantitative Information, 2nd edition
            ●   Edward R. Tufte



             http://www.perceptualedge.com/

             http://dashboardspy.com/

             Symmetry Corp – www.symcorp.com

©2012 Symmetry Corporation                                     http://www.symcorp.com
To learn more or attend a meeting: www.bayareamicrosoftbi.org


    To inquire about sponsorship or speaking opportunities:
 Mark Ginnebaugh, User Group Leader mark@designmind.com

More Related Content

What's hot

Effective Dashboard Design: Why Your Baby is Ugly
Effective Dashboard Design: Why Your Baby is UglyEffective Dashboard Design: Why Your Baby is Ugly
Effective Dashboard Design: Why Your Baby is UglyAaron Hursman

The Data Driven Enterprise - Roadmap to Big Data & Analytics Success
The Data Driven Enterprise - Roadmap to Big Data & Analytics SuccessThe Data Driven Enterprise - Roadmap to Big Data & Analytics Success
The Data Driven Enterprise - Roadmap to Big Data & Analytics SuccessBigInsights

Building a Data Strategy – Practical Steps for Aligning with Business Goals
Building a Data Strategy – Practical Steps for Aligning with Business GoalsBuilding a Data Strategy – Practical Steps for Aligning with Business Goals
Building a Data Strategy – Practical Steps for Aligning with Business GoalsDATAVERSITY

Establishing a Strategy for Data Quality
Establishing a Strategy for Data QualityEstablishing a Strategy for Data Quality
Establishing a Strategy for Data QualityDatabase Answers Ltd.

Enterprise Data Architecture Deliverables
Enterprise Data Architecture DeliverablesEnterprise Data Architecture Deliverables
Enterprise Data Architecture DeliverablesLars E Martinsson

Improving Data Literacy Around Data Architecture
Improving Data Literacy Around Data ArchitectureImproving Data Literacy Around Data Architecture
Improving Data Literacy Around Data ArchitectureDATAVERSITY

The Impact of Artificial Intelligence and Digital Disruption on the Supply Chain
The Impact of Artificial Intelligence and Digital Disruption on the Supply ChainThe Impact of Artificial Intelligence and Digital Disruption on the Supply Chain
The Impact of Artificial Intelligence and Digital Disruption on the Supply ChainJason Prescott

580827935-Mckinsey-Training-1-3.pdf
580827935-Mckinsey-Training-1-3.pdf580827935-Mckinsey-Training-1-3.pdf
580827935-Mckinsey-Training-1-3.pdfdavidscribddavidscri

Data & Analytics Club - Data Visualization Workshop
Data & Analytics Club - Data Visualization WorkshopData & Analytics Club - Data Visualization Workshop
Data & Analytics Club - Data Visualization Workshopnsrivast

Dashboard guidelines
Dashboard guidelinesDashboard guidelines
Dashboard guidelinesNam Vo

BI Consultancy - Data, Analytics and Strategy
BI Consultancy - Data, Analytics and StrategyBI Consultancy - Data, Analytics and Strategy
BI Consultancy - Data, Analytics and StrategyShivam Dhawan

Data Culture Keynote and Exec Track Birm Dec 8th
Data Culture Keynote and Exec Track Birm Dec 8thData Culture Keynote and Exec Track Birm Dec 8th
Data Culture Keynote and Exec Track Birm Dec 8thJonathan Woodward

Reskilling the Workforce: Essential to Business Success
Reskilling the Workforce: Essential to Business SuccessReskilling the Workforce: Essential to Business Success
Reskilling the Workforce: Essential to Business SuccessTaleo Research

Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...
Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...
Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...DATAVERSITY

Consumer Analyst Group of New York (CAGNY) Conference 2023
Consumer Analyst Group of New York (CAGNY) Conference 2023Consumer Analyst Group of New York (CAGNY) Conference 2023
Consumer Analyst Group of New York (CAGNY) Conference 2023Sysco_Investors

mlops.community meetup - ML Governance_ A Practical Guide.pptx
mlops.community meetup - ML Governance_ A Practical Guide.pptxmlops.community meetup - ML Governance_ A Practical Guide.pptx
mlops.community meetup - ML Governance_ A Practical Guide.pptxRyan Dawson

Forging an Analytics Center of Excellence
Forging an Analytics Center of ExcellenceForging an Analytics Center of Excellence
Forging an Analytics Center of ExcellenceLewandog, Inc,


What's hot (20)

Effective Dashboard Design: Why Your Baby is Ugly
Effective Dashboard Design: Why Your Baby is UglyEffective Dashboard Design: Why Your Baby is Ugly
Effective Dashboard Design: Why Your Baby is Ugly

The Data Driven Enterprise - Roadmap to Big Data & Analytics Success
The Data Driven Enterprise - Roadmap to Big Data & Analytics SuccessThe Data Driven Enterprise - Roadmap to Big Data & Analytics Success
The Data Driven Enterprise - Roadmap to Big Data & Analytics Success

Data Monetization Framework
Data Monetization FrameworkData Monetization Framework
Data Monetization Framework

Building a Data Strategy – Practical Steps for Aligning with Business Goals
Building a Data Strategy – Practical Steps for Aligning with Business GoalsBuilding a Data Strategy – Practical Steps for Aligning with Business Goals
Building a Data Strategy – Practical Steps for Aligning with Business Goals

Establishing a Strategy for Data Quality
Establishing a Strategy for Data QualityEstablishing a Strategy for Data Quality
Establishing a Strategy for Data Quality

Power BI Ecosystem
Power BI EcosystemPower BI Ecosystem
Power BI Ecosystem

Enterprise Data Architecture Deliverables
Enterprise Data Architecture DeliverablesEnterprise Data Architecture Deliverables
Enterprise Data Architecture Deliverables

Improving Data Literacy Around Data Architecture
Improving Data Literacy Around Data ArchitectureImproving Data Literacy Around Data Architecture
Improving Data Literacy Around Data Architecture

The Impact of Artificial Intelligence and Digital Disruption on the Supply Chain
The Impact of Artificial Intelligence and Digital Disruption on the Supply ChainThe Impact of Artificial Intelligence and Digital Disruption on the Supply Chain
The Impact of Artificial Intelligence and Digital Disruption on the Supply Chain

580827935-Mckinsey-Training-1-3.pdf
580827935-Mckinsey-Training-1-3.pdf580827935-Mckinsey-Training-1-3.pdf
580827935-Mckinsey-Training-1-3.pdf

Data & Analytics Club - Data Visualization Workshop
Data & Analytics Club - Data Visualization WorkshopData & Analytics Club - Data Visualization Workshop
Data & Analytics Club - Data Visualization Workshop

Dashboard guidelines
Dashboard guidelinesDashboard guidelines
Dashboard guidelines

BI Consultancy - Data, Analytics and Strategy
BI Consultancy - Data, Analytics and StrategyBI Consultancy - Data, Analytics and Strategy
BI Consultancy - Data, Analytics and Strategy

Data Culture Keynote and Exec Track Birm Dec 8th
Data Culture Keynote and Exec Track Birm Dec 8thData Culture Keynote and Exec Track Birm Dec 8th
Data Culture Keynote and Exec Track Birm Dec 8th

Reskilling the Workforce: Essential to Business Success
Reskilling the Workforce: Essential to Business SuccessReskilling the Workforce: Essential to Business Success
Reskilling the Workforce: Essential to Business Success

Power BI visuals
Power BI visualsPower BI visuals
Power BI visuals

Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...
Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...
Slides: Data Monetization — Demonstrating Quantifiable Financial Benefits fro...

Consumer Analyst Group of New York (CAGNY) Conference 2023
Consumer Analyst Group of New York (CAGNY) Conference 2023Consumer Analyst Group of New York (CAGNY) Conference 2023
Consumer Analyst Group of New York (CAGNY) Conference 2023

mlops.community meetup - ML Governance_ A Practical Guide.pptx
mlops.community meetup - ML Governance_ A Practical Guide.pptxmlops.community meetup - ML Governance_ A Practical Guide.pptx
mlops.community meetup - ML Governance_ A Practical Guide.pptx

Forging an Analytics Center of Excellence
Forging an Analytics Center of ExcellenceForging an Analytics Center of Excellence
Forging an Analytics Center of Excellence


Viewers also liked

Dashboard - definition, examples
Dashboard - definition, examplesDashboard - definition, examples
Dashboard - definition, examplesMatthieu Aubry

Introduction to Network Function Virtualization (NFV)
Introduction to Network Function Virtualization (NFV)Introduction to Network Function Virtualization (NFV)
Introduction to Network Function Virtualization (NFV)rjain51

Integrative Teaching Strategies (ITS)
Integrative Teaching Strategies (ITS)Integrative Teaching Strategies (ITS)
Integrative Teaching Strategies (ITS)bsemathematics2014

Effective Dashboard Design
Effective Dashboard DesignEffective Dashboard Design
Effective Dashboard DesignAaron Hursman

1KEY Dashboard - 1KEY Agile
1KEY Dashboard - 1KEY Agile1KEY Dashboard - 1KEY Agile
1KEY Dashboard - 1KEY AgileDhiren Gala

Fundamental Ways We Use Data Visualizations
Fundamental Ways We Use Data VisualizationsFundamental Ways We Use Data Visualizations
Fundamental Ways We Use Data VisualizationsInitial State

61 Beautiful & Inspirational Timeline Cover on Facebook
61 Beautiful & Inspirational Timeline Cover on Facebook61 Beautiful & Inspirational Timeline Cover on Facebook
61 Beautiful & Inspirational Timeline Cover on FacebookConsonaute

The NEW Way to Win Friends & Influence People (social media in events)
The NEW Way to Win Friends & Influence People (social media in events)The NEW Way to Win Friends & Influence People (social media in events)
The NEW Way to Win Friends & Influence People (social media in events)Lara McCulloch-Carter

Diesel Product Development
Diesel Product DevelopmentDiesel Product Development
Diesel Product DevelopmentKaterina K.azia

Fmcg training modules-bfg
Fmcg training modules-bfgFmcg training modules-bfg
Fmcg training modules-bfgRomy Cagampan

PPT On Bridge Construction
PPT On Bridge ConstructionPPT On Bridge Construction
PPT On Bridge ConstructionRobin Nirwal

Operating Systems - File Management
Operating Systems -  File ManagementOperating Systems -  File Management
Operating Systems - File ManagementDamian T. Gordon

Mango Training for NGOs - key financial concepts and jargon
Mango Training for NGOs - key financial concepts and jargonMango Training for NGOs - key financial concepts and jargon
Mango Training for NGOs - key financial concepts and jargonTerry Lewis

New forever clean 9 booklet
New forever clean 9 bookletNew forever clean 9 booklet
New forever clean 9 bookletKatalin Hidvegi

Thai tech startup ecosystem report 2017
Thai tech startup ecosystem report 2017Thai tech startup ecosystem report 2017
Thai tech startup ecosystem report 2017Techsauce Media


Viewers also liked (20)

Dashboard - definition, examples
Dashboard - definition, examplesDashboard - definition, examples
Dashboard - definition, examples

Introduction to Network Function Virtualization (NFV)
Introduction to Network Function Virtualization (NFV)Introduction to Network Function Virtualization (NFV)
Introduction to Network Function Virtualization (NFV)

Integrative Teaching Strategies (ITS)
Integrative Teaching Strategies (ITS)Integrative Teaching Strategies (ITS)
Integrative Teaching Strategies (ITS)

Robin Sharma
Robin Sharma Robin Sharma
Robin Sharma

Effective Dashboard Design
Effective Dashboard DesignEffective Dashboard Design
Effective Dashboard Design

1KEY Dashboard - 1KEY Agile
1KEY Dashboard - 1KEY Agile1KEY Dashboard - 1KEY Agile
1KEY Dashboard - 1KEY Agile

Fundamental Ways We Use Data Visualizations
Fundamental Ways We Use Data VisualizationsFundamental Ways We Use Data Visualizations
Fundamental Ways We Use Data Visualizations

61 Beautiful & Inspirational Timeline Cover on Facebook
61 Beautiful & Inspirational Timeline Cover on Facebook61 Beautiful & Inspirational Timeline Cover on Facebook
61 Beautiful & Inspirational Timeline Cover on Facebook

The NEW Way to Win Friends & Influence People (social media in events)
The NEW Way to Win Friends & Influence People (social media in events)The NEW Way to Win Friends & Influence People (social media in events)
The NEW Way to Win Friends & Influence People (social media in events)

Diesel Product Development
Diesel Product DevelopmentDiesel Product Development
Diesel Product Development

BUSINESS QUIZ -Round 1
 BUSINESS QUIZ -Round 1 BUSINESS QUIZ -Round 1
BUSINESS QUIZ -Round 1

Fmcg training modules-bfg
Fmcg training modules-bfgFmcg training modules-bfg
Fmcg training modules-bfg

PPT On Bridge Construction
PPT On Bridge ConstructionPPT On Bridge Construction
PPT On Bridge Construction

Cardiac cycle ppt (2)
Cardiac cycle ppt (2)Cardiac cycle ppt (2)
Cardiac cycle ppt (2)

Operating Systems - File Management
Operating Systems -  File ManagementOperating Systems -  File Management
Operating Systems - File Management

Mango Training for NGOs - key financial concepts and jargon
Mango Training for NGOs - key financial concepts and jargonMango Training for NGOs - key financial concepts and jargon
Mango Training for NGOs - key financial concepts and jargon

New forever clean 9 booklet
New forever clean 9 bookletNew forever clean 9 booklet
New forever clean 9 booklet

Tweak Your Resume
Tweak Your ResumeTweak Your Resume
Tweak Your Resume

Thai tech startup ecosystem report 2017
Thai tech startup ecosystem report 2017Thai tech startup ecosystem report 2017
Thai tech startup ecosystem report 2017

Mri brain anatomy Dr Muhammad Bin Zulfiqar
Mri brain anatomy Dr Muhammad Bin ZulfiqarMri brain anatomy Dr Muhammad Bin Zulfiqar
Mri brain anatomy Dr Muhammad Bin Zulfiqar


Similar to Business Intelligence Dashboard Design Best Practices

Microsoft Analysis Services July 2010
Microsoft Analysis Services July 2010Microsoft Analysis Services July 2010
Microsoft Analysis Services July 2010Mark Ginnebaugh

Architecture in an Agile World
Architecture in an Agile World Architecture in an Agile World
Architecture in an Agile World Synerzip

Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community
Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community
Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community Badgeville, Inc.

Stingray - Riverbed Technology
Stingray - Riverbed TechnologyStingray - Riverbed Technology
Stingray - Riverbed TechnologyChris Westin

iQ FutureNow: Ensuring the success of your mobile strategy
iQ FutureNow: Ensuring the success of your mobile strategyiQ FutureNow: Ensuring the success of your mobile strategy
iQ FutureNow: Ensuring the success of your mobile strategyiQcontent

Your Data Center Boundaries Don’t Exist Anymore!
Your Data Center Boundaries Don’t Exist Anymore! Your Data Center Boundaries Don’t Exist Anymore!
Your Data Center Boundaries Don’t Exist Anymore! EMC

Domain Driven Design Development Spring Portfolio
Domain Driven Design Development Spring PortfolioDomain Driven Design Development Spring Portfolio
Domain Driven Design Development Spring PortfolioSrini Penchikala

Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012
Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012
Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012Mrunal Shridhar

2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar
2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar
2012 Tableau Customer Conference - Building Great Dashboards by Mrunal ShridharMrunal Shridhar

ServiceNow Event 15.11.2012 / Changing the face of IT
ServiceNow Event 15.11.2012 / Changing the face of ITServiceNow Event 15.11.2012 / Changing the face of IT
ServiceNow Event 15.11.2012 / Changing the face of ITRené Haeberlin

Good Data Technical Overview
Good Data Technical OverviewGood Data Technical Overview
Good Data Technical Overviewzsvoboda

5 Ingredients Of The EVM Secret Sauce V Final
5 Ingredients Of The EVM Secret Sauce V Final5 Ingredients Of The EVM Secret Sauce V Final
5 Ingredients Of The EVM Secret Sauce V Finalphlckb

Case Study: Analytics at CMC Markets: from measuring clicks to driving business
Case Study: Analytics at CMC Markets: from measuring clicks to driving businessCase Study: Analytics at CMC Markets: from measuring clicks to driving business
Case Study: Analytics at CMC Markets: from measuring clicks to driving businessJohn Sinke

Monitoring of Web Applications and GlassFish for Performance and Availability...
Monitoring of Web Applications and GlassFish for Performance and Availability...Monitoring of Web Applications and GlassFish for Performance and Availability...
Monitoring of Web Applications and GlassFish for Performance and Availability...SL Corporation

From Requirements Management to Release with Git for Android System
From Requirements Management to Release with Git for Android System From Requirements Management to Release with Git for Android System
From Requirements Management to Release with Git for Android System Intland Software GmbH

Visualisation and forecasting on IT capacity planning data
Visualisation and forecasting on IT capacity planning dataVisualisation and forecasting on IT capacity planning data
Visualisation and forecasting on IT capacity planning dataAndrew Gadsby

Microsoft Business Intelligence Performance Management Dan Bulos_2011
Microsoft Business Intelligence Performance Management Dan Bulos_2011Microsoft Business Intelligence Performance Management Dan Bulos_2011
Microsoft Business Intelligence Performance Management Dan Bulos_2011Mark Ginnebaugh


Similar to Business Intelligence Dashboard Design Best Practices (20)

Microsoft Analysis Services July 2010
Microsoft Analysis Services July 2010Microsoft Analysis Services July 2010
Microsoft Analysis Services July 2010

Architecture in an Agile World
Architecture in an Agile World Architecture in an Agile World
Architecture in an Agile World

Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community
Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community
Badgeville Summit, Engage 2012 - CASE STUDY : EMC Gamifies Global ECN Community

Stingray - Riverbed Technology
Stingray - Riverbed TechnologyStingray - Riverbed Technology
Stingray - Riverbed Technology

Is your business intelligence, bigdata analytics and crm software your cfo, ...
Is your business intelligence, bigdata analytics and crm  software your cfo, ...Is your business intelligence, bigdata analytics and crm  software your cfo, ...
Is your business intelligence, bigdata analytics and crm software your cfo, ...

iQ FutureNow: Ensuring the success of your mobile strategy
iQ FutureNow: Ensuring the success of your mobile strategyiQ FutureNow: Ensuring the success of your mobile strategy
iQ FutureNow: Ensuring the success of your mobile strategy

Your Data Center Boundaries Don’t Exist Anymore!
Your Data Center Boundaries Don’t Exist Anymore! Your Data Center Boundaries Don’t Exist Anymore!
Your Data Center Boundaries Don’t Exist Anymore!

Domain Driven Design Development Spring Portfolio
Domain Driven Design Development Spring PortfolioDomain Driven Design Development Spring Portfolio
Domain Driven Design Development Spring Portfolio

Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012
Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012
Building great dashboards by Mrunal Shridhar - Tableau Customer Conference 2012

2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar
2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar
2012 Tableau Customer Conference - Building Great Dashboards by Mrunal Shridhar

ServiceNow Event 15.11.2012 / Changing the face of IT
ServiceNow Event 15.11.2012 / Changing the face of ITServiceNow Event 15.11.2012 / Changing the face of IT
ServiceNow Event 15.11.2012 / Changing the face of IT

Workshop APM in a Cloud & Virtualized environment
Workshop APM in a Cloud & Virtualized environmentWorkshop APM in a Cloud & Virtualized environment
Workshop APM in a Cloud & Virtualized environment

Good Data Technical Overview
Good Data Technical OverviewGood Data Technical Overview
Good Data Technical Overview

5 Ingredients Of The EVM Secret Sauce V Final
5 Ingredients Of The EVM Secret Sauce V Final5 Ingredients Of The EVM Secret Sauce V Final
5 Ingredients Of The EVM Secret Sauce V Final

Case Study: Analytics at CMC Markets: from measuring clicks to driving business
Case Study: Analytics at CMC Markets: from measuring clicks to driving businessCase Study: Analytics at CMC Markets: from measuring clicks to driving business
Case Study: Analytics at CMC Markets: from measuring clicks to driving business

Monitoring of Web Applications and GlassFish for Performance and Availability...
Monitoring of Web Applications and GlassFish for Performance and Availability...Monitoring of Web Applications and GlassFish for Performance and Availability...
Monitoring of Web Applications and GlassFish for Performance and Availability...

From Requirements Management to Release with Git for Android System
From Requirements Management to Release with Git for Android System From Requirements Management to Release with Git for Android System
From Requirements Management to Release with Git for Android System

Getting to know us
Getting to know usGetting to know us
Getting to know us

Visualisation and forecasting on IT capacity planning data
Visualisation and forecasting on IT capacity planning dataVisualisation and forecasting on IT capacity planning data
Visualisation and forecasting on IT capacity planning data

Microsoft Business Intelligence Performance Management Dan Bulos_2011
Microsoft Business Intelligence Performance Management Dan Bulos_2011Microsoft Business Intelligence Performance Management Dan Bulos_2011
Microsoft Business Intelligence Performance Management Dan Bulos_2011


More from Mark Ginnebaugh

Automating Microsoft Power BI Creations 2015
Automating Microsoft Power BI Creations 2015Automating Microsoft Power BI Creations 2015
Automating Microsoft Power BI Creations 2015Mark Ginnebaugh

Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction
Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction
Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction Mark Ginnebaugh

Platfora - An Analytics Sandbox In A World Of Big Data
Platfora - An Analytics Sandbox In A World Of Big DataPlatfora - An Analytics Sandbox In A World Of Big Data
Platfora - An Analytics Sandbox In A World Of Big DataMark Ginnebaugh

Microsoft SQL Server Relational Databases and Primary Keys
Microsoft SQL Server Relational Databases and Primary KeysMicrosoft SQL Server Relational Databases and Primary Keys
Microsoft SQL Server Relational Databases and Primary KeysMark Ginnebaugh

DesignMind Microsoft Business Intelligence SQL Server
DesignMind Microsoft Business Intelligence SQL ServerDesignMind Microsoft Business Intelligence SQL Server
DesignMind Microsoft Business Intelligence SQL ServerMark Ginnebaugh

San Francisco Bay Area SQL Server July 2013 meetings
San Francisco Bay Area SQL Server July 2013 meetingsSan Francisco Bay Area SQL Server July 2013 meetings
San Francisco Bay Area SQL Server July 2013 meetingsMark Ginnebaugh

Silicon Valley SQL Server User Group June 2013
Silicon Valley SQL Server User Group June 2013Silicon Valley SQL Server User Group June 2013
Silicon Valley SQL Server User Group June 2013Mark Ginnebaugh

Microsoft SQL Server Continuous Integration
Microsoft SQL Server Continuous IntegrationMicrosoft SQL Server Continuous Integration
Microsoft SQL Server Continuous IntegrationMark Ginnebaugh

Hortonworks Big Data & Hadoop
Hortonworks Big Data & HadoopHortonworks Big Data & Hadoop
Hortonworks Big Data & HadoopMark Ginnebaugh

Microsoft SQL Server Physical Join Operators
Microsoft SQL Server Physical Join OperatorsMicrosoft SQL Server Physical Join Operators
Microsoft SQL Server Physical Join OperatorsMark Ginnebaugh

Microsoft PowerPivot & Power View in Excel 2013
Microsoft PowerPivot & Power View in Excel 2013Microsoft PowerPivot & Power View in Excel 2013
Microsoft PowerPivot & Power View in Excel 2013Mark Ginnebaugh

Microsoft Data Warehouse Business Intelligence Lifecycle - The Kimball Approach
Microsoft Data Warehouse Business Intelligence Lifecycle - The Kimball ApproachMicrosoft Data Warehouse Business Intelligence Lifecycle - The Kimball Approach
Microsoft Data Warehouse Business Intelligence Lifecycle - The Kimball ApproachMark Ginnebaugh

Fusion-io Memory Flash for Microsoft SQL Server 2012
Fusion-io Memory Flash for Microsoft SQL Server 2012Fusion-io Memory Flash for Microsoft SQL Server 2012
Fusion-io Memory Flash for Microsoft SQL Server 2012Mark Ginnebaugh

Microsoft Data Mining 2012
Microsoft Data Mining 2012Microsoft Data Mining 2012
Microsoft Data Mining 2012Mark Ginnebaugh

Microsoft SQL Server PASS News August 2012
Microsoft SQL Server PASS News August 2012Microsoft SQL Server PASS News August 2012
Microsoft SQL Server PASS News August 2012Mark Ginnebaugh

Microsoft Mobile Business Intelligence
Microsoft Mobile Business Intelligence Microsoft Mobile Business Intelligence
Microsoft Mobile Business Intelligence Mark Ginnebaugh

Microsoft SQL Server 2012 Cloud Ready
Microsoft SQL Server 2012 Cloud ReadyMicrosoft SQL Server 2012 Cloud Ready
Microsoft SQL Server 2012 Cloud ReadyMark Ginnebaugh

Microsoft SQL Server 2012 Master Data Services
Microsoft SQL Server 2012 Master Data ServicesMicrosoft SQL Server 2012 Master Data Services
Microsoft SQL Server 2012 Master Data ServicesMark Ginnebaugh

Microsoft SQL Server PowerPivot
Microsoft SQL Server PowerPivotMicrosoft SQL Server PowerPivot
Microsoft SQL Server PowerPivotMark Ginnebaugh

Microsoft SQL Server Testing Frameworks
Microsoft SQL Server Testing FrameworksMicrosoft SQL Server Testing Frameworks
Microsoft SQL Server Testing FrameworksMark Ginnebaugh


More from Mark Ginnebaugh (20)

Automating Microsoft Power BI Creations 2015
Automating Microsoft Power BI Creations 2015Automating Microsoft Power BI Creations 2015
Automating Microsoft Power BI Creations 2015

Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction
Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction
Microsoft SQL Server Analysis Services (SSAS) - A Practical Introduction

Platfora - An Analytics Sandbox In A World Of Big Data
Platfora - An Analytics Sandbox In A World Of Big DataPlatfora - An Analytics Sandbox In A World Of Big Data
Platfora - An Analytics Sandbox In A World Of Big Data

Microsoft SQL Server Relational Databases and Primary Keys
Microsoft SQL Server Relational Databases and Primary KeysMicrosoft SQL Server Relational Databases and Primary Keys
Microsoft SQL Server Relational Databases and Primary Keys

DesignMind Microsoft Business Intelligence SQL Server
DesignMind Microsoft Business Intelligence SQL ServerDesignMind Microsoft Business Intelligence SQL Server
DesignMind Microsoft Business Intelligence SQL Server

San Francisco Bay Area SQL Server July 2013 meetings
San Francisco Bay Area SQL Server July 2013 meetingsSan Francisco Bay Area SQL Server July 2013 meetings
San Francisco Bay Area SQL Server July 2013 meetings

Silicon Valley SQL Server User Group June 2013
Silicon Valley SQL Server User Group June 2013Silicon Valley SQL Server User Group June 2013
Silicon Valley SQL Server User Group June 2013

Microsoft SQL Server Continuous Integration
Microsoft SQL Server Continuous IntegrationMicrosoft SQL Server Continuous Integration
Microsoft SQL Server Continuous Integration

Hortonworks Big Data & Hadoop
Hortonworks Big Data & HadoopHortonworks Big Data & Hadoop
Hortonworks Big Data & Hadoop

Microsoft SQL Server Physical Join Operators
Microsoft SQL Server Physical Join OperatorsMicrosoft SQL Server Physical Join Operators
Microsoft SQL Server Physical Join Operators

Microsoft PowerPivot & Power View in Excel 2013
Microsoft PowerPivot & Power View in Excel 2013Microsoft PowerPivot & Power View in Excel 2013
Microsoft PowerPivot & Power View in Excel 2013

Microsoft Data Warehouse Business Intelligence Lifecycle - The Kimball Approach
Microsoft Data Warehouse Business Intelligence Lifecycle - The Kimball ApproachMicrosoft Data Warehouse Business Intelligence Lifecycle - The Kimball Approach
Microsoft Data Warehouse Business Intelligence Lifecycle - The Kimball Approach

Fusion-io Memory Flash for Microsoft SQL Server 2012
Fusion-io Memory Flash for Microsoft SQL Server 2012Fusion-io Memory Flash for Microsoft SQL Server 2012
Fusion-io Memory Flash for Microsoft SQL Server 2012

Microsoft Data Mining 2012
Microsoft Data Mining 2012Microsoft Data Mining 2012
Microsoft Data Mining 2012

Microsoft SQL Server PASS News August 2012
Microsoft SQL Server PASS News August 2012Microsoft SQL Server PASS News August 2012
Microsoft SQL Server PASS News August 2012

Microsoft Mobile Business Intelligence
Microsoft Mobile Business Intelligence Microsoft Mobile Business Intelligence
Microsoft Mobile Business Intelligence

Microsoft SQL Server 2012 Cloud Ready
Microsoft SQL Server 2012 Cloud ReadyMicrosoft SQL Server 2012 Cloud Ready
Microsoft SQL Server 2012 Cloud Ready

Microsoft SQL Server 2012 Master Data Services
Microsoft SQL Server 2012 Master Data ServicesMicrosoft SQL Server 2012 Master Data Services
Microsoft SQL Server 2012 Master Data Services

Microsoft SQL Server PowerPivot
Microsoft SQL Server PowerPivotMicrosoft SQL Server PowerPivot
Microsoft SQL Server PowerPivot

Microsoft SQL Server Testing Frameworks
Microsoft SQL Server Testing FrameworksMicrosoft SQL Server Testing Frameworks
Microsoft SQL Server Testing Frameworks


Recently uploaded

UiPath Studio Web workshop series - Day 6
UiPath Studio Web workshop series - Day 6UiPath Studio Web workshop series - Day 6
UiPath Studio Web workshop series - Day 6DianaGray10

Artificial Intelligence & SEO Trends for 2024
Artificial Intelligence & SEO Trends for 2024Artificial Intelligence & SEO Trends for 2024
Artificial Intelligence & SEO Trends for 2024D Cloud Solutions

IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019
IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019
IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019IES VE

AI You Can Trust - Ensuring Success with Data Integrity Webinar
AI You Can Trust - Ensuring Success with Data Integrity WebinarAI You Can Trust - Ensuring Success with Data Integrity Webinar
AI You Can Trust - Ensuring Success with Data Integrity WebinarPrecisely

COMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a WebsiteCOMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a Websitedgelyza

Bird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystemBird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystemAsko Soukka

NIST Cybersecurity Framework (CSF) 2.0 Workshop
NIST Cybersecurity Framework (CSF) 2.0 WorkshopNIST Cybersecurity Framework (CSF) 2.0 Workshop
NIST Cybersecurity Framework (CSF) 2.0 WorkshopBachir Benyammi

20230202 - Introduction to tis-py
20230202 - Introduction to tis-py20230202 - Introduction to tis-py
20230202 - Introduction to tis-pyJamie (Taka) Wang

Nanopower In Semiconductor Industry.pdf
Nanopower  In Semiconductor Industry.pdfNanopower  In Semiconductor Industry.pdf
Nanopower In Semiconductor Industry.pdfPedro Manuel

Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...DianaGray10

ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDEADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDELiveplex

Anypoint Code Builder , Google Pub sub connector and MuleSoft RPA
Anypoint Code Builder , Google Pub sub connector and MuleSoft RPAAnypoint Code Builder , Google Pub sub connector and MuleSoft RPA
Anypoint Code Builder , Google Pub sub connector and MuleSoft RPAshyamraj55

Designing A Time bound resource download URL
Designing A Time bound resource download URLDesigning A Time bound resource download URL
Designing A Time bound resource download URLRuncy Oommen

Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024SkyPlanner

Empowering Africa's Next Generation: The AI Leadership Blueprint
Empowering Africa's Next Generation: The AI Leadership BlueprintEmpowering Africa's Next Generation: The AI Leadership Blueprint
Empowering Africa's Next Generation: The AI Leadership BlueprintMahmoud Rabie

OpenShift Commons Paris - Choose Your Own Observability Adventure
OpenShift Commons Paris - Choose Your Own Observability AdventureOpenShift Commons Paris - Choose Your Own Observability Adventure
OpenShift Commons Paris - Choose Your Own Observability AdventureEric D. Schabell

UiPath Platform: The Backend Engine Powering Your Automation - Session 1
UiPath Platform: The Backend Engine Powering Your Automation - Session 1UiPath Platform: The Backend Engine Powering Your Automation - Session 1
UiPath Platform: The Backend Engine Powering Your Automation - Session 1DianaGray10

IaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdf
IaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdfIaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdf
IaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdfDaniel Santiago Silva Capera

Meet the new FSP 3000 M-Flex800™
Meet the new FSP 3000 M-Flex800™Meet the new FSP 3000 M-Flex800™
Meet the new FSP 3000 M-Flex800™Adtran


Recently uploaded (20)

UiPath Studio Web workshop series - Day 6
UiPath Studio Web workshop series - Day 6UiPath Studio Web workshop series - Day 6
UiPath Studio Web workshop series - Day 6

Artificial Intelligence & SEO Trends for 2024
Artificial Intelligence & SEO Trends for 2024Artificial Intelligence & SEO Trends for 2024
Artificial Intelligence & SEO Trends for 2024

IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019
IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019
IESVE Software for Florida Code Compliance Using ASHRAE 90.1-2019

AI You Can Trust - Ensuring Success with Data Integrity Webinar
AI You Can Trust - Ensuring Success with Data Integrity WebinarAI You Can Trust - Ensuring Success with Data Integrity Webinar
AI You Can Trust - Ensuring Success with Data Integrity Webinar

COMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a WebsiteCOMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a Website

Bird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystemBird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystem

NIST Cybersecurity Framework (CSF) 2.0 Workshop
NIST Cybersecurity Framework (CSF) 2.0 WorkshopNIST Cybersecurity Framework (CSF) 2.0 Workshop
NIST Cybersecurity Framework (CSF) 2.0 Workshop

20230202 - Introduction to tis-py
20230202 - Introduction to tis-py20230202 - Introduction to tis-py
20230202 - Introduction to tis-py

Nanopower In Semiconductor Industry.pdf
Nanopower  In Semiconductor Industry.pdfNanopower  In Semiconductor Industry.pdf
Nanopower In Semiconductor Industry.pdf

Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...

ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDEADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE

Anypoint Code Builder , Google Pub sub connector and MuleSoft RPA
Anypoint Code Builder , Google Pub sub connector and MuleSoft RPAAnypoint Code Builder , Google Pub sub connector and MuleSoft RPA
Anypoint Code Builder , Google Pub sub connector and MuleSoft RPA

20230104 - machine vision
20230104 - machine vision20230104 - machine vision
20230104 - machine vision

Designing A Time bound resource download URL
Designing A Time bound resource download URLDesigning A Time bound resource download URL
Designing A Time bound resource download URL

Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024

Empowering Africa's Next Generation: The AI Leadership Blueprint
Empowering Africa's Next Generation: The AI Leadership BlueprintEmpowering Africa's Next Generation: The AI Leadership Blueprint
Empowering Africa's Next Generation: The AI Leadership Blueprint

OpenShift Commons Paris - Choose Your Own Observability Adventure
OpenShift Commons Paris - Choose Your Own Observability AdventureOpenShift Commons Paris - Choose Your Own Observability Adventure
OpenShift Commons Paris - Choose Your Own Observability Adventure

UiPath Platform: The Backend Engine Powering Your Automation - Session 1
UiPath Platform: The Backend Engine Powering Your Automation - Session 1UiPath Platform: The Backend Engine Powering Your Automation - Session 1
UiPath Platform: The Backend Engine Powering Your Automation - Session 1

IaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdf
IaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdfIaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdf
IaC & GitOps in a Nutshell - a FridayInANuthshell Episode.pdf

Meet the new FSP 3000 M-Flex800™
Meet the new FSP 3000 M-Flex800™Meet the new FSP 3000 M-Flex800™
Meet the new FSP 3000 M-Flex800™


Business Intelligence Dashboard Design Best Practices

  • 1. Dashboard Design Best Practices Speaker: Dan Bulos Symmetry Corporation July 2012
  • 2. Best Practices in Dashboard Design Dan Bulos – bulos@symcorp.com ©2012 Symmetry Corporation http://www.symcorp.com
  • 3. Agenda What is a Dashboard? Dashboard Best Practices Dashboard Components Navigation ©2012 Symmetry Corporation http://www.symcorp.com
  • 4. Metaphors Go Only So Far Monitors a Continuous Process At a Gauge Glance Oriented ©2012 Symmetry Corporation http://www.symcorp.com
  • 5. Reporting Spectrum Managed Dashboards Analysis Tables, Crosstabs, Charts, Graphs P Customization Ease of Depth & D r & Distribution Development Quickness i o Alternatives & Usage of Analytics s d Paramount Parameter Interactive c u Driven Navigation o c v t Highly Formatted Advanced e i Visualization r o Guided Analytics y n Programmer Line Staff Developed Developed Developed ©2012 Symmetry Corporation http://www.symcorp.com
  • 6. Dashboard Definition Visual Display of the most important information needed to achieve one or more objectives which fits entirely on a single computer screen so it can be monitored at a glance Information Dashboard Design By Stephen Few ©2012 Symmetry Corporation http://www.symcorp.com
  • 7. What Makes a Good Dashboard Some are Better Than Others ©2012 Symmetry Corporation http://www.symcorp.com
  • 8. Dashboard - Best Practices Key Data/Metrics In Context Dense Zero Information Learning Not Curve Cluttered Single Page Graphically Oriented Access to Highlight Supporting Exceptions Details ©2012 Symmetry Corporation http://www.symcorp.com
  • 9. General Design Considerations “Single Page” “Graphical” No Scrolling Displays Patterns Nothing Hidden Abstract Data Linked Content Better Minimal Grids Dashboard All Relevant Info Design Domain Aware One Place to Look Leverages Not Data Driven Knowledge “Disparate Data” “Guided Analytics” ©2012 Symmetry Corporation http://www.symcorp.com
  • 10. Key Data/Metrics in Context Key Data/Metrics ▪ High level performance metrics ▪ Generally tied to goals and bonuses ▪ Focus on actionable data ▪ Disparate sources Context ▪ The 3Ts = Target, Trend, Typical ▪ Similar/Related Data/Metrics ▪ Basis for interpretation ©2012 Symmetry Corporation http://www.symcorp.com
  • 11. Dense, not Cluttered Dense Information ▪ All relevant data/metrics ▪ Different perspectives Not Cluttered – “At a Glance” ▪ It is not how much, but how well ▪ Easy to view, not an eye chart Data-Ink Ratio ( ) The Visual Display of Quantitative Information Edward R. Tufte ▪ Non-essential ink should be removed ▪ Supporting ink (axis lines) = low visual impact ©2012 Symmetry Corporation http://www.symcorp.com
  • 12. Zero Learning Curve Dashboard viewing is not a person’s job ▪ Oriented at casual users, line mgt, & execs ▪ Little/No accumulated experience ● Each viewing is the first time Dashboards are not analytical tools ▪ But they provide guided analytics Targeted to a Person/Role/Problem Set ©2012 Symmetry Corporation http://www.symcorp.com
  • 13. Exception Oriented Outliers should POP out Visual Cues Highlight Both Color ▪ Problems Size ▪ Opportunities Shape Boldness What is an Exception? Position ▪ > 1 Std Dev, 2…. Five9s Icons ▪ When action needs be taken ©2012 Symmetry Corporation http://www.symcorp.com
  • 14. Supporting Detail Dashboards are not an Associated end unto themselves Layers Guided Contextual Analytics Update Content Updates Dashboard Webparts Links to New Pages Hierarchical Drill-Down Root Cause Analysis Ad Hoc Analysis Detail Reports ©2012 Symmetry Corporation http://www.symcorp.com
  • 15. Dashboard Components Scorecards Diagrams Grids Charts Gauges Maps Tree Map Decomp Tree And So Much More…… ©2012 Symmetry Corporation http://www.symcorp.com
  • 16. First a Word on Color Use Color Sparingly – Generally Soft Colors ▪ Highlighting – Bold Colors Different Colors = Different Meaning ▪ Try shades of grey Use a Single Hue ▪ Increase the intensity for low to high values Remember - 7% of men are color blind A dashboard is not a painting Usefulness is Paramount ©2012 Symmetry Corporation http://www.symcorp.com
  • 17. Grids When to use: ▪ Values are familiar ▪ Need to lookup a value ▪ Small differences are important ▪ Mixed units of measure Design Considerations ▪ Try to keep square-ish ▪ Comparisons are done by column ▪ Limit length with Top/Bottom ©2012 Symmetry Corporation http://www.symcorp.com
  • 18. Grid Embellishments Highlights ▪ Items of interest Data Bars ▪ Helpful to read magnitude Color Scales/Icons Icons are best used to: ▪ Can overwhelm the data Arrows Replace data to save space ▪ Used for change over time Show variance or score ©2012 Symmetry Corporation http://www.symcorp.com
  • 19. Scorecards Are a special type of grid ▪ Created for KPIs and Objectives Can be methodology oriented ▪ Balanced Scorecard, 6 Sigma, … Used as a navigation aid ▪ A list with data Scorecards are less about data and more about process ©2012 Symmetry Corporation http://www.symcorp.com
  • 20. Basic Charts Lines Charts – Time Series oriented ▪ Highlights trend, patterns or variability ▪ Highlights relationships between series ▪ Trend lines & projections can be added Bar Chart – Comparison Oriented ▪ Categorical comparisons within a dimension ▪ Nominal comparisons across data (sales to cost) Pie Charts – Part to Whole ▪ Only works with small sets ▪ Hard to visually quantify ▪ A lot of space for not much data ©2012 Symmetry Corporation http://www.symcorp.com
  • 21. Interlude: Form vs. Function If the dashboard is not visually appealing, people will not go to it 1 Page – 6#s If the dashboard is not effective and practical, people will not use it Pretty Yes! Useful? What is fun the first time Might be boring the 100th time Too Dense? ©2012 Symmetry Corporation http://www.symcorp.com
  • 22. Bar Charts Horizontal ▪ Long labels ▪ Pattern comparisons ▪ Long-ish lists Vertical ▪ Groups with in groups ▪ Stacked and 100% Bars ▪ Pareto Charts Doesn’t work for large numbers of groups Bars are easily drilled into ©2012 Symmetry Corporation http://www.symcorp.com
  • 23. Hybrids – Charts in Grids Effective Great Mixing Of Data-Ink Charts & Ratio Values Introduction of Sparklines & Bullet Graphs ©2012 Symmetry Corporation http://www.symcorp.com
  • 24. Bullet Graphs A bullet graph is a variation of a bar graph developed by Stephen Few. Seemingly inspired by the traditional thermometer charts and progress bars found in many dashboards, the bullet graph serves as a replacement for Symmetry’s dashboard gauges and meters Variation Sales Costs Black Bar = Value Green/Red Bar = Target Blue Pointer = Last Year ©2012 Symmetry Corporation http://www.symcorp.com
  • 25. Maps Useful in showing regional components Maps are great for demographics Maps are highly specialized Impact grids can be effective Be careful of charts within a map ©2012 Symmetry Corporation http://www.symcorp.com
  • 26. Gauges When using a set of Hard to set gauge scale gauges expected value for the general case should be straight up Best for continuous process Poor Data-Ink Ratio ©2012 Symmetry Corporation http://www.symcorp.com
  • 27. Diagrams Balanced Process Diagram Scorecard Strategy Map Diagrams are underutilized Graphical Representations Impact Diagram Root Cause/Fishbone Diagram ©2012 Symmetry Corporation http://www.symcorp.com
  • 28. Graphical Excellence Show the data Focus on the substance of the numbers Don’t distort the data Present many numbers in a small space Encourage comparisons Show data in several perspectives The Visual Display of Quantitative Information Edward R. Tufte ©2012 Symmetry Corporation http://www.symcorp.com
  • 29. Screen Layout Number of Frames ▪ Up to 4 is good, no more than 6 Frame Proportions ▪ Size = implied importance ▪ Uniform otherwise Location ▪ Top left = primary focus ▪ Bottom right = supporting detail ▪ Off page = irrelevant Printing ▪ The dirty little secret ©2012 Symmetry Corporation http://www.symcorp.com
  • 30. Frame Options Different frame on same page ▪ Must fit on the page ▪ Can drill from here to new page New page in same browser ▪ Easy to get back ▪ Full page available New browser tab/window ▪ Allows for comparisons ▪ Users must close windows/tabs ©2012 Symmetry Corporation http://www.symcorp.com
  • 31. Navigation Framework A tiered set of dashboards based on role or function A set of grids, graphs, or visualizations that examine a single metric A set of detailed reports or ad-hoc analytics ©2012 Symmetry Corporation http://www.symcorp.com
  • 32. Navigation Identify the key dimensions for the metric ▪ Customer, product, department ▪ Drill into one or more of these ▪ Top 10 rankings Identify the audience ▪ Marketing manager – Drill to product ▪ Sales Manager – Drill to customer ©2012 Symmetry Corporation http://www.symcorp.com
  • 33. Navigation - What to Show ©2012 Symmetry Corporation http://www.symcorp.com
  • 34. Microsoft Software Components Reporting Services ▪ Formal report view ▪ Highly formatted Performance Point Server ▪ Analytical Charts and Graphs ▪ Less control over format ▪ Built in Slice and Dice Excel Services ▪ Shared user-created content ▪ Fast changing ©2012 Symmetry Corporation http://www.symcorp.com
  • 35. Summary Choose the right tool for the job Simple is better Conserve your screen real estate Use color to highlight Put focus on the data not the decoration ©2012 Symmetry Corporation http://www.symcorp.com
  • 36. Symmetry Founded in 1986 Experienced Consultants ▪ Each with over 15 years of BI experience Microsoft Relationship ▪ Gold Certified Partner ▪ Microsoft-nominated BI Partner Advisory Council member since 1999 ▪ Licensed Technology to Microsoft ▫ SQL Server Accelerator for BI ▪ Internal Microsoft Consulting ▫ SQL Server ▫ PerformancePoint Server ▫ Internal departmental BI application development ©2012 Symmetry Corporation http://www.symcorp.com
  • 37. Resources ▪ Show Me the Numbers: Designing Tables and Graphs to Enlighten ● Stephen Few ▪ Information Dashboard Design: The Effective Visual Communication of Data ● Stephen Few ▪ The Visual Display of Quantitative Information, 2nd edition ● Edward R. Tufte http://www.perceptualedge.com/ http://dashboardspy.com/ Symmetry Corp – www.symcorp.com ©2012 Symmetry Corporation http://www.symcorp.com
  • 38. To learn more or attend a meeting: www.bayareamicrosoftbi.org To inquire about sponsorship or speaking opportunities: Mark Ginnebaugh, User Group Leader mark@designmind.com
